VANRAY New launched led 600w profile moving head with cmy and cto

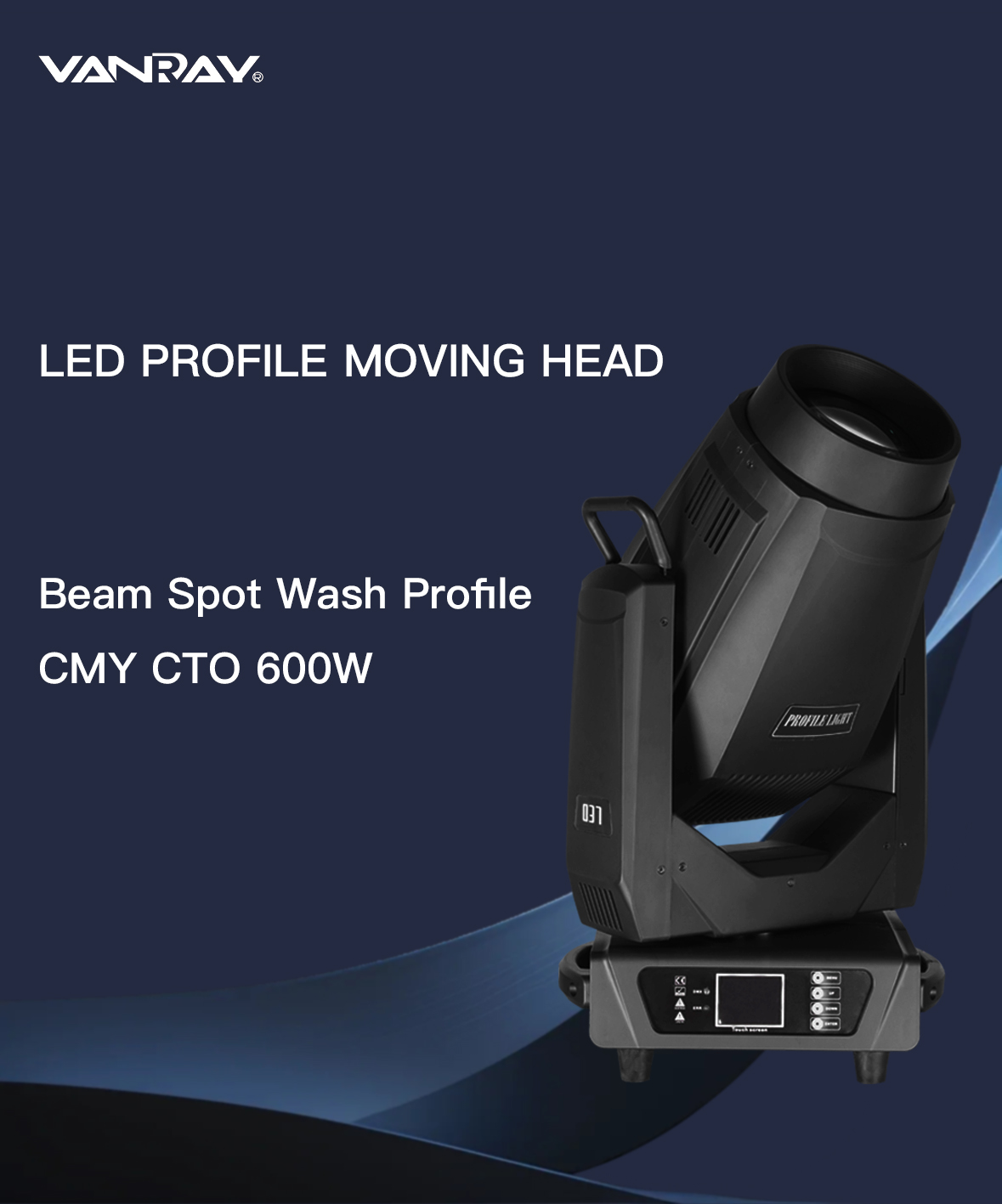

LED profile moving head VR-600Q

Voltage: AC100V-240V, 50/60Hz.

Rated power: 650W

Light source: 1 high-brightness, high-power 600W white LED module.

Light source lifespan: 20,000 hours.

Spot uniformity: 90%.

Beam angle: 3°-40°, variable focus lens, linear zoom in and out function.

Control channels: 35 international standard DMX512 channels.

Operation modes: Sound control, self-run, master-slave, DMX512, RDM.

CMY color mixing: Cyan, magenta, yellow, smooth and seamless continuous color mixing.

CTO color temperature linear adjustment, 3000K-6500K.

Color wheel 1: 4 colors + white light, half-color effect.

Color wheel 2: 4 colors + white light, half-color effect.

Color filters can be positioned freely, with a two-way rotating rainbow effect.

2 gobo wheels:

Fixed gobo wheel: 11 fixed gobo patterns + flame effect + white light, with gobo jitter function.

Rotating gobo wheel: 6 insertable rotating gobo patterns + water ripple effect + white light, with gobo jitter and gobo positioning function.

Cutting wheel: A set of 4 controllable cutting blades for spot angle control, the entire cutting system can rotate 150°. Through precise control of the cutting blades, any shape of spot can be created.

Prisms: 2 prisms, 1 3-sided prism and 1 8-sided prism, prisms can rotate in both directions, can be stacked, speed adjustable.

Focusing: DMX linear high-definition focusing, 2 meters to infinity clarity adjustment.

Fogging: Built-in fogging lens for softening effect adjustment.

Strobe: 1-25 times/second ultra-high-speed strobe effect, random strobe and pulse strobe can be selected.

Dimming: 0-100% linear dimming.

Aperture: 5% to 100% smooth adjustment.

Horizontal/Vertical: Horizontal 540°, vertical 270°, 16-bit precision scanning, with automatic return correction function.

Display: LCD display.

Software: Built-in programs available for selection.

Functions such as changing DMX address code, machine reset, and sound control mode conversion can be completed from the control console.

Other functions: RDM function.

Intelligent energy saving, when the light is off (dimmer fully off), the LED light source will automatically turn off.

External dimensions: L385×W280×H700mm

Net weight: 25.5kg
