LP-1515Z — 200W IP65 Waterproof Zoom LED Par Light
The LP-1515Z is a 200W IP65-rated waterproof zoom wash par light using 15 individual 15W 4-in-1 RGBW chips. The 15-chip array produces smooth, even color distribution across the beam — the higher chip count compared to single-source zoom pars reduces color separation at typical throw distances and improves uniformity when illuminating wide surfaces. The motorized 6°–60° zoom is fully DMX-addressable in 11-channel mode, with 8 built-in effect programs accessible via DMX console or standalone operation.
At 7.5kg in a 350×240×343mm housing rated IP65 under IEC 60529, the LP-1515Z balances output capability with portability for rental companies operating across multiple events per week.
VANRAY LED Waterproof Zoom Wash Par Light LP-1515Z Parameters
| Name | LED waterproof zoom wash par light | Type number | LP-1515Z |
| Power supply voltage | AC100V-240V, 50/60Hz | Power rate | 200W |
| Light source | 15pcs 15W 4-in-1 RGBW | Color | RGBW mix |
| Optical lens | 6-60 degree zoom | Channel | 11CH |
| Control mode | DMX-512 control operation, master-slave mode, single-machine mode | Dimming | 0-100% |
| Display | Four-digit eight-segment digital tube | Stroboscopic |
Electronic stroboscopic 1-25fps/ SEC, random stroboscopic, beat in sequence, variable speed stroboscopic (from slow to fast), mixed stroboscopic (stroboscopic + background color, stroboscopic + gradient) |
| Heat dissipation | Convection cooling through high-quality die-cast aluminum fins | Protection class | IP65 |
| Lamp body size | 350*240*343mm | Lamp weight | 7.5 kg |
VANRAY LED Waterproof Zoom Wash Par Light LP-1515Z Features and Benefits
◐ 15×15W RGBW 4-in-1 array: Higher chip count than single-source zoom pars produces smoother, more uniform color mixing at typical stage throw distances.
◐Motorized 6°–60° zoom, 11CH DMX: Full parameter control including zoom, color mix, strobe, and dimming from a single 11CH footprint.
◐ IP65 under IEC 60529: Dust-tight, waterjet-protected for year-round outdoor deployment without additional weather covers.
◐ 8 built-in effects: Selectable via DMX console or in standalone mode, enabling automated operation without a dedicated lighting programmer.
◐ Compact 7.5kg format: Practical for rental companies loading and unloading rigs multiple times per week.

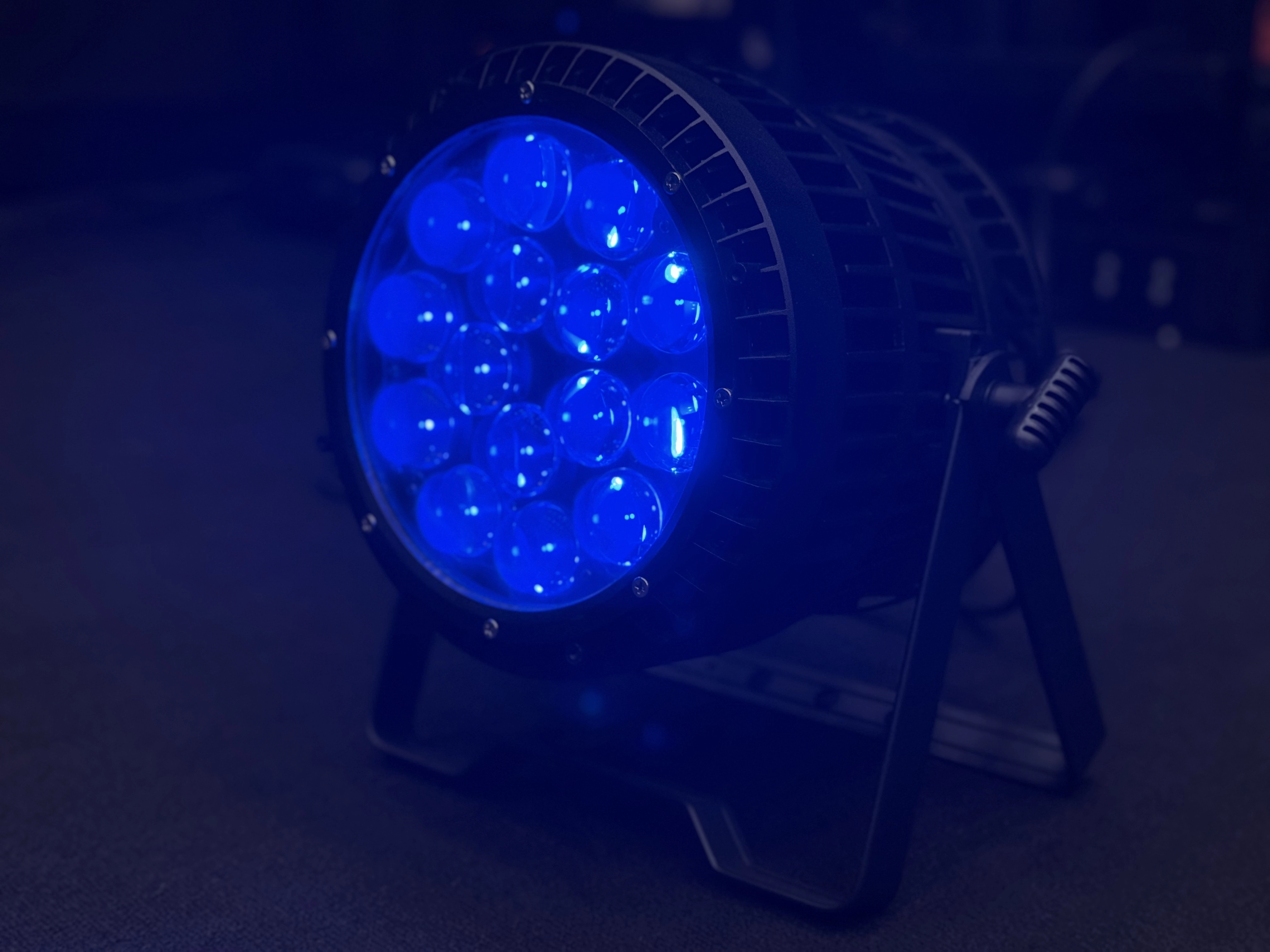

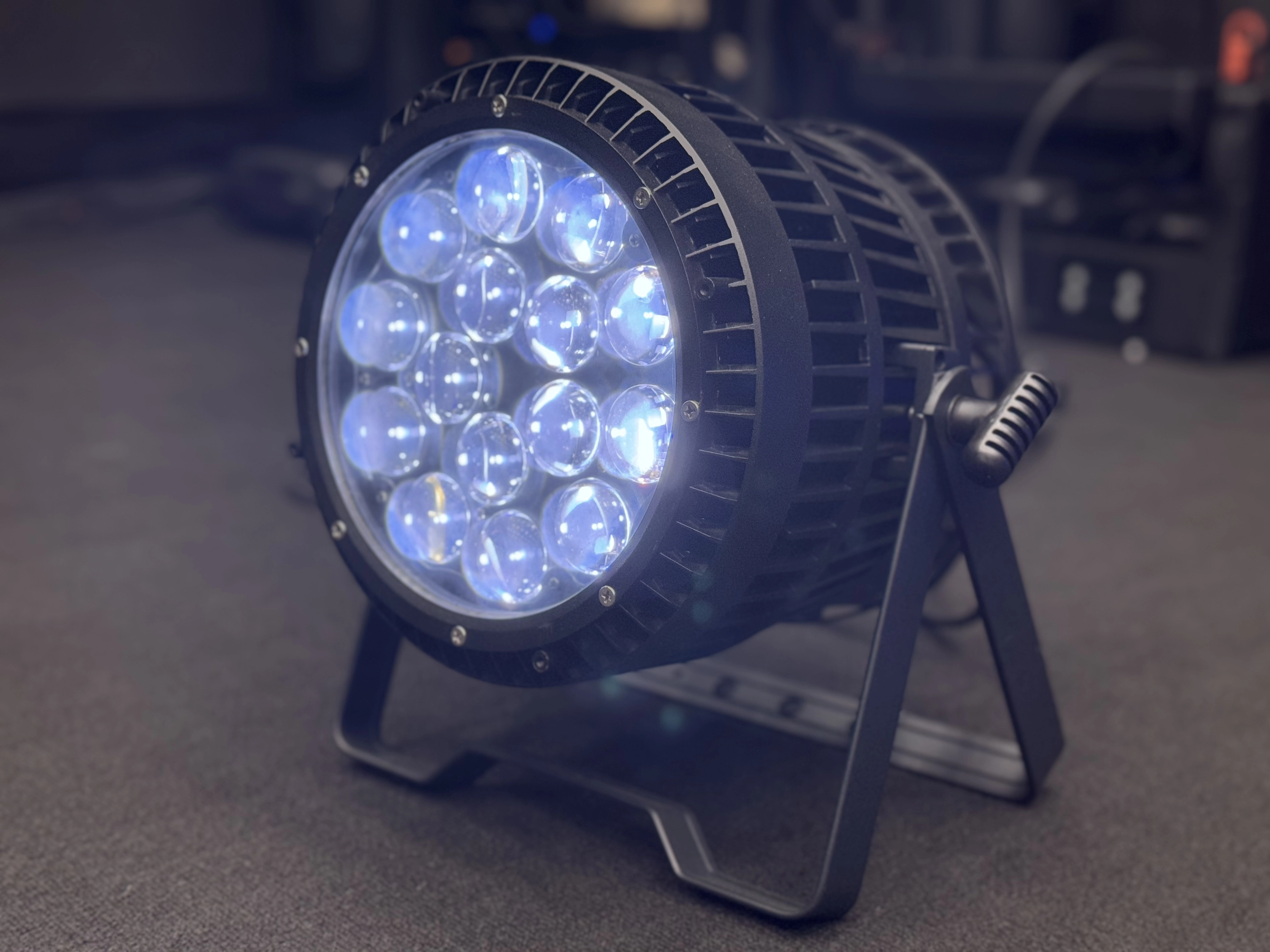

VANRAY LED Waterproof Zoom Wash Par Light LP-1515Z Effect Pictures
VANRAY LED Waterproof Zoom Wash Par Light LP-1515Z Applications
The VANRAY LP-1515Z is an IP65-rated waterproof LED par light combining a 15-chip RGBW array with a wide 6–60° zoom — making it a highly versatile choice for both permanent outdoor installations and professional event production.
◐ Outdoor concerts and live music events
IP65 protection allows deployment on exposed outdoor truss and stage floor positions. The 15-chip array produces even coverage for medium-throw outdoor wash positions, while the zoom range accommodates varying truss heights and throw distances across different touring venues.
◐ Weddings and outdoor ceremonies
Standalone operation with 8 built-in effects allows color wash programming without dedicated console expertise. Silent fan cooling keeps the fixture appropriate for ceremony environments. IP65 handles outdoor weather without compromising equipment.
◐ Theater and performing arts
For smaller theater productions requiring RGBW wash and cyclorama lighting, the LP-1515Z's 15-chip uniformity provides consistent color across wide stage surfaces. The compact housing fits truss and boom positions with limited space.
◐ Event rental inventory
The combination of IP65 protection and motorized zoom allows a single fixture model to serve both indoor and outdoor event bookings, improving inventory utilization for rental companies.
VANRAY LED Waterproof Zoom Wash Par Light LP-1515Z Installation & Maintenance
-
Installation Notes
- 1. In 11CH mode, confirm zoom channel assignment in your console's fixture library before programming. Zoom is on channel 9 in the standard 11CH configuration.
- 2. Orient fixture to allow natural drainage from lens and connector panel when deployed outdoors.
- 3. Fit waterproof blanking caps on all unused ports when used in outdoor positions.
Buyer's Guide
LP-1515Z is the right choice when:
- · IP65 outdoor protection plus DMX zoom is required in a compact, lighter format
- · Smoother beam uniformity from a higher chip count is preferred over maximum per-chip punch
- · 11CH full parameter control with built-in effects is needed
Consider alternatives when:
- · Higher output for longer throw distances: LP-740Z (7×40W, 280W, IP65, RDM)
- · Fanless silent operation: LP-418 (18×10W, IP65, passive cooling)
- · Indoor only: LP-200ZC (same zoom range, IP20, 6kg)
faqs
1. What is the difference between LP-1515Z and LP-740Z?
Both are IP65 waterproof zoom pars with 6°–60° zoom. LP-1515Z: 15×15W chips, 200W total, 11CH, smoother beam uniformity from higher chip count. LP-740Z: 7×40W chips, 280W total, 9CH, RDM support, higher per-chip wattage for longer throw punch. Choose LP-1515Z for beam uniformity and built-in effects; LP-740Z for maximum output, RDM, and long-throw applications.
2. Does the LP-1515Z have pixel control capability?
The LP-1515Z includes 8 built-in effects accessible via DMX in 11CH mode, including zone-based control across the chip array. For full individual per-chip pixel control (each chip addressed independently), specify the LP-420B instead.
3. How many LP-1515Z units are needed to wash a standard 8-meter wide stage backdrop?
This depends on throw distance and required uniformity. As a starting point: three units with 6°–60° zoom set to 45°–50° at a 5–6m throw covers an 8m wide backdrop with adequate uniformity. For precise planning, request IES photometric data and run a DIALux simulation with your actual geometry.
4. Can the LP-1515Z run without a DMX console?
Yes. Standalone mode activates built-in effect programs automatically at power-on. Master-slave mode syncs multiple units to one master unit without a console. Full parameter control and zoom adjustment require a DMX console in 11CH mode.
LP-200Z — 200W IP65 RGBW Zoom Wash Par Light
The LP-200Z is a 200W IP65-rated waterproof zoom wash par light — the entry-level zoom model in the VANRAY IP65 par range. A single 200W RGBW 4-in-1 LED source combined with a motorized 6°–60° zoom delivers beam flexibility from narrow spot to wide flood, while IP65 sealing under IEC 60529 enables full outdoor deployment in rain and high humidity.
At 8.5kg in a 365×280×230mm housing, the LP-200Z is slightly heavier than the indoor LP-200ZC (6kg) due to the sealed weatherproof housing. The intelligent silent fan maintains thermal performance during continuous operation.
The LP-200Z occupies a distinct position among the IP65 zoom par models: compared to the LP-740Z (7×40W, 280W) and LP-1515Z (15×15W, 200W), the LP-200Z uses a single-source LED configuration producing a different beam character — a single-source spot profile rather than the distributed multi-chip array pattern. This makes the LP-200Z appropriate when a single-source beam aesthetic is preferred over multi-chip wash character.
LP-1203 — 350W IP65 Outdoor LED Par Wash
The LP-1203 is the IP65 outdoor version of the 120×3W high-output LED par wash — the highest output IP65 fixture in the VANRAY par range at 350W with 120 individual 3W LEDs. IP65 sealing under IEC 60529 covers permanent outdoor architectural lighting, festival main stages, and large-scale outdoor event production. Available as LP-1203 (120×3W, 350W) and LP-903 (90×3W, approx. 270W) sharing the same IP65 housing and lens options. At 14kg in a 420×242×360mm housing, appropriate rigging hardware and weight-rated mounting are required.
LT-1083 — 300W 108×3W RGBW LED Wash Par
The LT-1083 is a 300W high-output indoor LED wash par built around 108 individual 3W LEDs in a RGBW configuration of 27 chips per color channel. This large-array architecture produces exceptionally smooth, even color mixing across the 60° beam — the high per-channel chip count eliminates the color banding artifacts common in lower chip-count fixtures, most visibly when illuminating cycloramas and wide backdrop surfaces at short to medium throw distances.
The simple 8-channel DMX footprint is universally compatible with professional and semi-professional consoles without requiring additional universe capacity. At 5kg in a 500×220×120mm flat panel format, the LT-1083 suits floor mounting, truss uplight, or bracket installation in theaters, studios, and event spaces.
LP-418 — 180W IP65 Fanless LED Par Light
The LP-418 delivers a combination that very few fixtures achieve simultaneously: full IP65 weatherproof protection and completely fanless passive cooling. The die-cast aluminum fin structure manages heat entirely through convection — no fan, no moving parts in the cooling system, zero mechanical noise. This makes the LP-418 the correct specification for outdoor environments where both weather resistance and acoustic cleanliness are required at the same time: outdoor wedding ceremonies, open-air theatrical performances, outdoor broadcast recording, and worship events.
Powered by 18 individual 10W 4-in-1 RGBW chips at 180W total, the LP-418 produces smooth RGBW color wash through a 31mm diameter lens. IP65 protection is rated under IEC 60529. Available as LP-418, LP-518, and LP-618 variants with different chip configurations for buyers requiring specific color system options.
