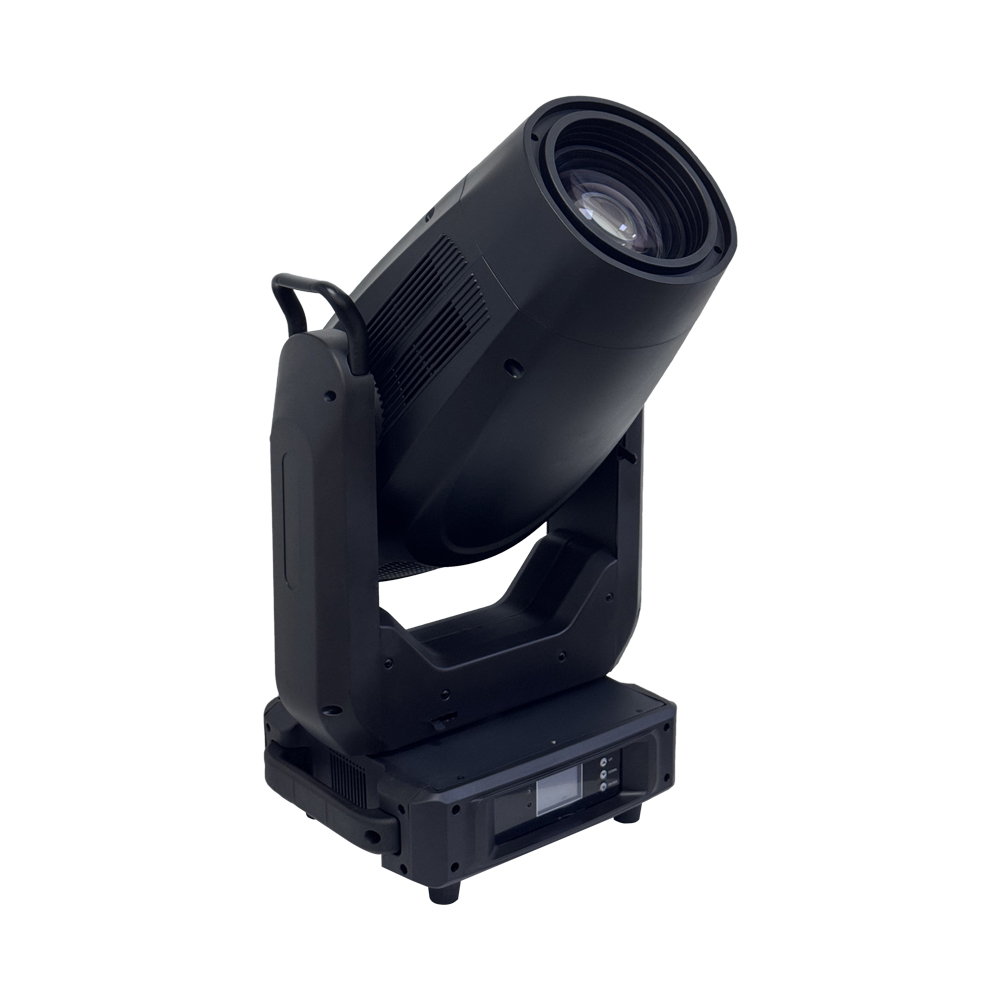

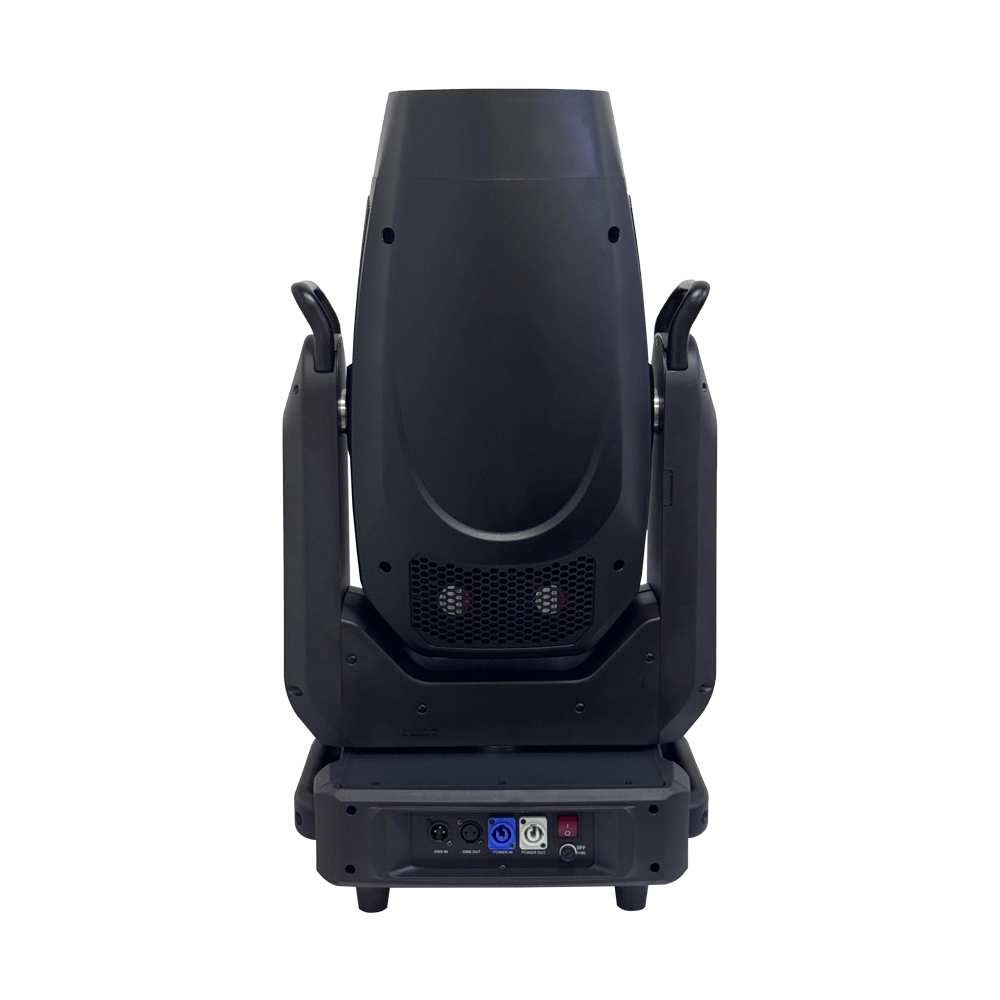

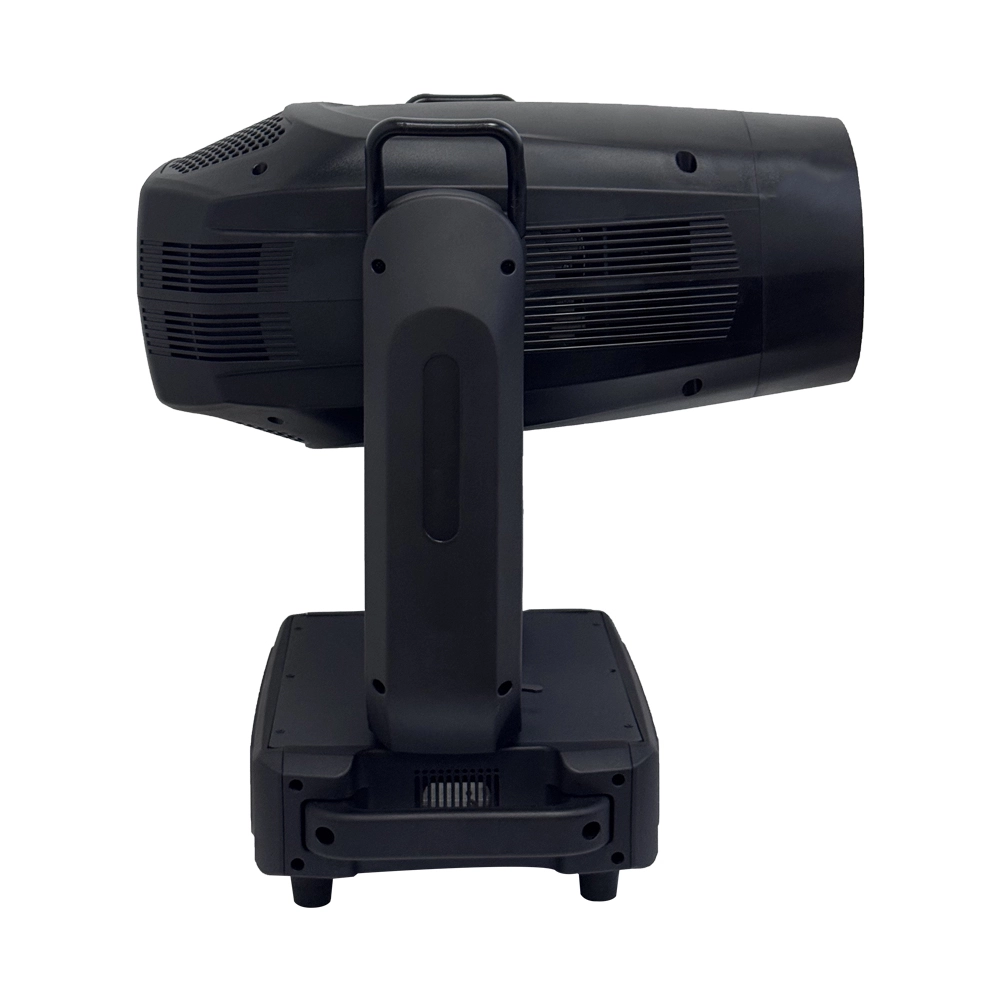

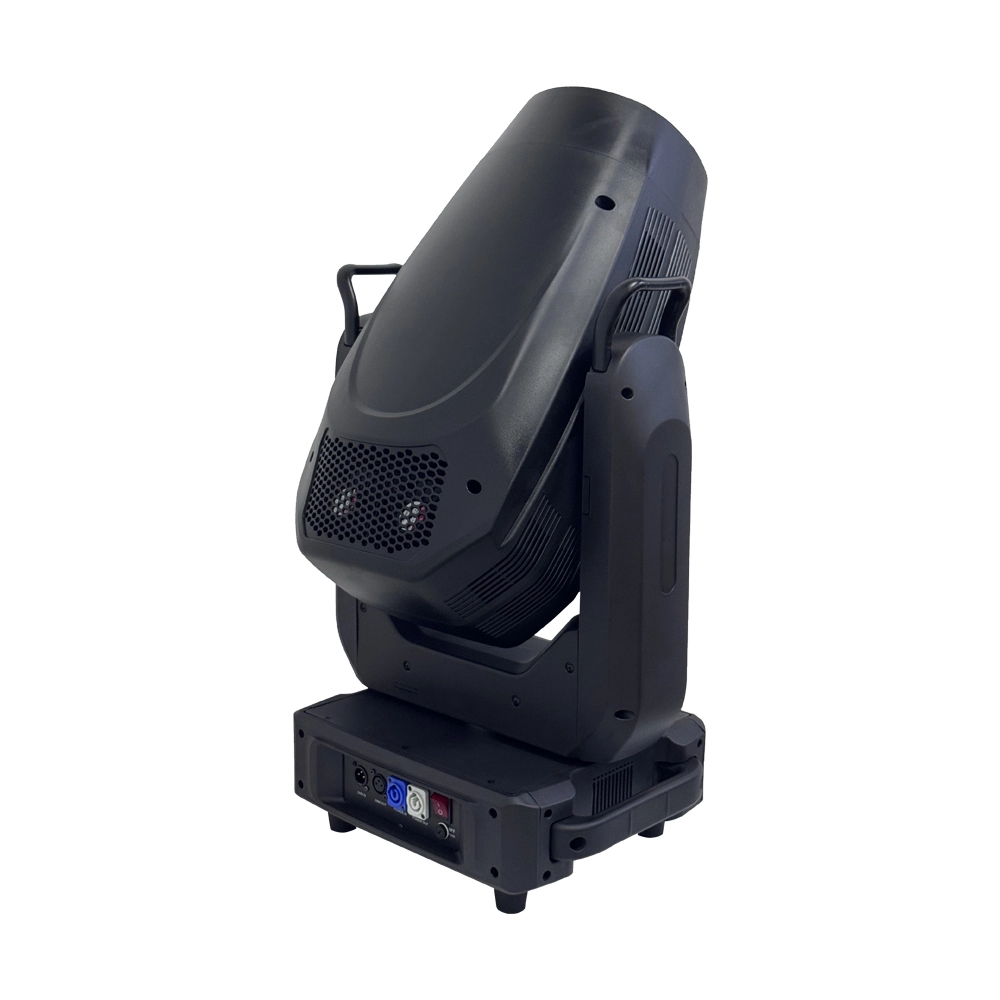

VANRAY LED 1200W Profile Moving Head VR-1200Q Powerful LED Module Frame
VANRAY LED 1200W Profile Moving Head VR-1200Q — Vanray's powerful LED module frame delivers crisp profiles, smooth zoom and spot effects. A hybrid led moving head and led profile moving head light for stage, touring and broadcast.
VANRAY LED Profile Moving Head VR-1200Q Parameters
| Name | LED profile moving head light | Model | VR-1200Q |
| Input voltage | AC100-240V,50/60Hz | Power rate | 1250W |
| Light source | LED Energy-saving Module 1200W | Luminous flux | 24000LM |
| CTO Color temperature | 7200K | Color rendering index | Standard mode Ra>75, high display mode Ra>90 |
| Channels | 36 international standard DMX512 channels | CMY color mixing | Independent CMY Color Mixing System |
| Control mode | DMX512, RDM | Display system | 2.5-inch touch LCD screen, Chinese and English display |
| Color temperature adjustment | Independent CTO 2800-6000K linear adjustment | Colors | 7 colors + white light |
| Dynamic effects | Super Cool simulated dynamic movements such as flames and flowing water， etc. | Working environment | 0-45℃ |
| Rotating gobo wheel | 7 rotation gobos ， outer diameter 27.9mm， effective diameter 16.5mm， thickness 1.1mm | Prism | 2 prisms, 1 3-sided prism and 1 8-sided prism, prisms can rotate in both directions, can be stacked, speed adjustable. |
| Cutting wheel | Independent Cutting Blades， can be rotated 90 degrees | Fixed gobo wheel |
8 Fixed gobos + white circle |
| Aperture System | Smooth Adjustment 5% - 100% | Fogging | Linear Fogging 0-100% |
| Strobe | Frequency can reach up to 25Hz， and random strobe and pulse strobe can be selected | Four-in-One Optical Lens Design | (BEAM Beam Mode)： 1.8° - 6°； (SPOT Pattern Mode)： 8° - 50°； (WASH Dyeing Mode)： 0° - 55°； Four modes can be switched freely to achieve the four-in-one functions of beam， dyeing， pattern， and cutting. |
| Dimming system | 0-100% linear adjustment | Horizontal scan | 540° (16-bit precision scan) |
| Vertical scan | 270° (16-bit precision scan) | IP rating | IP20 |
| Net weight | 37kgs | Product size | 450*350W*800H (mm) |
VANRAY LED Profile Moving Head VR-1200Q Features and Benefits
◐ High brightness LED light source: 1200W LED light source, providing strong light, dyeing, pattern, cutting effect, to ensure that every performance can attract the audience's attention.
◐ (BEAM Beam Mode)： 1.8° - 6°； (SPOT Pattern Mode)： 8° - 50°； (WASH Dyeing Mode)： 0° - 55°； Four modes can be switched freely to achieve the four-in-one functions of beam， dyeing， pattern， and cutting.
◐ Cutting wheel: Independent Cutting Blades， can be rotated 90 degrees
◐ Prisms: 2 prisms, 1 3-sided prism and 1 8-sided prism, prisms can rotate in both directions, can be stacked, speed adjustable.
◐ Use a sufficient power PFC power supply.
◐ The use of a lead-free environmental protection fan, low power consumption, long life, and large air volume.
◐ The internal electronic wire of the lamp uses high-temperature, cold-resistant, wear-resistant, and anti-corrosion wire.

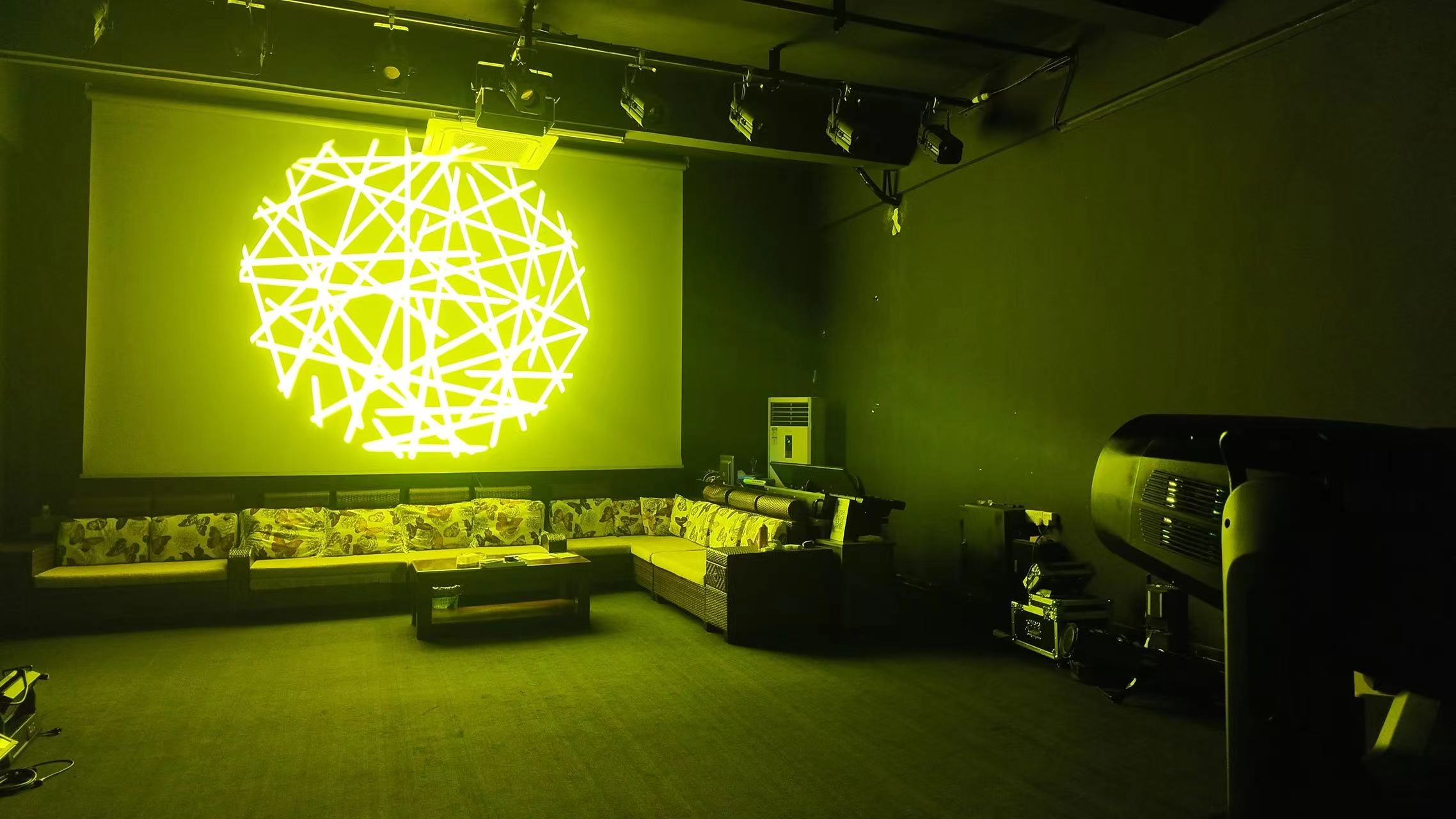

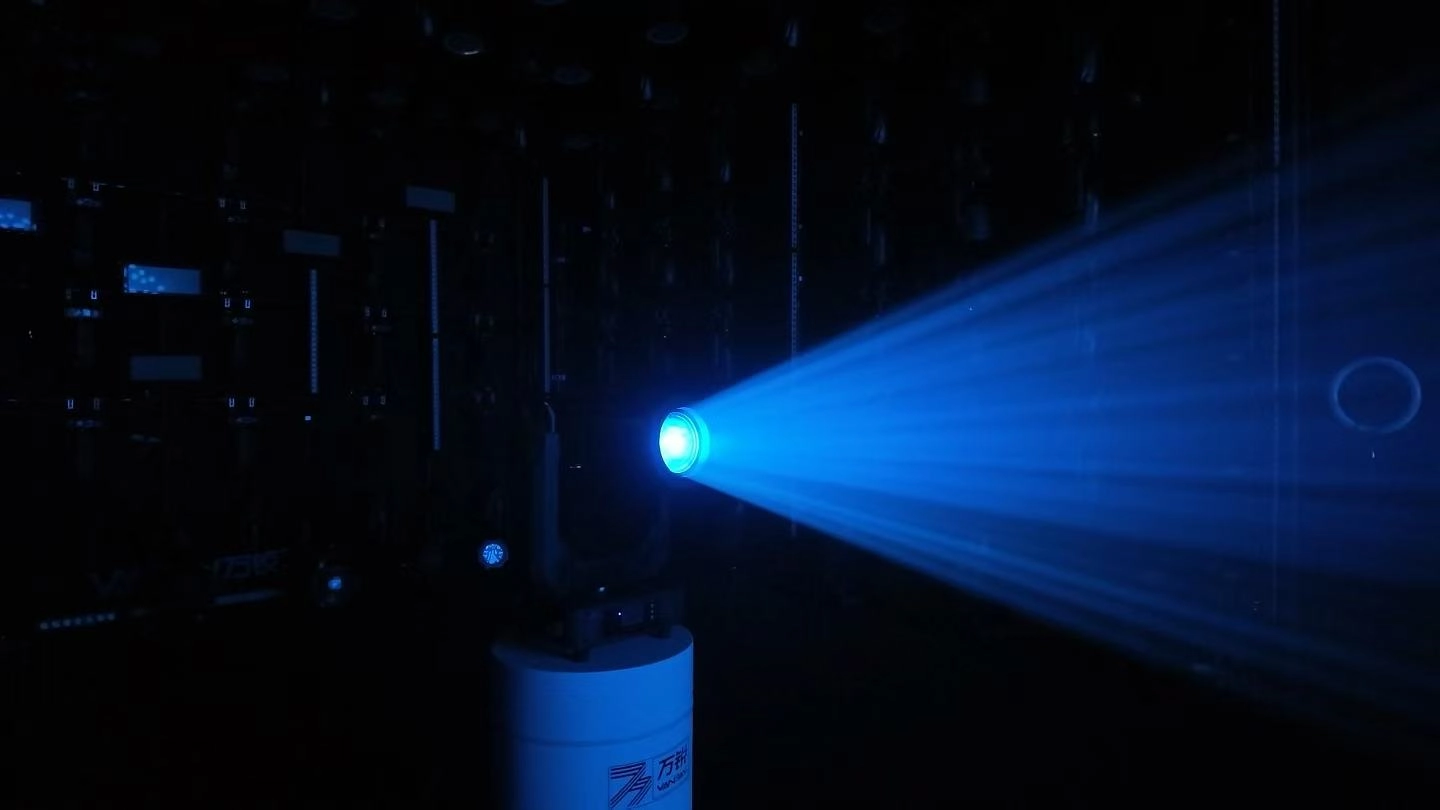

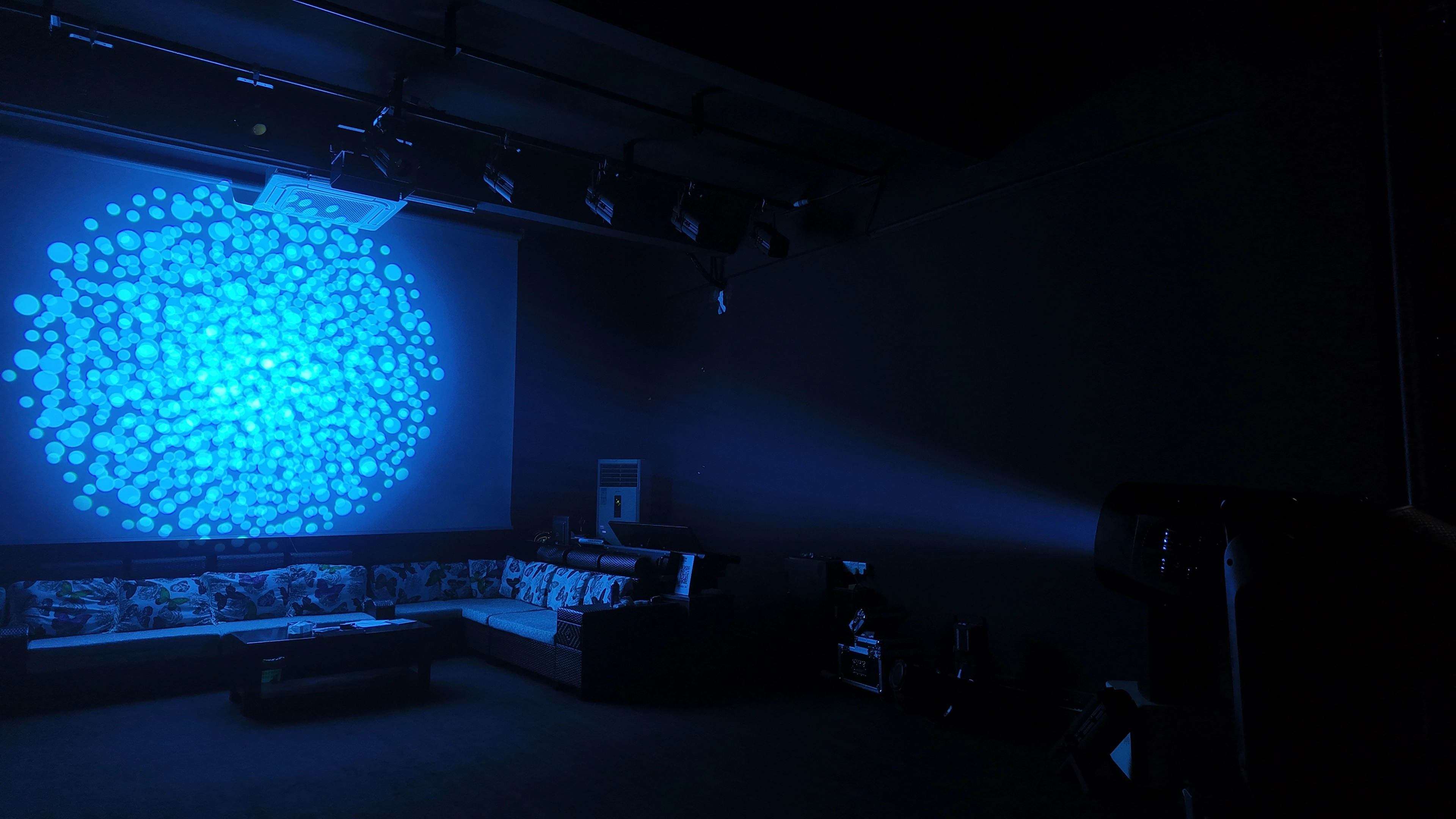

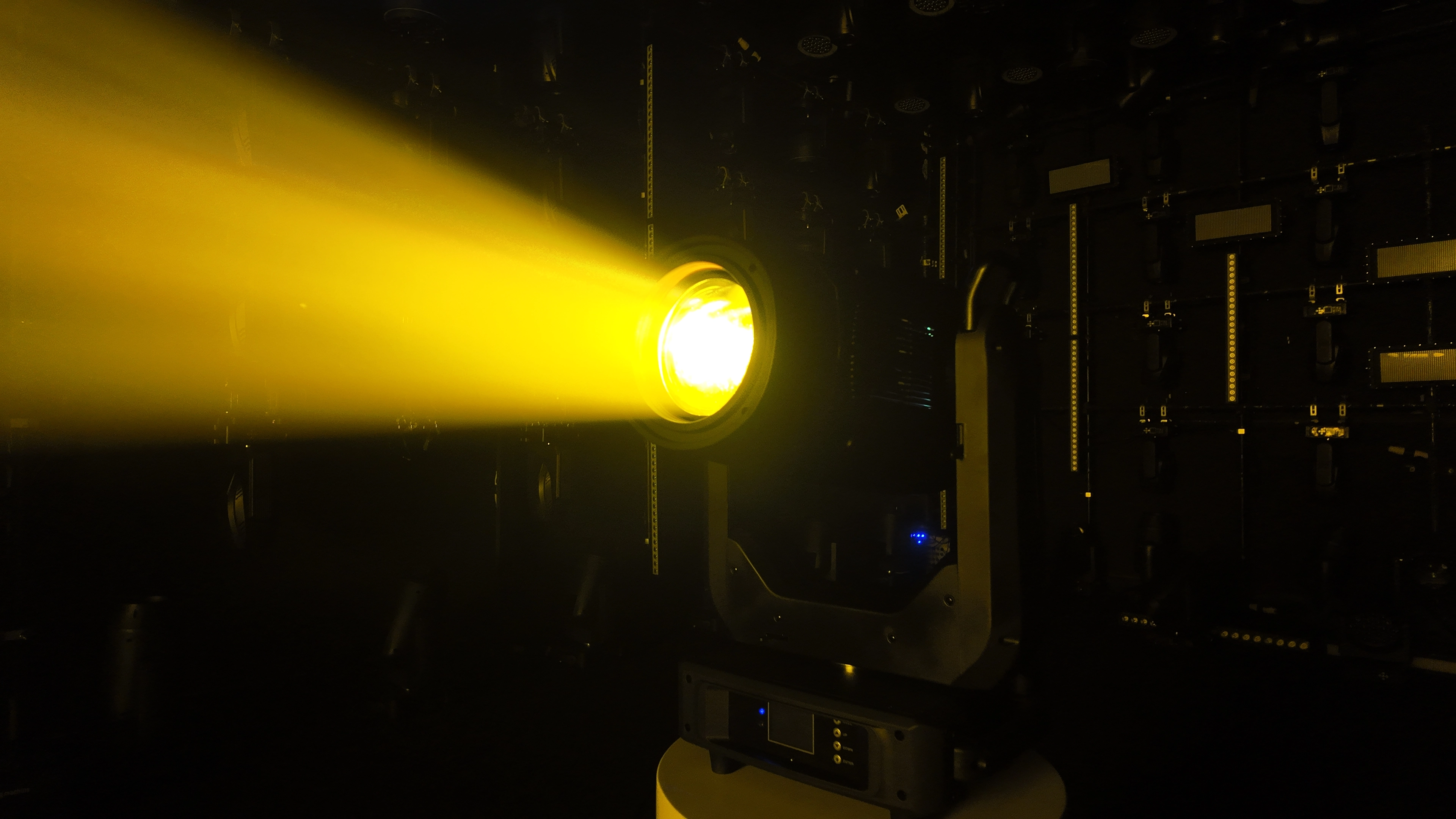

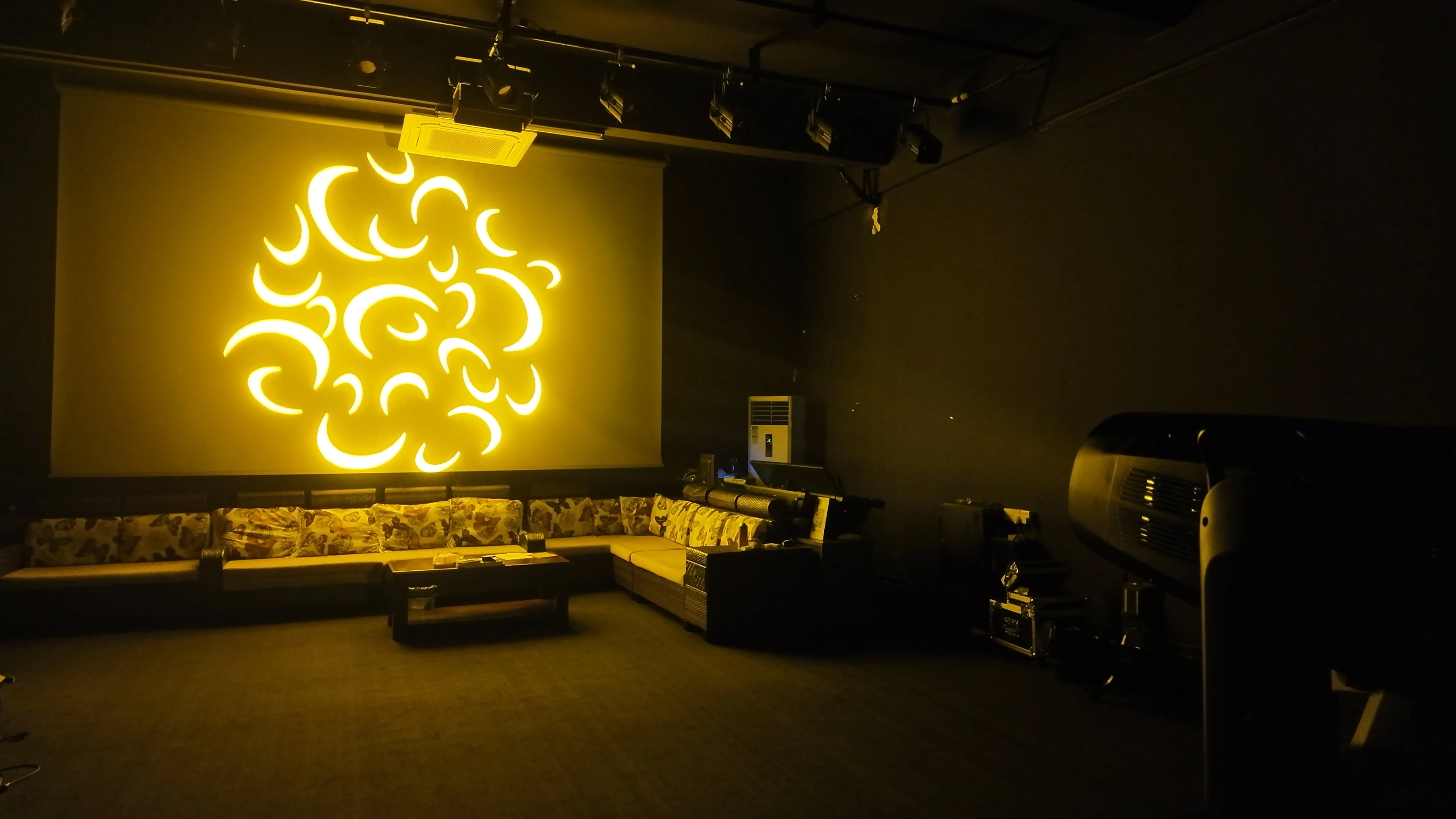

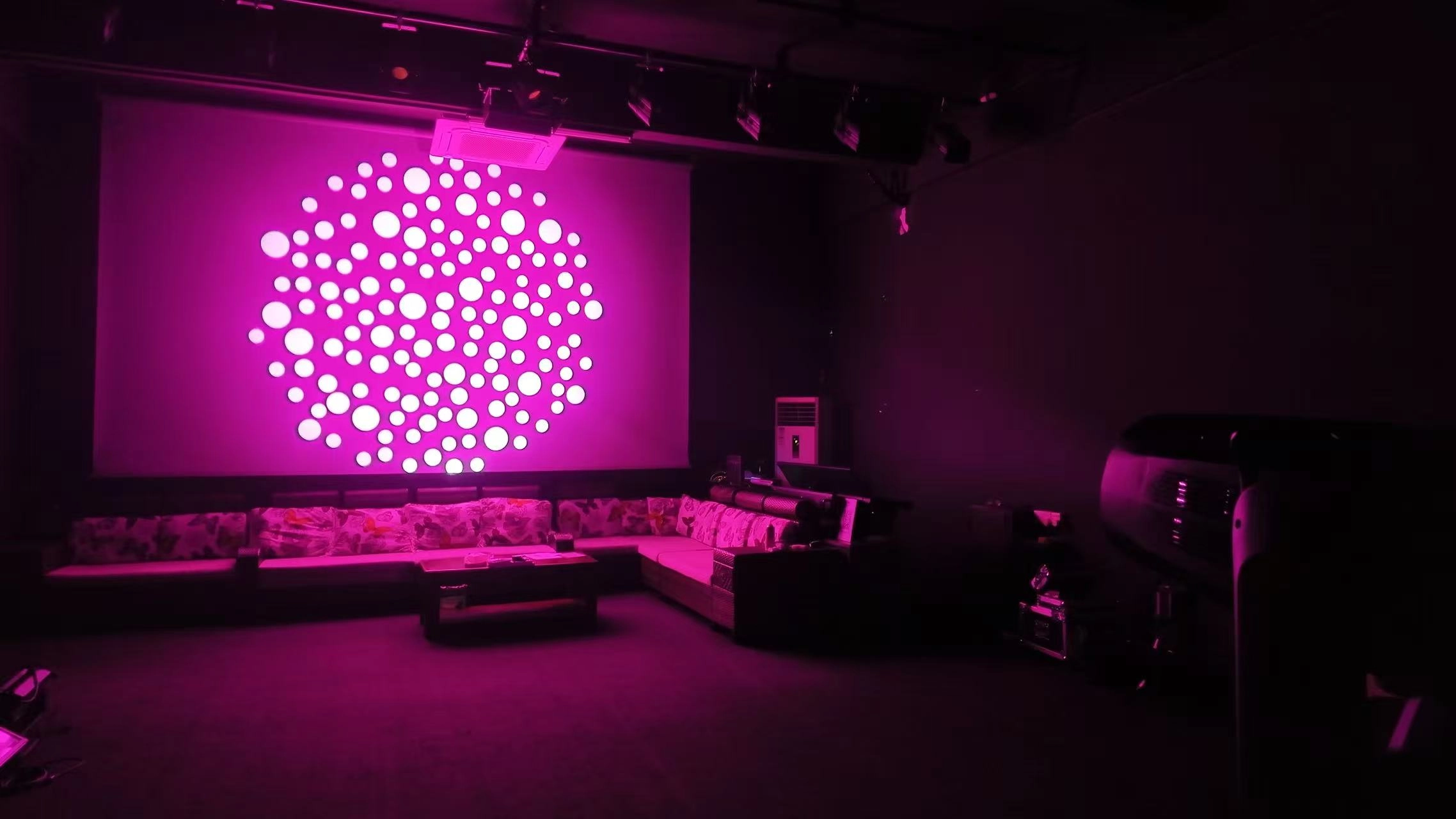

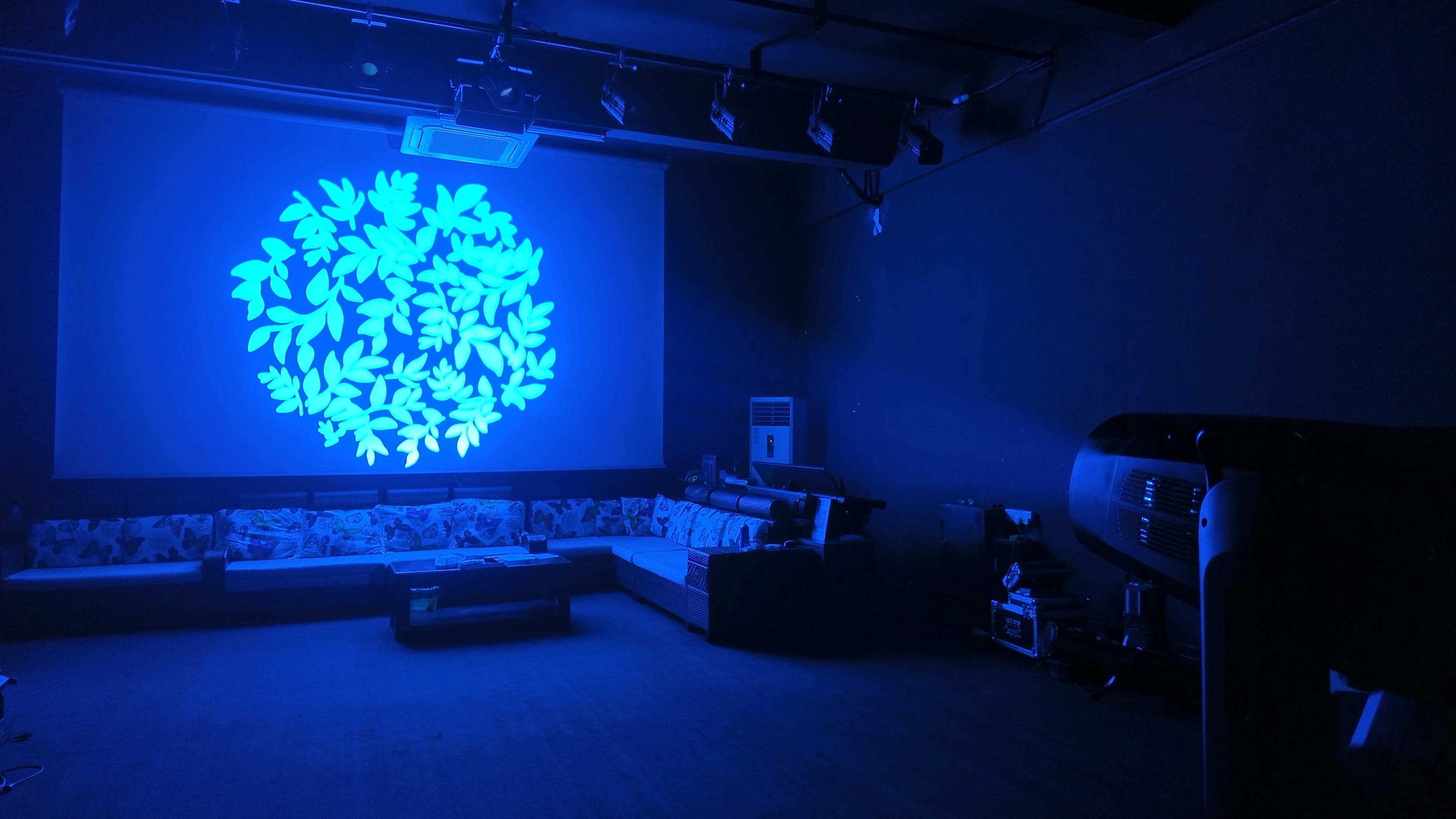

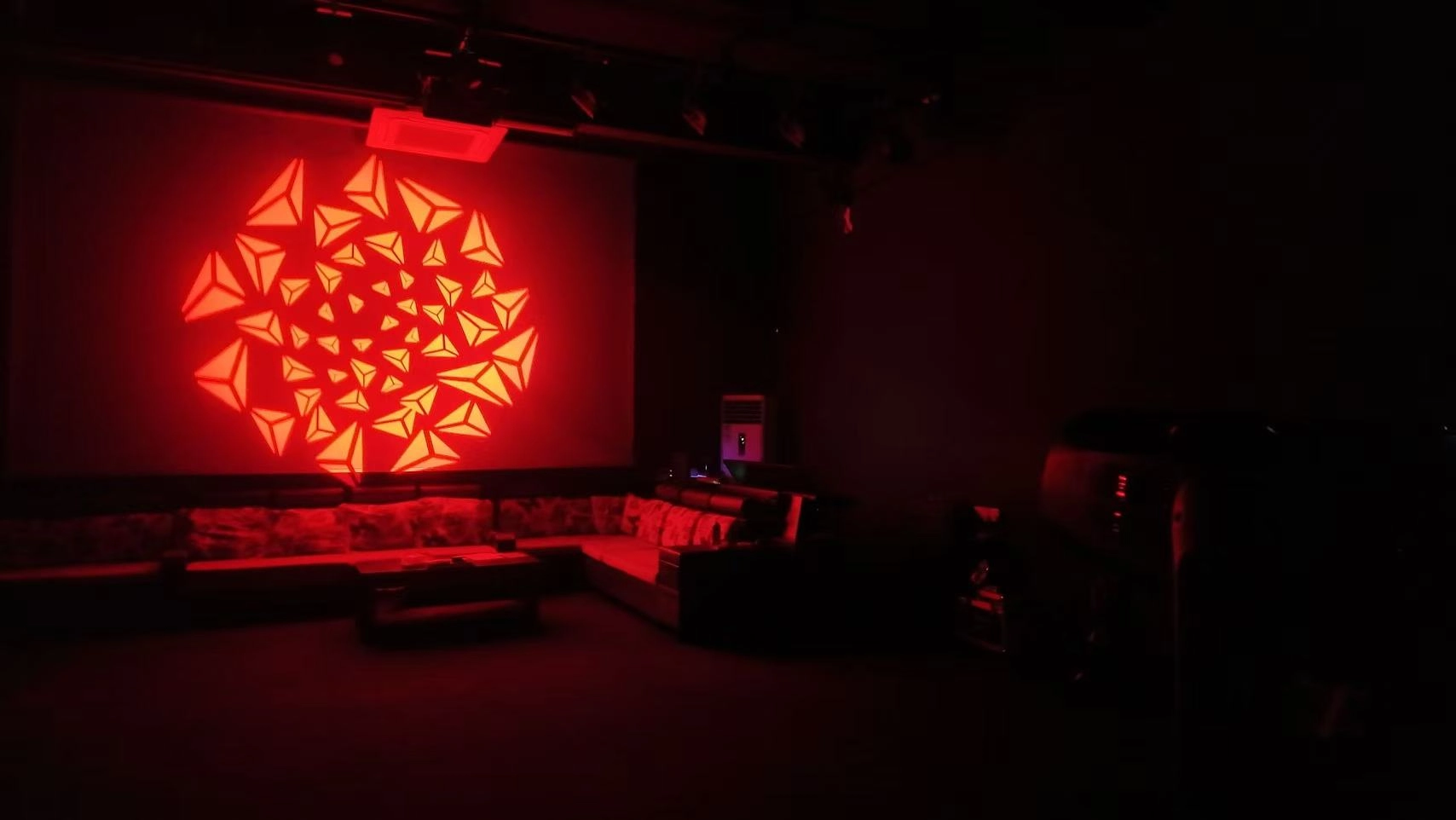

VANRAY LED Profile Moving Head VR-1200Q Effect Pictures
VANRAY LED Profile Moving Head VR-1200Q Applications
◐ Concerts: strong lighting effects and precise beam adjustment, pattern, wash effect, add shock effect to the live performance.
◐ Stage performance and theater: all-round beam rotation, pattern dyeing, cutting modeling, suitable for different stage needs, to provide the ultimate visual impact.
◐ College and party events: Multiple lighting effects and color patterns help create a unique atmosphere.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY LED Profile Moving Head VR-1200Q Installation & Maintenance
Installation
- The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
Maintenance
- Regularly check the lighting circuit and heat outlet; use special cleaning tools to clean the air outlet to maintain the best performance.
