VANRAY 600W LED Profile Moving Head VR-600Q LED Frame Moving Head
VANRAY LED Profile Moving Head VR-600Q Parameters
| Name | LED profile moving head light | Model | VR-600Q |
| Input voltage | AC100-240V,50/60Hz | Power rate | 650W |
| Light source | High-brightness, high-power 600W white LED module. | Beam angle | 3°-40°, variable focus lens, linear zoom in and out function |
| CTO Color temperature | Linear adjustment, 3000K-6500K | Color rendering index | Standard mode Ra>75, high display mode Ra>90 |
| Channels | 35 international standard DMX512 channels | CMY color mixing | Cyan, magenta, yellow, smooth and seamless continuous color mixing. |
| Control mode | Sound control, self-run, master-slave, DMX512, RDM | Display system | LCD display |
| Fixed color | 7 colors + white light | Color |
Color wheel 1:4 colors + white light, half-color effect. Color wheel 2: 4 colors + white light, half-color effect Color filters can be positioned freely, with a two-way rotating rainbow effect. |
| Rotating gobo wheel | 6 insertable rotating gobo + water ripple effect + white light, with gobo jitter and gobo positioning function | Prism | 2 prisms, 1 3-sided prism and 1 8-sided prism, prisms can rotate in both directions, can be stacked, speed adjustable. |
| Cutting wheel | A set of 4 controllable cutting blades for spot angle control, the entire cutting system can rotate 150°. Through precise control of the cutting blades, any shape of spot can be created. | Fixed gobo wheel |
11 fixed gobo + flame effect + white light, with gobo jitter function |
| Focusing | DMX linear high-definition focusing, 2 meters to infinity clarity adjustment. | Fogging | Built-in fogging lens for softening effect adjustment. |
| Strobe | 1-25 times/second ultra-high-speed strobe effect, random strobe and pulse strobe can be selected. | Aperture | 5% to 100% smooth adjustment |
| Dimming system | 0-100% linear adjustment | Horizontal scan | 540° (16-bit precision scan) |
| Vertical scan | 270° (16-bit precision scan) | IP rating | IP20 |
| Working environment | 0-45℃ | Product size | L385×W280×H700mm |
| Net weight | 25.5kgs |
VANRAY LED Profile Moving Head VR-600Q Features and Benefits
◐ High brightness LED light source: 600W LED light source, providing strong light, dyeing, pattern, cutting effect, to ensure that every performance can attract the audience's attention.
◐ Beam angle: 3°-40°, variable focus lens, linear zoom in and out function.
◐ 2 Color wheel . color wheel 1: 4 colors + white light, half-color effect, color wheel 2: 4 colors + white light, half-color effect.
◐ Rotating gobo wheel: 6 insertable rotating gobo + water ripple effect + white light, with gobo jitter and gobo positioning function.
◐ Cutting wheel: A set of 4 controllable cutting blades for spot angle control, the entire cutting system can rotate 150°. Through precise control of the cutting blades, any shape of spot can be created
◐ Prisms: 2 prisms, 1 3-sided prism and 1 8-sided prism, prisms can rotate in both directions, can be stacked, speed adjustable.
◐ Use a sufficient power PFC power supply.
◐ The use of a lead-free environmental protection fan, low power consumption, long life, and large air volume.
◐ The internal electronic wire of the lamp uses high-temperature, cold-resistant, wear-resistant, and anti-corrosion wire.
VANRAY LED Profile Moving Head VR-600Q Effect Pictures
VANRAY LED Profile Moving Head VR-600Q Applications
◐ Concerts: strong lighting effects and precise beam adjustment, pattern, wash effect, add shock effect to the live performance.

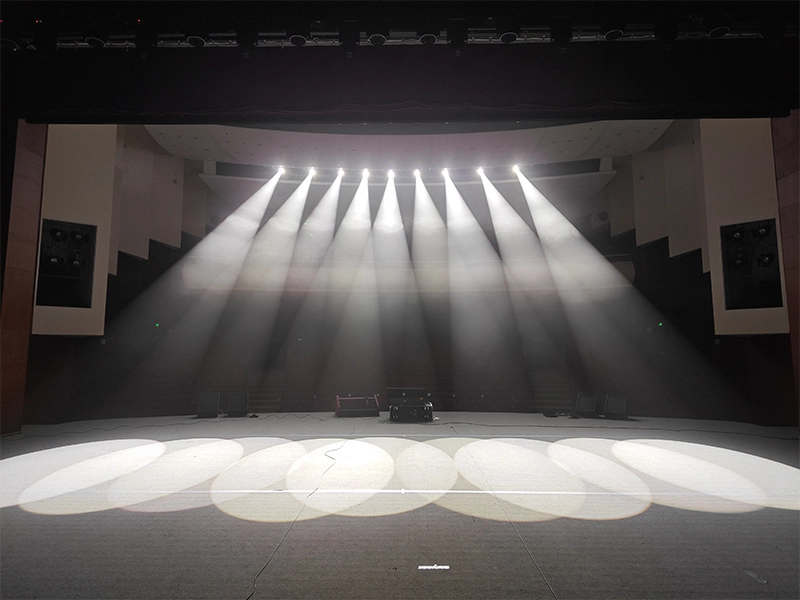

◐ Stage performance and theater: all-round beam rotation, pattern dyeing, cutting modeling, suitable for different stage needs, to provide the ultimate visual impact.
◐ College and party events: Multiple lighting effects and color patterns help create a unique atmosphere.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY LED Profile Moving Head Installation & Maintenance
Installation
- The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
Maintenance
- Regularly check the lighting circuit and heat outlet; use special cleaning tools to clean the air outlet to maintain the best performance.
