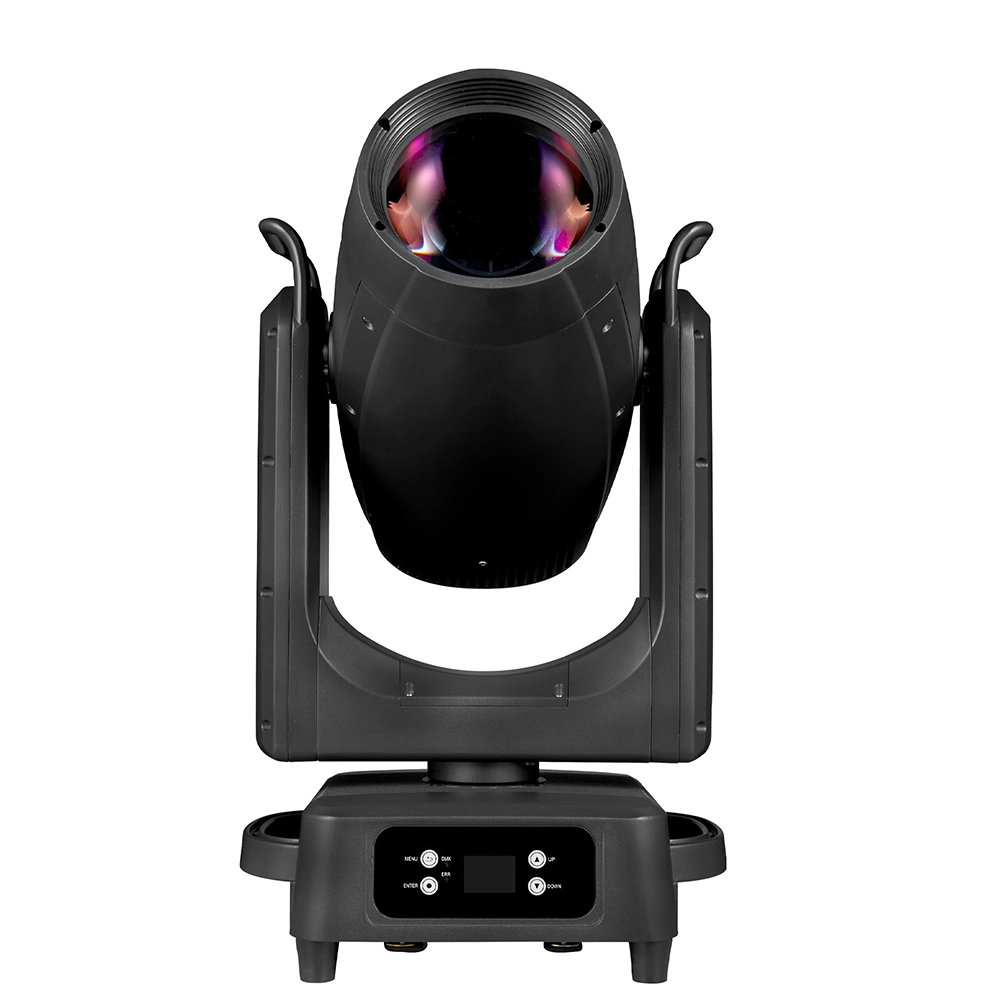

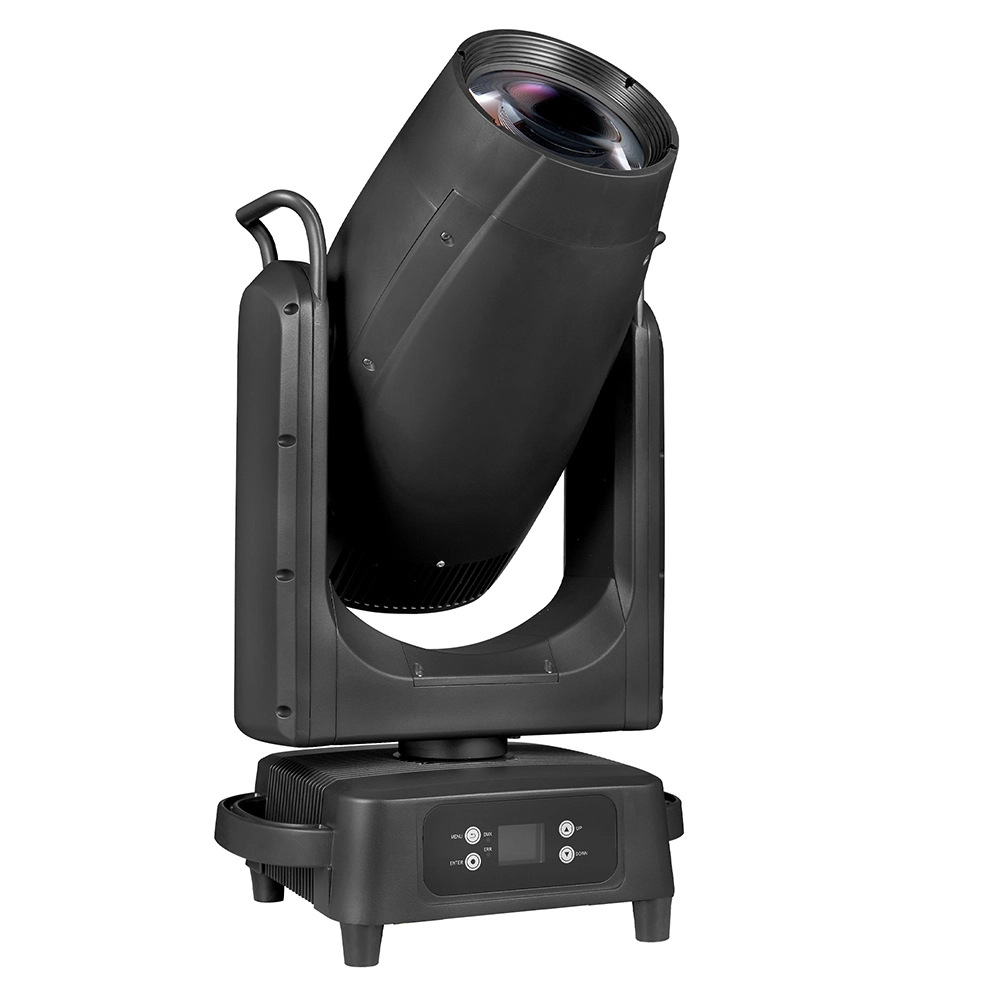

VANRAY Moving Head LED Light VF-600 Waterproof 600W LED 3 in 1 Moving Head
VANRAY Waterproof led 600w 3 in 1 Moving Head Parameters
| Name | Waterproof led 600w 3 in 1 Moving Head | Model | VF-600 |
| Input voltage | AC90V - 235V, 50 - 60Hz | Power rate | 700W |
| Light source | 600W LED module | Focusing System | Linear adjustment from 4 meters to 50 meters |
| Color temperature | 8000K | Frost System | 1 independent frost effect, with soft and natural light spots |
| Channels | 34/39CH | Beam angle | 3.5-50 degrees |
| Control mode | International standard DMX512, with RDM function, software can be upgraded online through DMX and address codes can be dialed | Colors | 6 colors + white light |
| Pan/Tilt | 540°/270°(16-bit precision scanning) with electronic error correction | Prism | Standard 3 facet prism and 4 facet prism，can be independently bidirectional rotation |
| Color grading system | Linear CMY+CTO color grading system | Fixed gobo wheel | 7 fixed gobos + white light |
| Dimming | 0% - 100% linear dimming | Rotating Gobos | 7 glass gobos + white light, each glass gobos can rotate independently in both forward and reverse directions |
| Strobe | 0.5-20 times per second, adjustable speed stroboscopic effect | Material | The shell is made of high-end materials such as international die-cast aluminum and aviation die-cast magnesium alloy |
| Product size | 22kg | IP rating | IP66 |
| Net weight | 360*270*680mm |
VANRAY Waterproof led 600w 3 in 1 Moving Head Features and Benefits
◐ Standard 3 facet prism and 4 facet prism，can be independently bidirectional rotation
◐ The shell is made of high-end materials such as international die-cast aluminum and aviation die-cast magnesium alloy
◐ Linear CMY+CTO color grading system
◐ 7 glass gobos + white light, each glass gobos can rotate independently in both forward and reverse directions

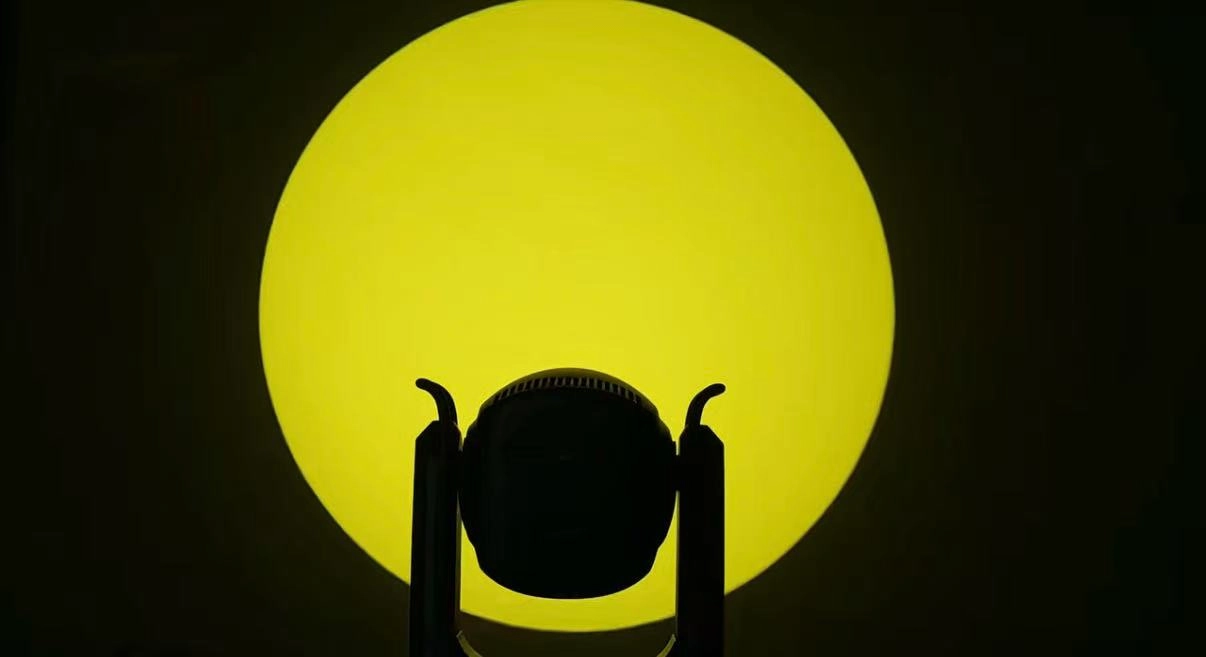

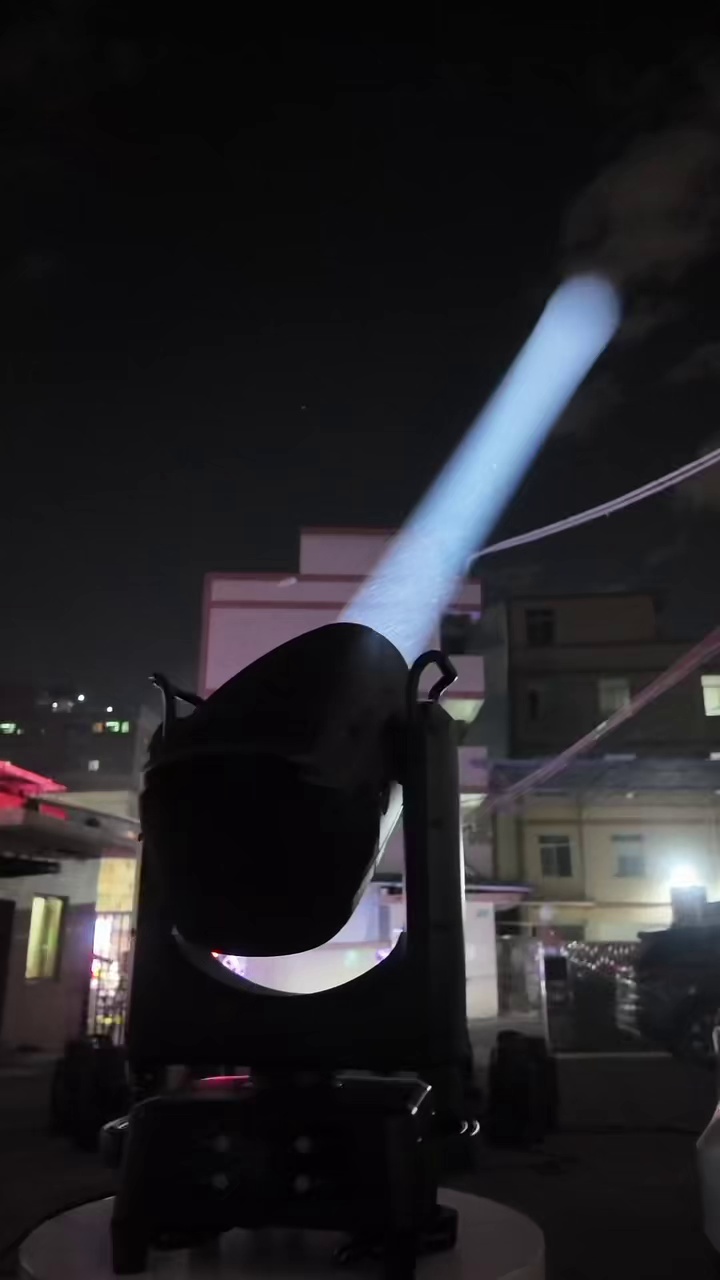

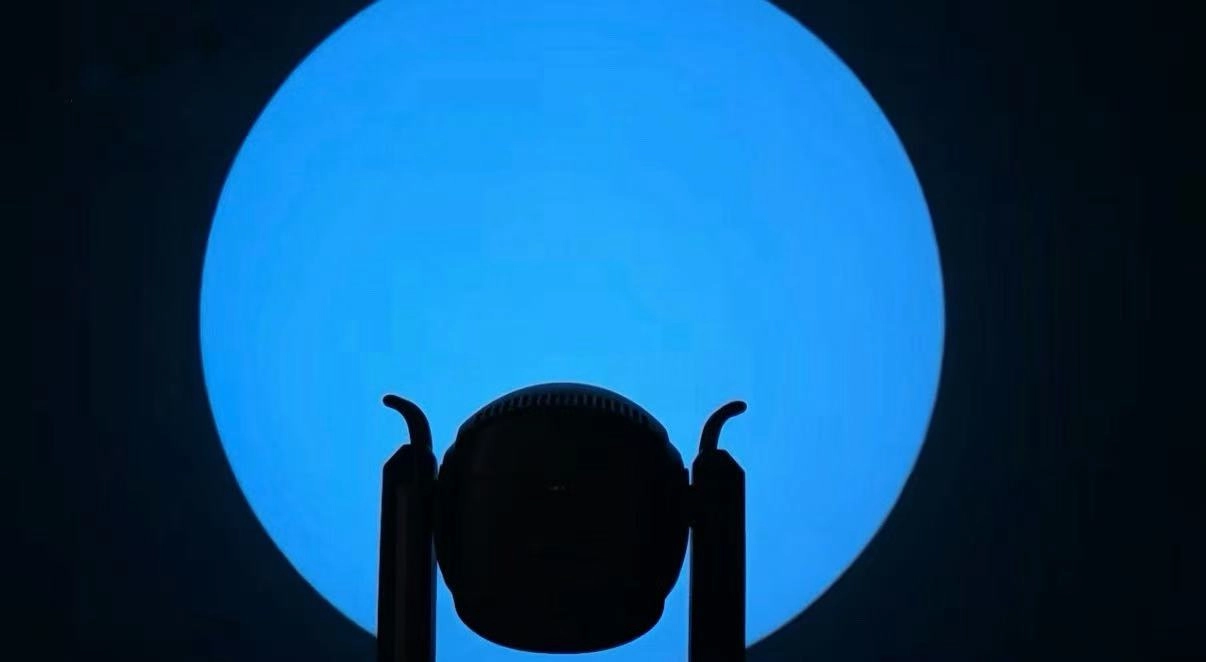

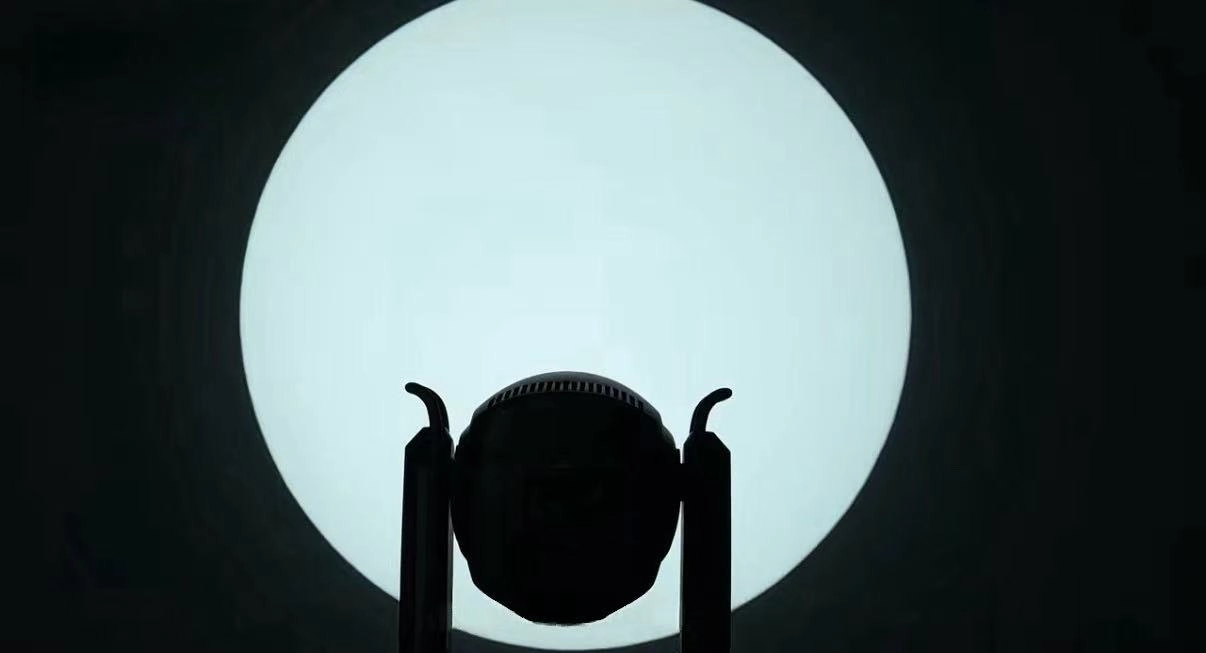

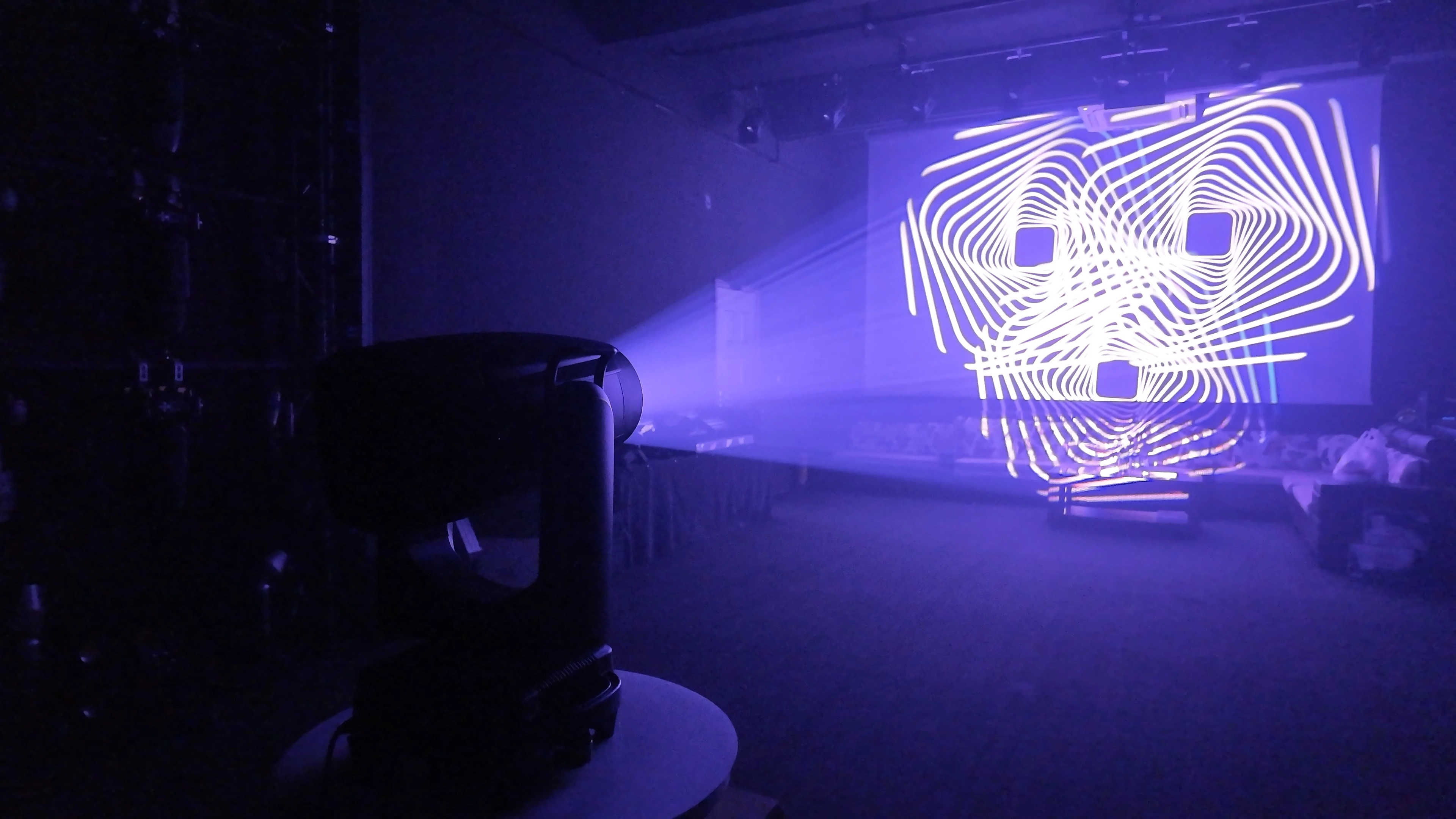

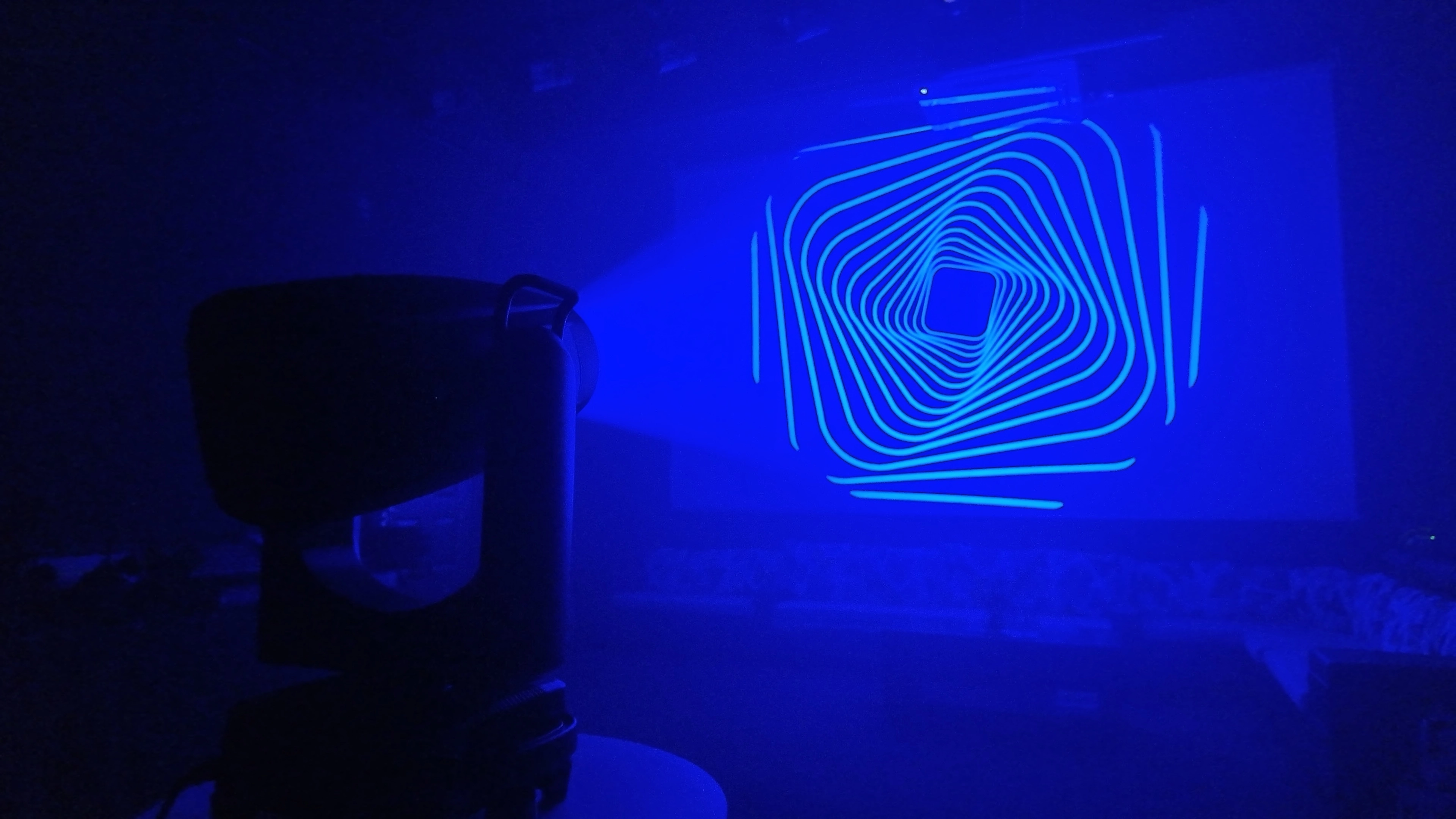

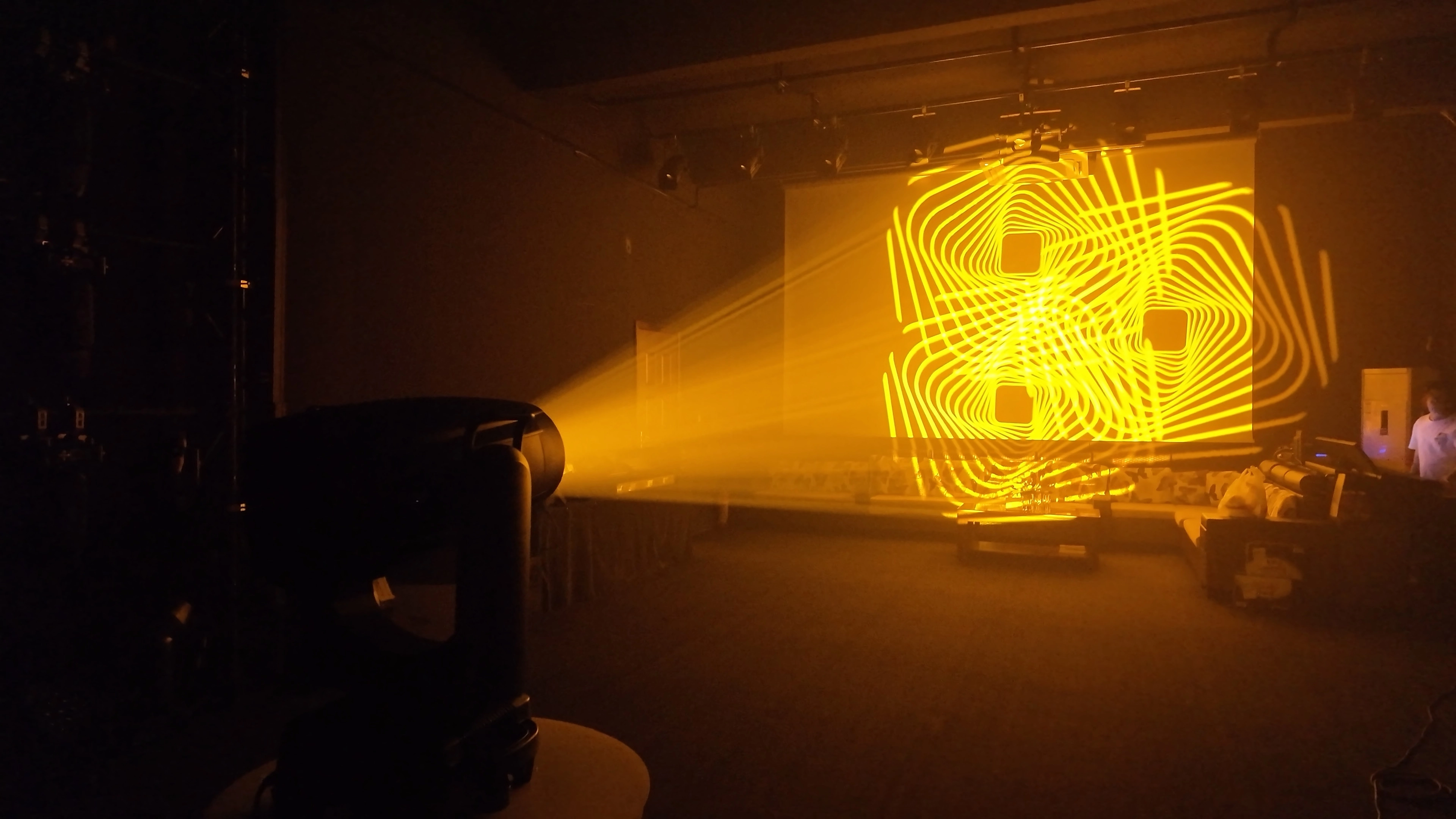

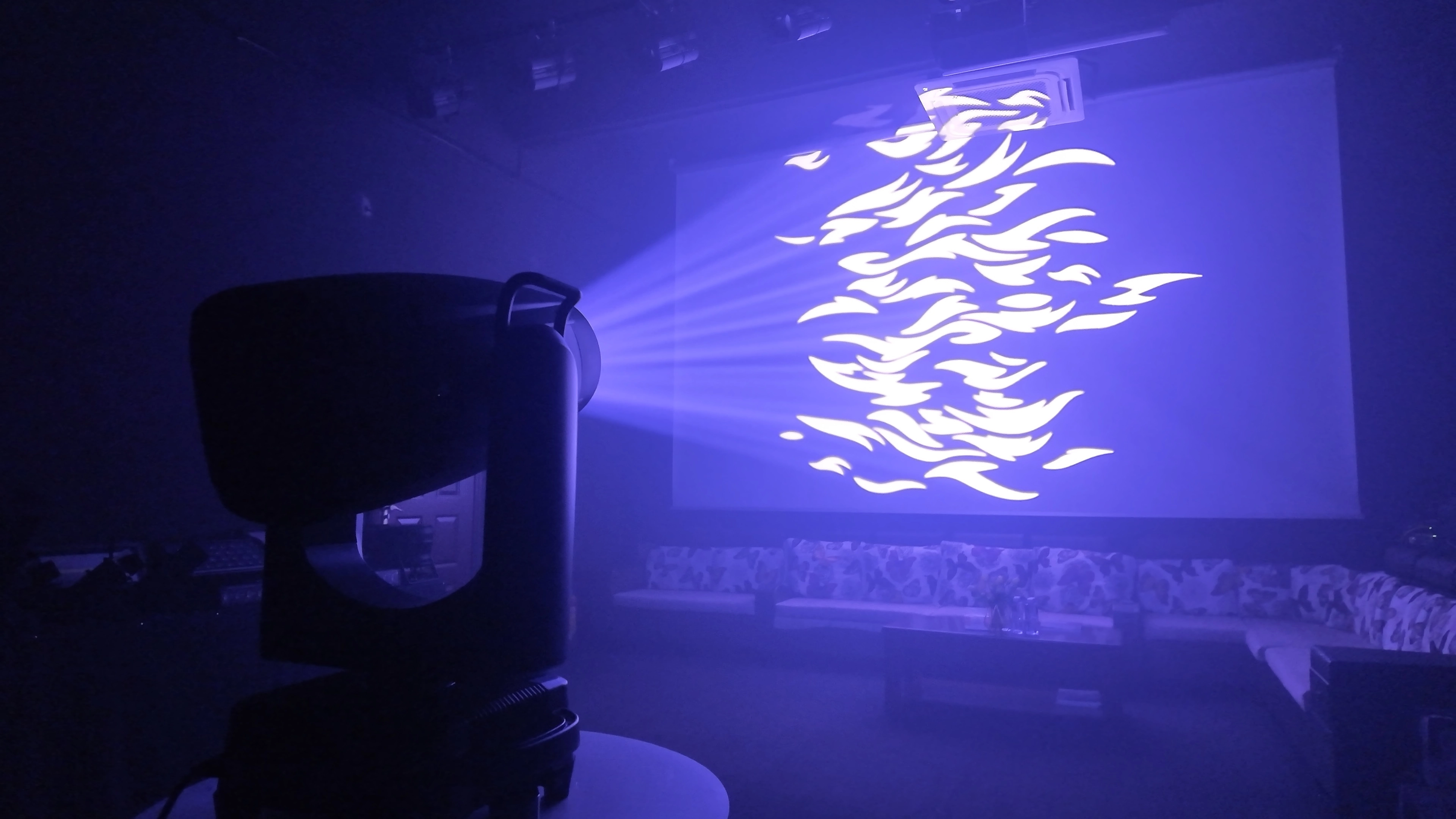

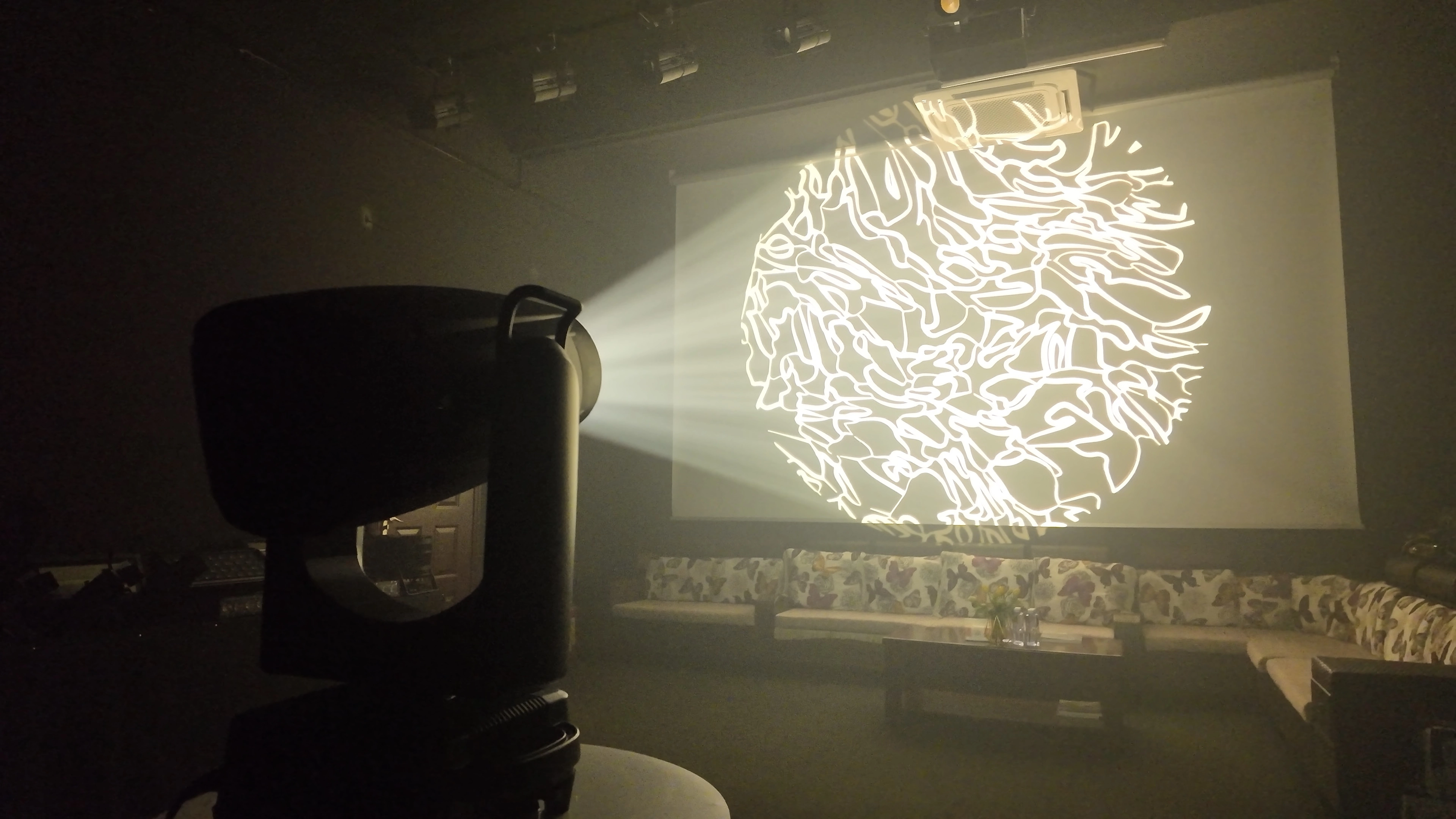

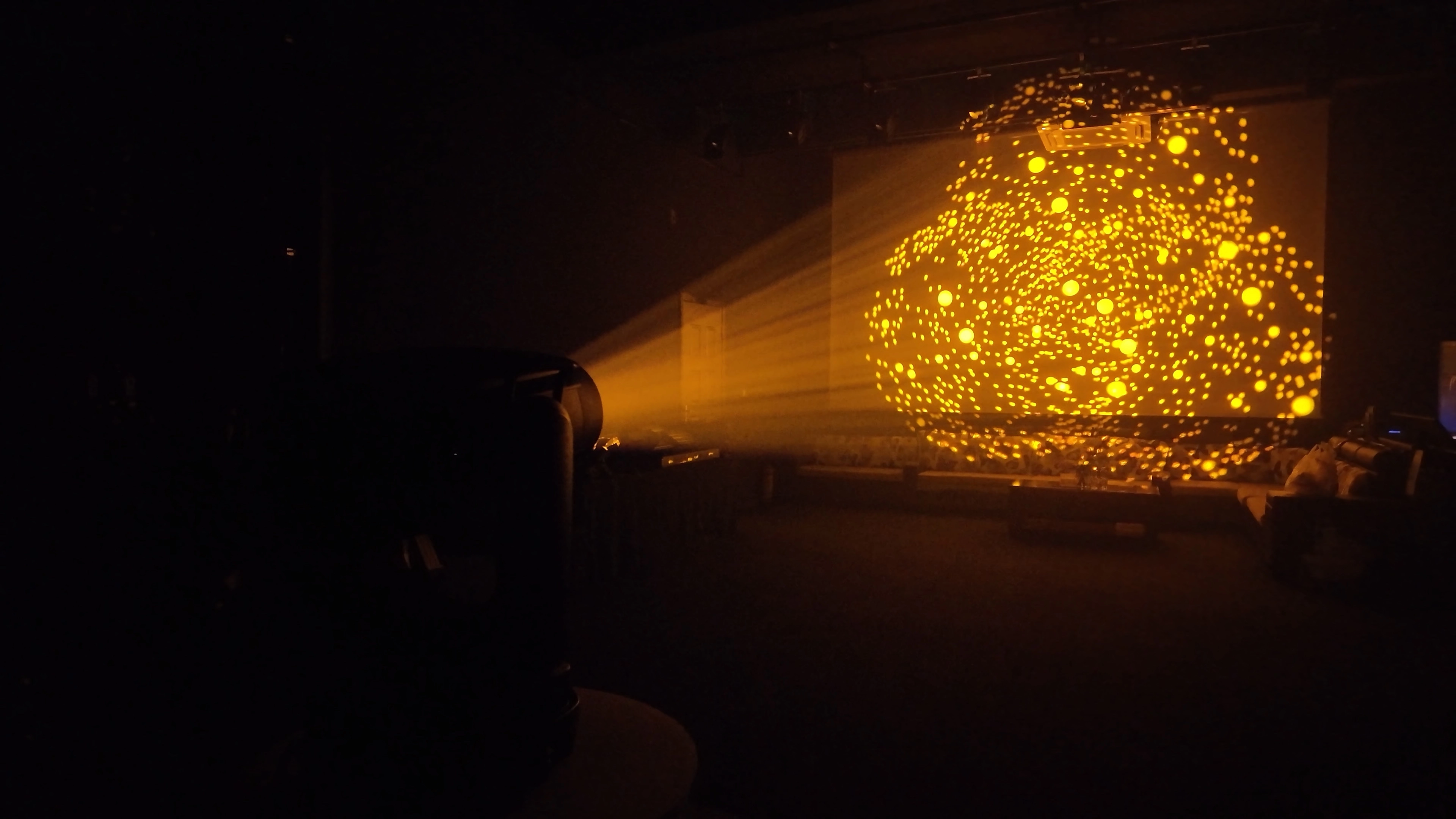

VANRAY Waterproof led 600w 3 in 1 Moving Head Effect Pictures
VANRAY Waterproof led 600w 3 in 1 Moving Head Applications
◐ Concerts: strong lighting effects and precise beam adjustment, pattern, wash effect, add shock effect to the live performance.
◐ Stage performance and theater: all-round beam rotation, pattern dyeing, cutting modeling, suitable for different stage needs, to provide the ultimate visual impact.
◐ College and party events: Multiple lighting effects and color patterns help create a unique atmosphere.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY Waterproof led 600w 3 in 1 Moving Head Installation & Maintenance
Installation
- The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
Maintenance
- Regularly check the lighting circuit and heat outlet; use special cleaning tools to clean the air outlet to maintain the best performance.
