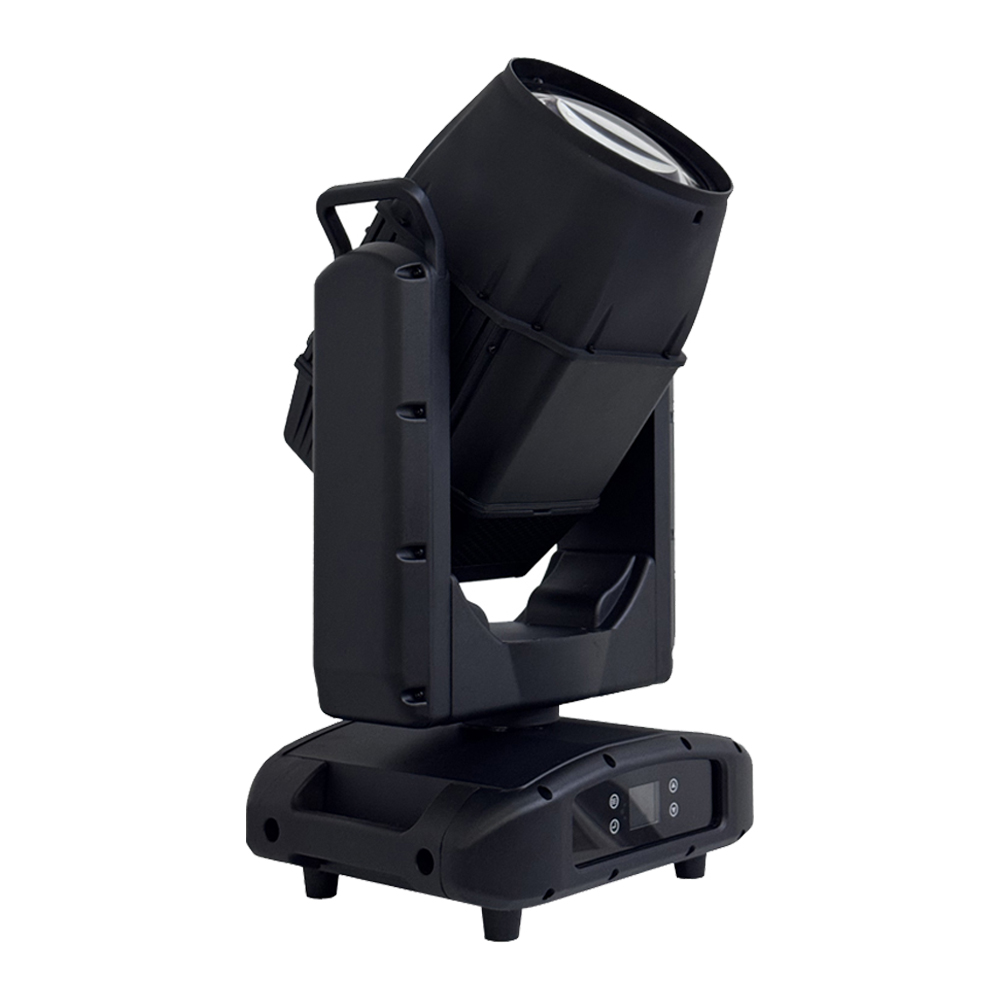

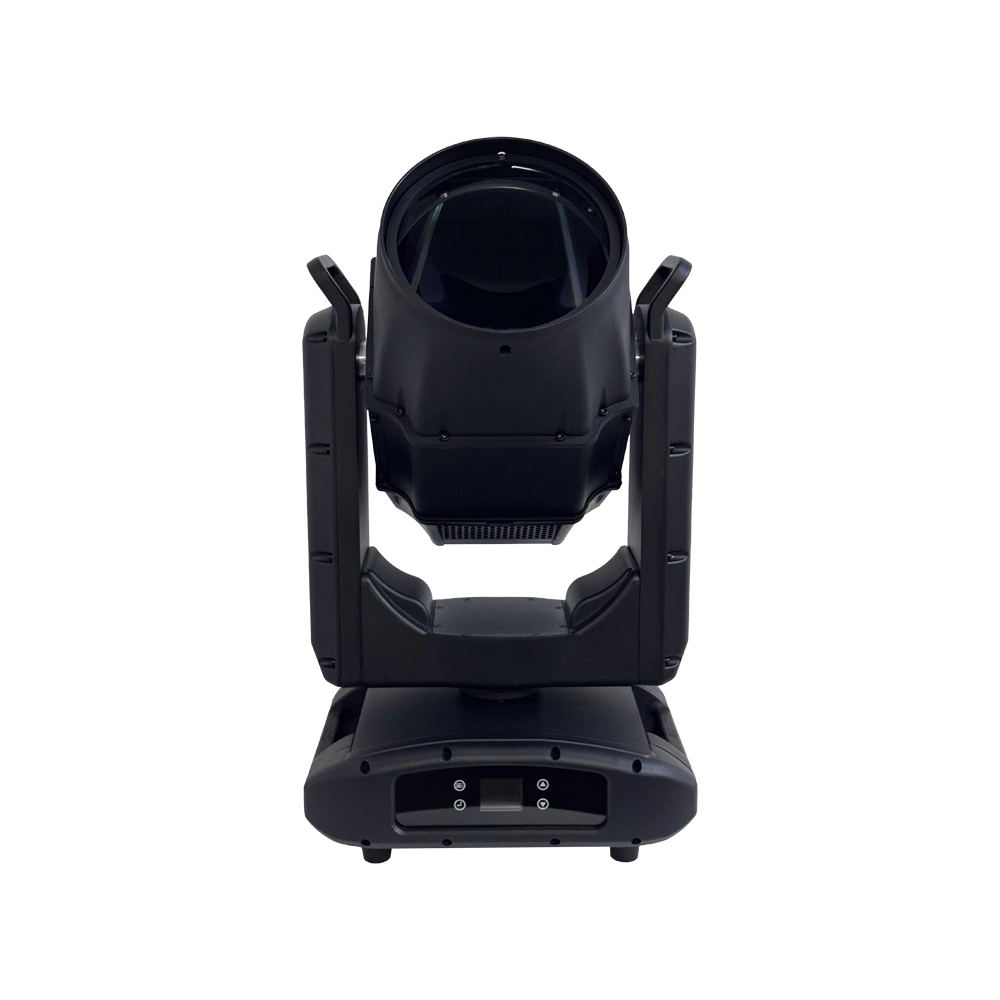

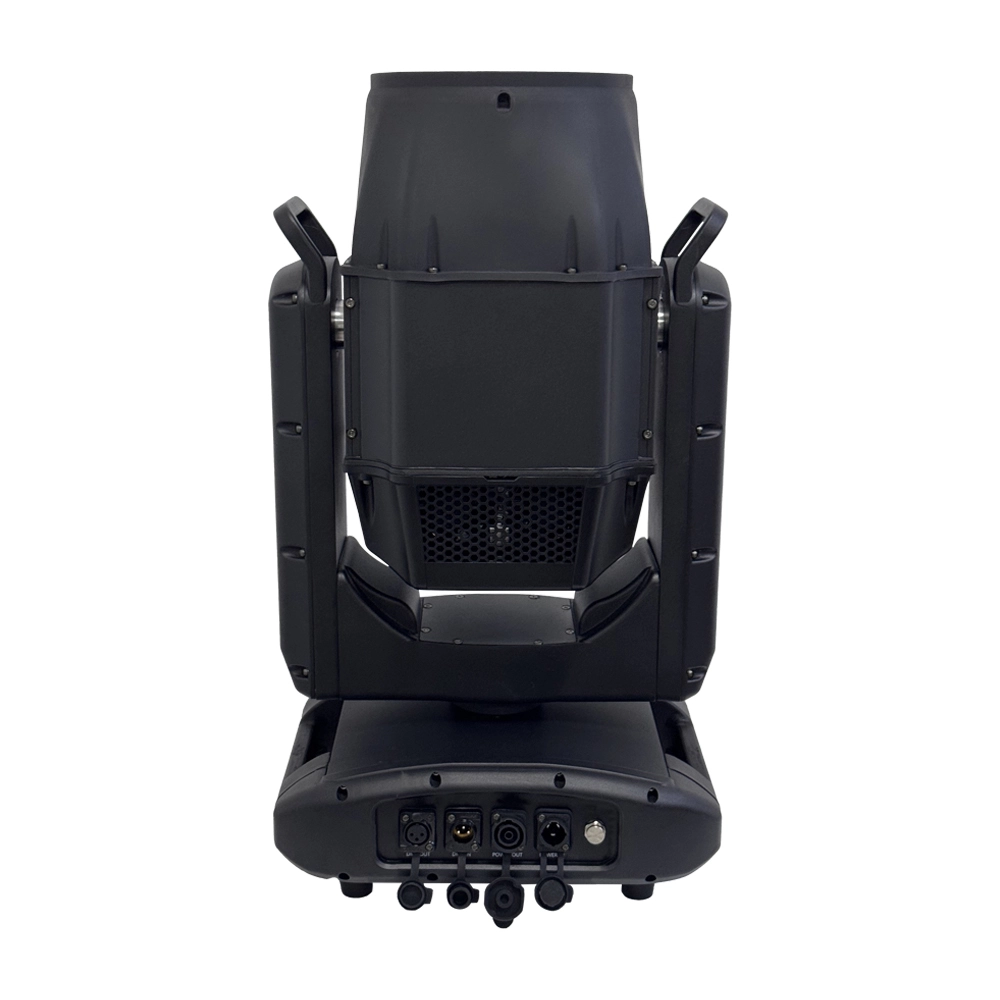

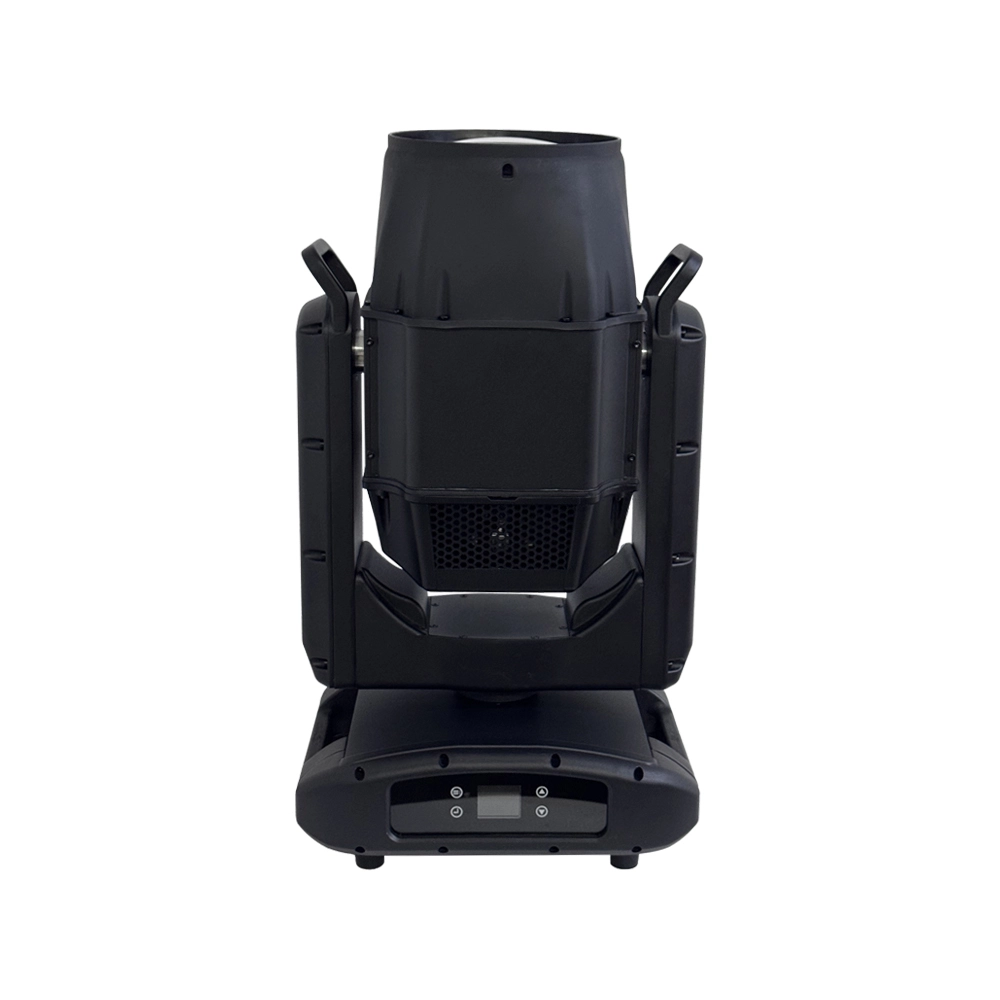

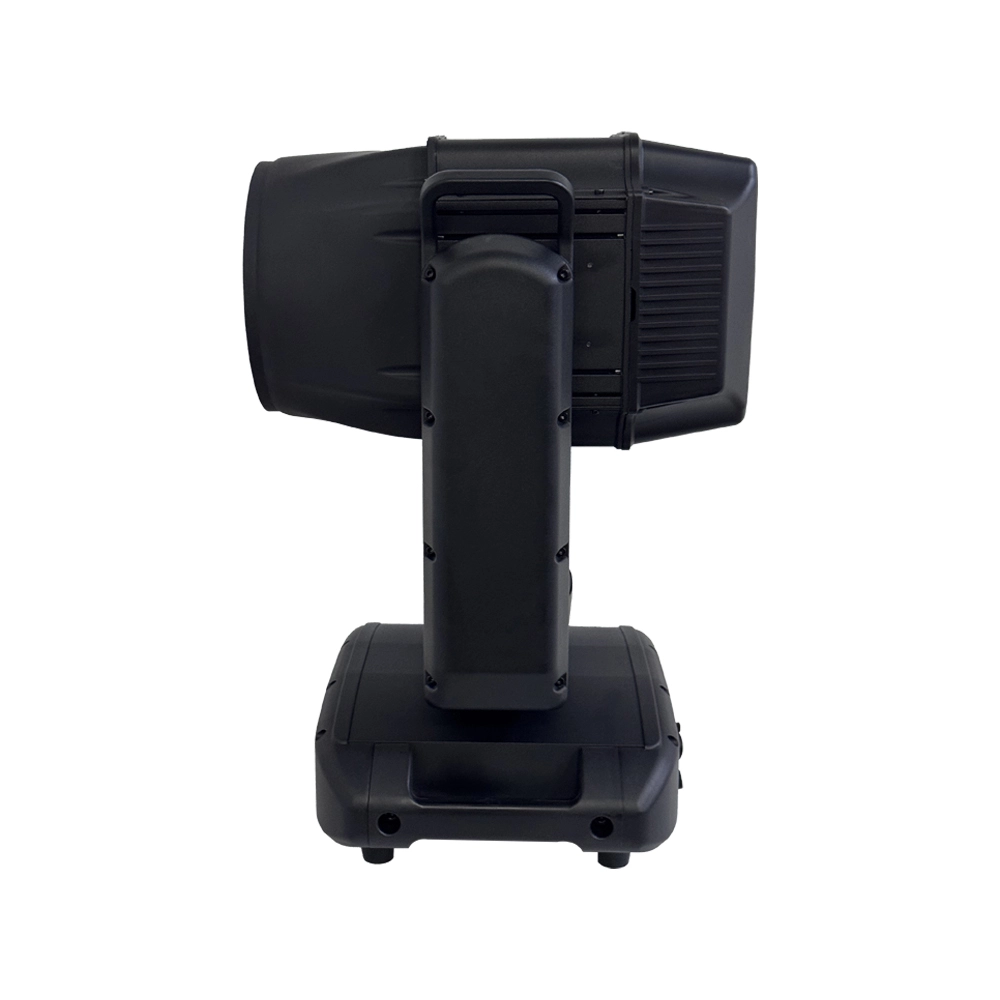

VANRAY Laser Beam Moving Head VF-JG260 Waterproof Laser Beam Light
VANRAY Waterproof Laser Beam Moving Head Parameters
| Name | Waterproof laser beam moving head | Model | VF-JG260 |
| Input voltage | AC90V - 235V, 50 - 60Hz | Power rate | 600W |
| Light source | 260W laser light source | Focusing System | Electronic focusing |
| Color temperature | 7900±500K | Lens diameter | 165mm |
| Channels | 19 channels | Beam angle | 0 - 2° |
| Control mode | DMX 512, self-run, master-slave self-run, RDM function | Colors | 17 +white light + six-color rainbow effect + cmy system |
| Display | LCD display, suitable for different installation positions, rotatable 180° | Prism | 8 prisms and (8 + 16) prisms |
| Installation Method | Upright / inverted | Fixed gobo wheel | 30 fixed gobos + white light |
| Dimming | 0% - 100% linear dimming, smooth and flicker-free | Fogging | Equipped with fogging function to achieve soft light effect |
| Strobe | Dual-motor independent strobe effect, 0.5 - 20 times per second, speed adjustable | Motor | XY-axis uses three-phase motors, ensuring high stability in speed and accurate positioning |
| Vertical scan | 270° rotation, resolution 8/16Bit, with fine-tuning | Horizontal scan | 540° rotation, resolution 8/16Bit, with fine-tuning |
| Horizontal and Vertical | High-precision three-phase motors are used for accurate positioning, smooth operation, and automatic positioning correction | IP rating | IP66 |
| Net weight | 360*292*623mm | Product size | 23.5kg |
VANRAY Waterproof Laser Beam Moving Head Features and Benefits
◐ The sharp beam effect, almost a straight beam, is highly penetrating;
◐ The shell material uses pressed aluminum + engineering wave fiber plastic + magnesium alloy. This combination ensures both the heat dissipation and protection of the lamp, and minimizes the weight of the lamp to the greatest extent
◐ The extremely long lifespan of the light source, surpassing both LED and bulb light sources, and having a beam effect better than both, resolving the shortcomings of both
◐ More energy-efficient, with a light flux higher by over 50% compared to LED and discharge lamps under the same power consumption
◐ The overall structure design is reasonable, ensuring both the high protection level of IP66 for the lamp and efficient heat dissipation of the lamp in a timely manner
◐ Sun protection, cold protection, and freeze protection. When installed outdoors for a long time, it can withstand heat exposure, rain, wind, frost, and snow

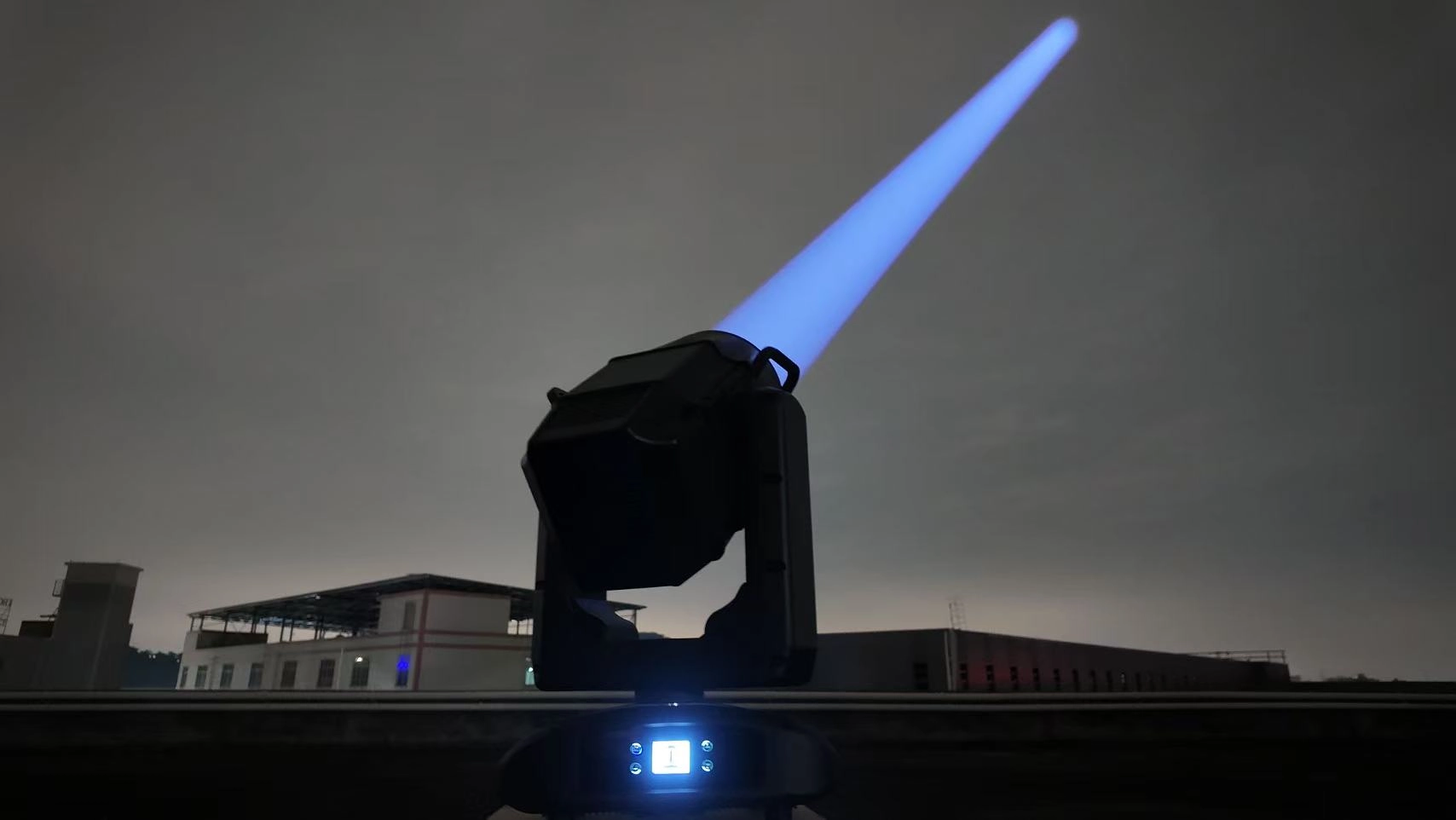

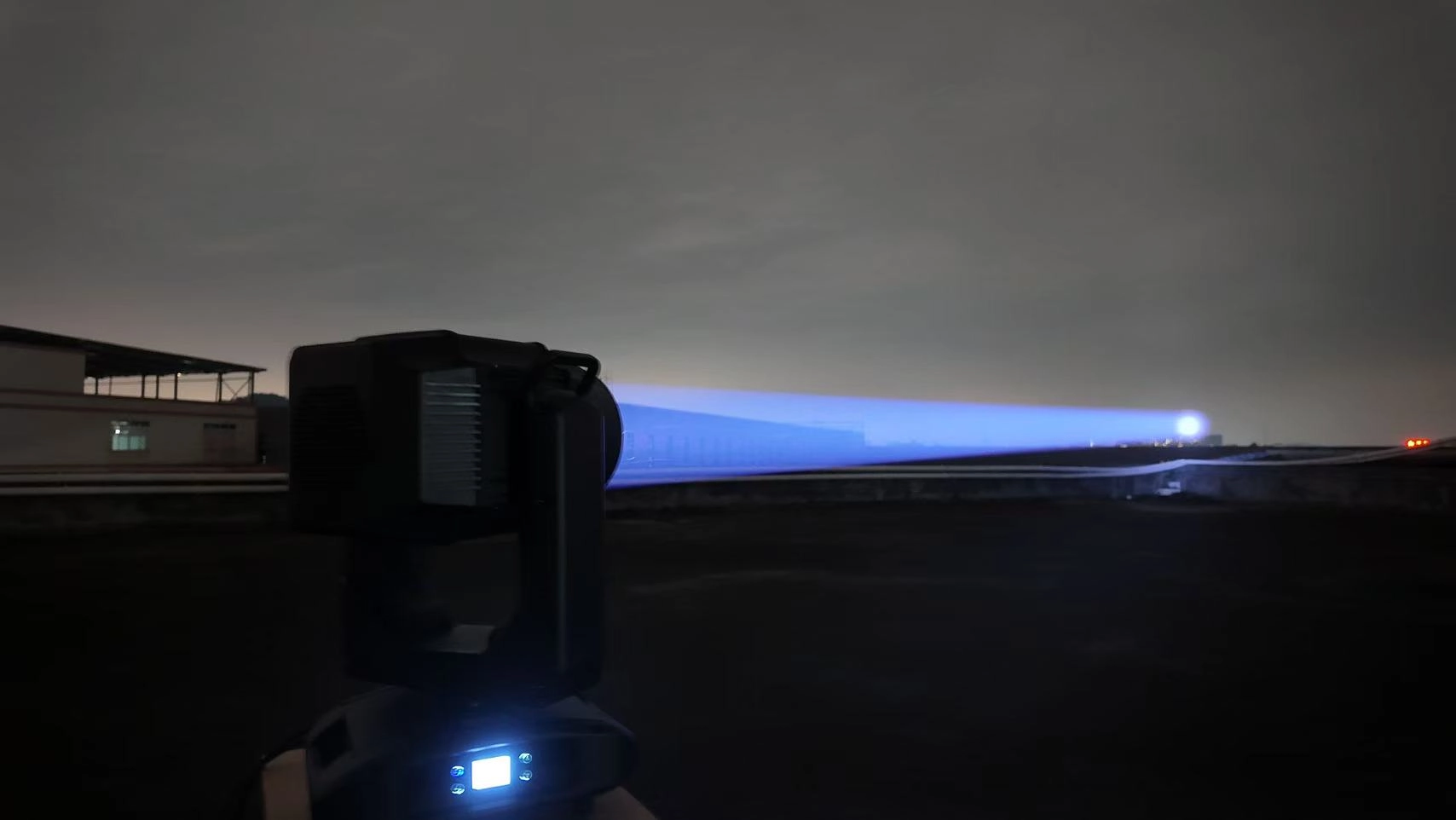

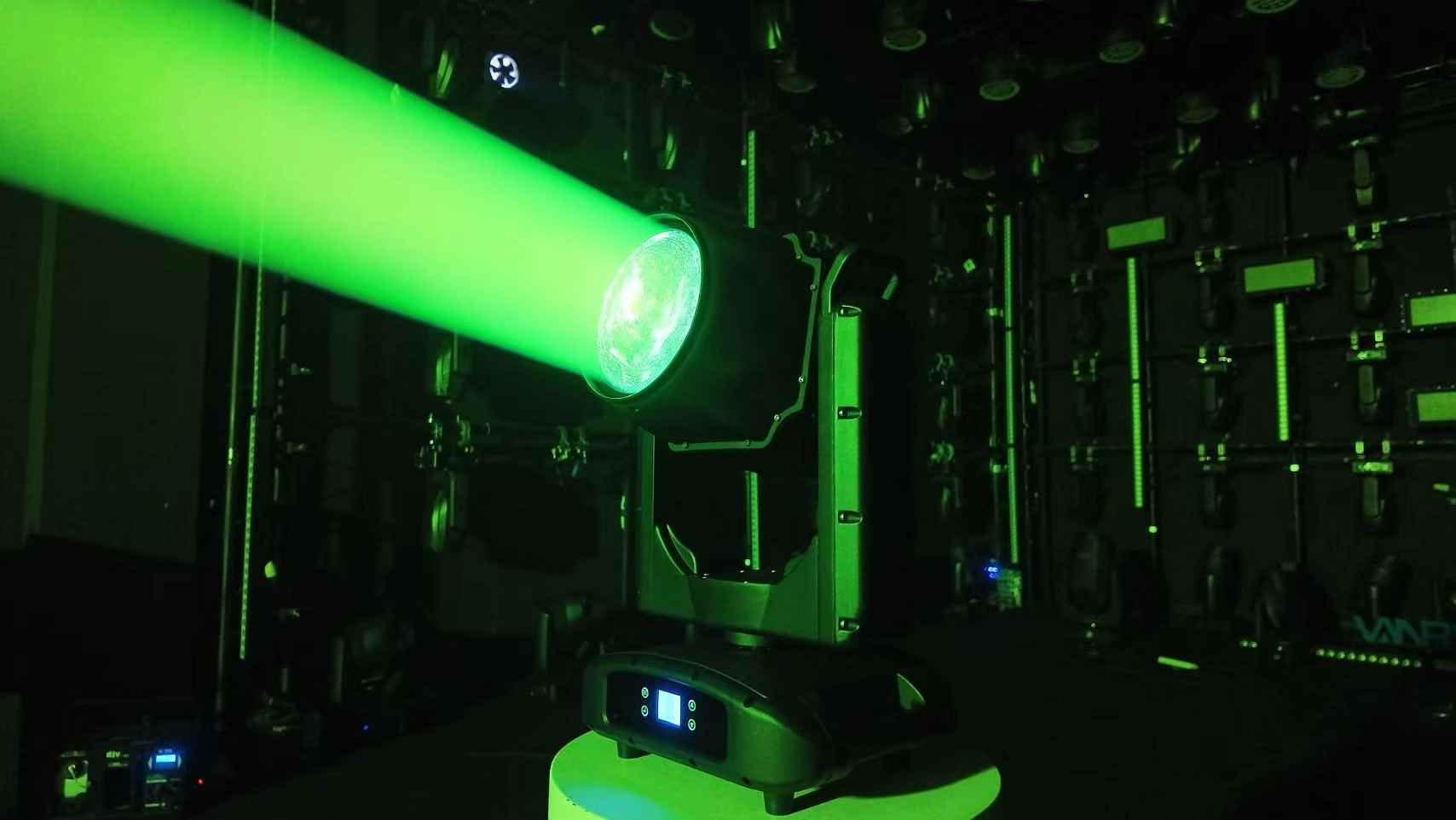

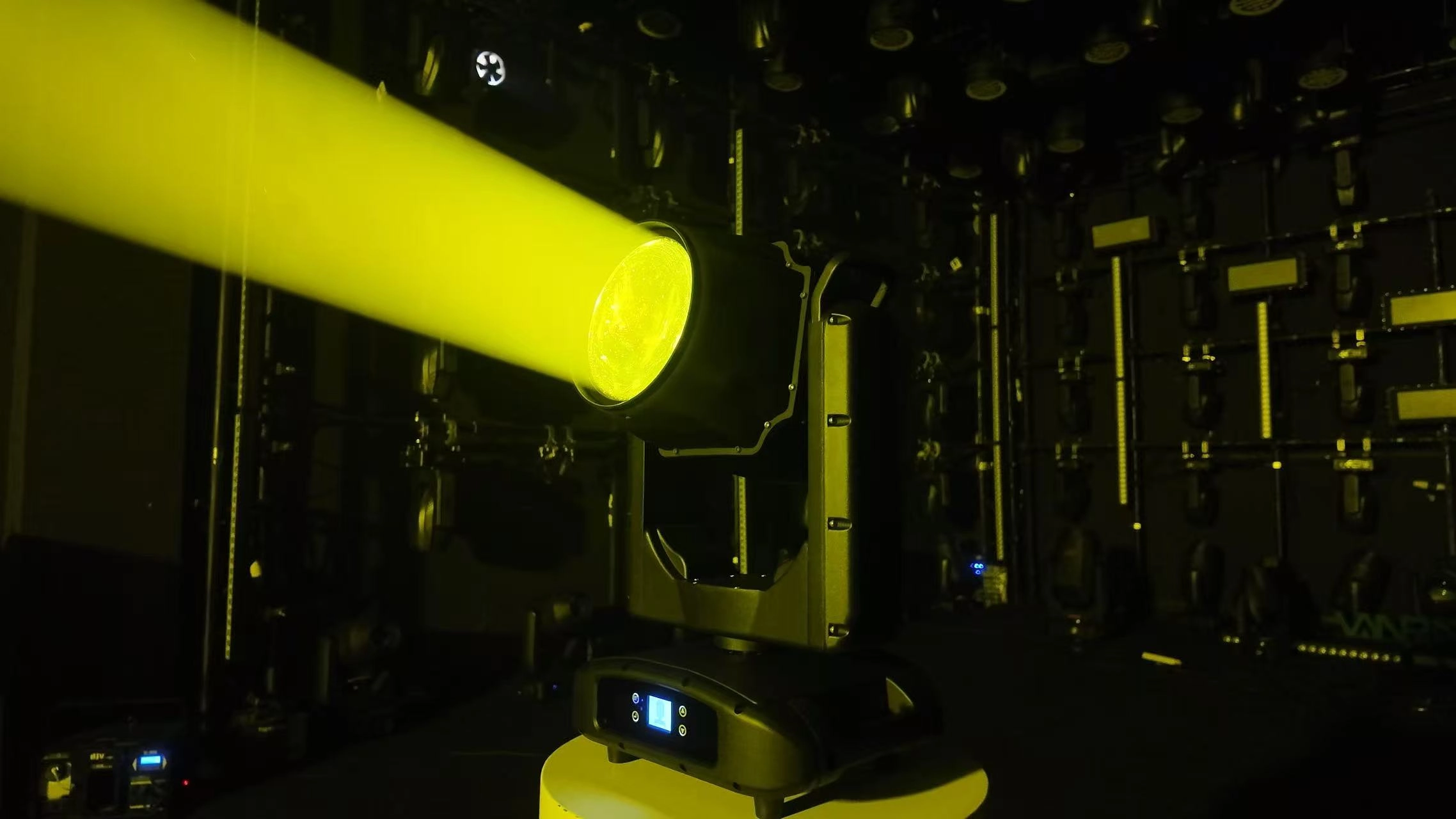

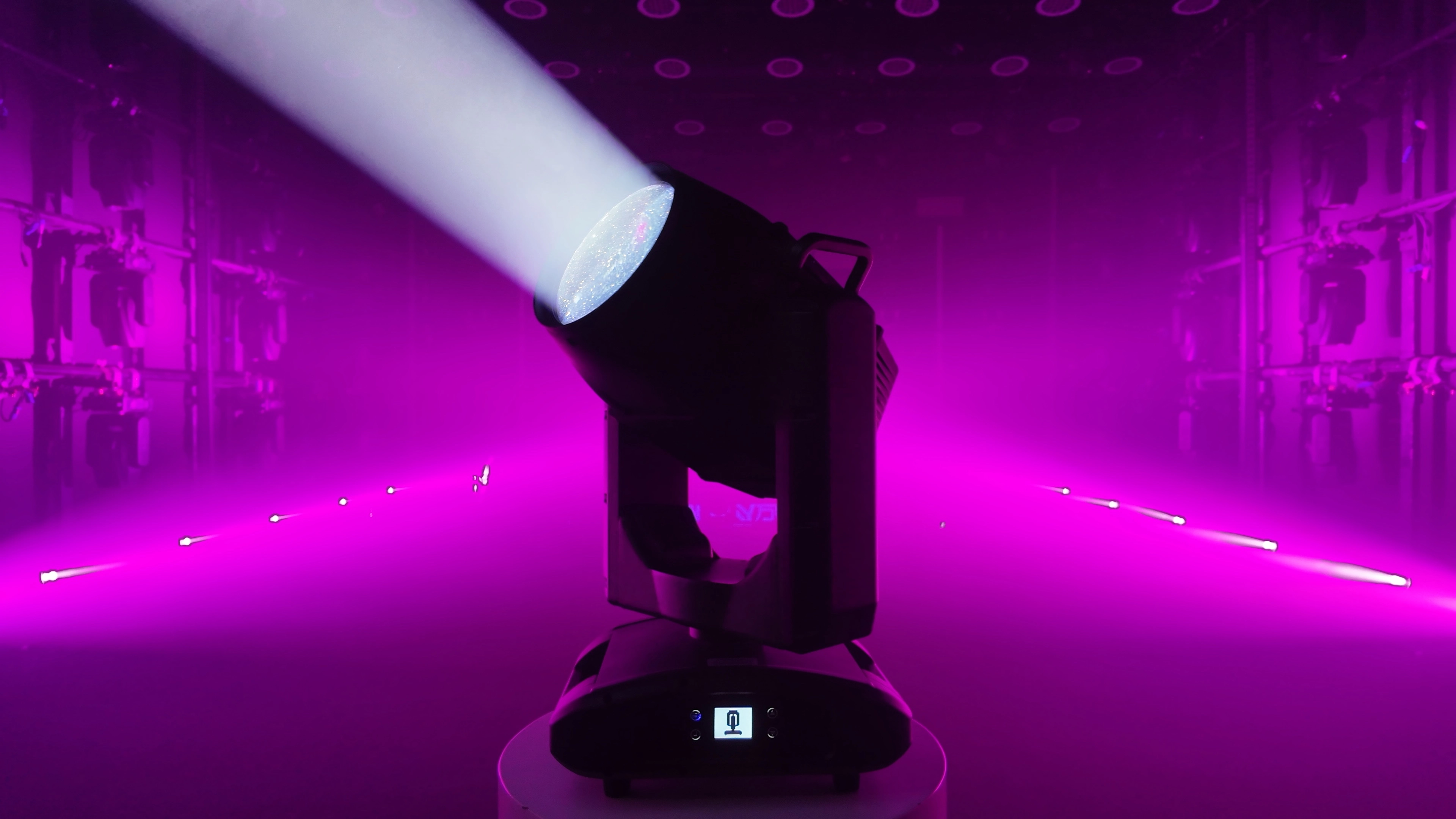

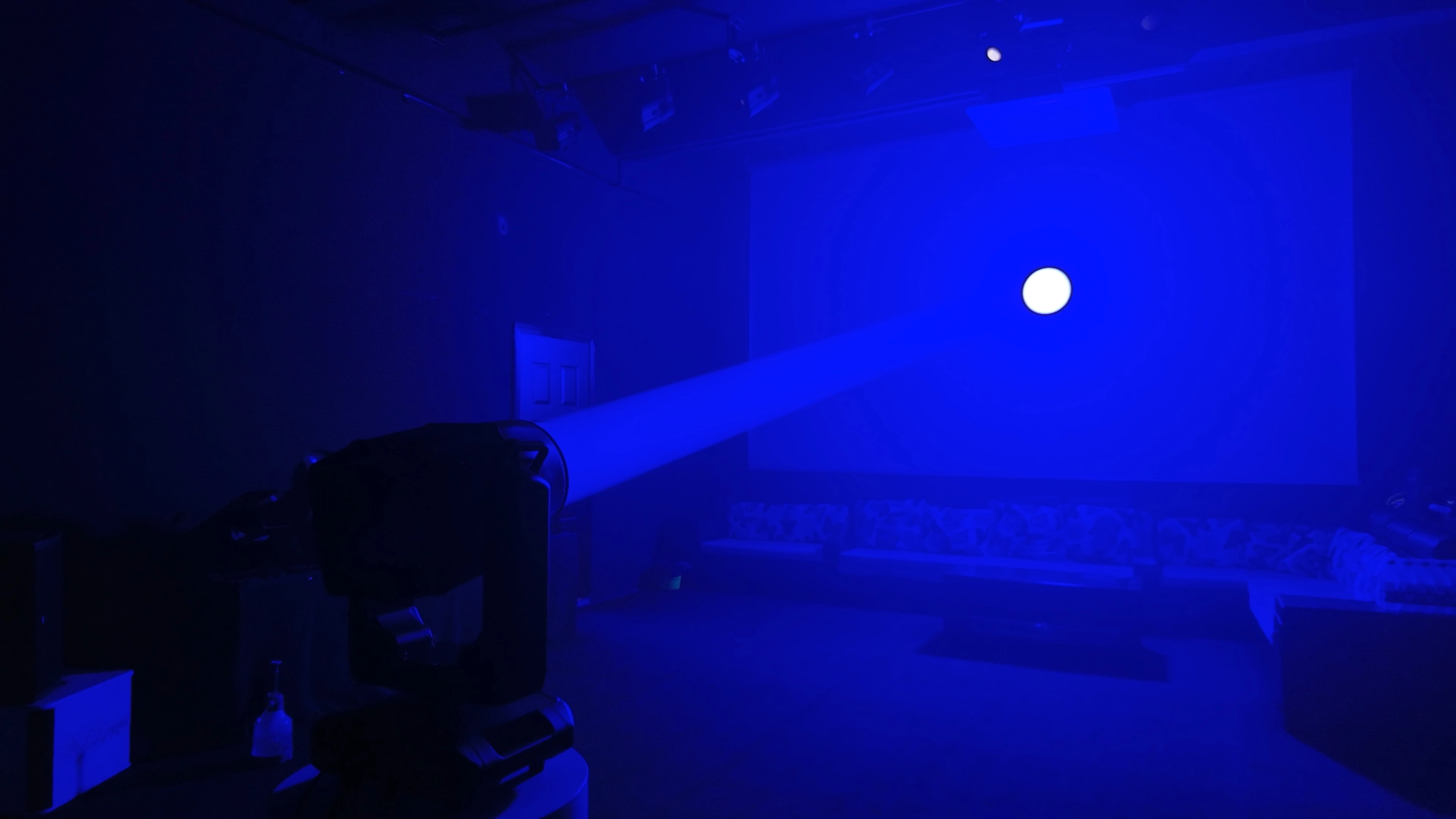

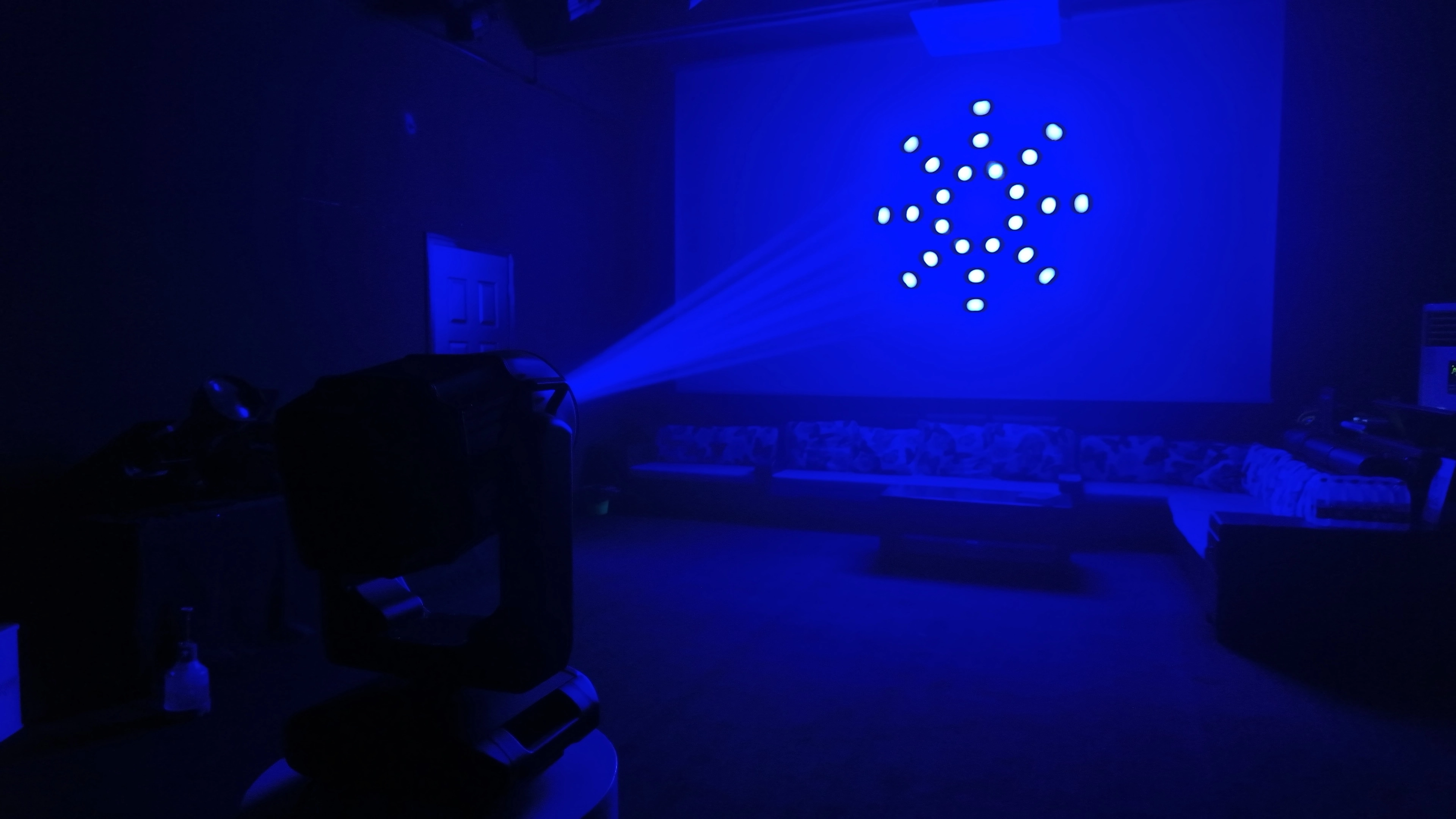

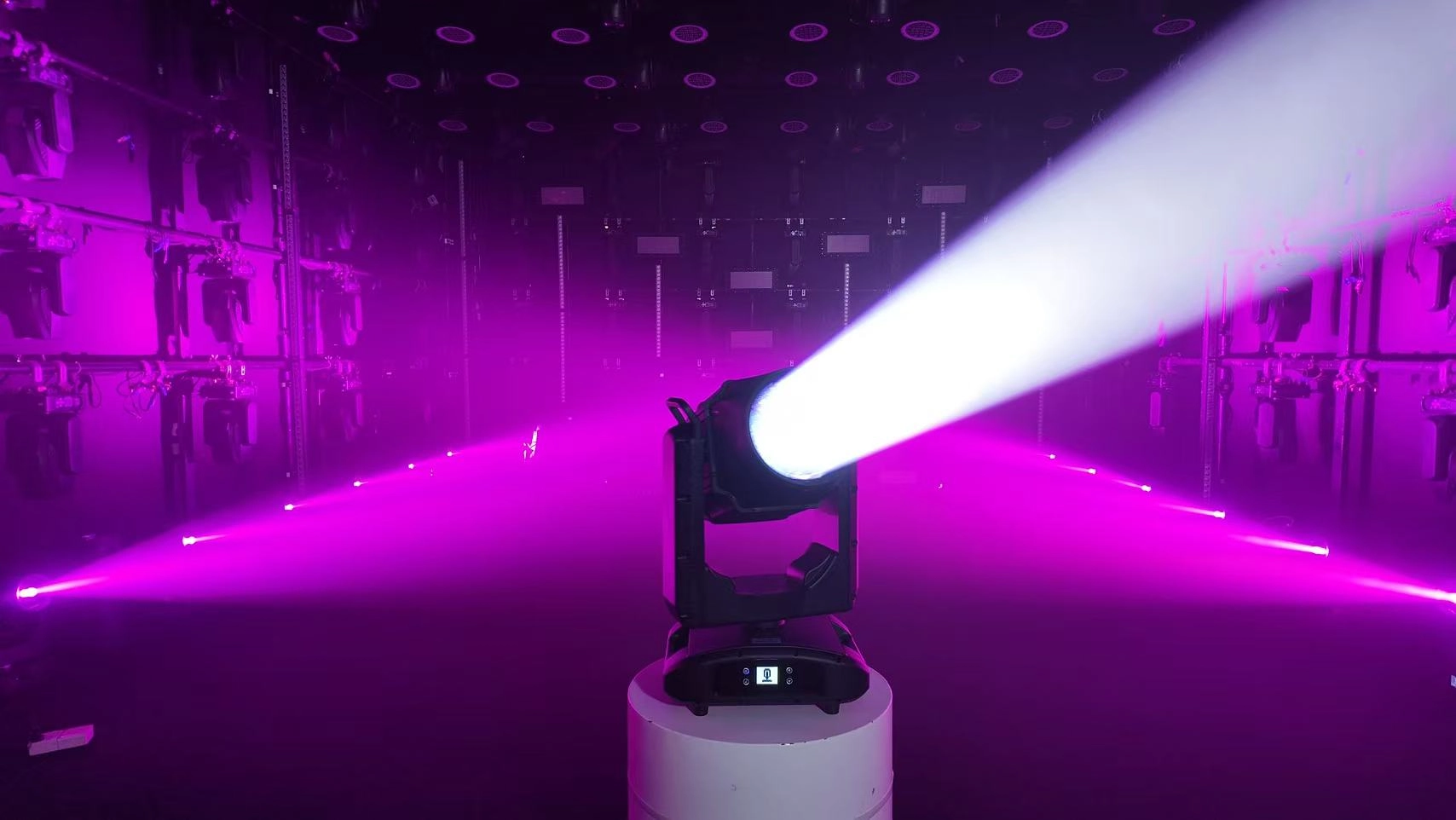

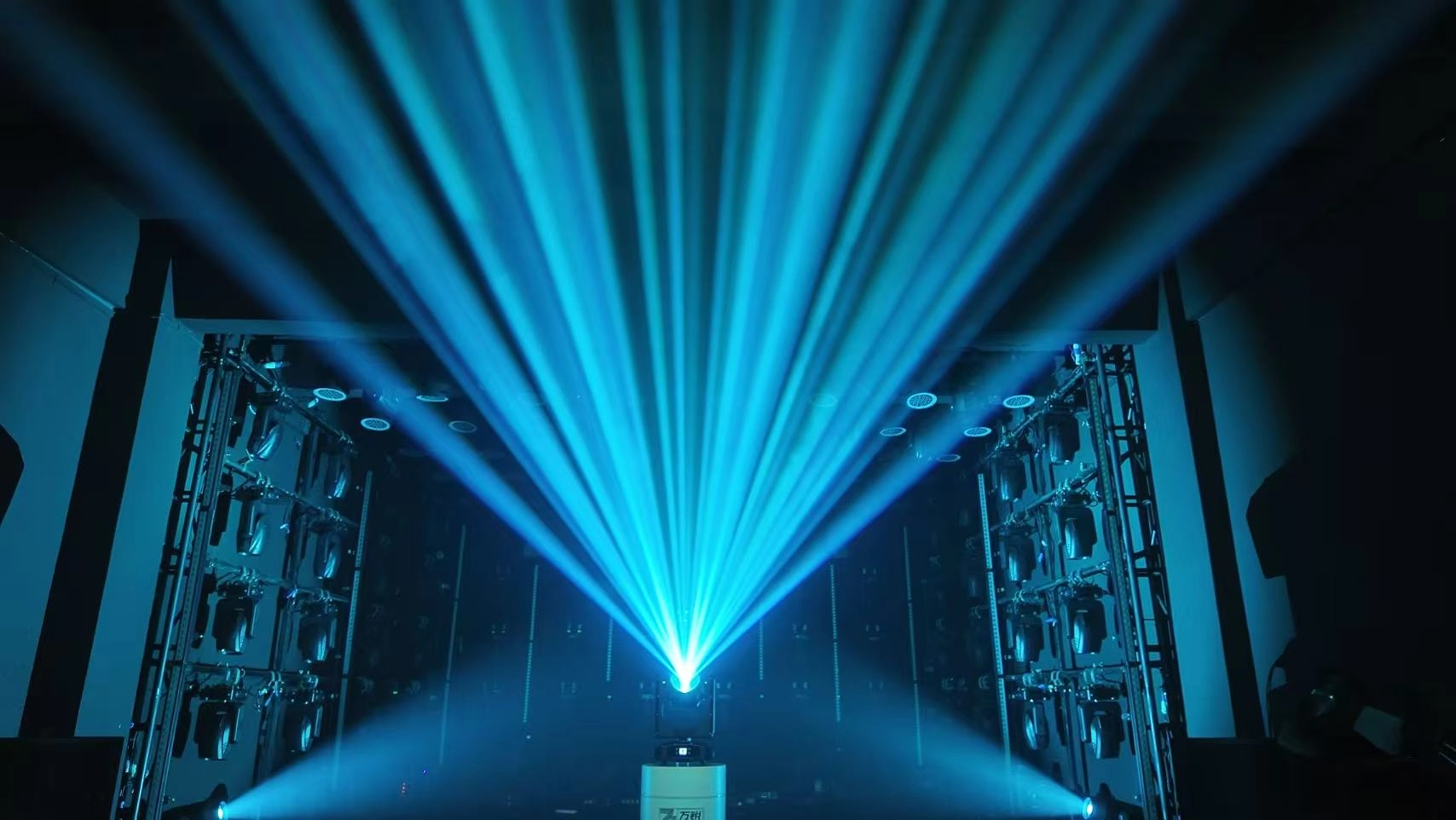

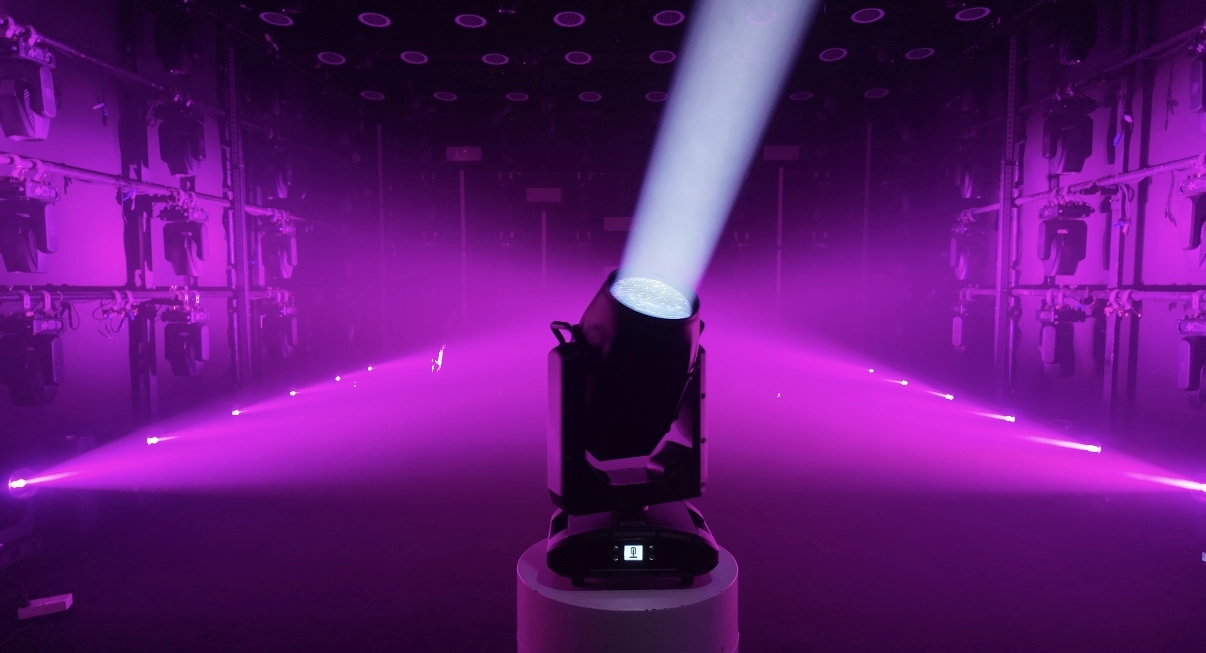

VANRAY Waterproof Laser Beam Moving Head Effect Pictures
VANRAY Waterproof Laser Beam Moving Head Applications
◐ Concerts: strong lighting effects and precise beam adjustment, pattern, wash effect, add shock effect to the live performance.
◐ Stage performance and theater: all-round beam rotation, pattern dyeing, cutting modeling, suitable for different stage needs, to provide the ultimate visual impact.
◐ College and party events: Multiple lighting effects and color patterns help create a unique atmosphere.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY Waterproof Laser Beam Moving Head Installation & Maintenance
Installation
- The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
Maintenance
- Regularly check the lighting circuit and heat outlet; use special cleaning tools to clean the air outlet to maintain the best performance.
