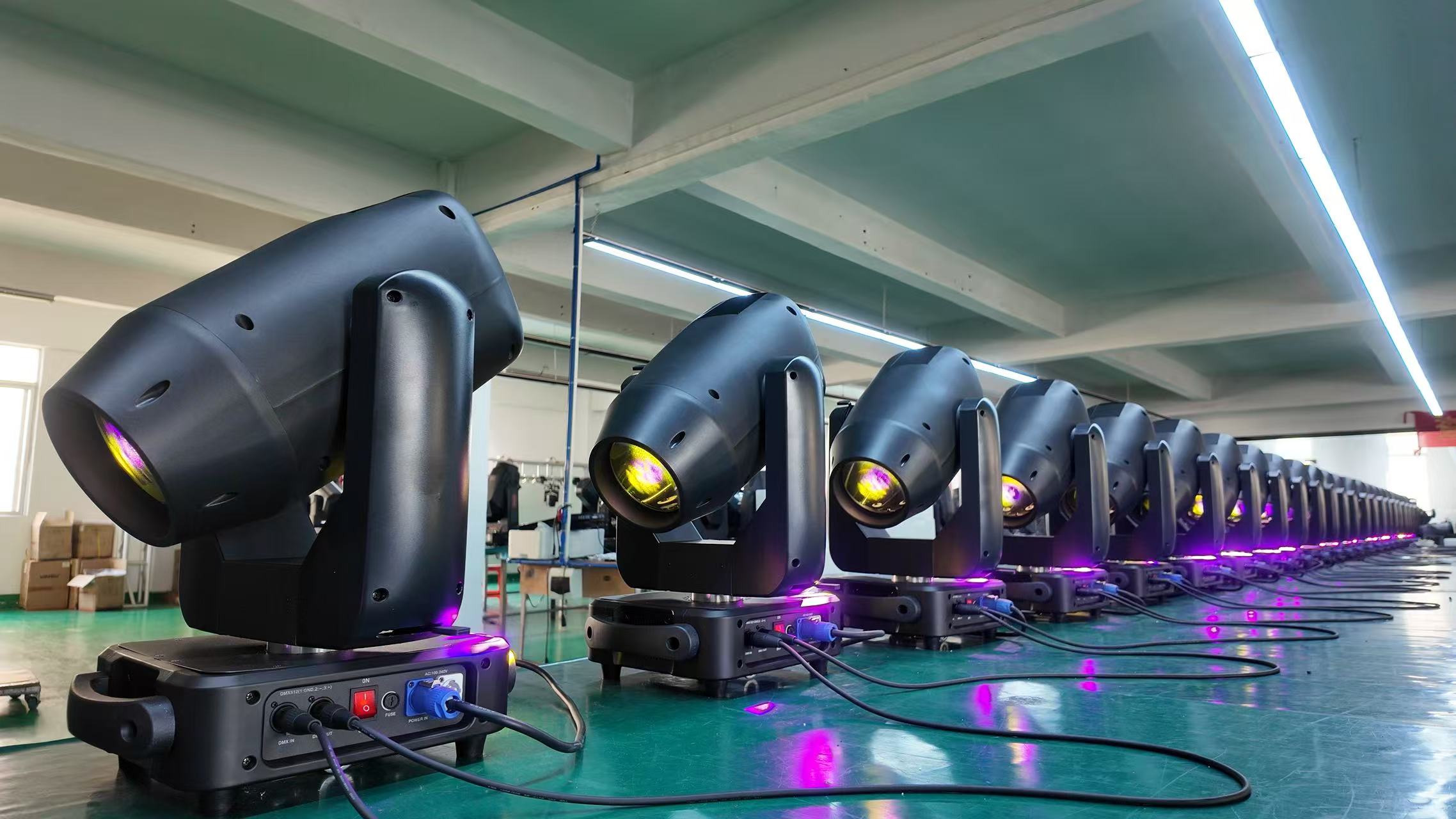

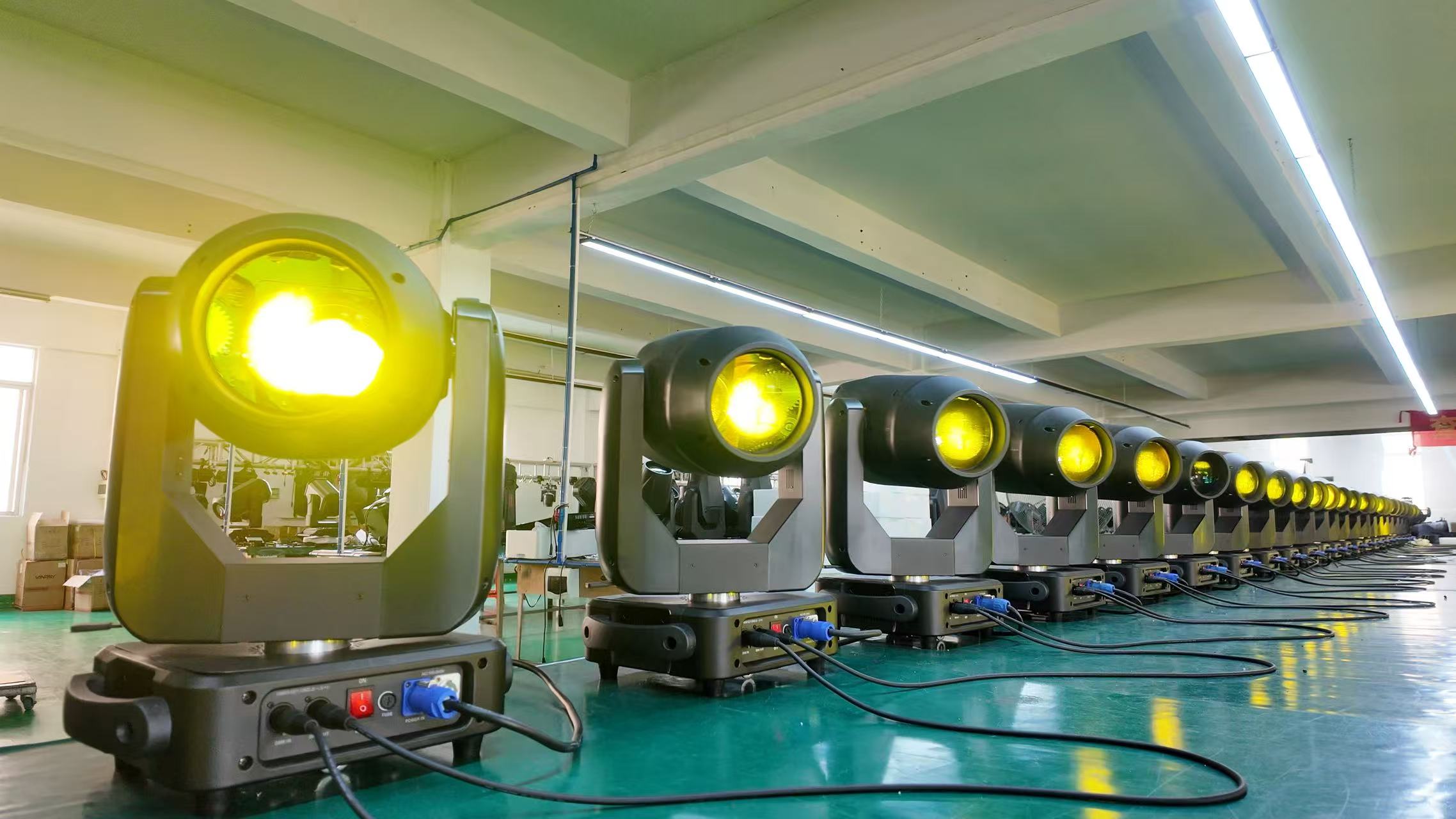

VANRAY beam spot wash 380 moving head 3 in 1 moving head

Name: beam spot wash moving head (3 in 1 )

Type number: VR-380

Rated voltage: AC100V ~ 240V, 50 ~ 60Hz

Power rate: 550W

Light source: Osram 371/ Support 420、461、482 blub

Optics: 4 optical lenses, electron focusing 2-50degrees

Color: 12colors + blank, can do two-way variable rainbow effect

Gobo wheel 1:14 customizable rotating gobo plates + blank, linear zoom in and out Gobo wheel 2: 9 rotating gobo plates + blank, gobo can do water and vibration effects, speed adjustable, linear zoom in and out, gobo diameter 22.9mm, effective light diameter 18mm (customizable)

Effect wheel: On the basis of traditional pattern lights, an effect pattern tray is added, which enriches the pattern effect, and the effect of water and water ripple is more prominent.

Prism: 8-prism, 4-row mirror prism, reversible

Horizontal scanning: 540°(16bit precision scanning) electronic error correction

Vertical scan: 270° (16bit precision scan) electronic error correction

Atomization: Effect movement, atomization function

Stroboscopic: From fast to slow, support mechanical stroboscopic and adjustable stroboscopic effect, support stroboscopic macro function

Dimming: 0-100% linear dimming heat dissipation system: forced convection cooling, intelligent fan heat dissipation, lamp protection function, boot in the non-bubble state, the main fan does not run, after the bubble automatically starts according to the temperature, to minimize noise

Control mode: DMX512, support RDM bidirectional transmission, self-walking mode, master/slave mode channel number: 16/24CH optional

Display: 2.8 inch LCD display, Chinese and English switching, 180 degrees rotation.

Function: strengthen the beam function, but also take into account the pattern, dyeing function, pattern disk and color disk with automatic magnetic detection and error correction function, the function of fast and smooth, fixed point lighting fast and accurate, slow walking, braking is very smooth, high temperature resistance, high pressure, strong anti-interference force

IP rating: IP20, built-in overheat and trigger high pressure protection

Light body size: L410*W380*H640mm

Lamp weight: 21KG

Packing size: 530*500*630mm

Gross weight: 29KG
