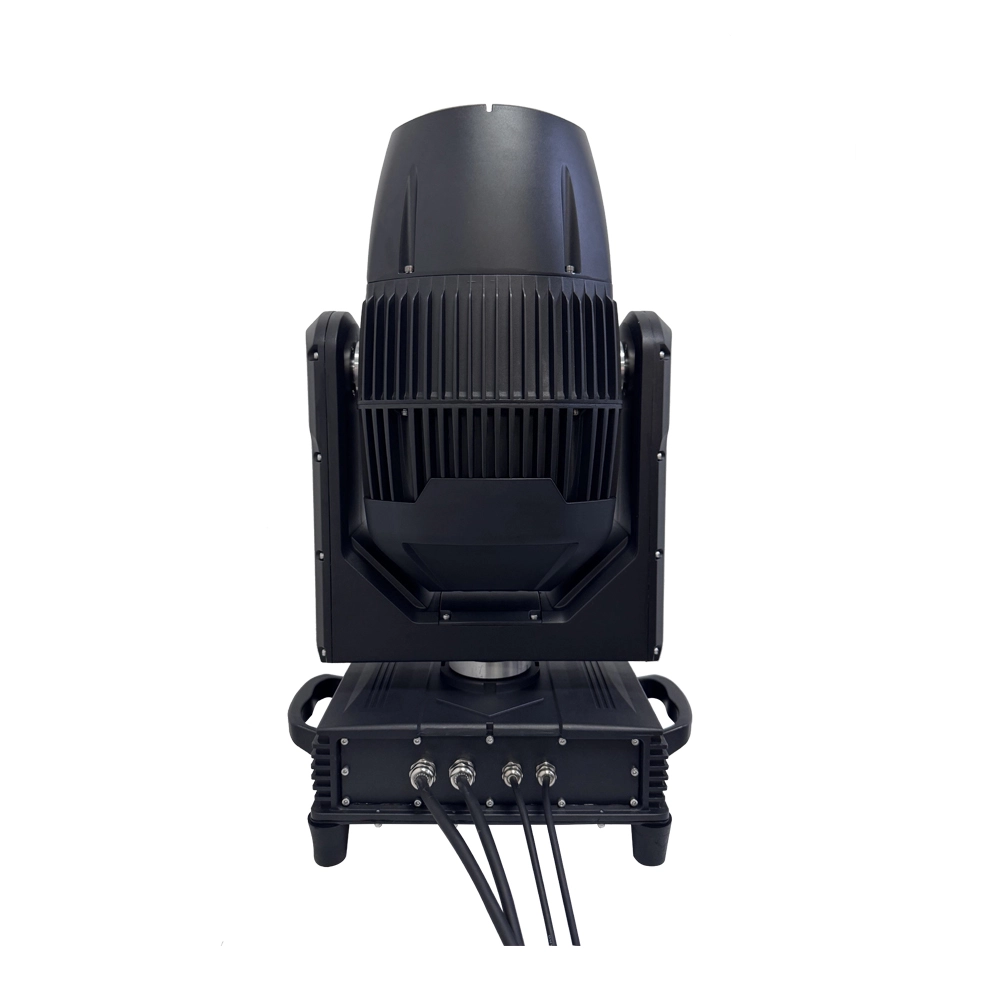

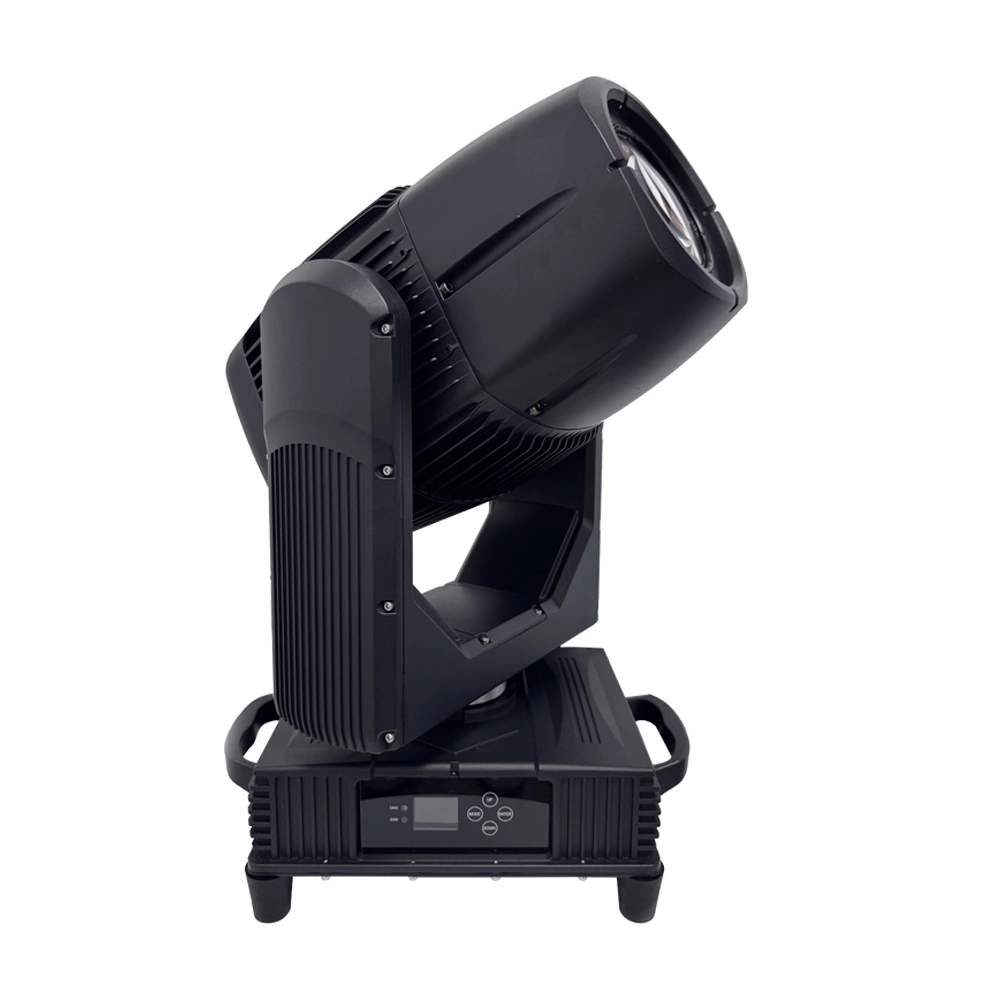

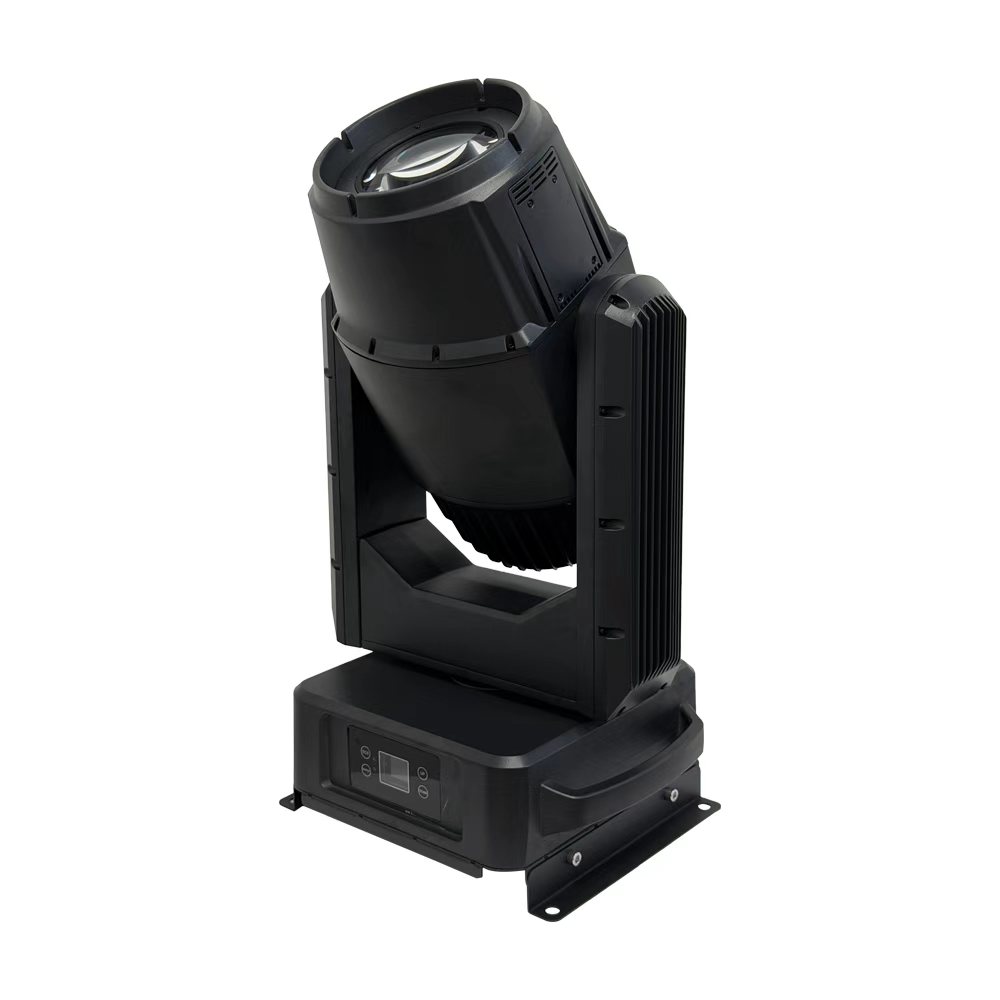

VANRAY Waterproof Moving Head Light VF-T420 IP66 Beam Spot Wash Moving Head
VANRAY Waterproof BEAM Spot Wash Moving Head VF-T420 Parameters
| Name | Waterproof beam spot wash moving head light | Type number | VF-T420 |
| Input voltage | AC90V-235V 50-60Hz | Total power rate | 550W |
| Light source | 420W bulb (OSram) /371 bulb | Beam Angle | 2-45° |
| Color | 11+ atomization function | Fixed gobo | 13 fixed gobo +1 white light |
| Prism | 8 prism | Rotation gobo plate | 9+1 |
| Motor | XY axis three-phase motor, so that the lamp speed stability is high, positioning Angle is accurate | Focusing system | Electronic focusing |
| Stroboscopic | Dual motor independent stroboscopic effect, 0.5-20 times/SEC, adjustable speed | Dimming | 0%-100% linear dimming, smooth and flicker-free |
| Control mode | DMX 512, self-walking, master-slave self-walking, RDM function | Cooling system | Lamp body heat dissipation plus intelligent fan drainage heat dissipation system, using the air convection system method to use software to analyze and calculate the heat flow of lamps, quickly solve the internal heat of the body, extend the light source decay time, ensure the service life of the lamp, design low noise heat dissipation system fan drive performance is excellent, very low noise |
| Channels | 16 channels or 20 channels | Lens diameter | 135mm |
| Display | LCD display | IP rating | IP66 |
| Shell material | Cast aluminum | Installation | Upright/upside down |
| Product size | 430*260*630mm | Weight | 25KG |
VANRAY Waterproof BEAM Spot Wash Moving Head VF-T420 Features and Benefits
◐ Waterproof rating: IP66 , high waterproof rating
◐ The use of comprehensive anti-fog treatment technology
◐ The use of original genuine OSram light source
◐ Using lightning protection, lightning protection technology
◐ Lamps can operate in extremely cold and extreme weather
◐ Support RDM function
◐ The material shell material is die-cast aluminum, so that it is not easy to deform under long-term outdoor conditions, and the heat dissipation is good
◐ Use a rubber wire that protects against cold and freezing
◐ The use of the most advanced technology high-brightness light source, optical technology and rigorous industrial design to ensure the perfect presentation of lighting design
VANRAY Waterproof BEAM Spot Wash Moving Head VF-T420 Effect Pictures
VANRAY Waterproof BEAM Spot Wash Moving Head VF-T420 Applications
◐ Landscape park: waterproof light beam is widely used as outdoor lighting, such as urban landscape lighting, park lighting, road lighting and so on. Due to its waterproof characteristics, it can withstand bad weather such as rain and humidity and ensure the continuous stability of the lighting effect.
◐ Concerts: strong lighting effects and precise beam adjustment. Lamps can be used in open spaces to avoid failure or loss of light effect due to weather.
◐ Building decorations: waterproof beams are often used for lighting decoration on building facades, especially in environments with moisture or frequent exposure to adverse weather conditions. The waterproof design ensures that the beam lamps can operate stably for a long time, even in stormy conditions.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY Waterproof BEAM Spot Wash Moving Head VF-T420 Installation & Maintenance
Installation
- 1. The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
2. Ensure that the installation The angle of the lamp can effectively avoid the accumulation of water droplets or dirt on the surface of the lamp and should be fixed firmly to avoid loosening due to vibration or wind.
3. When connecting the power cable, ensure that all connections are waterproof and sealed to avoid exposing the wire connector and preventing water intrusion. Use waterproof cables and connectors to ensure that the joints are well sealed.
Maintenance
- 1. Regular cleaning: The external mirror and transparent cover of the waterproof beam lamp are easy to accumulate dust or dirt, and regular cleaning can ensure that the beam brightness is not affected. Use a soft cloth and non-corrosive cleaner to avoid scratching surfaces.
2. Check the sealing strip and waterproof rubber ring: Regularly check the waterproof components, such as the sealing strip and rubber ring of the lamp, to ensure that there is no aging, damage, or loosening, and replace the damaged parts in time to ensure the waterproof performance.
3. Check cables and connectors: Regularly check whether cables and connectors are in good condition to avoid aging, damage or corrosion and ensure safe and reliable power connection.
