Follow Spot Lights for Live Events: What Bulk Buyers Need to Evaluate Before Sourcing

🔦 How follow spot lights work — and why the optics define everything

A follow spot light is a high-intensity directional fixture mounted on a stand or truss position, controlled manually by an operator who tracks the beam onto a moving subject. The optical system — not the light source wattage — is the primary determinant of performance quality.

The optical path in a professional follow spot begins at the light source, passes through a condensing lens system, through a mechanical iris and shutter assembly, through a color frame holder, and exits through a focusing objective lens. Each stage in this path affects the final beam quality on stage.

The condensing lens captures light from the source and directs it into a controlled beam. The iris controls beam diameter, producing a variable circular aperture from the minimum (the tightest "spotlight" effect) to fully open. The focusing objective adjusts edge sharpness from hard-edge to soft-edge — a control that operators use constantly to match the aesthetic of the production and the distance to the performer.

The quality of these optical components directly determines field uniformity, edge sharpness control, and how much of the source's raw output reaches the stage as usable light. A fixture with a high-output light source but low-grade optics will deliver less effective stage illumination than a fixture with a more efficient optical system — and the problem is invisible on a specification sheet until the fixture is compared on stage.

The VANRAY VRZ-600 uses 4 groups of glued mirror glass optics — a configuration that reduces internal reflective losses and maintains beam coherence through the optical train more effectively than single-lens systems. The result is more efficient light transmission from the 500W LED module to the stage.

📐 Critical specifications for follow spot light procurement

Throw distance and the output-optics relationship

Throw distance — the distance from the fixture to the subject — is the starting point for any follow spot specification. The fixture must deliver sufficient illuminance at the maximum working throw distance to make the performer visibly brighter than the surrounding stage wash.

Output is measured in lux at a given throw distance. A raw lumen figure means little without knowing the beam angle and optical efficiency at which those lumens are delivered. When evaluating follow spot lights, request lux-at-distance data at the throw distances relevant to your installation: typically 15m, 20m, 30m, and 40m for professional theater and event applications.

The VRZ-600's 500W LED module at 6000K color temperature, combined with the 4-group mirror glass optic system, is specified for professional throw distances — the combination of high source output and efficient optics produces the on-stage illuminance required at medium to long throw positions in theaters and concert venues.

Focusing angle range is the other critical throw parameter. The VRZ-600 provides a 9°–45° focusing angle range with an adjustable aperture minimum of 2°. A 2° minimum aperture at long throw distances produces a tight, precise beam diameter suitable for solo performer spotlighting — the tighter the minimum aperture, the more controlled and dramatic the spotlight effect at distance.

Color Rendering Index and the broadcast requirement

CRI (Color Rendering Index, defined under CIE 13.3) measures how accurately a light source renders colors relative to a reference illuminant, on a scale of 0 to 100. For follow spot lights used in theatrical and broadcast environments, CRI is a primary specification — a follow spot illuminating a performer's face must render skin tones accurately for both the live audience and any camera capture.

The VRZ-600's CRI ≥ Ra90 meets the professional theatrical minimum. Ra90 means that colors under this source — including skin tones, costume fabrics, and makeup — are rendered with 90% accuracy relative to a reference light source. For broadcast and film capture, CRI 95 or above with a verified TLCI (Television Lighting Consistency Index, defined under EBU R 137) is the standard requirement. If the follow spot will be used in broadcast-adjacent productions, confirm TLCI alongside CRI before specifying.

A follow spot at CRI below 85 will produce visibly desaturated or unnaturally tinted skin tones that cannot be fully corrected in broadcast post-production without also affecting the surrounding scene.

Color temperature and color frame options

The VRZ-600 operates at 6000K — a cool daylight-balanced color temperature. This is the standard for professional follow spots used alongside LED wash fixtures that are themselves daylight-balanced, and for broadcast environments white-balanced to daylight. For productions running tungsten-balanced (3200K) color temperature throughout, a correction gel (CTO) through the color frame reduces the 6000K output to approximately 3200K with some output loss.

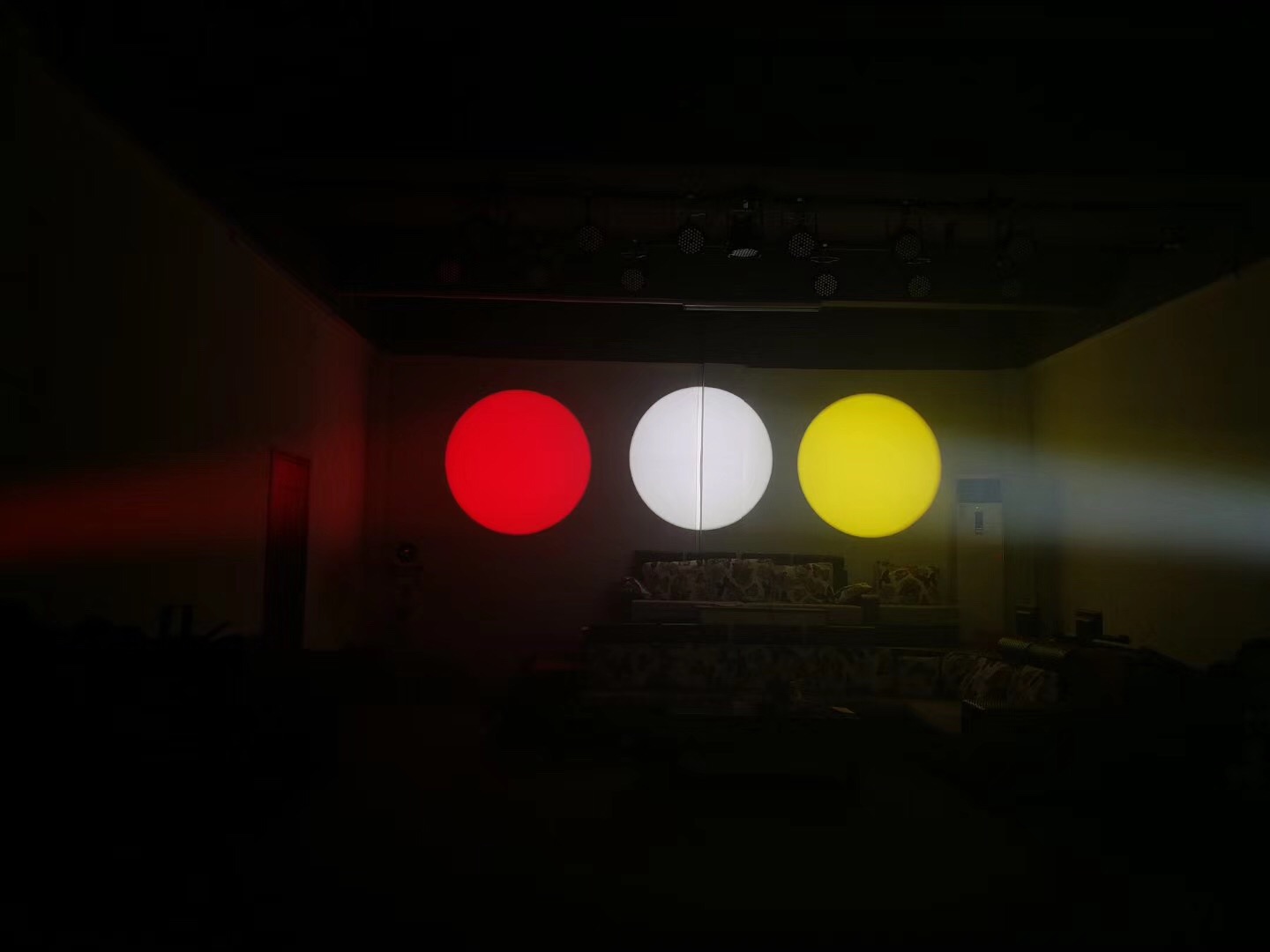

The VRZ-600's color selection system provides red, green, blue, yellow, and warm color options through the manual color frame assembly. This allows color changes during a show without console programming — the operator selects the color frame manually during blackouts or between cues. For productions requiring rapid automated color changes, a moving head spot is more appropriate; the manual color frame on a follow spot is the accepted industry standard for live tracking applications.

Dimming behavior: why instant response matters live

Linear 0–100% dimming with no warm-up delay is a fundamental requirement for live performance follow spot use. The VRZ-600's LED source dims instantly to any level without the warm-up time or re-strike delay that discharge lamp follow spots require.

The practical implication is significant: when a scene calls for a performer to walk into a dark stage and be picked up by a follow spot as they reach their mark, the operator opens the iris and brings up the dimmer simultaneously. Discharge lamp follow spots require the lamp to be pre-warmed (consuming power at low intensity) to achieve instant full output. LED follow spots reach full output at 0ms from any dimmer position, simplifying operator workflow and reducing idle power consumption during standby periods.

The VRZ-600's specification notes "no need to wait for cooling and then bubble" — a reference to the discharge lamp limitation where rapid dimming followed by re-strike can cause lamp instability. LED sources have no equivalent limitation.

Aperture control: the double-adjustment mechanism

The VRZ-600 features aperture size double adjustment — both the iris diameter and the beam focus (edge sharpness) are independently adjustable. This gives the follow spot operator two simultaneous controls:

• Iris: controls the diameter of the beam circle on stage — how large the spotlight pool appears to the audience
• Focus: controls edge sharpness — from a hard crisp edge for dramatic pinspot effects to a soft diffuse edge for naturalistic key lighting

These are separate controls because they serve different creative purposes. In practice, operators adjust iris size to match the performer's movement range and adjust focus edge to match the production aesthetic. The ability to adjust both independently without affecting the other is a mark of a professionally specified follow spot mechanical assembly.

Thermal management in continuous live operation

Follow spot lights run continuously for the duration of a performance — typically 2–4 hours for theater, up to 6–8 hours for touring show days. Thermal stability throughout this period is essential: any output variation, color shift, or mechanical stiffness from heat buildup will affect operator performance and on-stage results.

The VRZ-600 uses an integrated cooling system combining an aluminum heat sink sheet with copper pipe heat transfer and an intelligent silent fan. The copper pipe conducts heat from the LED module to the aluminum radiator structure with approximately 6× the thermal conductivity of aluminum alone — reducing the temperature differential between the LED junction and the ambient environment more effectively than aluminum-only passive solutions. The intelligent fan speed-matches to thermal load, reducing fan noise during lower-output standby periods.

At 20kg and 628×280×182mm (with maximum support extension to 1650mm), the VRZ-600 is designed for floor stand and elevated operator platform use at typical follow spot operator positions: rear of house, front of upper circle, or side balcony positions.

🎭 Application scenarios

Professional theater and performing arts venues

Follow spots are standard equipment in professional proscenium theaters, studio theaters, and multipurpose performance halls. The primary use case is performer tracking during musical theater, drama, and opera — providing the high-key lighting that separates the featured performer from the ambient wash and directs audience attention. The VRZ-600's CRI ≥ Ra90 and 9°–45° focus range cover the range of theatrical follow spot applications from intimate studio theaters to large proscenium stages.

For permanent theater installations, two follow spots are typically the minimum for full-coverage performer tracking — one from each side of the house to eliminate the single-side shadow problem that a single unit creates. Specify at least two units for any theater installation intended to support main-stage productions.

Concert touring and live music productions

Concert follow spots serve a different purpose from theatrical ones: rather than naturalistic performer lighting, they create the high-contrast dramatic illumination of featured performers against a busy moving rig background. The 6000K color temperature of the VRZ-600 produces the cool, high-contrast beam that reads well against the colored wash and atmospheric effects typical of concert lighting design.

For touring productions, follow spots must be positioned at available operator positions in each venue — rear of floor, balcony front, or side positions — at throw distances that vary significantly between venues. The 9°–45° focus range accommodates this variability; operators adjust focus angle to match the performer area size at each venue's working distance.

Corporate events and award ceremonies

Award ceremony and corporate event follow spot use is one of the most common but least technically demanding applications. The follow spot tracks speakers and award recipients across a relatively static stage area at a predictable throw distance. Standalone and master-slave modes without complex programming suit this application.

For event production rental companies, the VRZ-600's manual operation mode simplifies training of temporary event operators who may not have theatrical follow spot experience. Linear dimmer and color frame operation are skills that can be briefed in under 30 minutes for a basic award ceremony application.

University, campus, and community performing arts

Educational and community theater venues frequently operate follow spots with student or volunteer operators who are still developing technical skills. A fixture with clear, responsive aperture control, immediate dimming feedback, and simple color frame operation reduces operator error during live performances. The VRZ-600's manual operation design prioritizes ergonomic control layout over automated features — appropriate for the operator skill range of educational venues.

🔍 Supplier evaluation for bulk follow spot orders

Optics documentation and verification

The optical specification is the most difficult follow spot parameter to evaluate from a spec sheet alone. "High-quality optics" is not a verifiable claim. Request lux-at-distance photometric data for the fixture at 20m, 30m, and 40m throw with the iris at 50% open and focus set to hard edge. These three data points allow direct performance comparison between competing fixtures at the throw distances relevant to your applications.

For large follow spot orders — theater installations, touring production house stock, or rental companies building inventory — request a sample unit for on-stage testing before committing to the full quantity. Follow spot optical quality is a live performance issue that can only be fully assessed by observing the beam on a stage.

Stand and mounting system compatibility

Follow spots are heavy fixtures — at 20kg, the VRZ-600 requires a stand rated to support the fixture weight plus a minimum 4:1 safety factor. Confirm stand specifications and load ratings before deployment. For operator platform positions at height, ensure that mounting hardware and the platform structure are appropriately rated.

The VRZ-600's maximum support extension to 1650mm provides adjustment range for different operator platform heights and sight-line requirements. Confirm that the stand or support system you are using is compatible with the fixture's mounting interface before placing a bulk order.

Spare parts for high-frequency rental use

Follow spots in rental inventory operate under high-frequency, multi-operator conditions. The color frame assembly, iris mechanism, and focus knob are the mechanical components most subject to wear. Confirm that replacement parts for these components are available from the supplier with documented lead times before committing to a bulk rental inventory order.

✅ Pre-purchase checklist for follow spot light procurement

• Lux-at-distance photometric data obtained at relevant throw distances (20m, 30m, 40m minimum)
• CRI ≥ Ra90 confirmed; TLCI verified if broadcast or camera capture involved
• Aperture range (minimum and maximum beam angle) confirmed against venue geometry
• Color temperature (6000K) compatible with production's overall color balance
• Stand or operator platform load rating confirmed against fixture weight (20kg)
• Operator ergonomics evaluated — aperture, focus, dimmer, and color frame controls assessed
• Thermal performance during continuous 4+ hour operation confirmed
• Spare parts availability confirmed for color frame, iris mechanism, and focus assembly
• CE certification documentation obtained
• Sample unit tested on stage at actual working throw distance before bulk order confirmation

📊 Follow spot light output comparison by throw distance

Lux values are indicative for professional follow spot applications. Actual requirements depend on ambient stage wash intensity and production aesthetic. Verify with photometric data at your specific installation geometry.

FAQ

What throw distance is the VRZ-600 rated for? The VRZ-600's 500W LED module at 6000K with 4-group mirror glass optics is positioned for professional mid-range throw distances — typically 15–30m, covering the majority of proscenium theater, concert venue, and event production follow spot positions. For throw distances above 35–40m (large arena or outdoor stadium positions), higher-output follow spot models should be evaluated. Request lux-at-distance photometric data from the VANRAY sales team for your specific throw distance before specifying.

What does CRI ≥ Ra90 mean in practice for performer lighting? CRI (Color Rendering Index, CIE 13.3) measures color accuracy relative to a reference source on a 0–100 scale. Ra90 means colors render at 90% accuracy — skin tones, costume colors, and makeup appear natural and true to life under the fixture. Below Ra85, performers appear desaturated or slightly tinted, which is visible to the live audience and difficult to correct in broadcast capture without affecting the full scene. Ra90 is the accepted professional minimum for theatrical follow spots.

How does the VRZ-600 handle dimming compared to a discharge lamp follow spot? LED sources dim instantly to any level from 0–100% with no thermal delay. Discharge lamp follow spots require pre-warming at low output to enable rapid intensity response — operators typically leave discharge fixtures running at low intensity during standby scenes to avoid re-strike delay. The VRZ-600 reaches full output at 0ms from any dimmer position, simplifying operator workflow and eliminating idle power consumption. The specification's reference to "no need to wait for cooling and then bubble" describes the elimination of the discharge lamp re-strike artifact that causes visible output instability when a lamp is re-struck while still hot.

What is the aperture minimum of 2 degrees, and when is it used? The adjustable knob aperture minimum of 2° refers to the tightest beam configuration the iris can produce. At long throw distances (25–30m), a 2° beam diameter produces a spotlight pool of approximately 0.87–1.05m on stage — a tight, precise circle suitable for solo performer pinspot effects. At shorter distances, the same 2° setting produces a proportionally smaller pool. The 9°–45° main focusing angle range controls the overall beam width; the 2° minimum aperture setting provides the tightest "pinspot" configuration within that range.

How many follow spots are required for a professional theatrical production? A minimum of two follow spots — positioned symmetrically from opposite sides of the house — is the professional standard for theatrical productions requiring full-stage coverage. A single follow spot creates a visible shadow on the performer's far side that reads as an unprofessional half-lit face from audience positions on the shadow side. Two operators tracking from opposite positions eliminate this problem. For large proscenium stages or productions with multiple simultaneous featured performers, three or four follow spots are commonly specified, with operators coordinating via headset communication.

Does the VRZ-600 support DMX control for integration into a lighting console? The VRZ-600 operates in manual mode — dimmer, aperture, focus, and color frame are all physically controlled by the operator. Manual operation is the standard for live performer tracking follow spots, as human operator response is faster and more adaptable than automated cue-based control for the unpredictable movement patterns of live performers. For productions requiring automated follow spot-style tracking (large arenas, broadcast events), motorized automated follow spot systems or moving head profiles with operator-controlled tracking software are the appropriate specification.

What stand is recommended for the VRZ-600 at typical operator positions? The VRZ-600 weighs 20kg. The stand must be rated to support the fixture weight with a minimum 4:1 safety factor — a minimum stand rating of 80kg at the fixture mounting point. The fixture's support extends to 1650mm maximum, allowing adjustment for different operator platform heights and sight-line geometry. Confirm stand compatibility with the VRZ-600's mounting interface before ordering — contact the VANRAY sales team at vanraylighting.com for confirmed compatible stand specifications.

What is the minimum order quantity and lead time for the VRZ-600? The VRZ-600 is available from 1 unit. In-stock units ship within 1–2 business days; production orders are typically completed in 7–15 business days depending on quantity. CE certification documentation is available on request for procurement and compliance purposes. Contact the VANRAY team at vanraylighting.com for current stock status, bulk pricing tiers, and OEM options.
