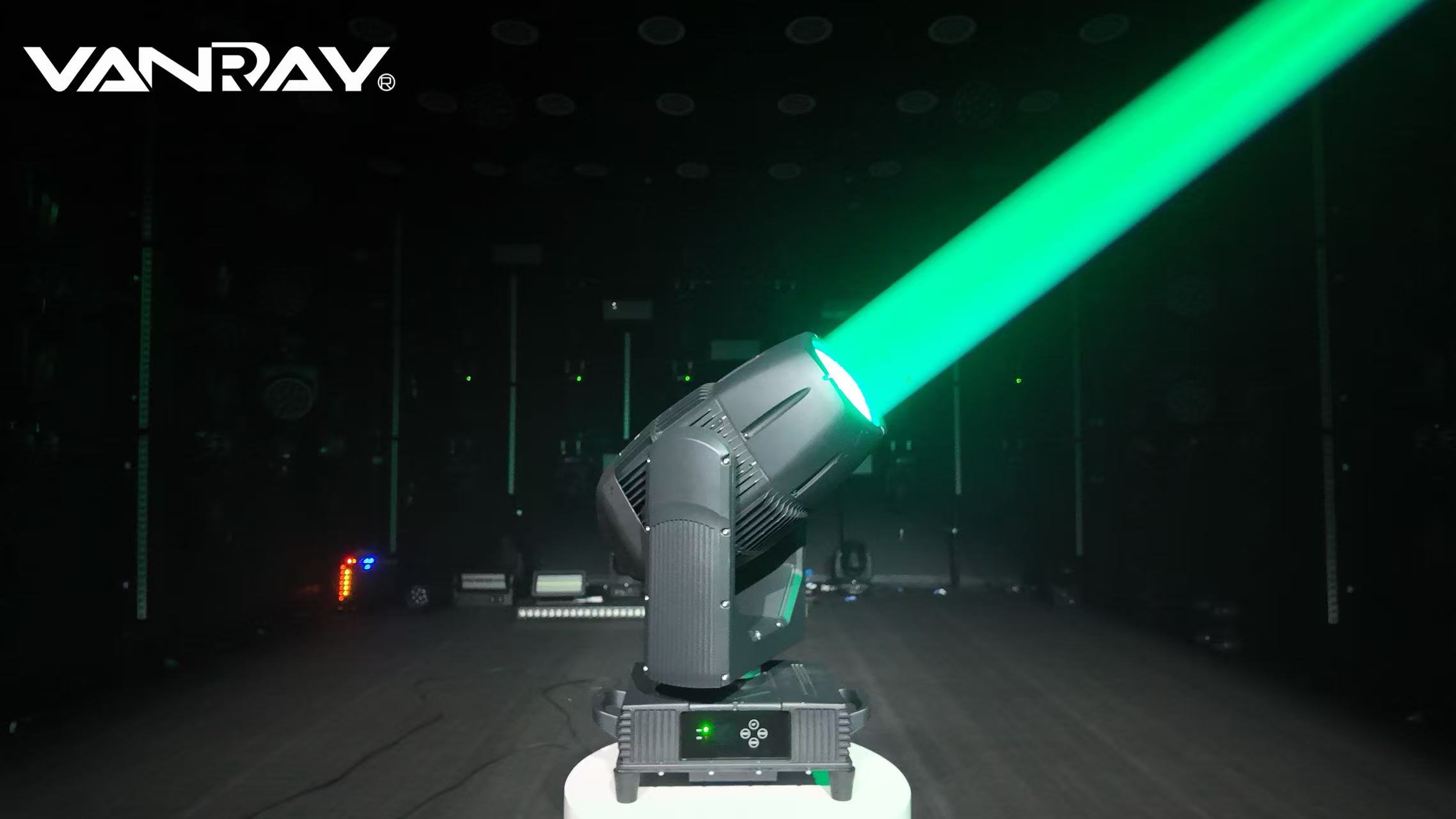

Waterproof beam moving head light designed for outdoor performances

Waterproof beam moving head light, IP66 protection grade, thick and straight beam, precise positioning. It can be perfectly adapted to both outdoor stages and cultural tourism performances, with stable output!

Name: waterproof beam moving head light

Type number: VF-420

Technical parameters:

1. Voltage: AC90V-235V 50-60Hz

2. Wide voltage drive power: 600W

3. Light source system: 420W bulb (OSram) /371 bulb

4. Color temperature; 7900±500K

5. Color system: color disk: 14+ colorful rainbow effect + atomization function

6. Gobo system: Gobo plate: 17 fixed gobo +1 white light

7. Focusing system: electronic focusing

8. Atomization; With atomization function, can achieve soft light effect

9. Stroboscopic; Dual motor independent stroboscopic effect, 0.5-20 times/SEC, adjustable speed

10. Motor: XY axis uses three-phase motor, so that the lamp fast and slow speed stability is high, positioning Angle is accurate!

11. Dimming curve: 0%-100% linear dimming, smooth and flicker-free

12. Beam Angle: 0-2°

13. Channels: 16 channels or 20 channels

14. Lens diameter: 165mm

15. Waterproof rating: IP66

16. Control mode 1:DMX 512, self-walking, master-slave self-walking, RDM function, large control can be used

System control remote set address code.

17. Prism system :8 prism and (8+16) prism (prism can be configured according to customer requirements).

18. Display: LCD display, suitable for different installation positions, can be rotated 180°

19. Horizontal and vertical: the use of high-precision three-phase motor, accurate positioning, smooth operation, automatic correction positioning

20. Horizontal: 540° rotation, resolution 8/16Bit, with fine tuning

21. Vertical: 270° rotation, resolution 8/16 bit, with fine tuning.

22. Heat dissipation system: lamp body heat dissipation plus intelligent fan drainage heat dissipation system, using the air convection system method to use software to analyze and calculate the heat flow of lamps, quickly solve the internal heat of the body, extend the light source decay time, ensure the service life of the lamp, design low noise heat dissipation system fan drive performance is excellent, very low noise.

23. Cast aluminum + outdoor engineering plastic shell

24. Installation mode: upright/upside down

25. Lamp body size: 43*26*63cm, Net weight: 25KG, gross weight: 29KG

waterproof beam moving head Ingenuity masterpiece: high-grade appearance, huge energy, thick light column waterproof beam lamp from the optics, structure, appearance and other aspects of the performance have reached a high standard, the use of the most advanced technology high-brightness light source, optical technology and rigorous industrial design to ensure the perfect presentation of lighting design.
