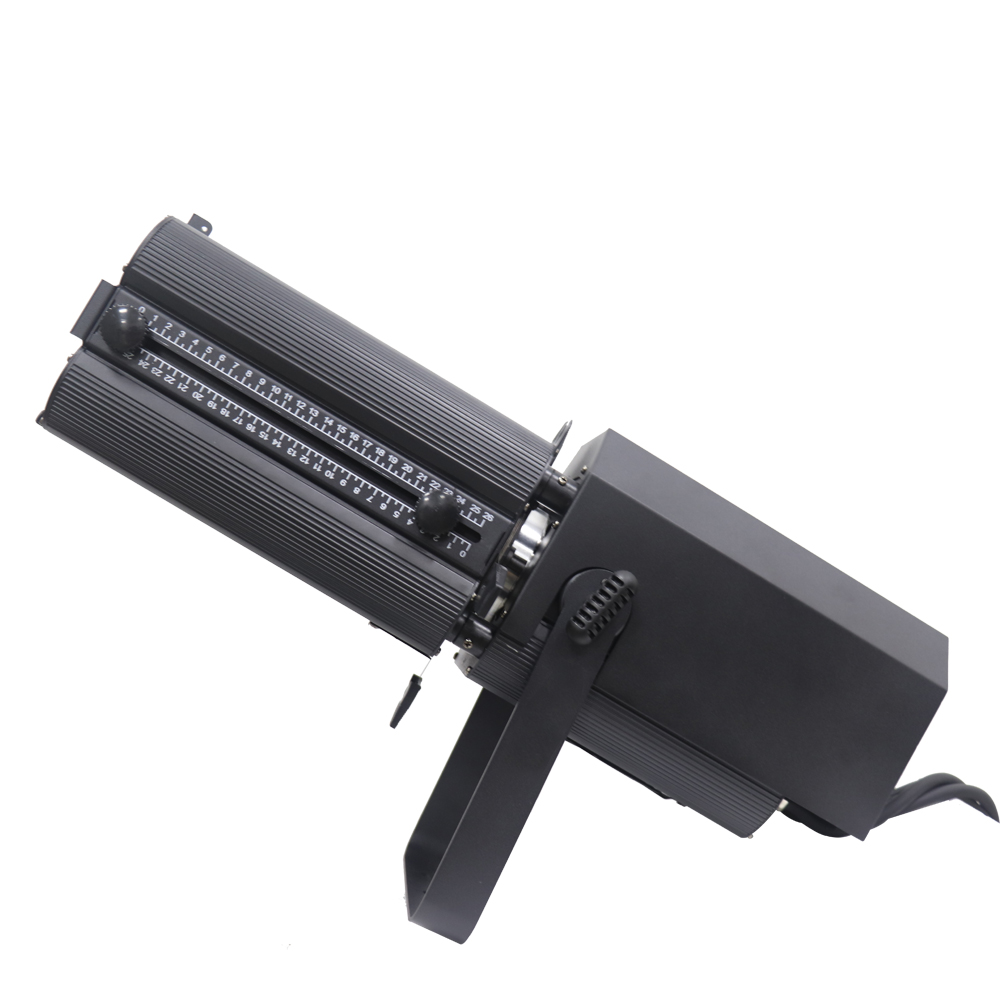

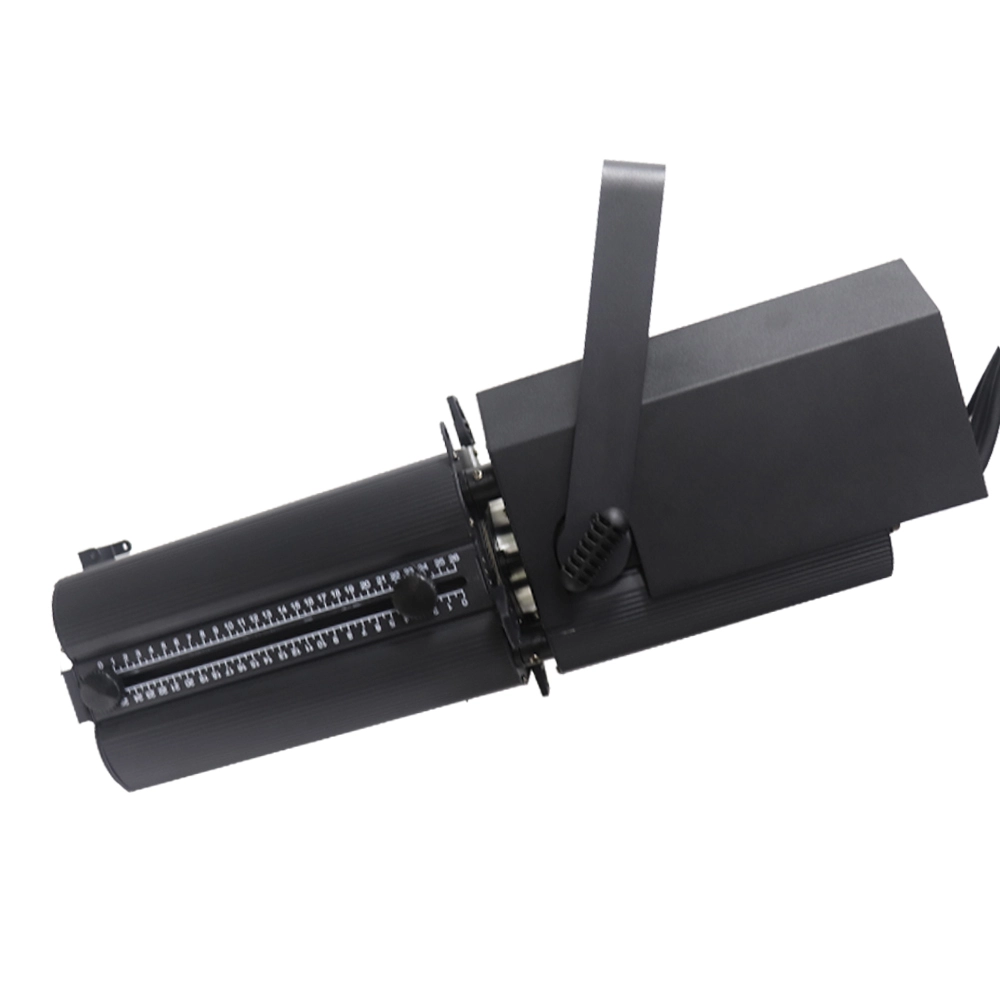

VANRAY Rainproof LED Ellipsoidal Light VRC-200DF 200W LED Profilel Spot Light for Outdoor Project
Introducing the VANRAY Rainproof LED Ellipsoidal Light VRC-200DF, a 200W powerhouse for outdoor projects. This LED ellipsoidal stage lighting solution delivers precision and durability. Ideal for diverse settings, this ellipsoidal LED light ensures exceptional performance in any weather. Illuminate your stage with Vanray’s cutting-edge technology.
Rainproof LED Profile Spot Light VRC-200DF Parameters
| Name | LED rainproof profile spot light | Model number | VRC-200DF (VRC-300DF/VRC-400DF) |
| Power | 200W/300W/400W | Light source | 200W, 300W, 400W lamp beads optional |
| Color rendering index (CRI) | Ra≥90 | Optics | 4 groups of adhesive optical systems, glass aspheres |
| Color temperature |
3200K/4500K/5600K/3200-5600K linear adjustment color temperature, four options |
Zoom | Manual 17-60 degree focus (optional 10-17 degree manual focus) |
| Operating temperature | -10~40℃ | Cooling system | Aluminum automatic cooling + smart quiet fan |
| IP rating | IP55 rainproof | Stroboscopic | 1-25 times/second |
| Touch screen | LCD display board with touch screen | Body material | Metal hardware material |
| lDMX channel | 1/2CH (two-color temperature 3/4CH) | Control system | RDM protocol /DMX512, self-walking mode, master-slave mode |
| Lamp body size | L598*W185*H315mm | Net weight | 12.5KG |
Rainproof LED Profile Spot Light VRC-200DF Features and Benefits
◐ Power 200W/300W/400W optional
◐ Color rendering index: Ra≥90, can be customized higher CRI
◐ Manual 17-60 degree focus (optional 10-17 degree manual focus)
◐ IP55 rainproof

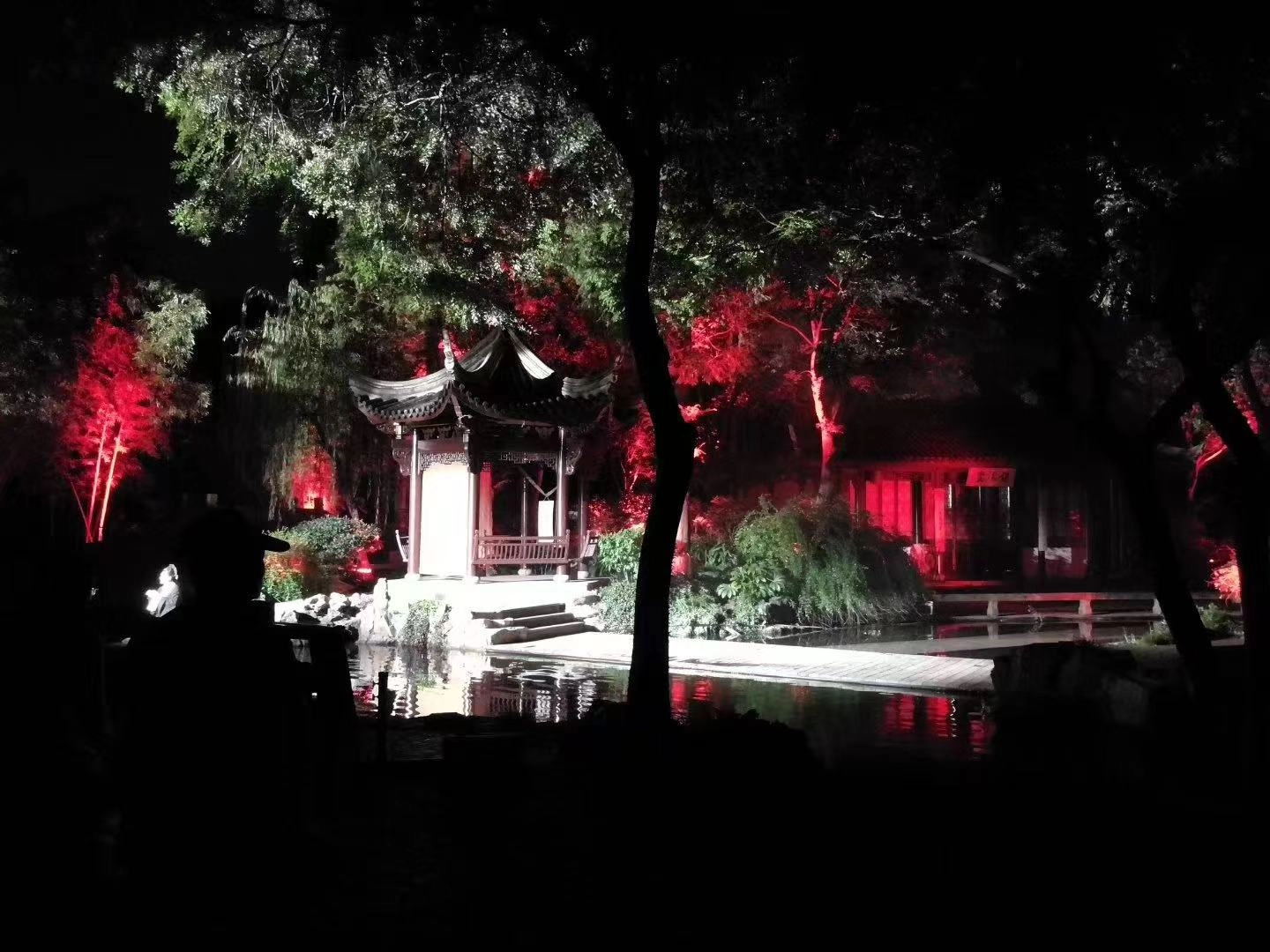

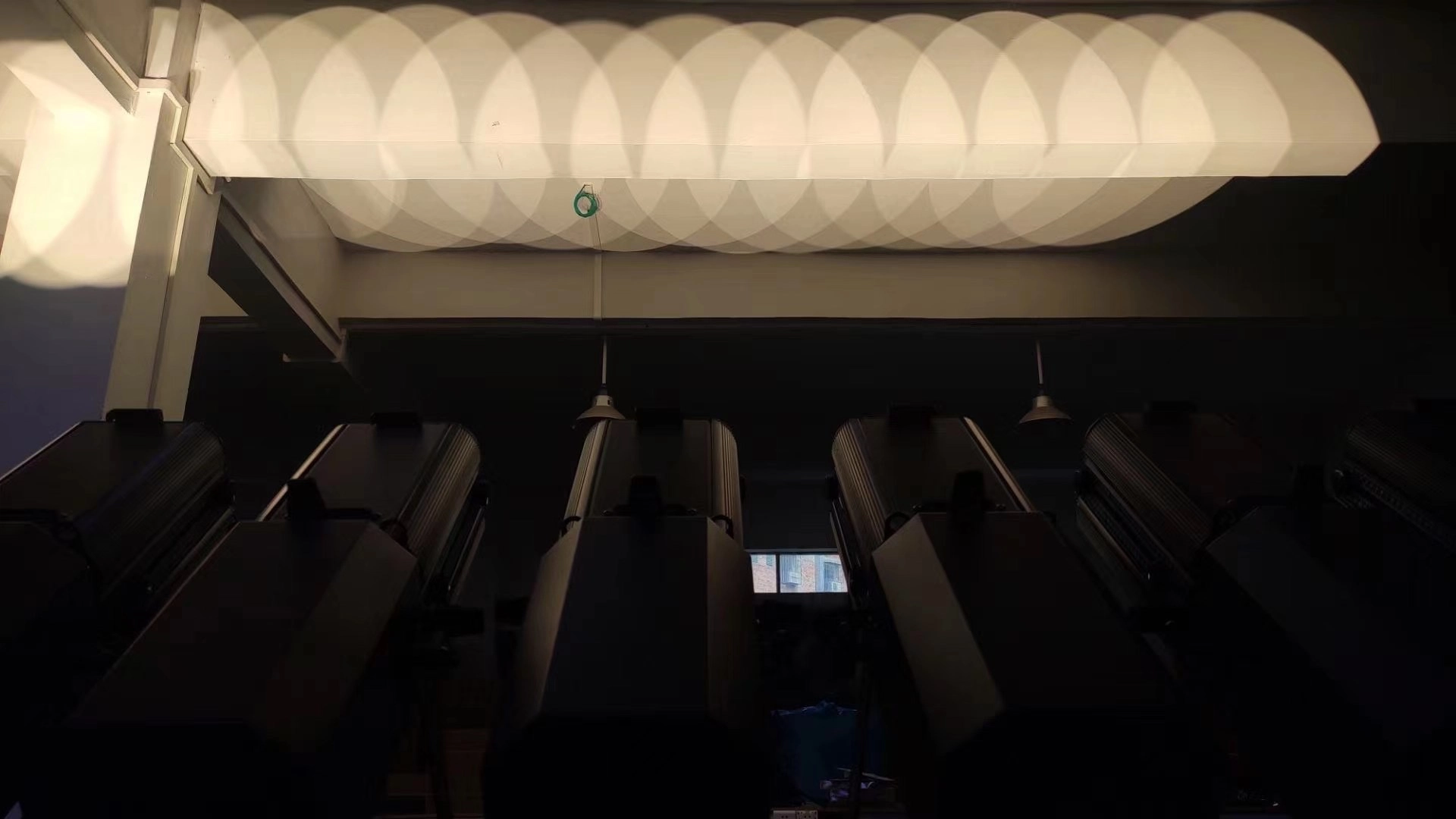

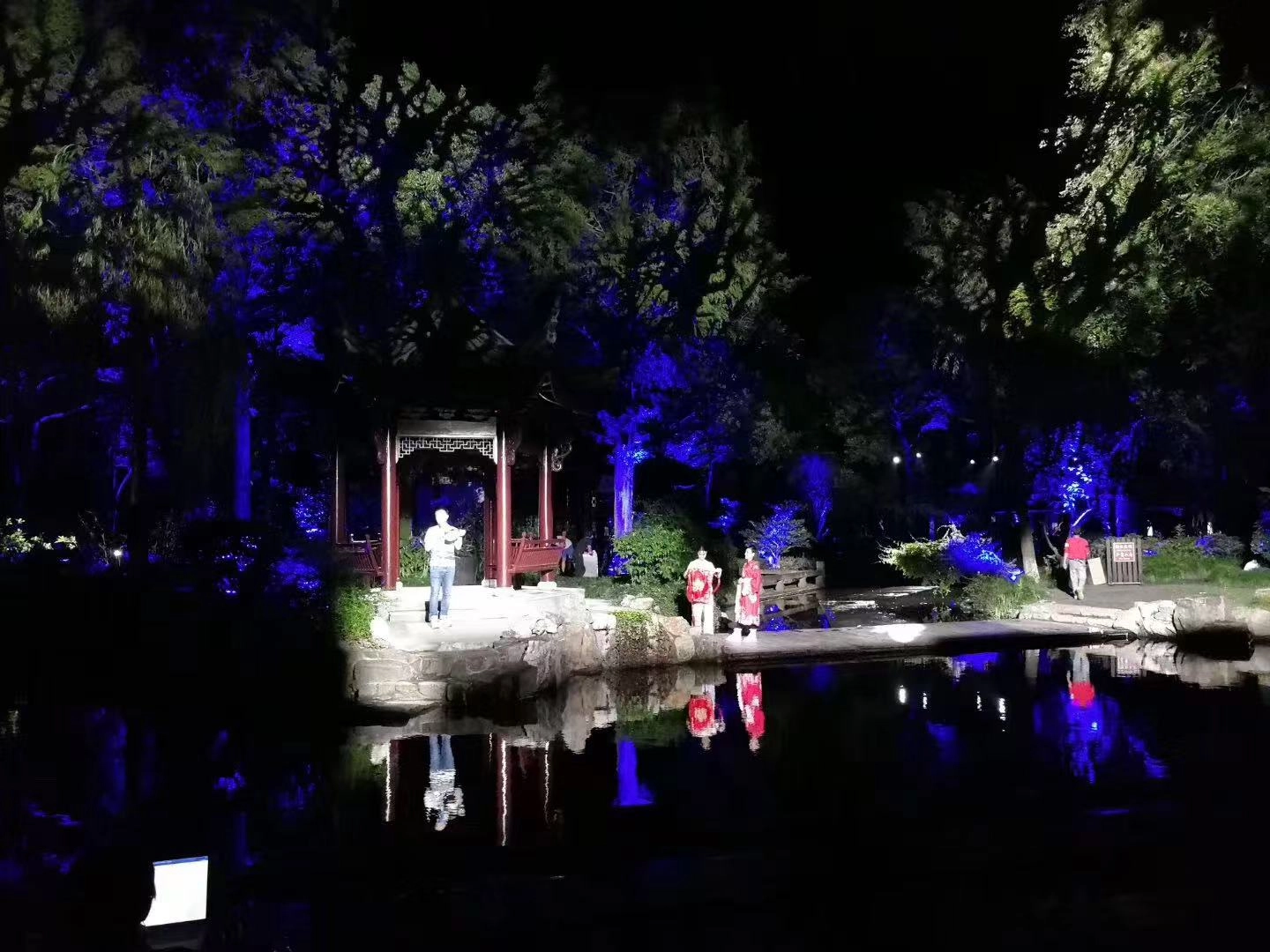

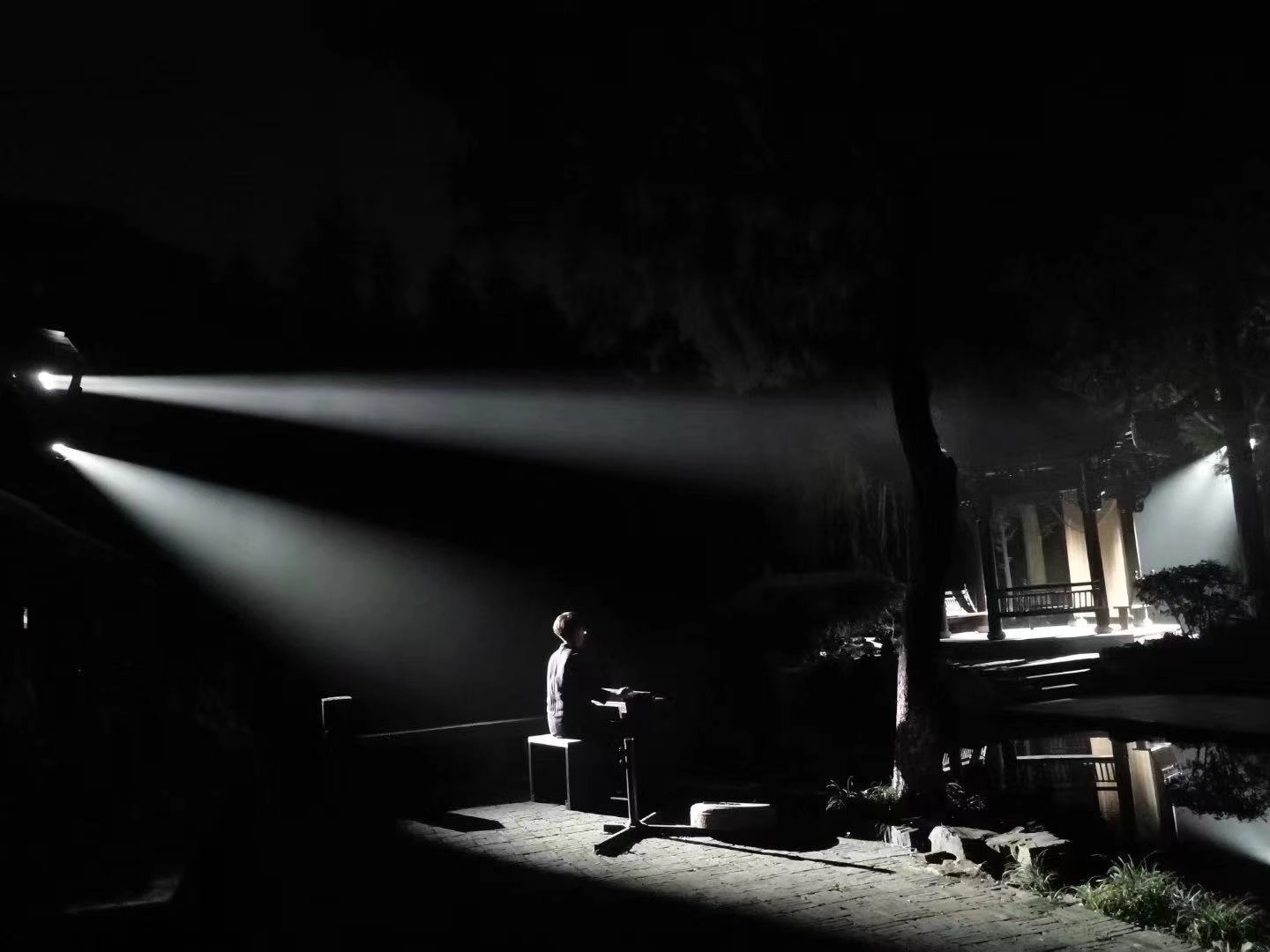

Rainproof LED Profile Spot Light VRC-200DF Effect Pictures
Rainproof LED Profile Spot Light VRC-200DF Applications
◐ Outdoor lighting for gardens, pathways, and facades. Highlighting artwork, sculptures, or architectural features.
◐ Theater and Stage Lighting: On stage, these spotlights can be used to focus attention on performers, props, or certain areas of the set.
◐ Commercial and industrial applications where lighting needs to be both effective and resistant to moisture or outdoor conditions.
◐ Concert halls, places with high requirements for ambient noise.
Rainproof LED Profile Spot Light VRC-200DF Installation & Maintenance
Installation
1. Confirm the installation position: Determine where the spotlights are to be installed, ensuring that the location provides the right lighting angle and is kept at the right distance from other equipment to prevent overheating. Ensure that the mounting surface is stable and able to withstand the weight of the luminaire.
2. Mounting bracket or hanger: Install according to the bracket or hanger provided by the product. If it is a lifting type, it is necessary to use the appropriate hook and wire rope to ensure that the lamp will not fall.
3. Adjust install Angle and direction : After installation, the beam direction of the spotlight can be adjusted as needed to ensure that the target area is illuminated.
Maintenance
1. Regular cleaning: During the use of LED profile spotlights, the surface of the luminaire may accumulate dust or pollution, affecting the output of light. Regularly use a soft cloth to wipe the surface of the lamp; avoid direct cleaning with a wet cloth or chemical cleaner, so as not to damage the shell.
2. Check the cooling system: The heat dissipation performance of LED profile spotlights is crucial for extending the service life. Check whether the heat sink and heat dissipation hole are blocked by dust or foreign matter, and clean the heat dissipation channel regularly to ensure good heat dissipation.
