VANRAY Waterproof LED Profile Spot Light VRC-200F 200W Fixed Lens Profile
Introducing the VANRAY Waterproof LED Profile Spot Light VRC-200F, a 200W fixed lens marvel designed to illuminate with precision. Engineered by Vanray, this LED profile spot light ensures optimal performance in diverse environments. Ideal for professional settings, it seamlessly combines durability with exceptional brightness, meeting all your lighting needs.
Waterproof LED Profile Spot Light VRC-200F 200W Fixed Lens Profile Parameters
| Name | Waterproof profile spot light | Model number | VRC-200F |
| Power | 200W | Light source | 200W lamp bead |
| Color rendering index (CRI) | Ra≥90 | Light source life | More than 50,000 hours |
| Luminous Angle | 19°/26°/36°/50°(optional) | Zoom | Adjustable manually |
| Dimming curve | 4 dimming curves | Net weight | 12KG |
| Optics | 4 groups of adhesive optical systems, Glass aspheric surface | Stroboscopic | 1-25 times/second |
| Touch screen | LCD display board with touch screen | Body material | Die-cast aluminum |
| lDMX channel | 1/2CH | Control system | RDM protocol /DMX512, auto mode, master-slave mode |
| IP rating | IP65 | Operating temperature | -10~40℃ |
| Lamp body size | 730*270*230mm | Cooling system | Natural cooling without fan (zero noise) |
Waterproof LED Profile Spot Light VRC-200F Profile Features and Benefits
◐ Waterproof IP rating is ip65
◐ Full silent mode , no fan inside the fixture , can provide Authoritative third-party silence detection report
◐ Color temperature is optional
◐ The Angle 19°/26°/36°/50°opcional)
◐ Apply for All-weather outdoor use, use metal press material, sun and cold resistance
◐ Use 4 groups of glass cement optics for high efficiency and clear imaging

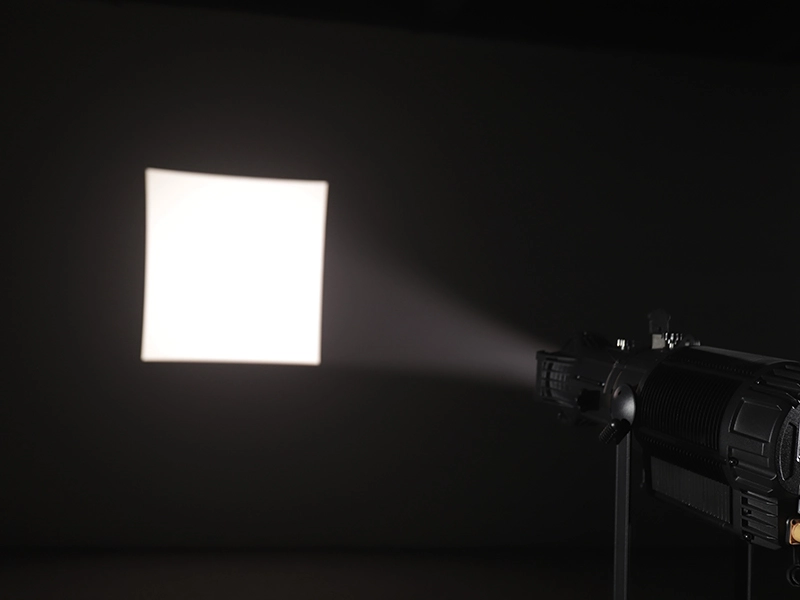

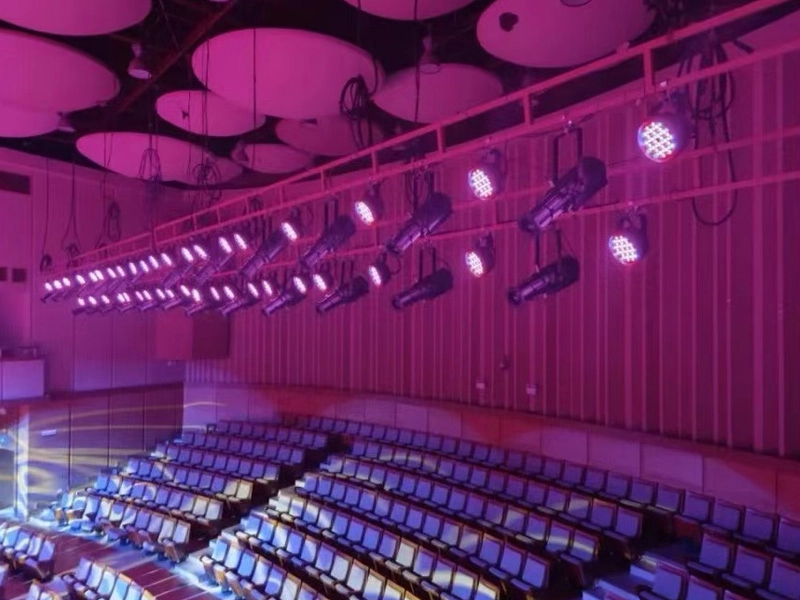

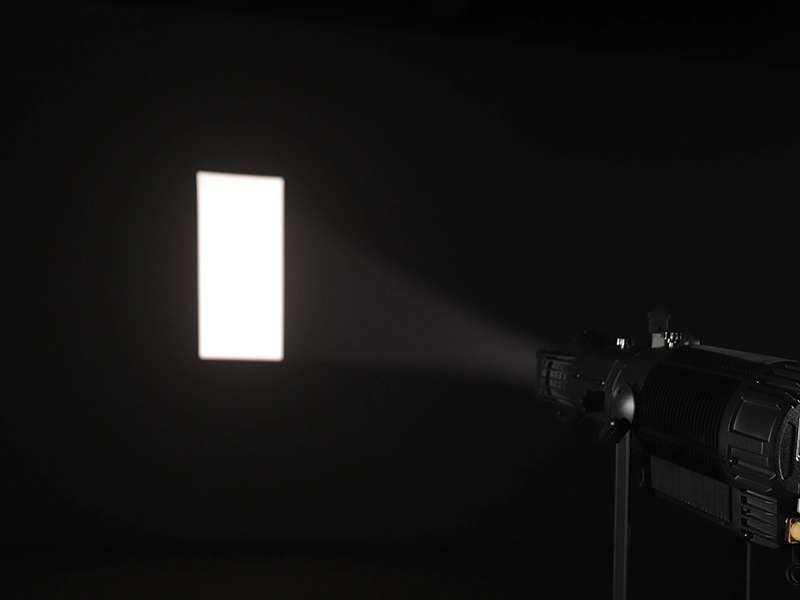

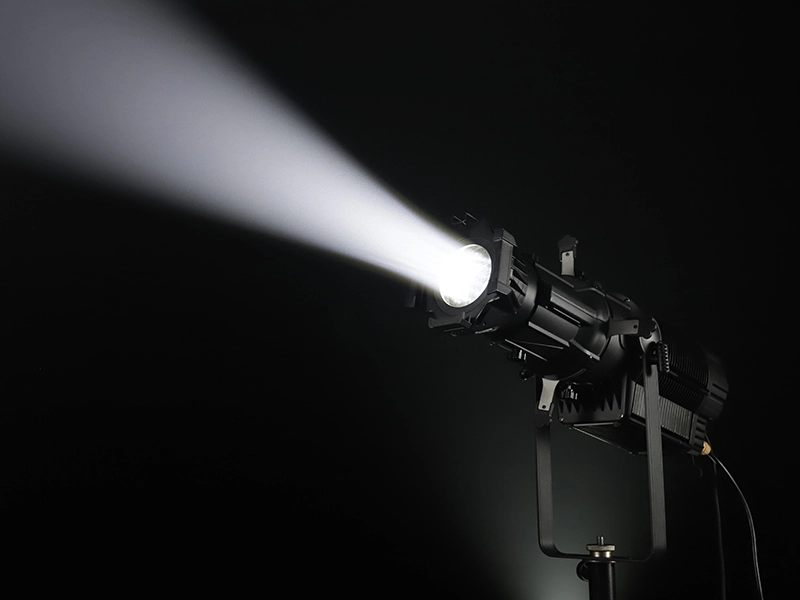

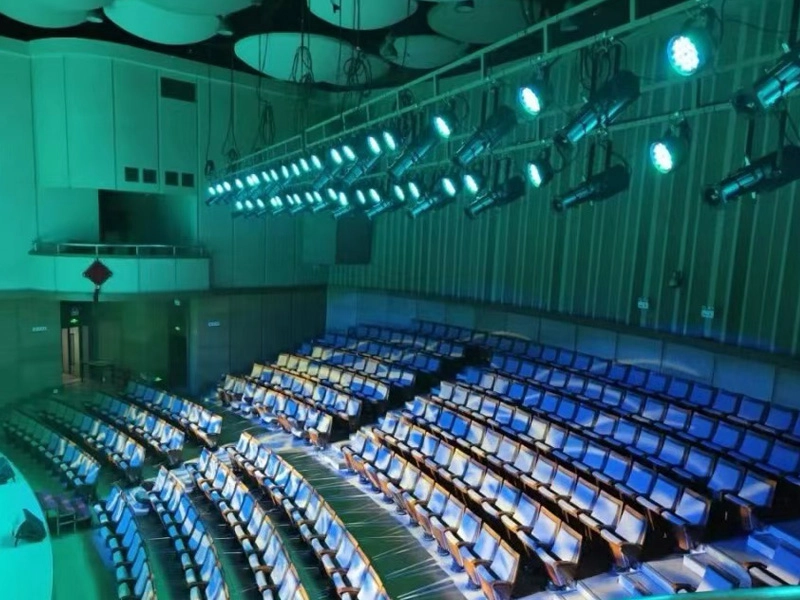

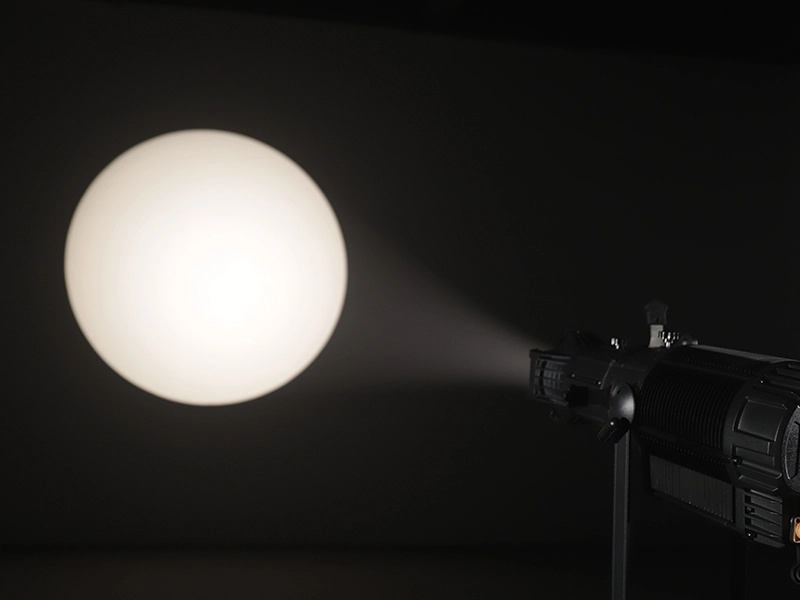

Waterproof LED Profile Spot Light VRC-200F 200W Fixed Lens Profile Effect Pictures
Waterproof LED Profile Spot Light VRC-200F 200W Fixed Lens Profile Applications
◐ Outdoor lighting for gardens, pathways, and facades. Highlighting artwork, sculptures, or architectural features.
◐ Theater and Stage Lighting: On stage, these spotlights can be used to focus attention on performers, props, or certain areas of the set.
◐ Commercial and industrial applications where lighting needs to be both effective and resistant to moisture or outdoor conditions.
◐ Concert halls, places with high requirements for ambient noise.
Waterproof LED Profile Spot Light VRC-200F 200W Fixed Lens Profile Installation & Maintenance
Installation
1. Confirm the installation position: Determine where the spotlights are to be installed, ensuring that the location provides the right lighting angle and is kept at the right distance from other equipment to prevent overheating. Ensure that the mounting surface is stable and able to withstand the weight of the luminaire.
2. Mounting bracket or hanger: Install according to the bracket or hanger provided by the product. If it is a lifting type, it is necessary to use the appropriate hook and wire rope to ensure that the lamp will not fall.
3. Adjust install Angle and direction : After installation, the beam direction of the spotlight can be adjusted as needed to ensure that the target area is illuminated.
Maintenance
1. Regular cleaning: During the use of LED profile spotlights, the surface of the luminaire may accumulate dust or pollution, affecting the output of light. Regularly use a soft cloth to wipe the surface of the lamp; avoid direct cleaning with a wet cloth or chemical cleaner, so as not to damage the shell.
2. Check the cooling system: The heat dissipation performance of LED profile spotlights is crucial for extending the service life. Check whether the heat sink and heat dissipation hole are blocked by dust or foreign matter, and clean the heat dissipation channel regularly to ensure good heat dissipation.
