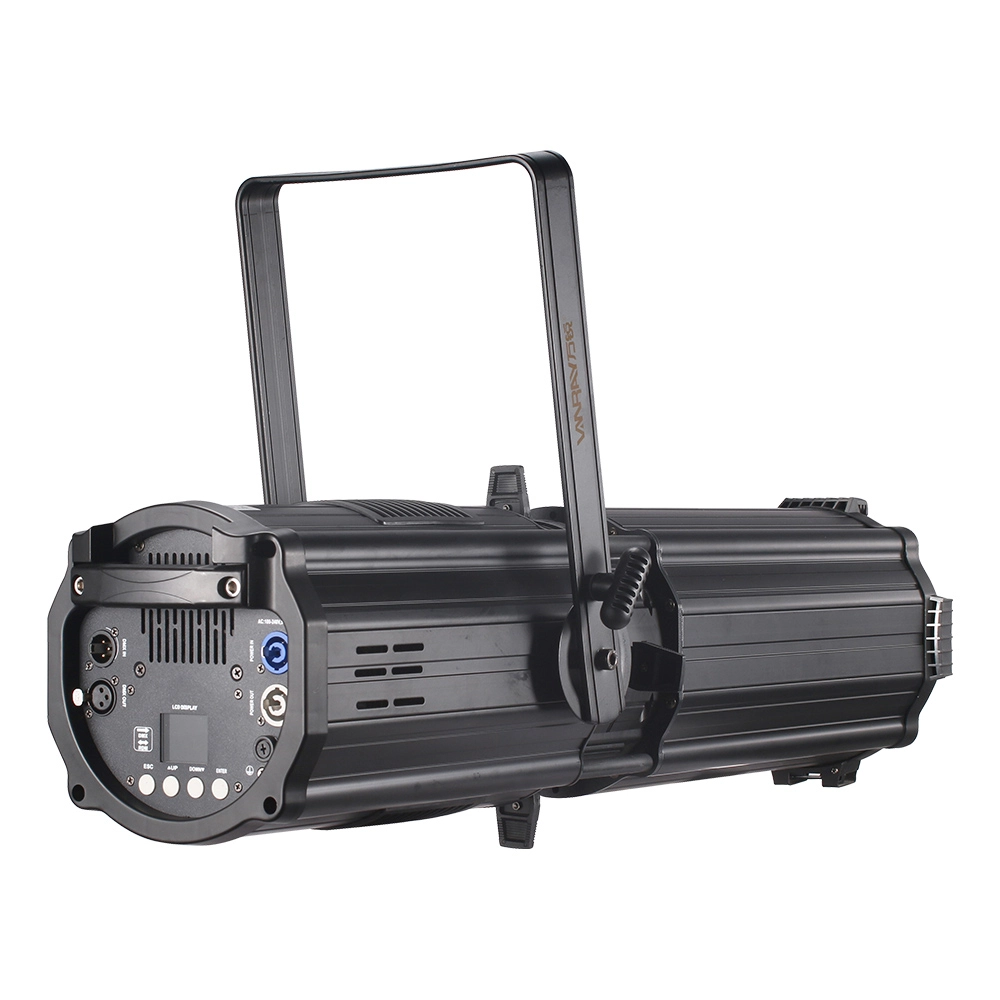

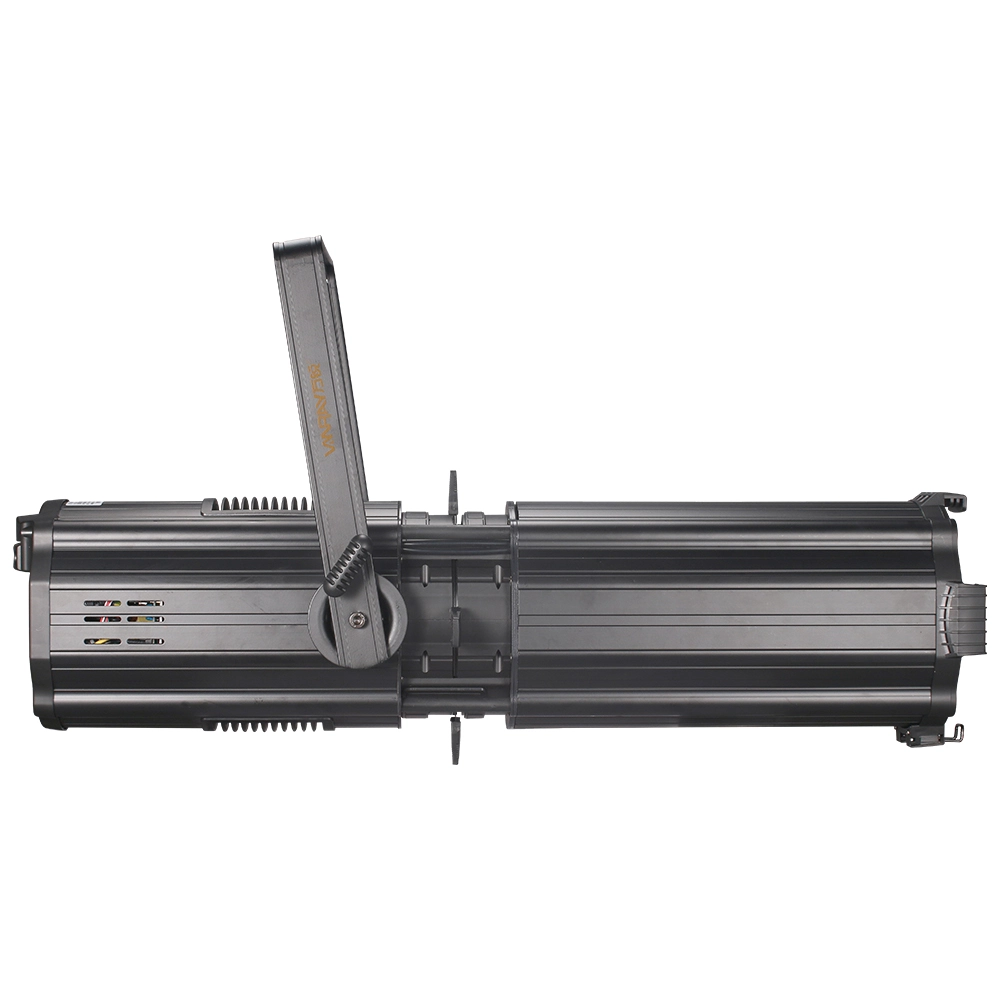

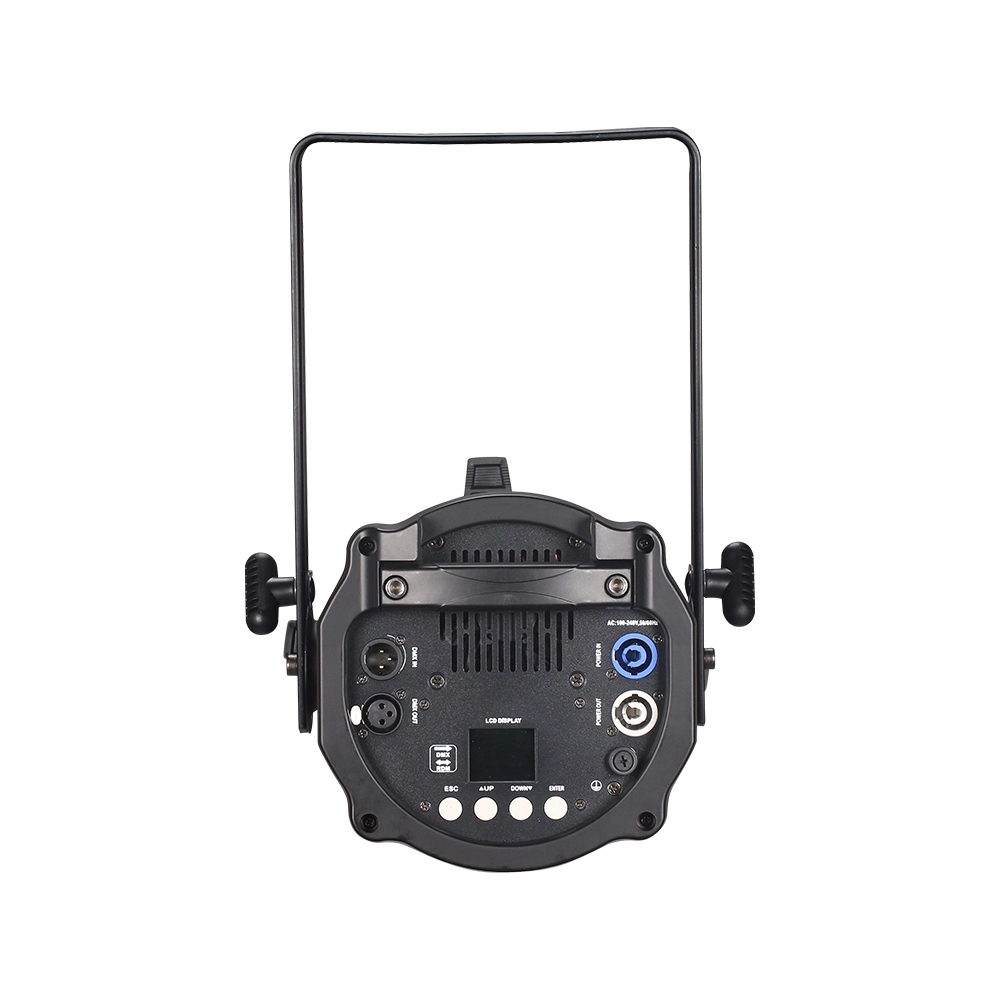

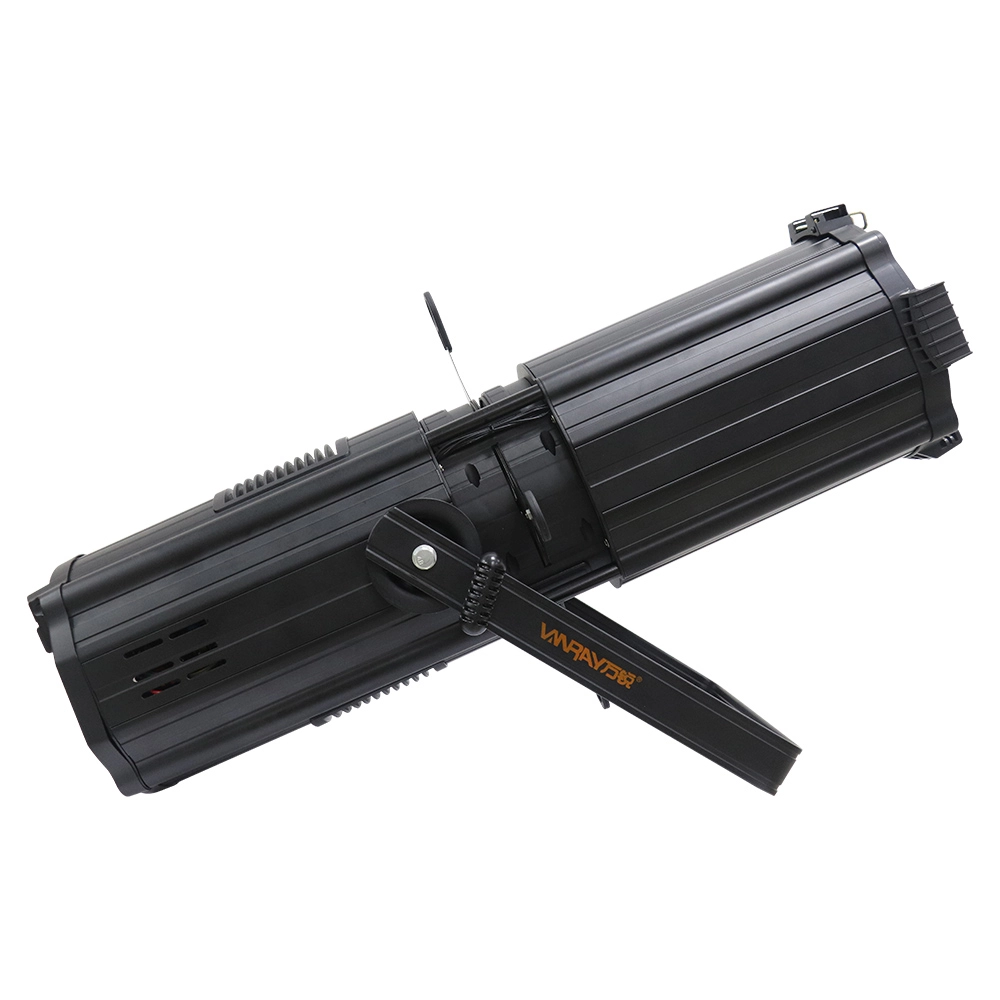

VANRAY LED Profile Spot Light VRC-400DN 400W Electric Zoom Spot Light
Introducing the Vanray LED Profile Spot Light VRC-400DN, a powerful 400W electric zoom spot light. Engineered for precision, this profile spot light LED delivers exceptional brightness and versatility for professional lighting applications. Enhance your lighting projects with Vanray’s cutting-edge technology and unrivaled performance.
LED Profile Spot Light VRC-400DN 400W Electric Zoom Spot Light Parameters
| Name | LED electric zoom profile spot light | Model | VRC-400DN |
| Rated voltage | AC100V-240V, 50/60Hz | Power rate | 400W |
| Light source | LED module 400W/ 300W optional | Color temperature | Warm white / cool white / 2 in 1 / RGBWA / RGBAL optional |
| Color rendering index | ≥Ra90 can be customized for a higher display | Optics | 4 groups of glued mirror glass optics, LOGO can be added |
| Control mode | DMX512, master/slave mode, single machine mode, manual mode | Channel | 5/6CH (two-color temperature 7/8CH, 5-in-1 10/13CH) Dimming: linear 0-100% |
| Dimming | Linear 0-100% | Stroboscopic | 1-25 times/second |
| Focusing Angle | Electric 14-36 degrees | Heat dissipation | Built-in integrated cooling aluminum sheet and copper pipe, intelligent silent fan auxiliary heat dissipation |
| Protection level | IP20 | Lamp body size | 725*370*200mm |
| Lamp weight | 14 kg |
LED Profile Spot Light VRC-400DN 400W Electric Zoom Spot Light Features and Benefits
◐ The shell is made of aluminum
◐ The light source can choose single color, two-color, five-color
◐ Glued lens optics, light spot uniform and clear
◐ Can be installed LOGO film
◐ High utilization rate of light efficiency, the minimum light spot 10 meters illuminance up to 2300LUX

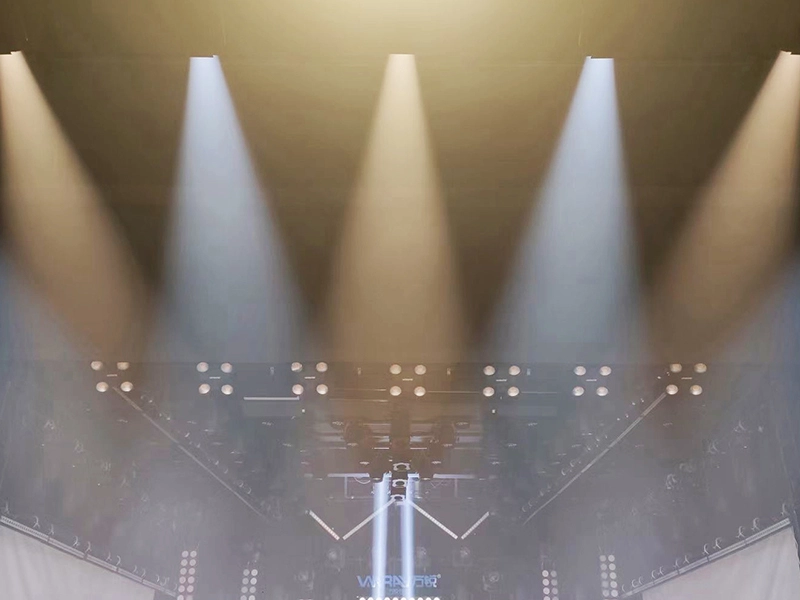

LED PROFILE SPOT LIGHT VRC-400DN 400W ELECTRIC ZOOM SPOT LIGHT EFFECT PICTURES
LED Profile Spot Light VRC-400DN 400W Electric Zoom Spot Light Applications
◐ Architectural Lighting: These spotlights are often installed in galleries, museums, and homes to highlight specific features, such as artwork, sculptures, or architectural details.
◐ Retail and commercial spaces: Used in stores, showrooms, or exhibition halls to highlight products, displays, or signage, LED profile spotlights provide bright, energy-efficient lighting.
◐ Theater and Stage Lighting: On stage, these spotlights can be used to focus attention on performers, props, or certain areas of the set.
◐ Accent Lighting: In both indoor and outdoor spaces, LED profile spotlights are used to create dramatic effects by highlighting specific objects, like trees, statues, or water features.
LED Profile Spot Light VRC-400DN 400W Electric Zoom Spot Light Installation & Maintenance
Installation
1. Confirm the installation position: Determine where the spotlights are to be installed, ensuring that the location provides the right lighting angle and is kept at the right distance from other equipment to prevent overheating. Ensure that the mounting surface is stable and able to withstand the weight of the luminaire.
2. Mounting bracket or hanger: Install according to the bracket or hanger provided by the product. If it is a lifting type, it is necessary to use the appropriate hook and wire rope to ensure that the lamp will not fall.
3. Adjust install Angle and direction : After installation, the beam direction of the spotlight can be adjusted as needed to ensure that the target area is illuminated.
Maintenance
1. Regular cleaning: During the use of LED profile spotlights, the surface of the luminaire may accumulate dust or pollution, affecting the output of light. Regularly use a soft cloth to wipe the surface of the lamp; avoid direct cleaning with a wet cloth or chemical cleaner so as not to damage the shell.
2. Check the cooling system: The heat dissipation performance of LED profile spotlights is crucial for extending the service life. Check whether the heat sink and heat dissipation hole are blocked by dust or foreign matter, and clean the heat dissipation channel regularly to ensure good heat dissipation.
