VANRAY LED Mini Profile Spot Light VRC-50D 50W Ellipsoidal Light LED
Introducing the VANRAY LED Mini Profile Spot Light VRC-50D. This 50W ellipsoidal light LED is perfect for professional stage lighting. Experience precision and vibrant illumination at an unbeatable profile spot light price. Upgrade your venue with efficient LED ellipsoidal stage lighting by Vanray, ensuring exceptional performance and reliability.
VANRAY LED Mini Profile Spot Light VRC-50D Parameters
| Name | LED mini profile spot light | Model | VRC-50D |
| Rated voltage | AC100V-240V, 50/60Hz | Power rate | 50W |
| Light source | LED50W lamp bead | Color temperature |
3200K/4500K/5600K Optional |
| Color rendering index | ≥Ra90 can be customized for a higher CRI | Optics | 4 groups of adhesive optical systems, glass aspheres |
| Control mode | RDM protocol /DMX512, self-walking mode, master-slave mode | Channel | 1/2CH |
| Dimming | Linear 0-100% | Stroboscopic | 1-25 times/second |

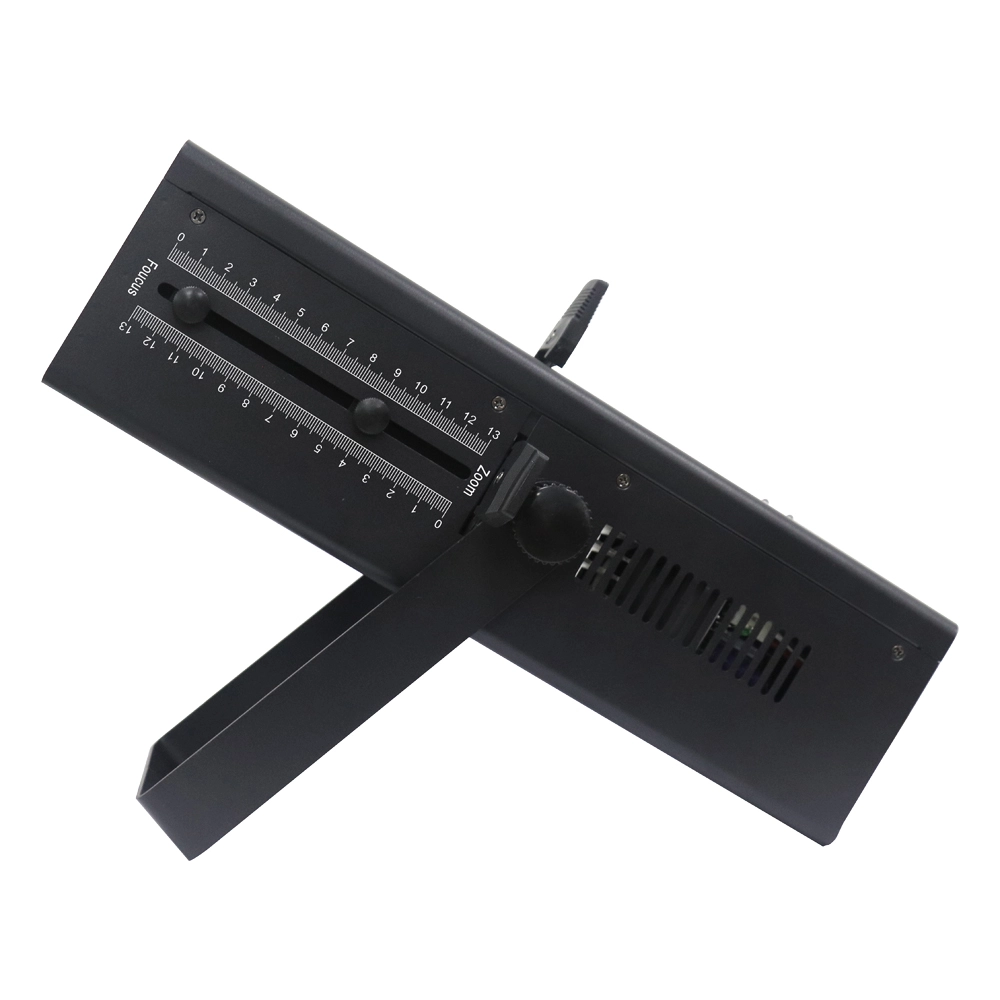

| Focusing Angle | Manual 9-45 degree focus | Heat dissipation | Aluminum automatic cooling + smart quiet fan |
| Protection level | IP20 | Lamp body size | L222*W222*H364mm |
| Lamp weight | 2.7kg |
VANRAY LED Mini Profile Spot Light VRC-50D Features and Benefits
◐ Color rendering index (CRI) : Ra≥90, can be customized higher CRI
◐ Color temperature: 3200K/4500K/5600K Optional
◐ Angle: Manual 9-45 degree focus
◐ Support RDM

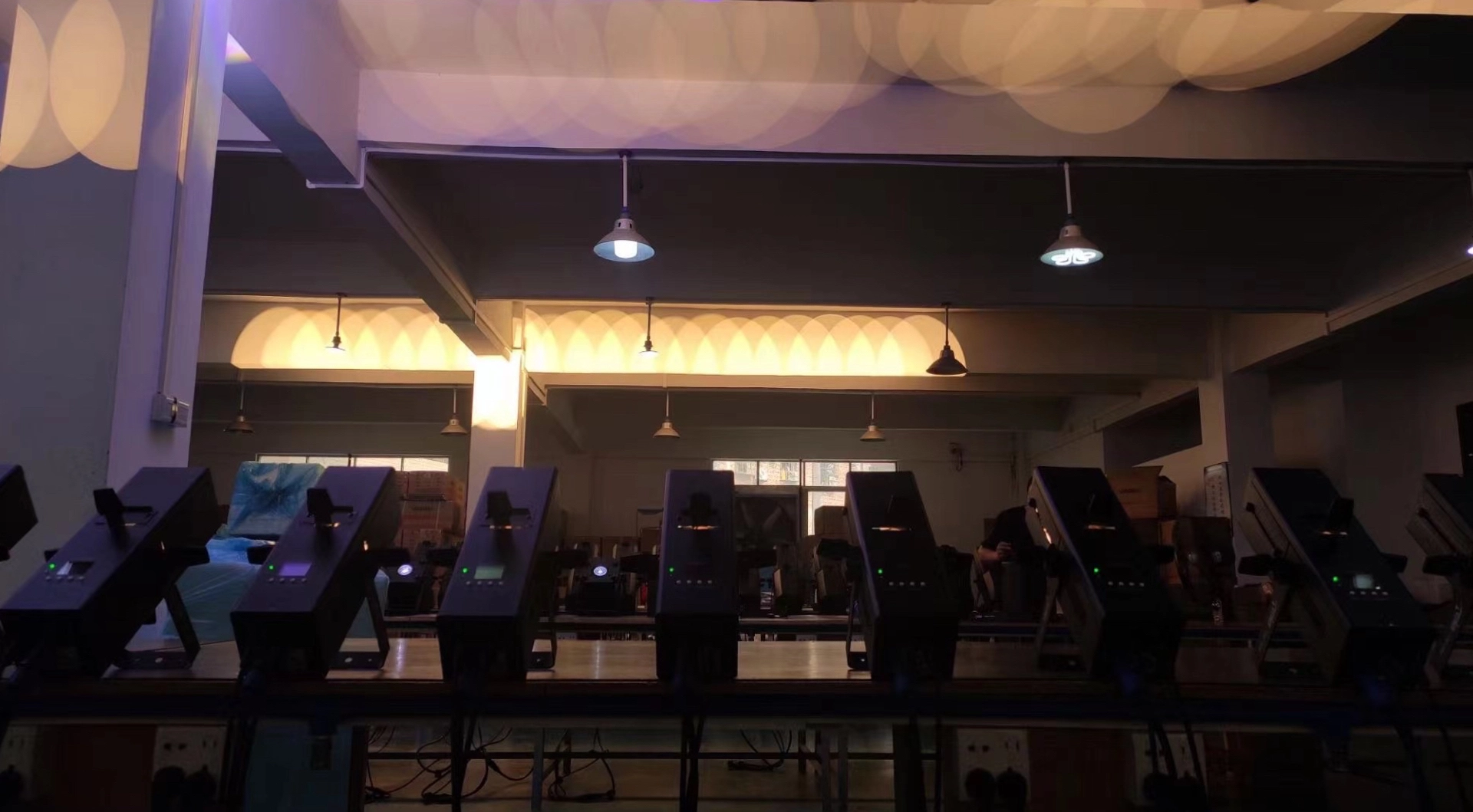

VANRAY LED Mini Profile Spot Light VRC-50D EFFECT PICTURES
VANRAY LED Mini Profile Spot Light VRC-50D Applications
◐ Architectural Lighting: These spotlights are often installed in galleries, museums, and homes to highlight specific features, such as artwork, sculptures, or architectural details.
◐ Retail and commercial spaces: Used in stores, showrooms, or exhibition halls to highlight products, displays, or signage, LED profile spotlights provide bright, energy-efficient lighting.
◐ Theater and Stage Lighting: On stage, these spotlights can be used to focus attention on performers, props, or certain areas of the set.
◐ Accent Lighting: In both indoor and outdoor spaces, LED profile spotlights are used to create dramatic effects by highlighting specific objects, like trees, statues, or water features.
VANRAY LED Mini Profile Spot Light VRC-50D Installation & Maintenance
Installation
1. Confirm the installation position: Determine where the spotlights are to be installed, ensuring that the location provides the right lighting angle and is kept at the right distance from other equipment to prevent overheating. Ensure that the mounting surface is stable and able to withstand the weight of the luminaire.
2. Mounting bracket or hanger: Install according to the bracket or hanger provided by the product. If it is a lifting type, it is necessary to use the appropriate hook and wire rope to ensure that the lamp will not fall.
3. Adjust install Angle and direction : After installation, the beam direction of the spotlight can be adjusted as needed to ensure that the target area is illuminated.
Maintenance
1. Regular cleaning: During the use of LED profile spotlights, the surface of the luminaire may accumulate dust or pollution, affecting the output of light. Regularly use a soft cloth to wipe the surface of the lamp; avoid direct cleaning with a wet cloth or chemical cleaner so as not to damage the shell.
2. Check the cooling system: The heat dissipation performance of LED profile spotlights is crucial for extending the service life. Check whether the heat sink and heat dissipation hole are blocked by dust or foreign matter, and clean the heat dissipation channel regularly to ensure good heat dissipation.
VANRAY Rainproof LED Ellipsoidal Light VRC-200DF 200W LED Profilel Spot Light for Outdoor Project
Introducing the VANRAY Rainproof LED Ellipsoidal Light VRC-200DF, a 200W powerhouse for outdoor projects. This LED ellipsoidal stage lighting solution delivers precision and durability. Ideal for diverse settings, this ellipsoidal LED light ensures exceptional performance in any weather. Illuminate your stage with Vanray’s cutting-edge technology.
VANRAY LED Profile Spot Light VRC-200 200W Ellipsoidal LED Light 19 Degrees for Theater
VANRAY LED Profile Spot Light VRC-400DN 400W Electric Zoom Spot Light
Introducing the Vanray LED Profile Spot Light VRC-400DN, a powerful 400W electric zoom spot light. Engineered for precision, this profile spot light LED delivers exceptional brightness and versatility for professional lighting applications. Enhance your lighting projects with Vanray’s cutting-edge technology and unrivaled performance.
VANRAY Waterproof LED Profile Spot Light VRC-200F 200W Fixed Lens Profile
Introducing the VANRAY Waterproof LED Profile Spot Light VRC-200F, a 200W fixed lens marvel designed to illuminate with precision. Engineered by Vanray, this LED profile spot light ensures optimal performance in diverse environments. Ideal for professional settings, it seamlessly combines durability with exceptional brightness, meeting all your lighting needs.
