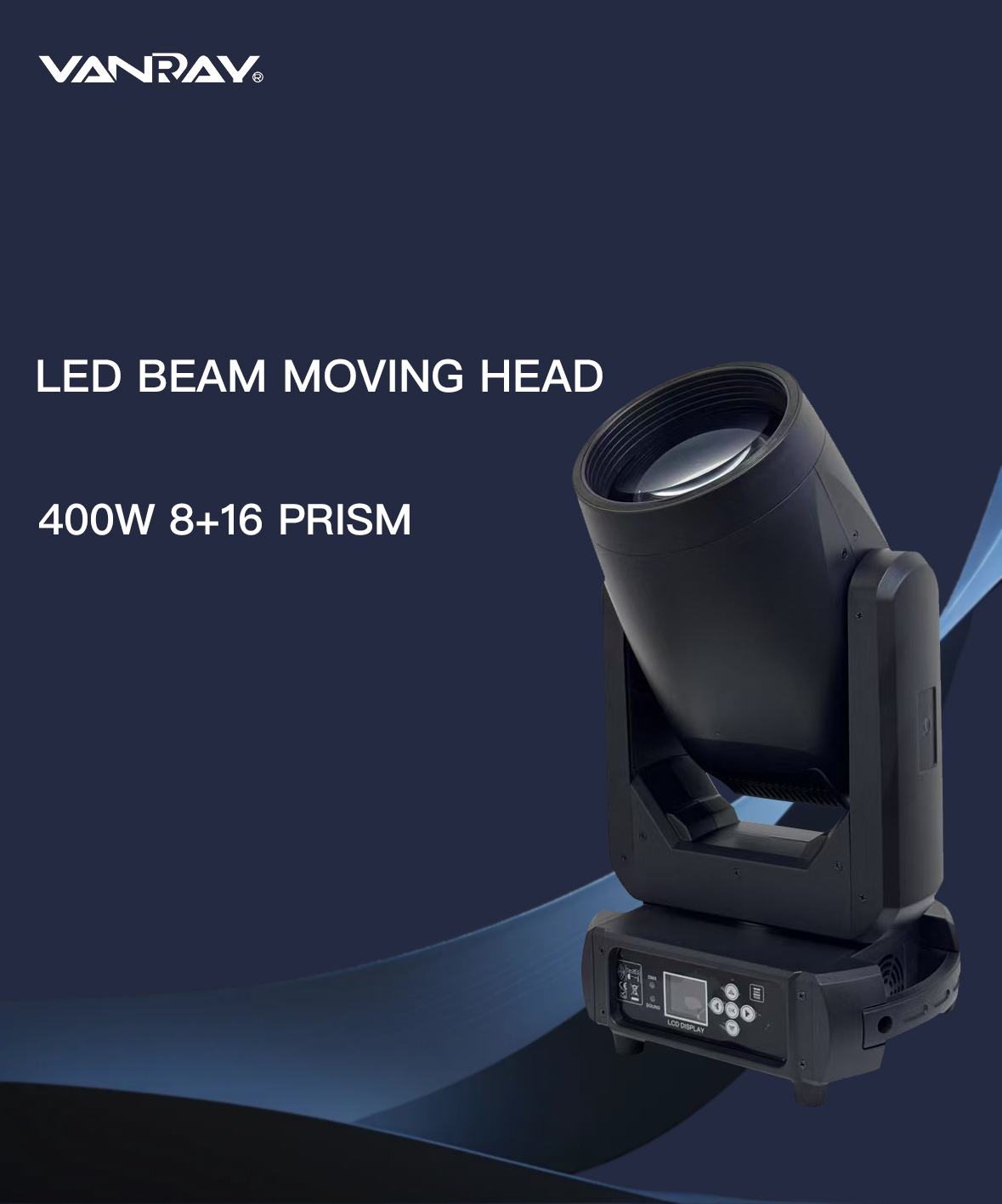

VANRAY New launched led beam moving head VR-400B beam led

LED 400W beam moving head light, featuring an advanced optical system, with dual effects of 8+16 prisms superimposed, delivering a stunning beam performance. It has 11 fixed patterns that can be switched quickly, and 10 colors plus white light, presenting a rich array of colors.

Name: LED Beam Moving Head Light

Model: VR-400B

Technical Parameters

Rated Voltage: AC100~240V, 50~60Hz

Power:

Light Source: Energy-saving 400W LED lamp beads

Color Temperature: 7500k

Optics: Lens group optical system, beam angle 0~2.5°

Horizontal Scanning: 540° (16-bit precision scanning) Electronic correction

Vertical Scanning: 270° (16-bit precision scanning) Electronic correction

Color Wheel: One color wheel, consisting of 10 color filters plus white light

Gobo Wheel: 11 fixed gobo effects plus white light

Prism: One double-layer honeycomb prism 16 plus eight-sided prism 8, effects can be rotated and superimposed

Effect Wheel: Seven-color mirror + fogging function

Dimming: 0-100% linear

Strobe: 0-25Hz/S per second, synchronous pulse strobe, random pulse strobe

Channel: 18CH, DMX512

Cooling System: Forced convection cooling, intelligent fan cooling, overheat protection

Functions: The pattern wheel and color wheel have automatic magnetic detection and correction functions, with machine fault indication, electronic precise indication of fault causes, fast and smooth operation of all functions, X-axis, Y-axis, color wheel, and pattern wheel reach positions quickly along the shortest path, focusing, prism, and fogging switching completed instantly, fast positioning, accurate spot lighting, smooth slow movement and braking, high temperature and high pressure resistance, strong anti-interference ability.

IP Rating: IP20

Size: 320mm * 230mm * 490mm

Weight: 13KG

Advantages: Compact body, fast and smooth operation; High LED luminous flux, strong beam sensation; Low maintenance cost, long lifespan of the light source.
