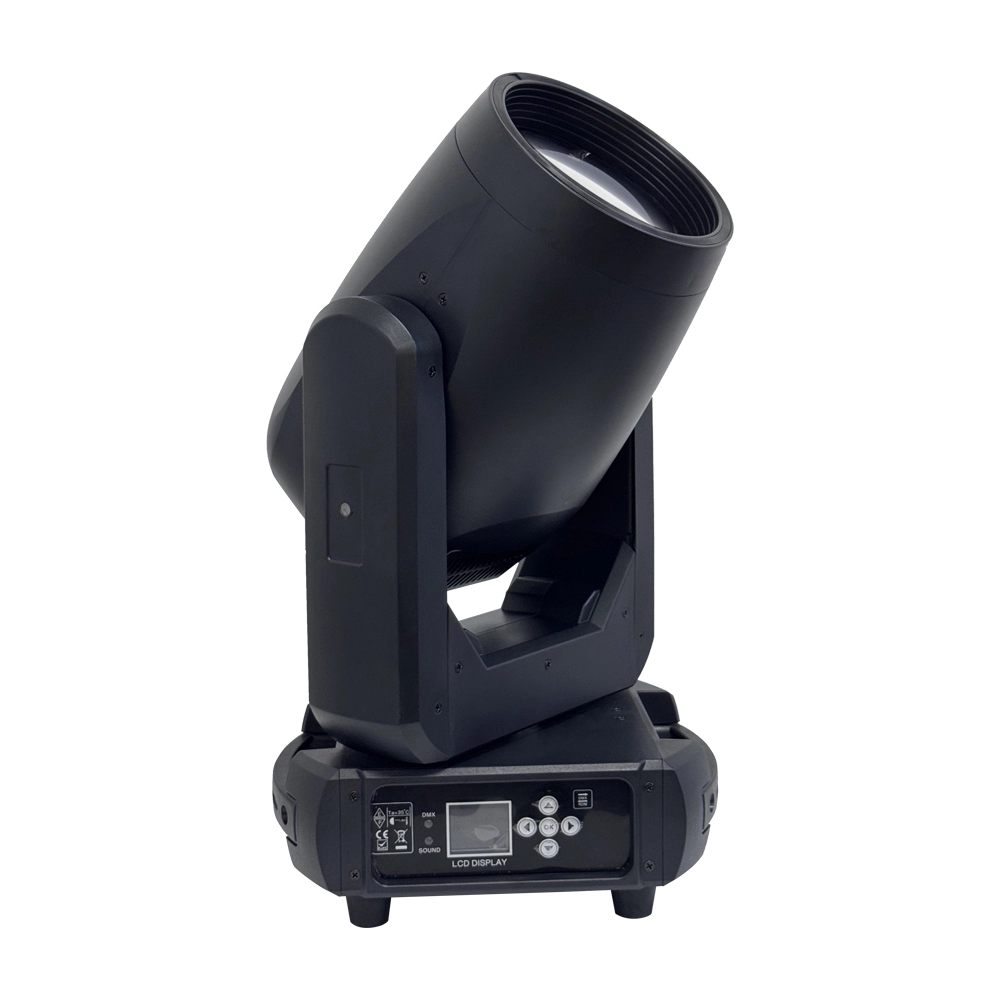

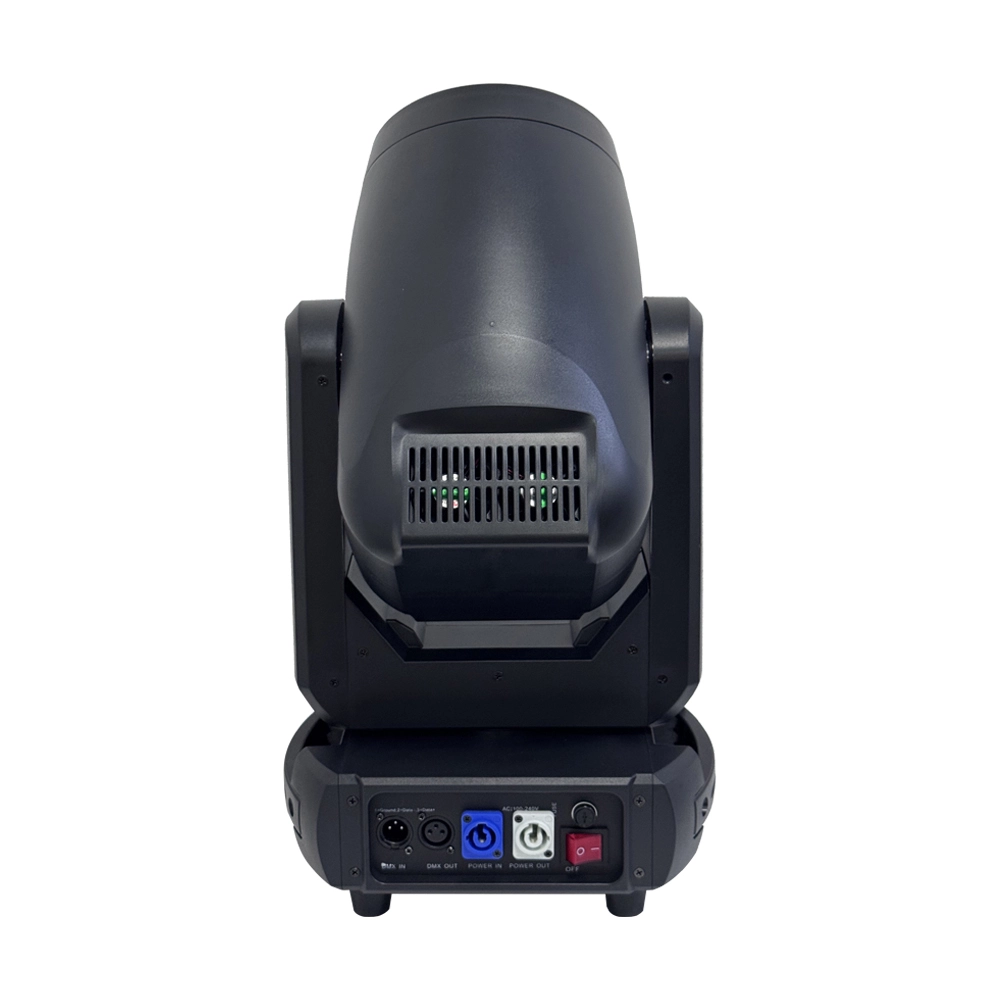

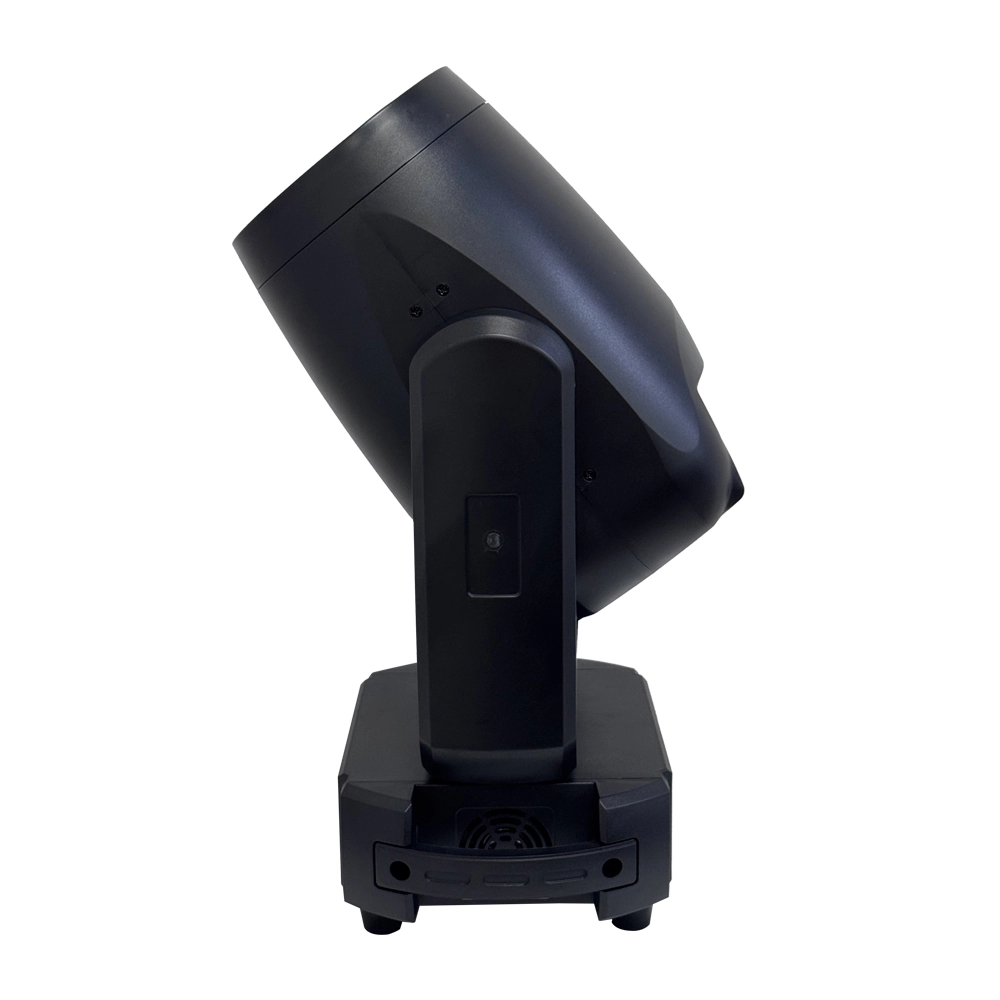

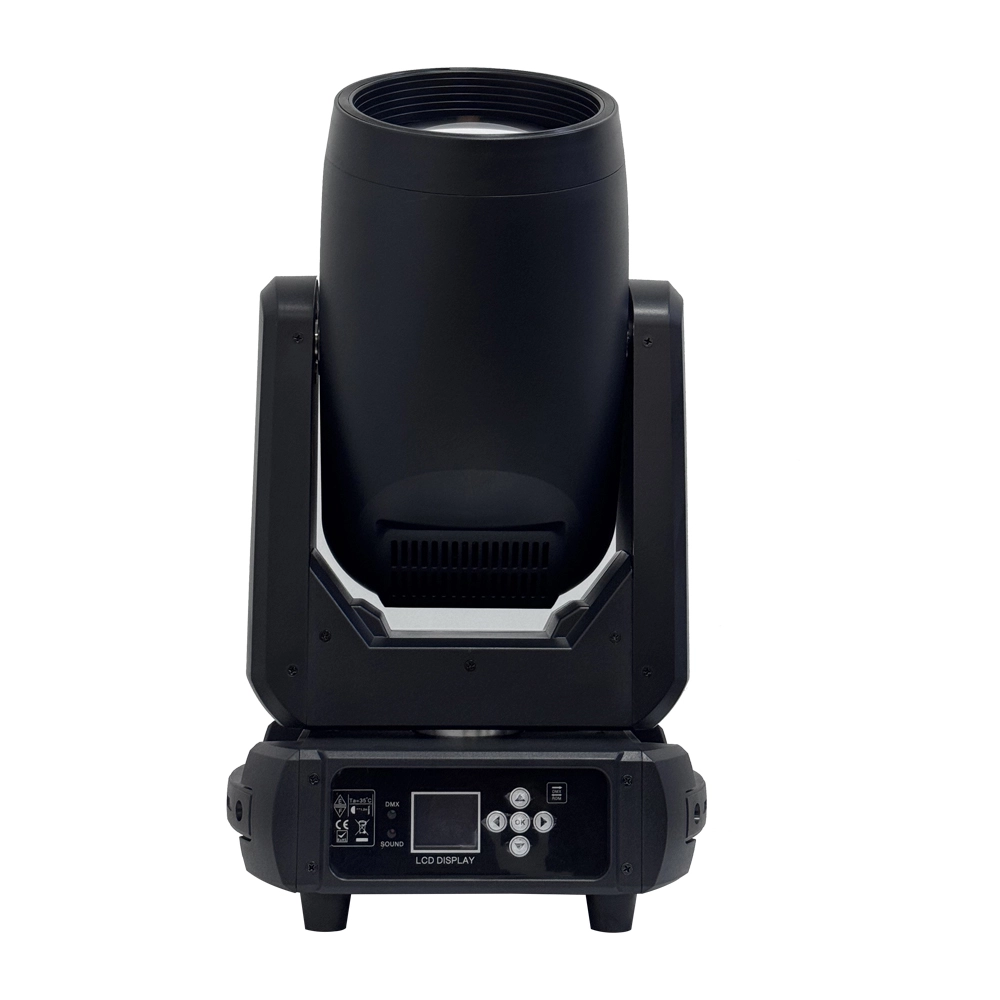

VANRAY LED Beam Moving Head Light VR-400B 400W Beam Moving Head LED
VANRAY LED Beam Moving Head VR-400B Parameters
| Name | LED beam moving head light | Model | VR-400B |
| Input voltage | AC100-240V,50/60Hz | Power rate | 400W |
| Light source | Energy-saving 400W LED lamp beads | Beam angle | Beam angle 0~2.5° |
| Color temperature | 7500k | Horizontal scan | 540° (16-bit precision scan) |
| Channels | 18 channels | Vertical scan | 270° (16-bit precision scan) |
| Control mode | Sound control, self-run, master-slave, DMX512, RDM | Display system | LCD display |
| Effect Wheel | Seven-color mirror + fogging function | Color |
One color wheel, consisting of 10 color filters plus white light
|
| Dimming system | 0-100% linear adjustment | Prism | One double-layer honeycomb prism 16 plus eight-sided prism 8, effects can be rotated and superimposed |
| Cooling System | Forced convection cooling, intelligent fan cooling, overheat protection | Fixed gobo wheel |
11 fixed gobo effects plus white light |
| Net weight | 13kgs | Product size | 320mm * 230mm * 490mm |
| Strobe | 0-25Hz/S per second, synchronous pulse strobe, random pulse strobe | IP rating | IP20 |
VANRAY LED Beam Moving Head VR-400B Features and Benefits
◐ The pattern wheel and color wheel have automatic magnetic detection and correction functions, with machine fault indication, electronic precise indication of fault causes.
◐ High temperature and high pressure resistance, strong anti-interference ability
◐ Fast and smooth operation of all functions, X-axis, Y-axis, color wheel, and pattern wheel reach positions quickly along the shortest path, focusing, prism, and fogging switching completed instantly, fast positioning, accurate spot lighting, smooth slow movement and braking.
VANRAY LED Beam Moving Head VR-400B Effect Pictures
VANRAY LED Beam Moving Head VR-400B Applications

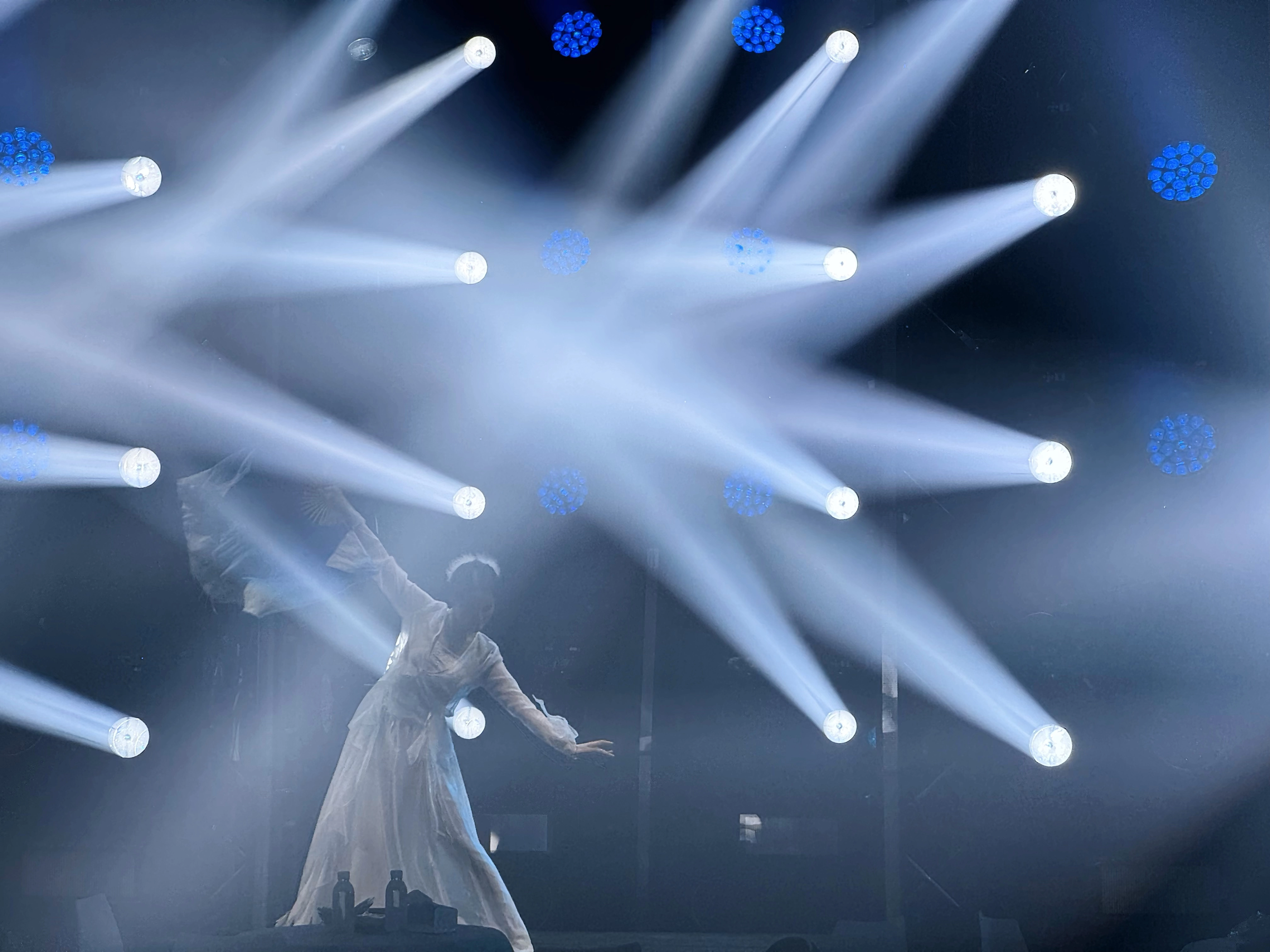

◐ Concerts: strong lighting effects and precise beam adjustment, pattern, wash effect, add shock effect to the live performance.
◐ Stage performance and theater: all-round beam rotation, pattern dyeing, cutting modeling, suitable for different stage needs, to provide the ultimate visual impact.
◐ College and party events: Multiple lighting effects and color patterns help create a unique atmosphere.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY LED Profile Moving Head Installation & Maintenance
Installation
- The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
Maintenance
- Regularly check the lighting circuit and heat outlet; use special cleaning tools to clean the air outlet to maintain the best performance.
