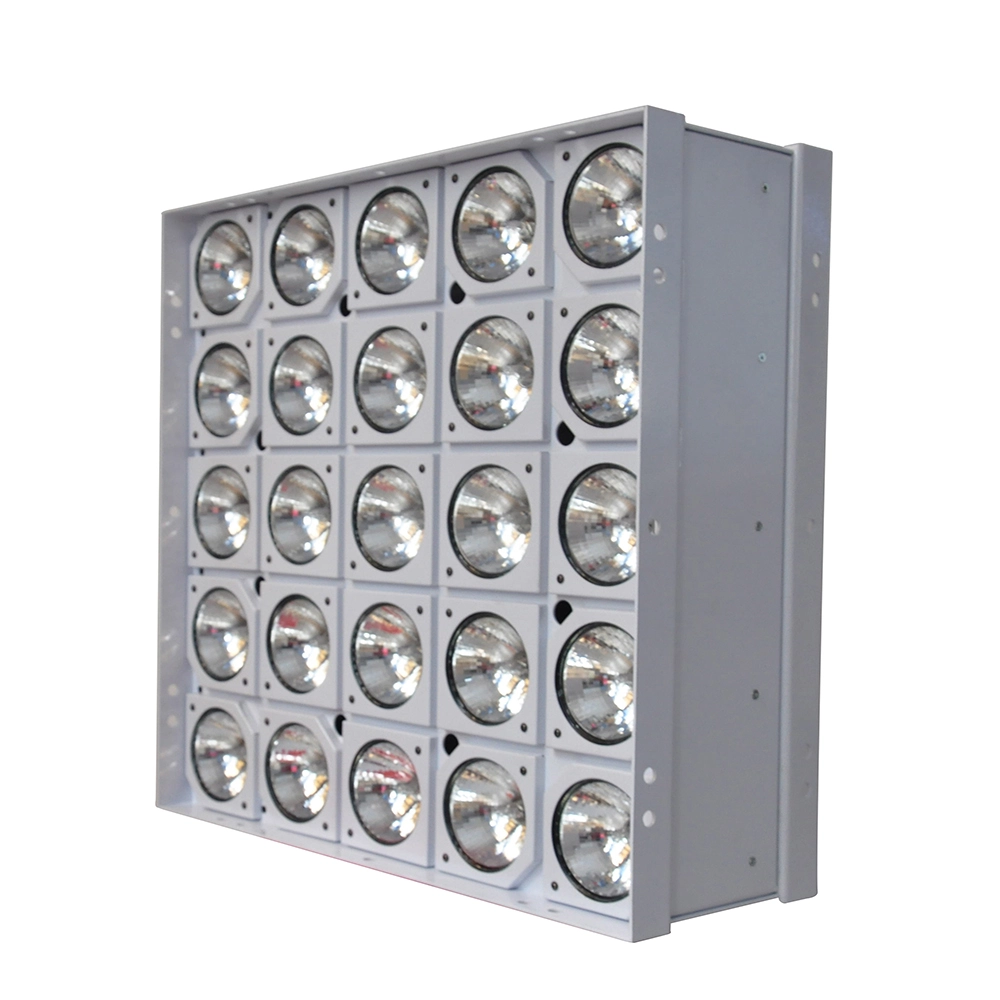

VANRAY Matrix Light 25pcs 75W ST-025 Light Matrix
VANRAY Matrix Light ST-025 Parameters
| Name | Matrix light | Model number | ST-025 |
| Voltage | AC220-230V, 50Hz-60HZ | Power rate | 1900W |
| Light source | 25pcs 75W halogen bulbs | Color Temperature | 2700K-3000K |
| Channel | 3/25/28CH | Stroboscopic | Stroboscopic speed regulation, flash effect |
| Dimming | 0-100% linear adjustment | Cooling system | Forced convection cooling |
| Dimension | L575*W575*H200mm | Control mode | DMX512, self-propelled mode, master and secondary |
| IP rating | IP20 | Lamp weight | 16KG |
VANRAY Matrix Light ST-025 Features and Benefits
◐ Light source :25pcs 75W halogen bulbs
◐ Color temperature: 2700K-3000K
◐ Each bulb can be individually controlled programming
◐ Can design any shape, can edit numbers, letters, running lights, video conversion light program

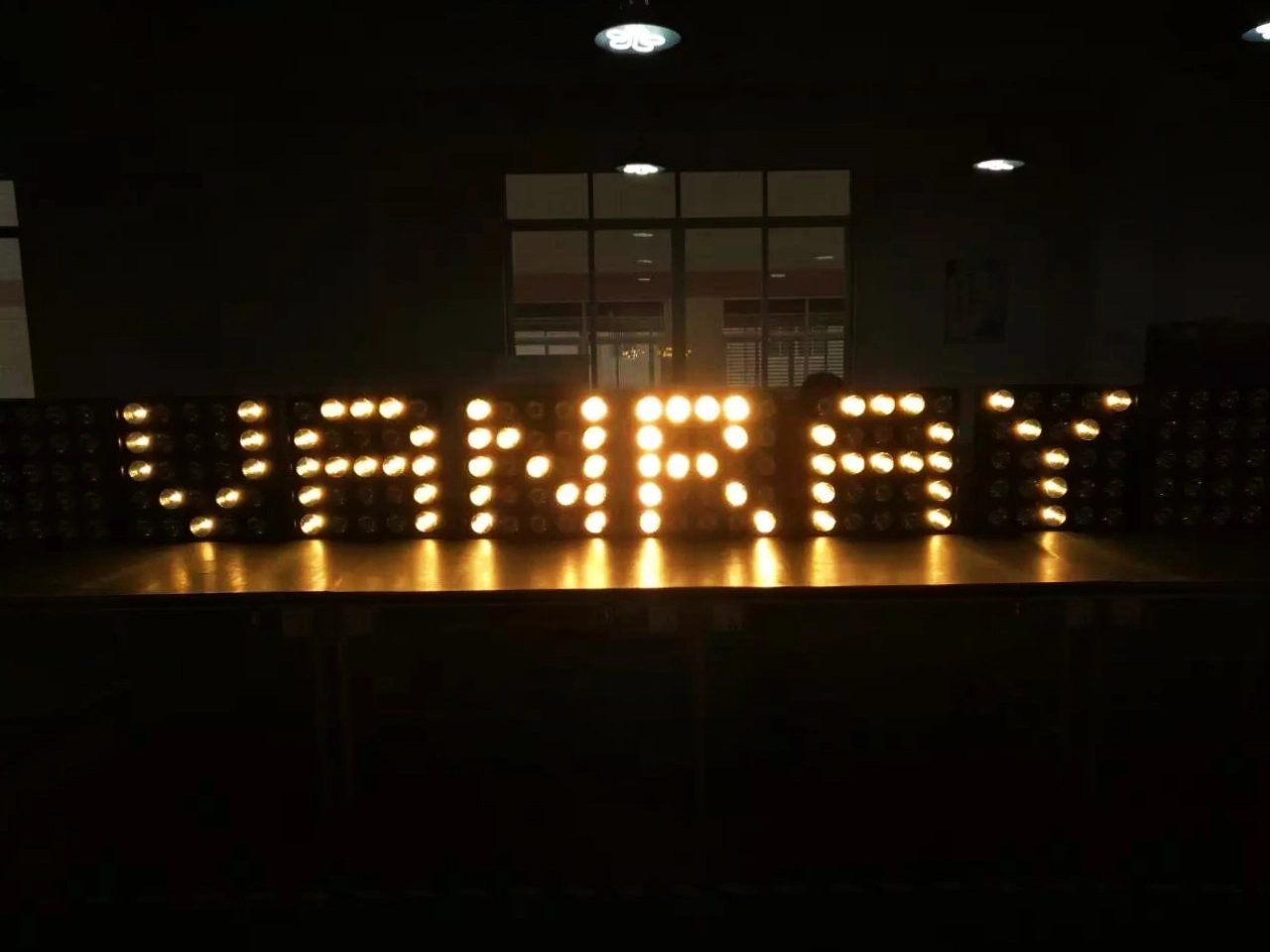

VANRAY Matrix Light ST-025 Effect Pictures
VANRAY Matrix Light ST-025 Applications

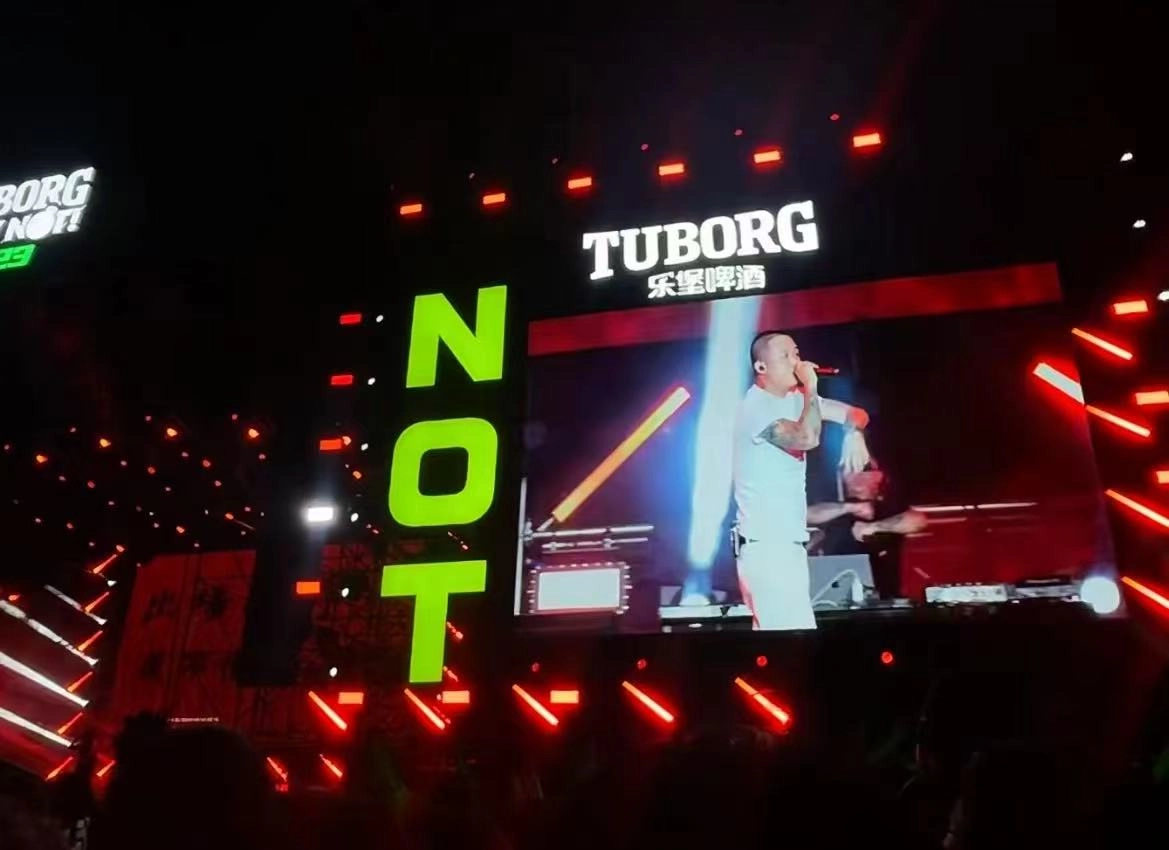

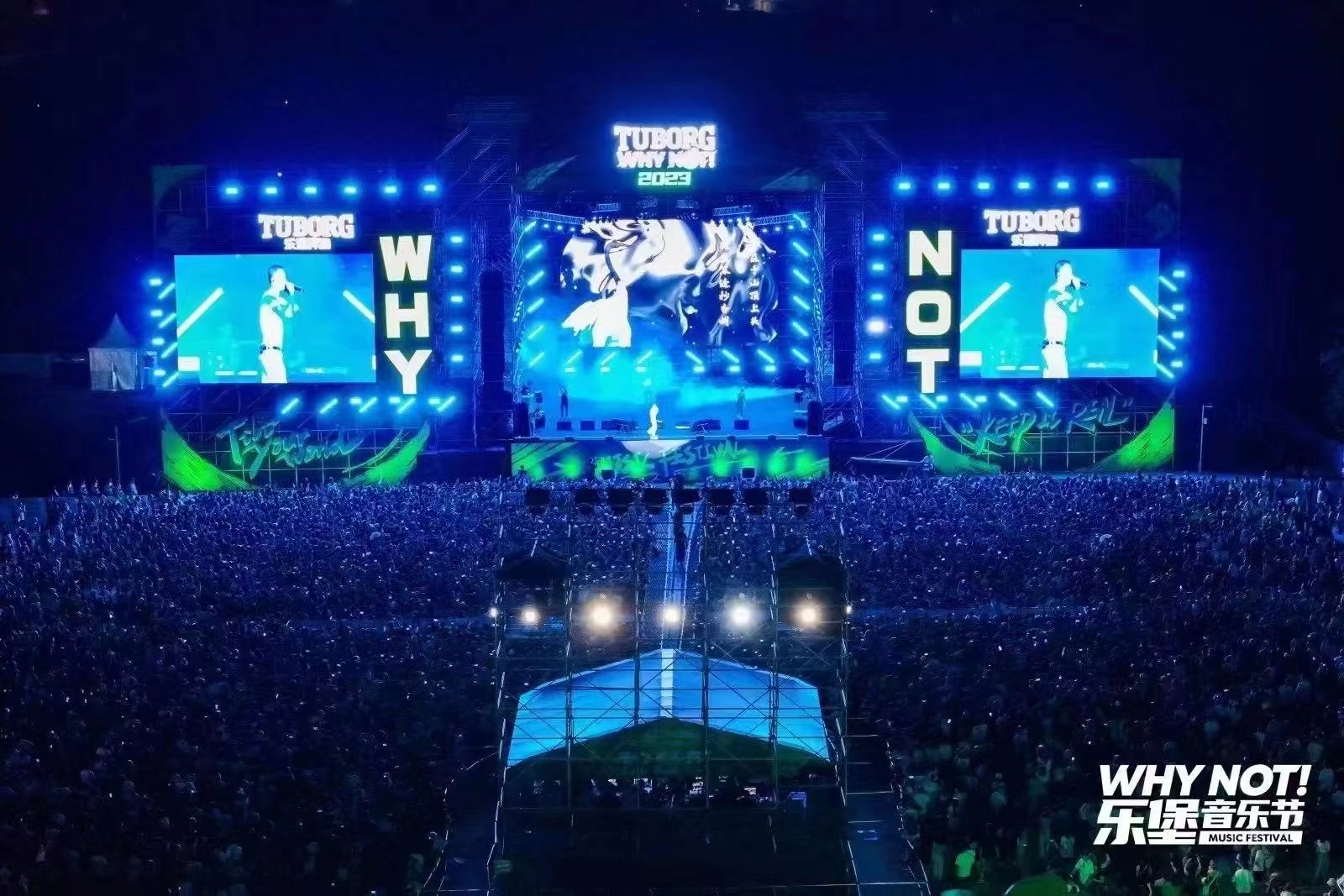

◐ Concerts, stage performances and outdoor events: LED strobe lights excel in these occasions, providing high brightness, stability and rain protection, suitable for a variety of outdoor and semi-outdoor environments.
◐ Entertainment industry: music festival and movie theater and other places, LED strobe lights are used to display background pictures, special effects and movies, enriching the audience's audio-visual experience.
VANRAY Matrix Light ST-025 Installation & Maintenance
Installation
Confirm the installation position: Determine where the LED strobe are to be installed, ensuring that the location provides the right lighting angle and is kept at the right distance from other equipment to prevent overheating.
Maintenance
- 1. Regular cleaning: During the use of LED light, the surface of the luminaire may accumulate dust or pollution, affecting the output of light. Regularly use a soft cloth to wipe the surface of the lamp; avoid direct cleaning with a wet cloth or chemical cleaner, so as not to damage the shell.
2. Check the cooling system: The heat dissipation performance of LED lights is crucial for extending their service life. Check whether the heat sink and heat dissipation hole are blocked by dust or foreign matter, and clean the heat dissipation channel regularly to ensure good heat dissipation.
VANRAY Matrix Light 5pcs 75W ST-015 Light Matrix
VANRAY Matrix LED Light RGBW STL-05 5pcs 30W LED Light Matrix
LP-200Z — 200W IP65 RGBW Zoom Wash Par Light
The LP-200Z is a 200W IP65-rated waterproof zoom wash par light — the entry-level zoom model in the VANRAY IP65 par range. A single 200W RGBW 4-in-1 LED source combined with a motorized 6°–60° zoom delivers beam flexibility from narrow spot to wide flood, while IP65 sealing under IEC 60529 enables full outdoor deployment in rain and high humidity.
At 8.5kg in a 365×280×230mm housing, the LP-200Z is slightly heavier than the indoor LP-200ZC (6kg) due to the sealed weatherproof housing. The intelligent silent fan maintains thermal performance during continuous operation.
The LP-200Z occupies a distinct position among the IP65 zoom par models: compared to the LP-740Z (7×40W, 280W) and LP-1515Z (15×15W, 200W), the LP-200Z uses a single-source LED configuration producing a different beam character — a single-source spot profile rather than the distributed multi-chip array pattern. This makes the LP-200Z appropriate when a single-source beam aesthetic is preferred over multi-chip wash character.
LP-1515Z — 200W IP65 Waterproof Zoom LED Par Light
The LP-1515Z is a 200W IP65-rated waterproof zoom wash par light using 15 individual 15W 4-in-1 RGBW chips. The 15-chip array produces smooth, even color distribution across the beam — the higher chip count compared to single-source zoom pars reduces color separation at typical throw distances and improves uniformity when illuminating wide surfaces. The motorized 6°–60° zoom is fully DMX-addressable in 11-channel mode, with 8 built-in effect programs accessible via DMX console or standalone operation.
At 7.5kg in a 350×240×343mm housing rated IP65 under IEC 60529, the LP-1515Z balances output capability with portability for rental companies operating across multiple events per week.
