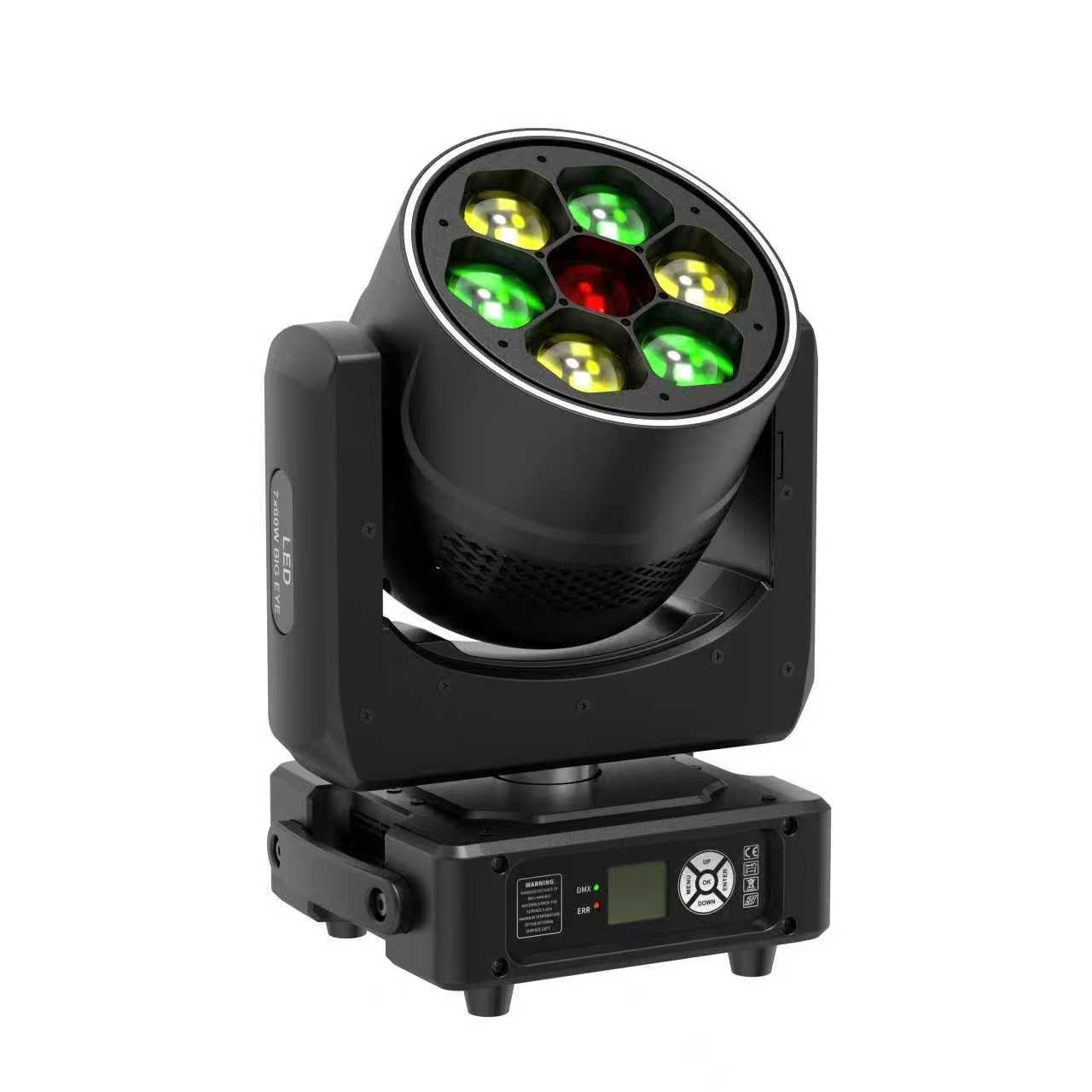

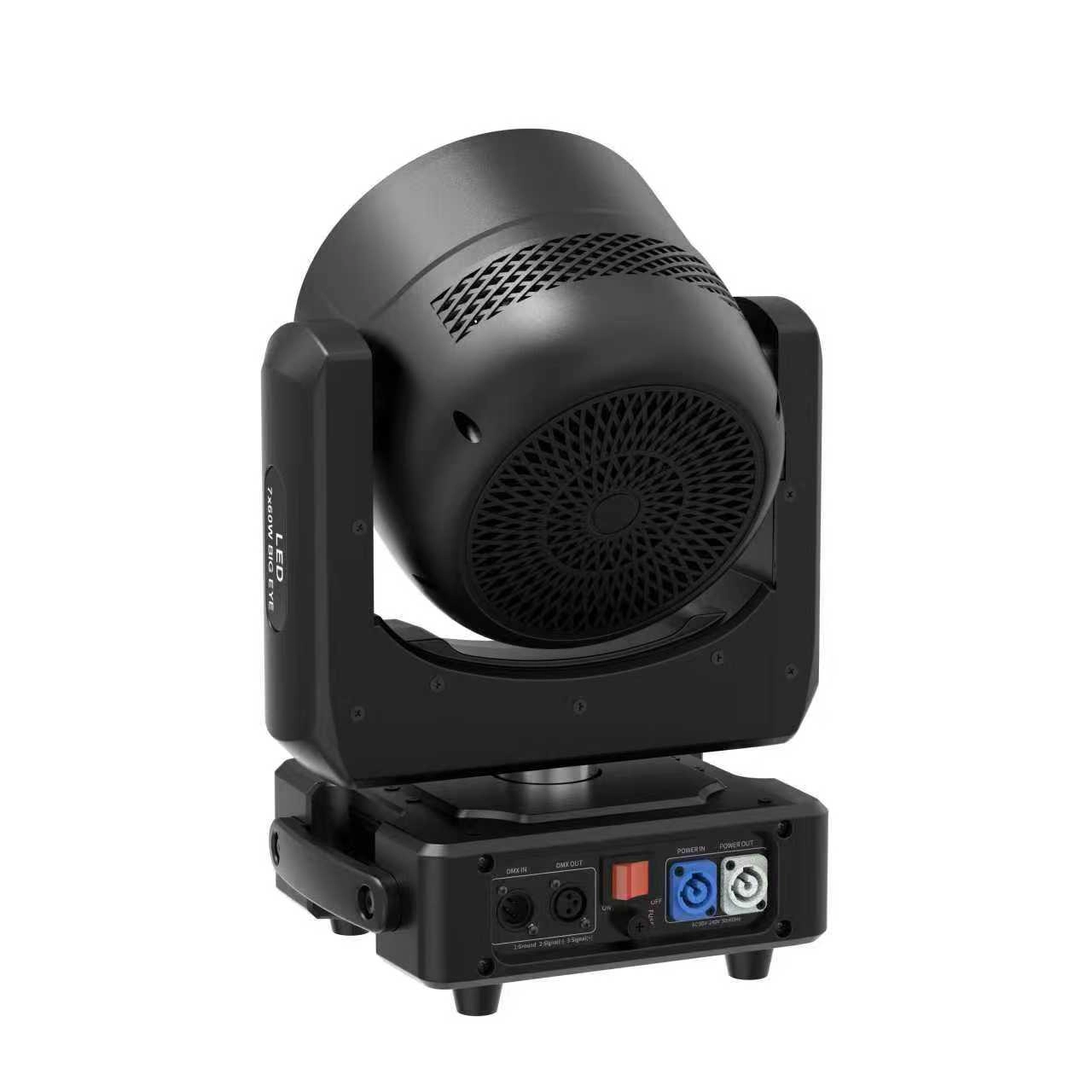

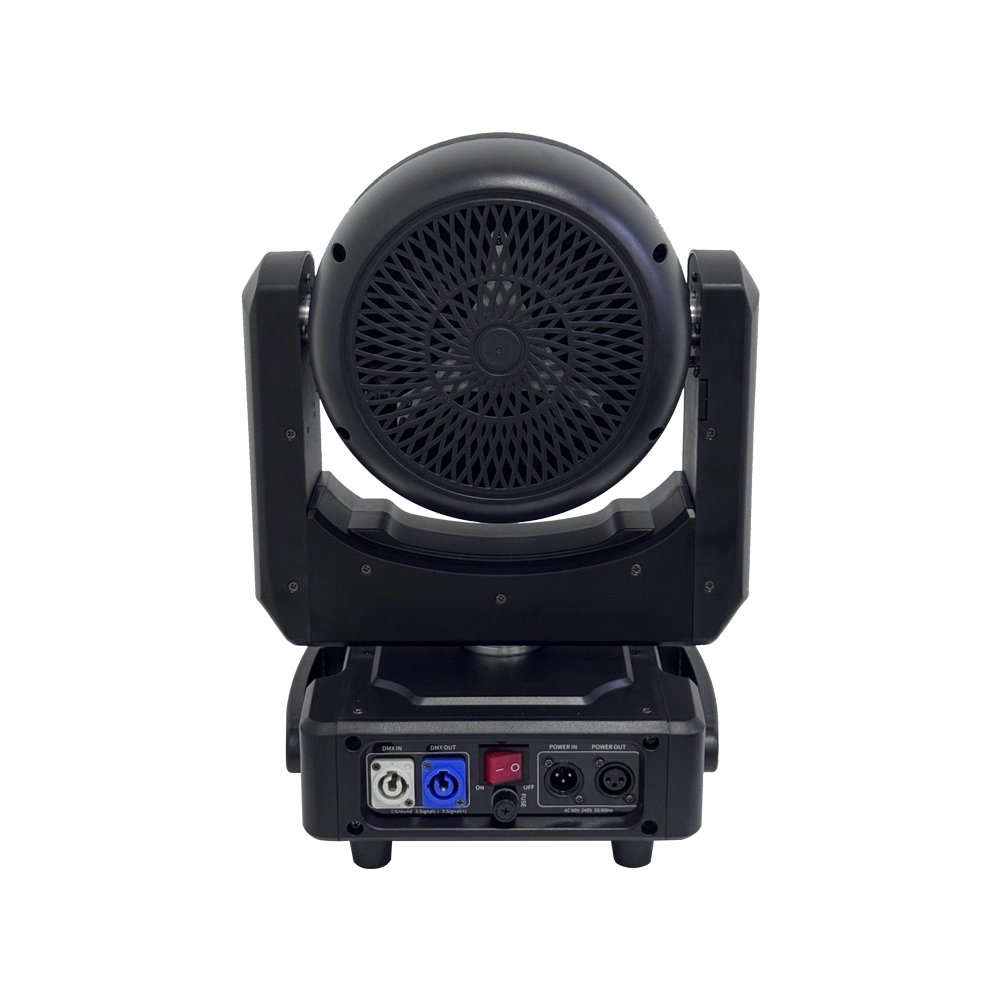

VANRAY Led RGBW Moving Head LM-760 7pcs 60W LED Wash Moving Head
VANRAY LED Wash Moving Head Zoom LM-760 Parameters
| Name | LED zoom wash moving head | Model number | LM – 760 |
| Rated voltage | AC110 ~ 240V, 50 ~ 60Hz | Power | 450 w |
| Light source | 7x 60W, RGBW 4-in-1 Color Mixing Bee Eye | Optics | 4.5-45 degree focus |
| Color | RGBW color mixing | Horizontal scanning | 540° (16-bit precision scanning) electronic error correction |
| Vertical scan | 270° (16-bit precision scan) electronic error correction | Effect | Single Point Single Control, Color Wash, Strobe, Zoom, Beam Honeycomb Effect CTO Effect |
| Integrated dimming | 0-100% linear | Heat dissipation system | Forced convection cooling |
| Control mode | DMX 512, Auto, Master/Slave, Sound Control | Channel | 30CH/42CH/58CH |
| Color temperature | 2800K-8500K | IP rating | IP20, built-in overheating and trigger high voltage protection |
| Product size | 290*230*430mm | Net weight |
VANRAY LED Wash Moving Head Zoom LM-760 Features and Benefits
◐ Zoom range is 4.5-45 degrees, more flexible
◐ With variety color rgbw color mixed
◐ Small light body , very light
◐ Single Point Single Control, Color Wash, Strobe, Zoom, Beam Honeycomb Effect CTO Effect

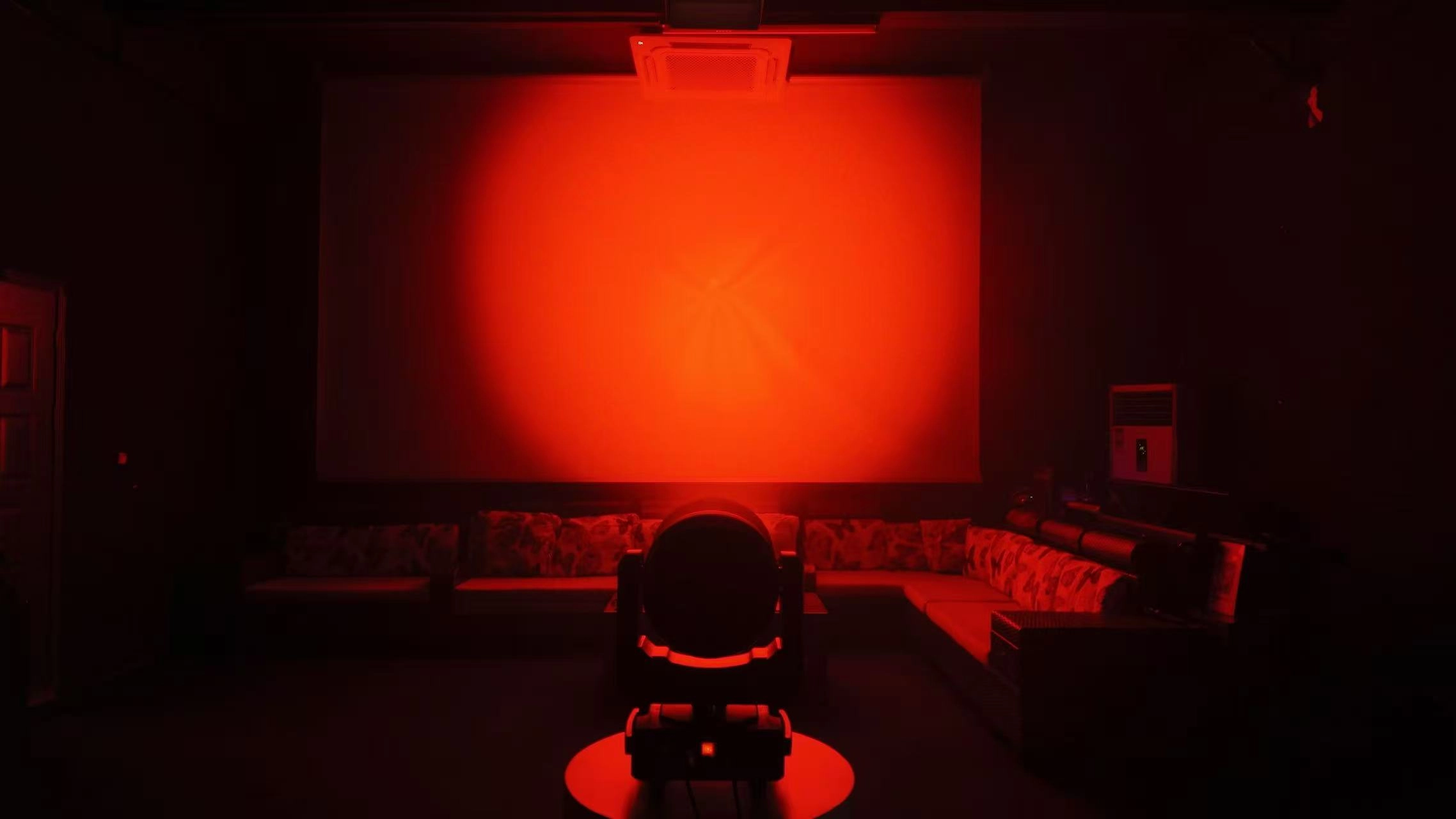

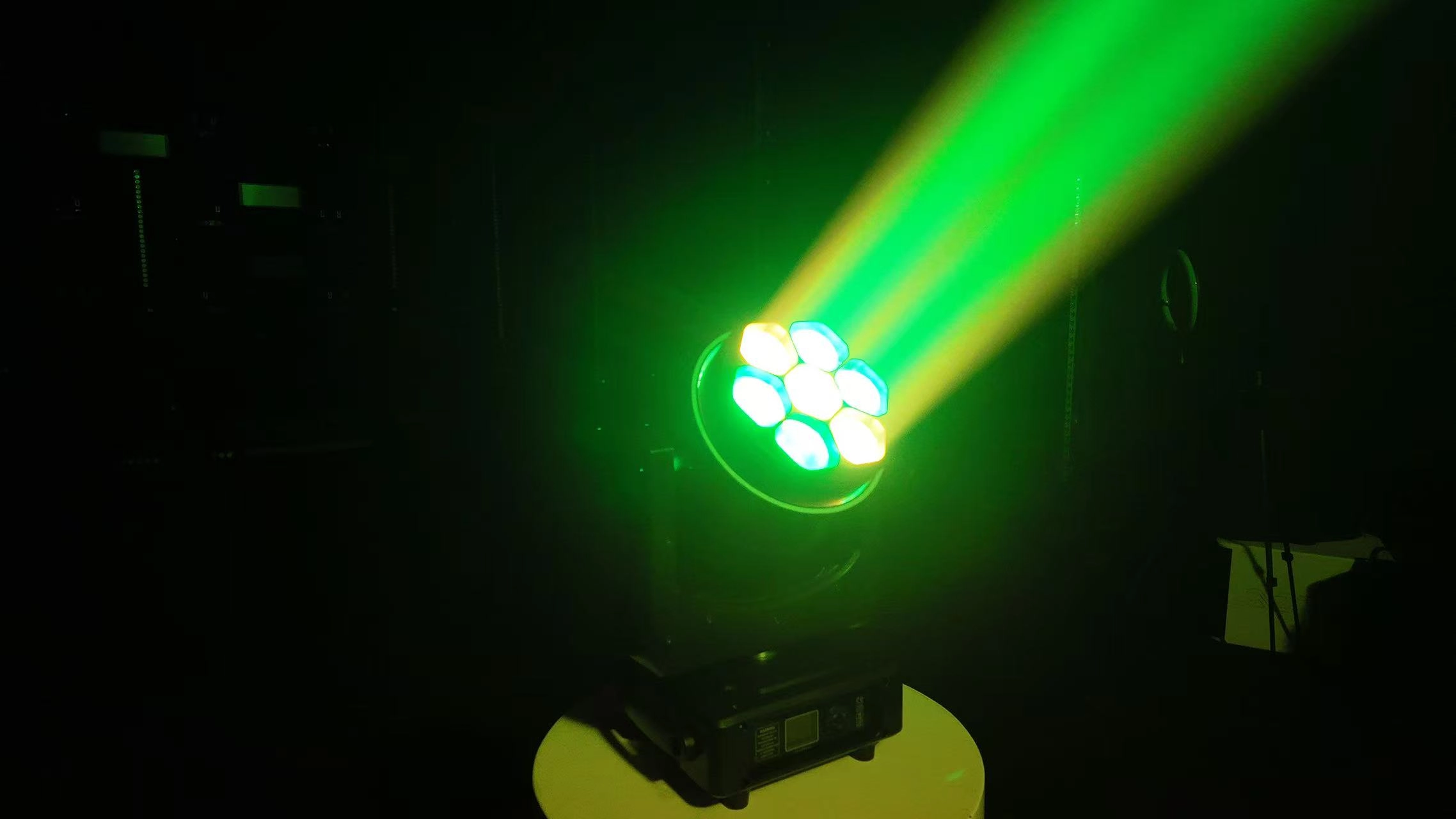

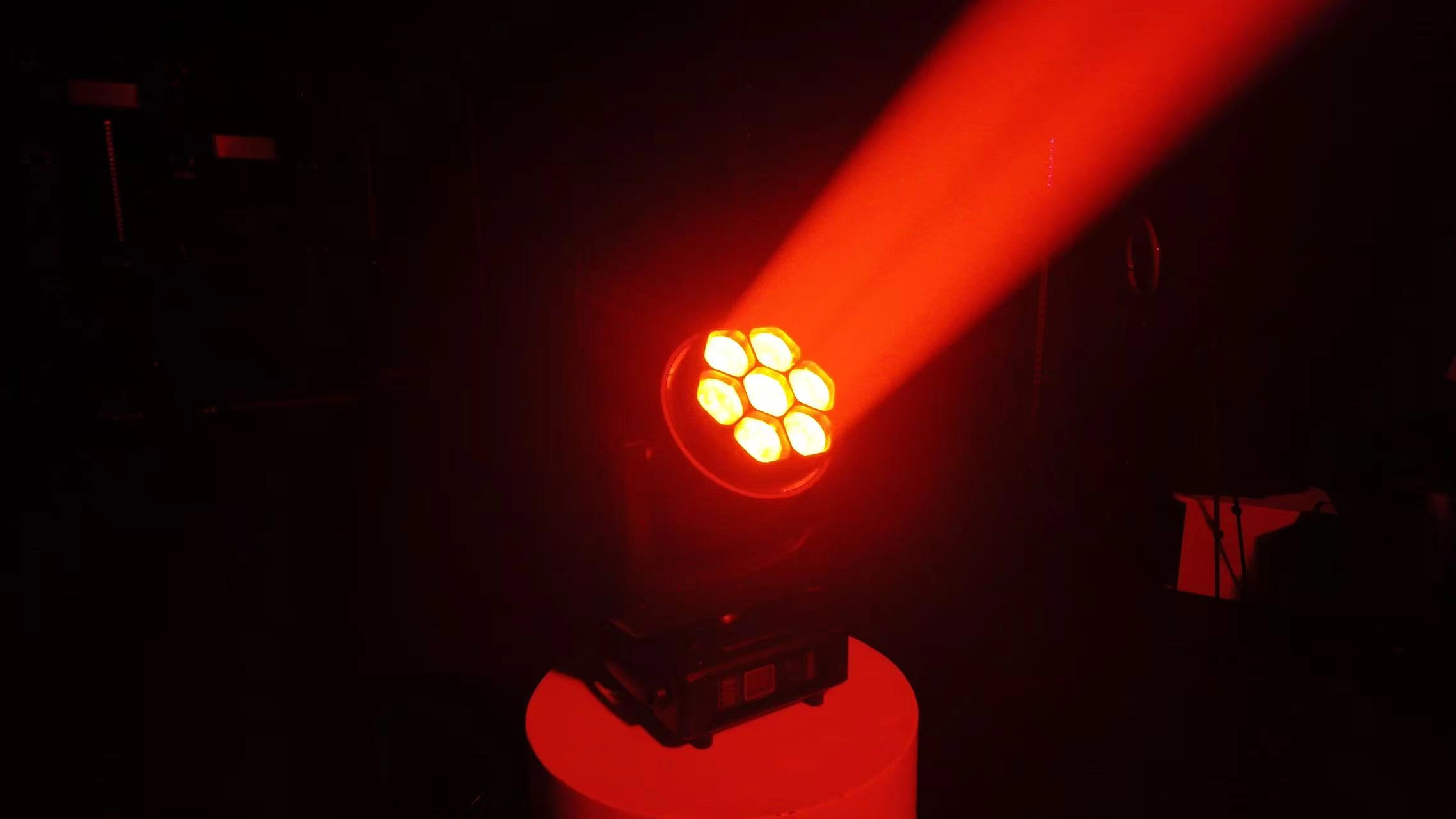

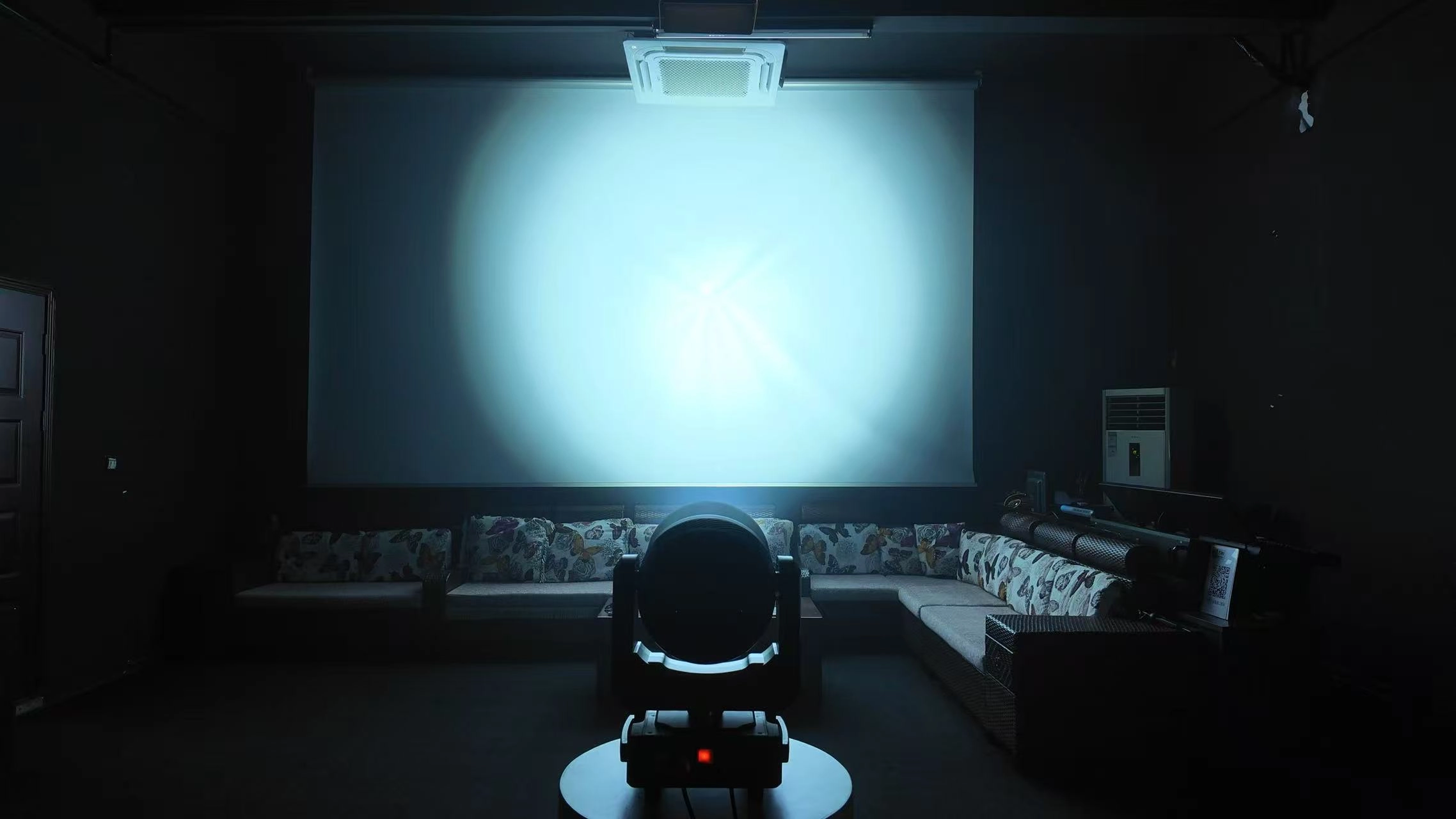

VANRAY LED Wash Moving Head Zoom LM-760 Effect Pictures
VANRAY LED Wash Moving Head Zoom LM-760 Applications
◐ Stage performances and concerts: This lamp can provide rich colors and dynamic light effects for concerts, drama performances, dance performances, etc., to enhance the audience's immersion.
◐ Nightclubs and bars: the LED wash moving head can quickly change the direction and color, creating dynamic light and shadow effects suitable for nightclubs, bars and other entertainment venues to create the atmosphere.
◐ Indoor and outdoor large-scale events: such as sporting events, festival celebrations or opening ceremonies, LED wash moving head lights are often used to create dazzling lighting effects to attract the attention of the audience.
VANRAY LED Wash Moving Head Zoom LM-760 Installation & Maintenance
Installation
- 1. Select the right installation position: Ensure that the lamp is installed on a stable bracket or fixed device to avoid vibration or loosening affecting the normal work of the lamp.
- The installation position should ensure that the lighting projection angle can achieve the desired effect while avoiding being too close to other equipment or walls to reduce the risk of overheating.
2. Ventilation and cooling: The lamp should be installed in a well-ventilated place to ensure the heat dissipation effect and avoid damage caused by overheating. Do not block the heat sink or cooling fan of the lamp.
3. When connecting the power cable, ensure that all connections are waterproof and sealed to avoid exposing the wire connector and preventing water intrusion. Use waterproof cables and connectors to ensure that the joints are well sealed.
Maintenance
- 1. Regular cleaning: The external mirror and transparent cover of the waterproof beam lamp are easy to accumulate dust or dirt, and regular cleaning can ensure that the beam brightness is not affected. Use a soft cloth and non-corrosive cleaner to avoid scratching surfaces.
2. Light Source Replacement: LED light sources generally have a long life, but it is still necessary to check brightness and color stability regularly. If the brightness or color deviation of the light source is found, it should be replaced in time.
3. Check cables and connectors: Regularly check whether cables and connectors are in good condition to avoid aging, damage or corrosion and ensure safe and reliable power connection.
