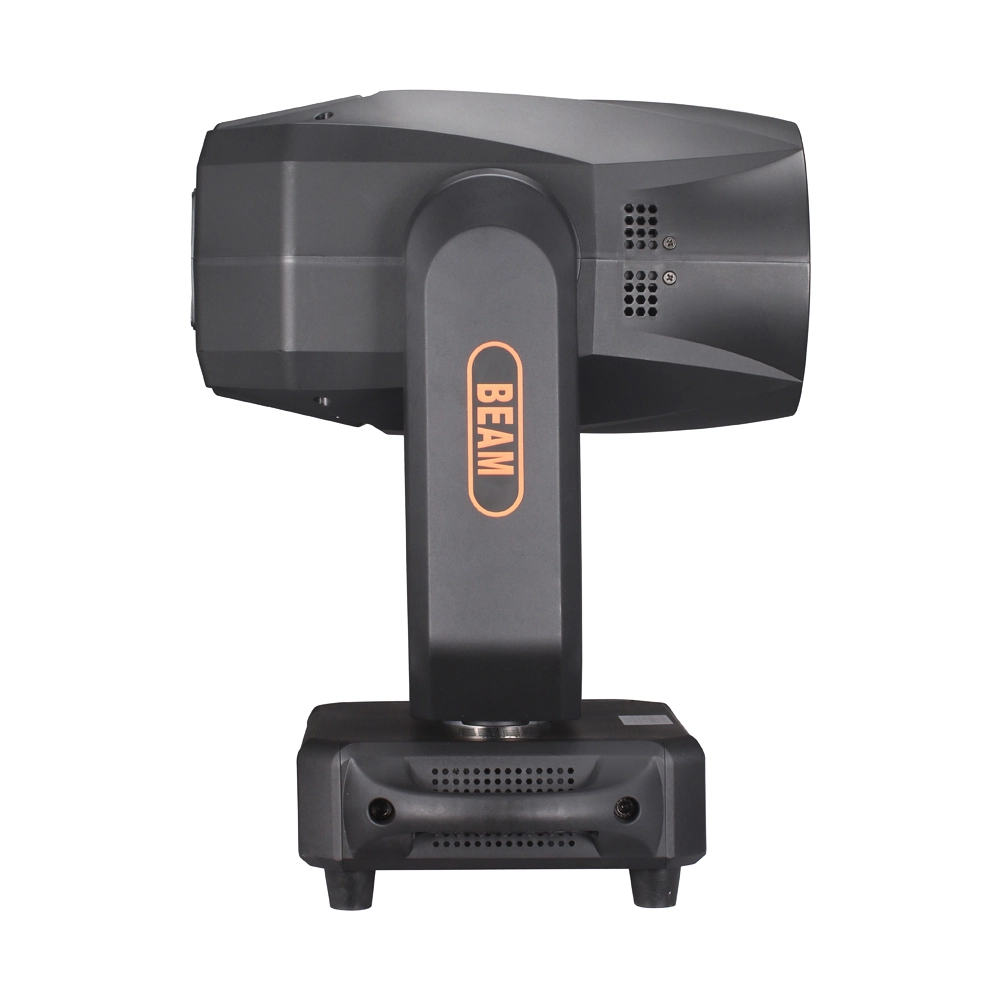

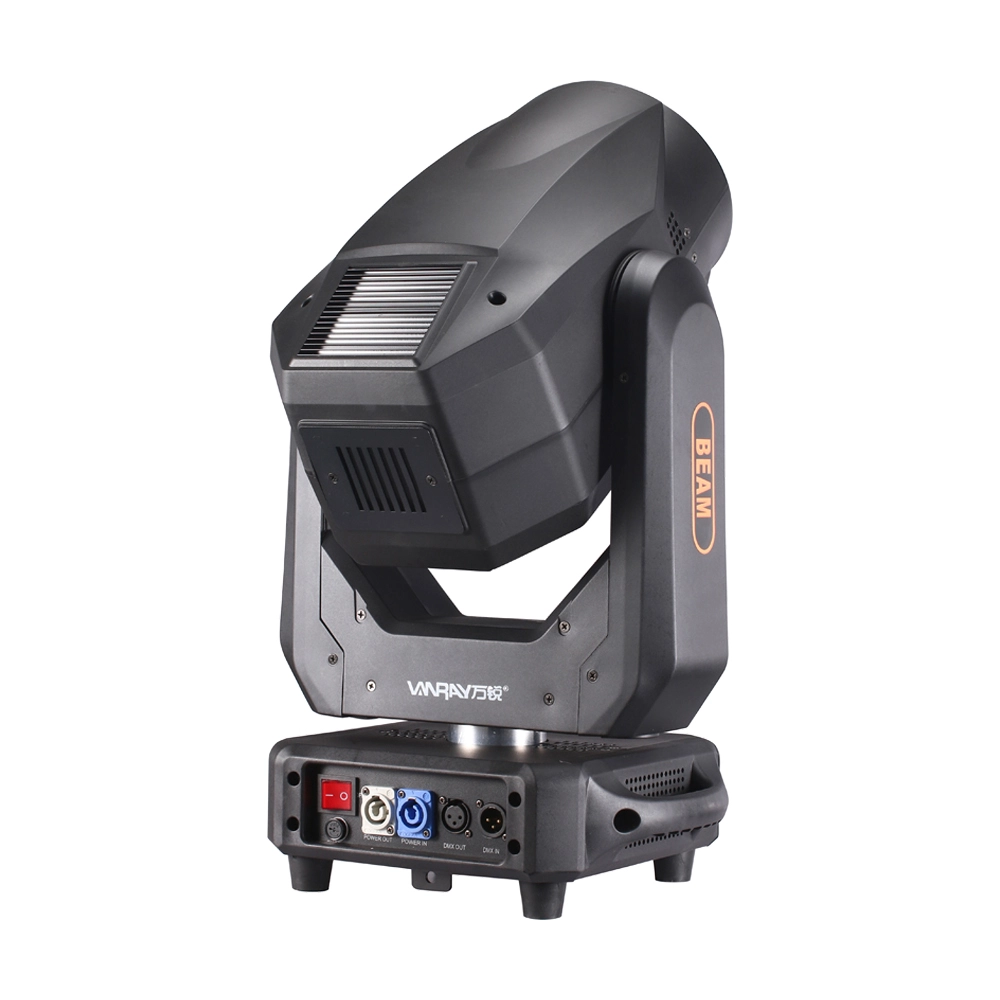

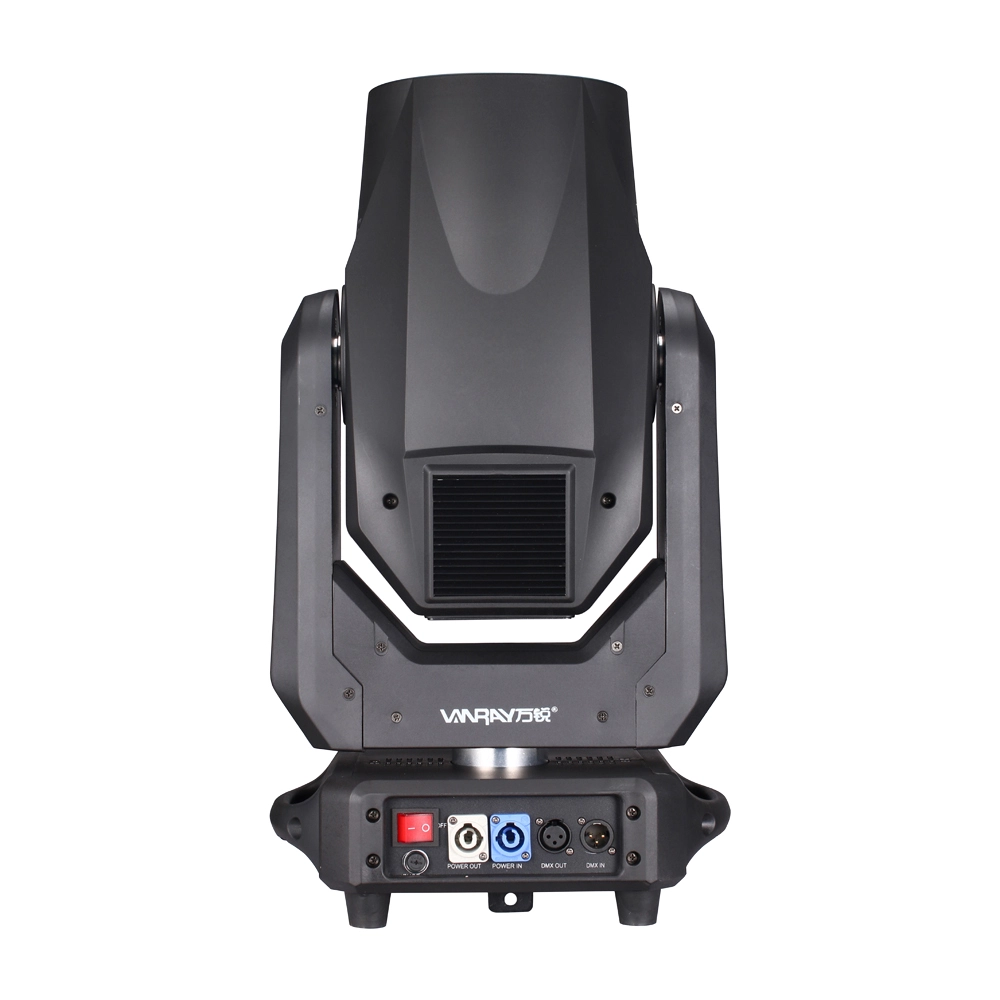

VANRAY Beam Moving Head Light BEAM-380N High Power Moving Head Beam Lights
VANRAY 380W Beam Moving Head Light BEAM-380N Parameters
| Name | Beam moving head | Type number | BEAM-380N |
| Rated voltage | AC100V ~ 240V, 50 ~ 60Hz | Power rate | 500W |
| Light source | 371 bulbs | Optical | 4 optical lenses with a light Angle of 1.7 degrees |
| Color | 14 colors + white light + rainbow pieces, can do two-way variable rainbow effect, half color effect | Gobo | 14 fixed gobo pieces + white light, adjustable speed |
| Prism | an 8 prism, a honeycomb prism, two prism disks can be arbitrarily superimposed effect, positive and negative rotation | Horizontal scanning | 540° (16-bit precision scanning) electronic error correction |
| Vertical scan | 270° (16-bit precision scan) electronic error correction | Atomization | Effect movement, atomization function |
| Stroboscopic | From fast to slow, support mechanical stroboscopic and adjustable stroboscopic effects; support stroboscopic macro function | Dimming | 0-100% linear dimming |
| Heat dissipation system | Forced convection cooling, intelligent fan heat dissipation, lamp protection function, lamp fan hot fan abnormal automatic turn off function, to avoid the problem of lamp overheating caused by abnormal fan speed, boot in the non-bubble state, the main fan does not run, and automatically starts according to the temperature after the bubble, to minimize noise | Control mode | DMX512, support RDM two-way transmission, self-walking mode, master-slave mode |
| Number of channels | 16CH | Display | 2.8-inch LCD display, Chinese and English switching, 180-degree rotation |
| Lamp body size | L320*W250*H580 | Protection class | IP20, built-in overheat and trigger high pressure protection |
| Lamp weight | 15KG |
VANRAY 380W Beam Moving Head Light BEAM-380N features and benefits
◐ The use of strong torque three-phase motor, high-quality magnetic steel material, and fine and smooth operation
◐ Use sufficient power PFC power supply
◐ The use of lead-free environmental protection fan, low power consumption, long life, large air volume
◐ The internal electronic wire of the lamp uses high-temperature, cold-resistant, wear-resistant, and anti-corrosion wire
◐ The use of strong toughness, high and low temperature resistance, wear resistance, and anti-corrosion belts can ensure long-term high-load operation
◐ The use of high-temperature, explosion-proof color sheet
◐ Independent intellectual property rights of software control board, smooth dimming
◐ The shell uses UL94V-1 fire-retardant material
◐ Support RDM
VANRAY 380W Beam Moving Head Light BEAM-380N Effect pictures
VANRAY 380W Beam Moving Head Light BEAM-380N Applications

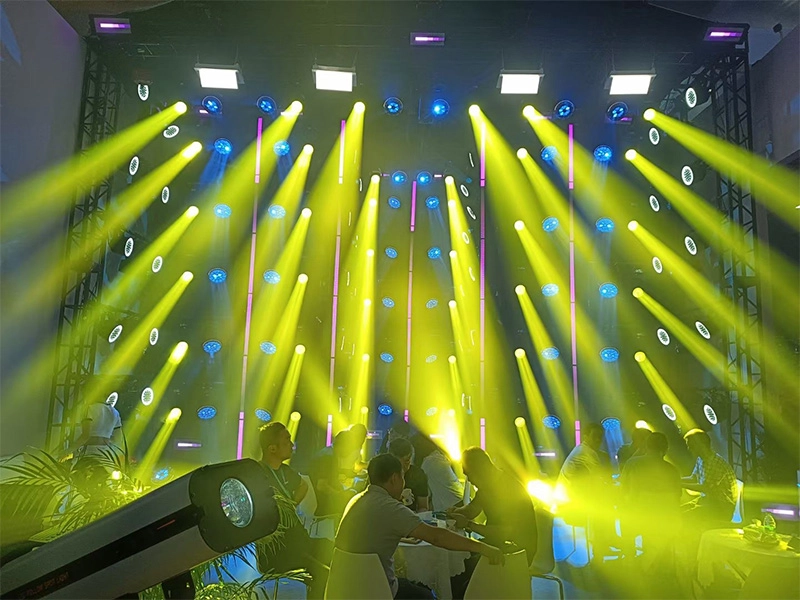

◐ Stage performance: Beam moving head lights can create a dynamic beam effect on the stage to enhance the performance atmosphere. Help highlight key parts in a show by controlling the color, intensity, and direction of the lights.
◐ Concerts: It can be used for high-brightness lighting, creating a strong visual effect, matching the rhythm of the music, and enhancing the atmosphere of the scene.
◐ Live TV and variety shows: In the production of TV programs, beam moving lights can provide accurate beam control and rich light effects, helping the program team to create professional lighting effects and increase visual impact.
◐ For large-scale events and celebrations, such as sports events, fashion shows, exhibitions, brand conferences, etc., beam moving lights can effectively attract audience attention, create gorgeous lighting effects, and enhance the influence of activities.

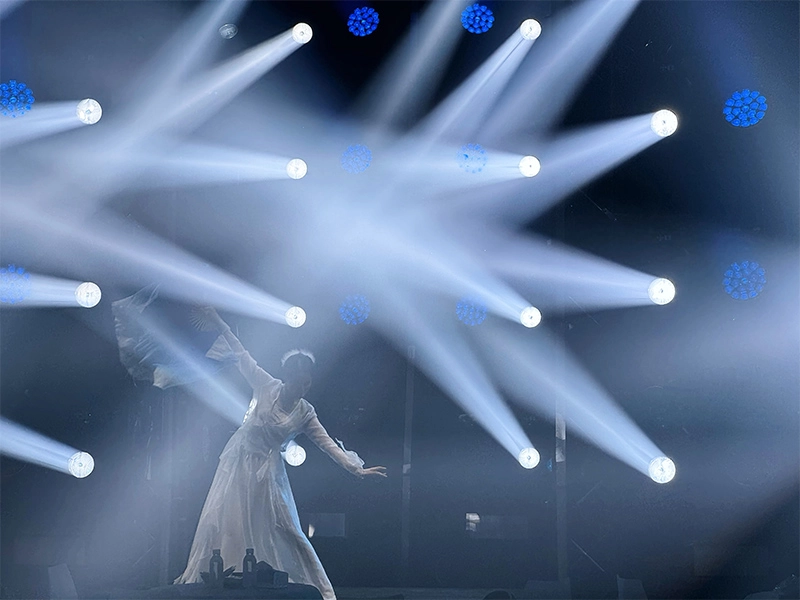

◐ Nightclubs and clubs: In night shows, bars and other entertainment venues, the beam-shaking lights create an atmosphere through changing lighting effects combined with music rhythm, making the atmosphere of the venue more dynamic and intense.
◐ Festivals and amusement parks: Beam-shaking lights are often used as an important visual element in light shows and theme park performances, making activities more vivid and attractive through light changes and directional projection.
Beam Moving Head Light BEAM-380N Installation & Maintenance
Installation
- 1. Use a professional hanger or bracket to secure the beam shaking light in a safe position. Make sure the brackets and hangers can withstand the weight and movement of the luminaire.
2. Check the stability of the hanging system to ensure that the lamp will not fall due to vibration or external force.
3. Power connection: Connect the power supply according to the equipment instructions. Ensure that the voltage and frequency are consistent with the equipment requirements; usually the beam shaking lamp requires a higher power supply.
Maintenance
- 1. Clean regularly : Clean the luminaire surface and lens regularly to prevent dust accumulation affecting the beam quality. Wipe the shell with a soft cloth and cleaner. For lenses and light source lenses, professional cleaning tools can be used to clean, Avoid using corrosive chemicals when cleaning to avoid damaging the surface of the lamp.
2. Check cooling system: beam moving head lights are usually equipped with a built-in fan or cooling system. Periodically check the fan status to ensure the normal running of the heat dissipation system.
3. Clean the dust on the fan to ensure that the vent is not blocked to prevent the device from overheating.
