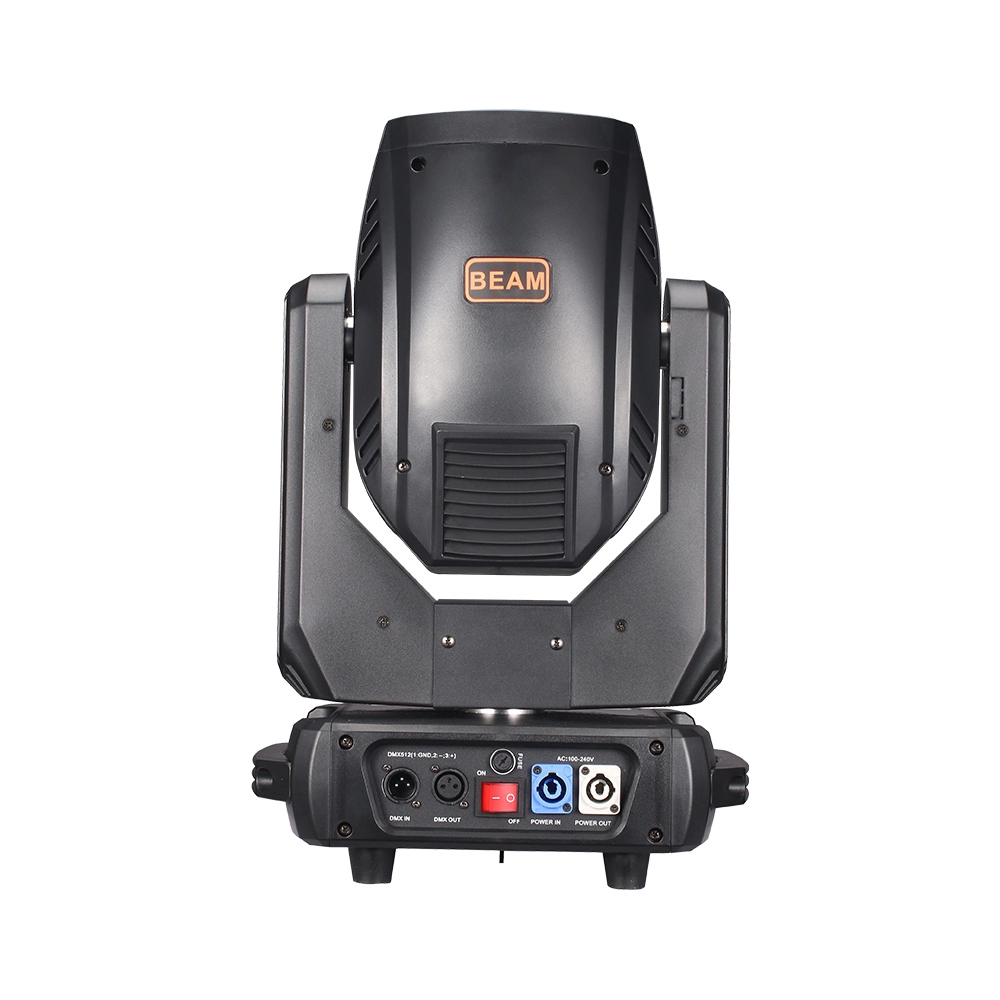

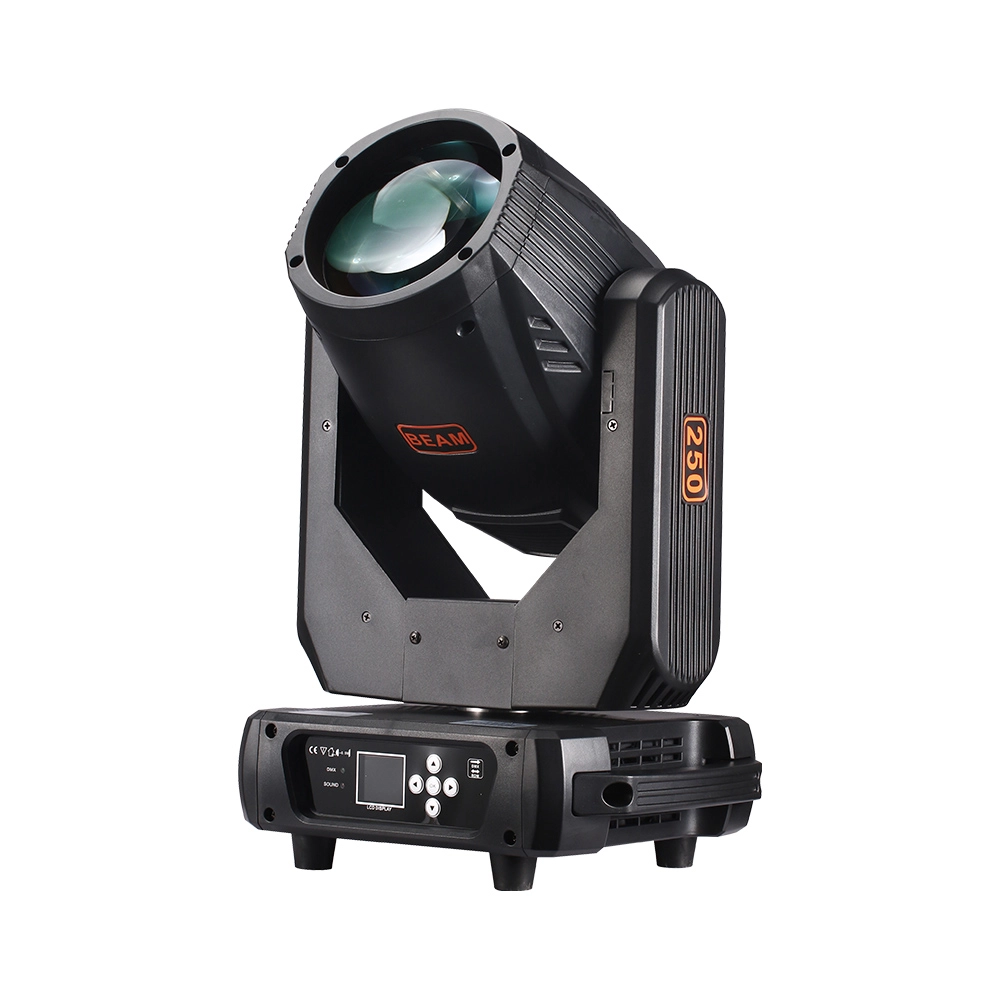

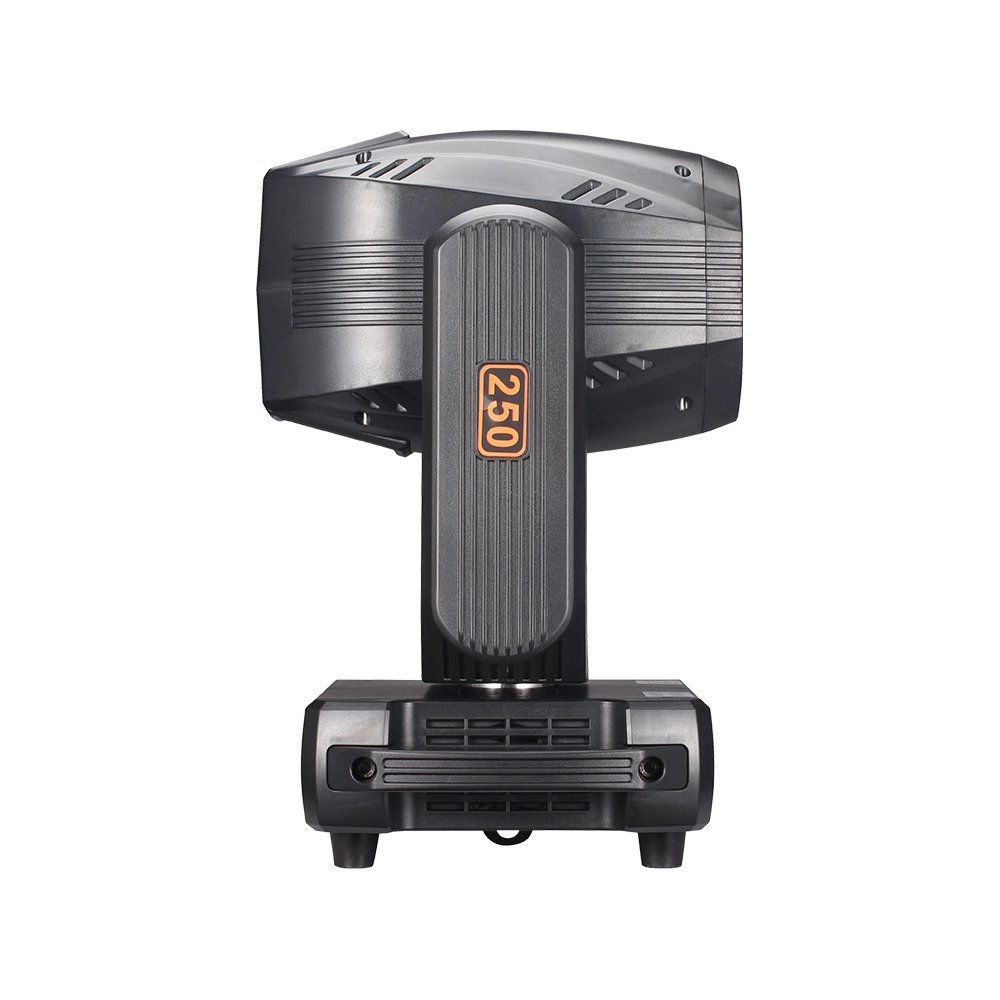

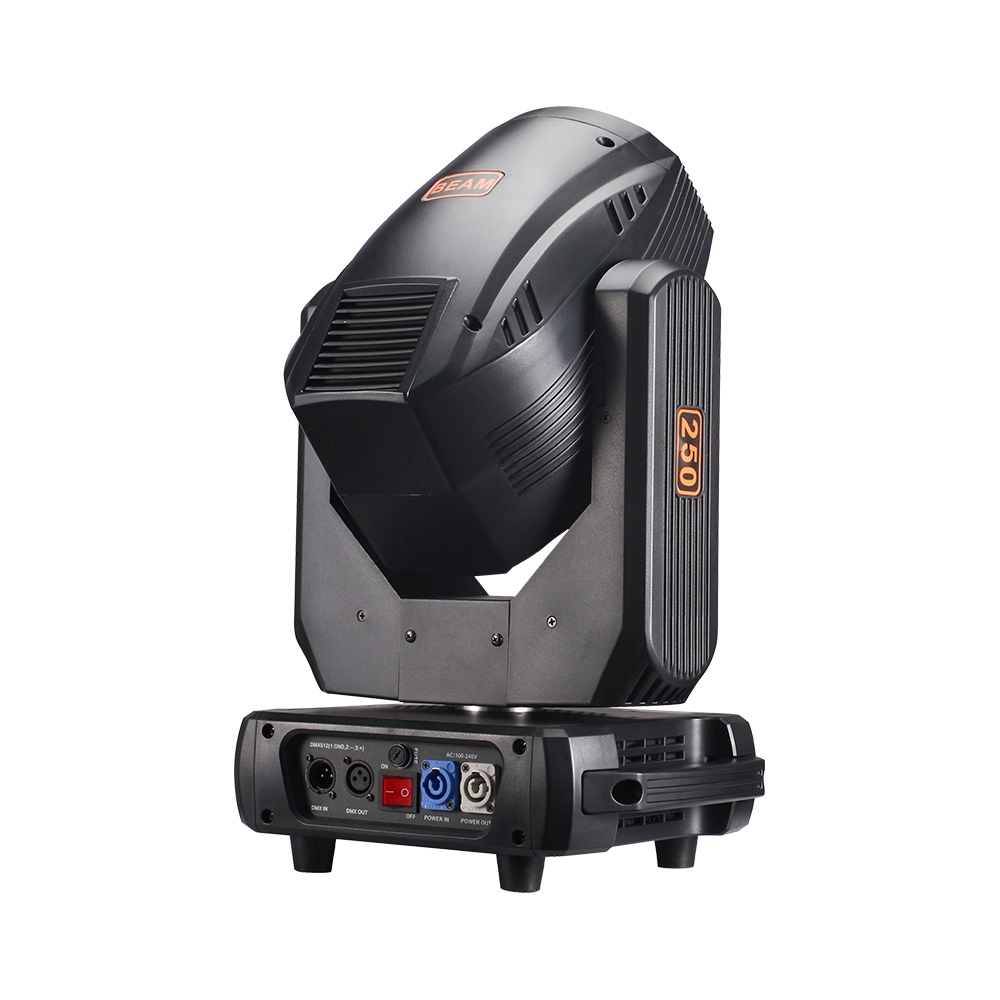

VANRAY Beam 250W Moving Head BEAM-250 380W Support RDM
Introducing the VANRAY Beam 250W Moving Head BEAM-250, featuring powerful 380W output. This cutting-edge lighting solution supports RDM for seamless control and precision. Elevate your lighting design with Vanray's innovative beam moving head lights, perfect for creating stunning visual experiences in any setting.
VANRAY Beam 250W Moving Head BEAM-250 Parameters
| Name | Beam moving head | Model | BEAM-250 Technical parameter |
| Rated voltage | AC100V ~ 240V, 50 ~ 60Hz | Power rate | 380W |
| Light source | 250 bulbs/Support 230, 295, 311, 350 bulbs | Optics | Two sets of optical lenses, 0-3 degrees |
| Color | 14 colors + white light, 6 rainbow effect pieces, half color effect | Gobo | 13 fixed gobo pieces + white light |
| Prism | 8 prism, double honeycomb prism, two prism disks can be superimposed, positive and negative rotation | Horizontal scanning | 540° (16-bit precision scanning) electronic error correction |
| Vertical scan | 270° (16-bit precision scan) electronic error correction | Atomization | Effect movement, atomization function, colorful effect |
| Stroboscopic | From fast to slow, support mechanical stroboscopic and adjustable stroboscopic effects; support stroboscopic macro function | Dimming | 0-100% linear dimming |
| Cooling system | Forced convection cooling, intelligent fan cooling | Control mode | DMX512, RDM self-walking mode, master-slave mode, manual multi-scene mode |
| Number of channels | 16CH | Display | 1.8-inch LCD display, Chinese and English switching, automatic 180-degree rotation |
| Function | Gobo disk and color disk have automatic magnetic detection and error correction function, with machine fault prompt and electronic accurate prompt fault cause; all functions run fast and smooth | IP rating | IP20, built-in overheat and trigger high pressure protection |
| Lamp body size | L340*W252*H520mm | Lamp weight | 14KG |
| Display | LCD display, Chinese and English switch | IP rating | IP65, built-in overheat and trigger high pressure protection |
| Shell material | Sunscreen, fireproof, cold-resistant, fall-resistant plastic | Installation | Can be flat, can be suspended |
| Product size | 470*320*700mm | Weight | 34.5KG |
VANRAY Beam 250W Moving Head BEAM-250 Features and Benefits
◐ Uses Two sets of optical lenses, 0-3 degrees
◐ Use sufficient power PFC power supply
◐ The use of lead-free environmental protection fan, low power consumption, long life, large air volume
◐ The internal electronic wire of the lamp uses high-temperature, cold-resistant, wear-resistant, and anti-corrosion wire
◐ The use of strong toughness, high and low temperature resistance, wear resistance, and anti-corrosion belts can ensure long-term high-load operation
◐ The use of high-temperature, explosion-proof color sheet
◐ Independent intellectual property rights of software control board, smooth dimming
◐ The shell uses UL94V-1 fire-retardant material
◐ Support RDM

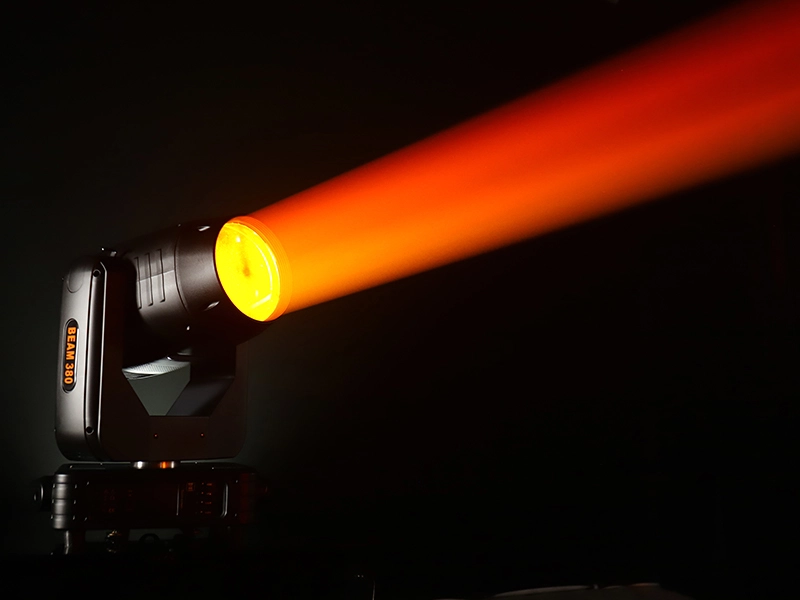

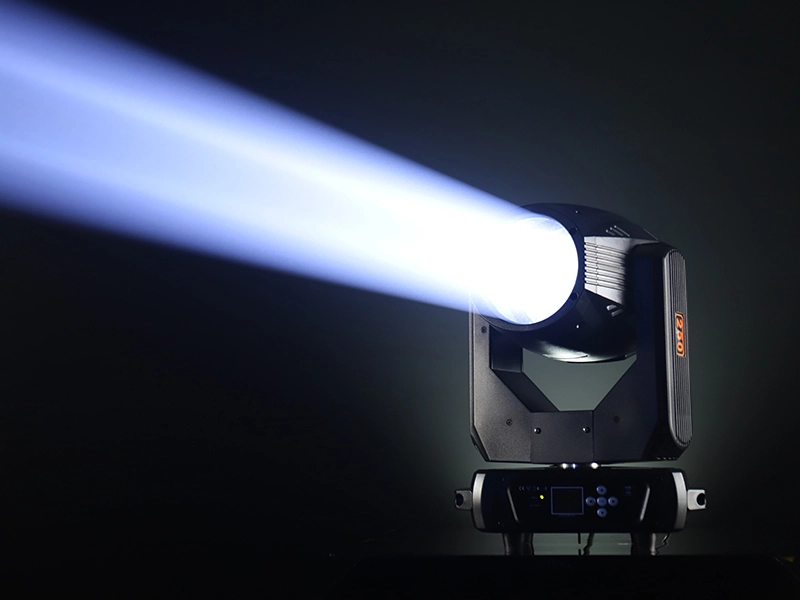

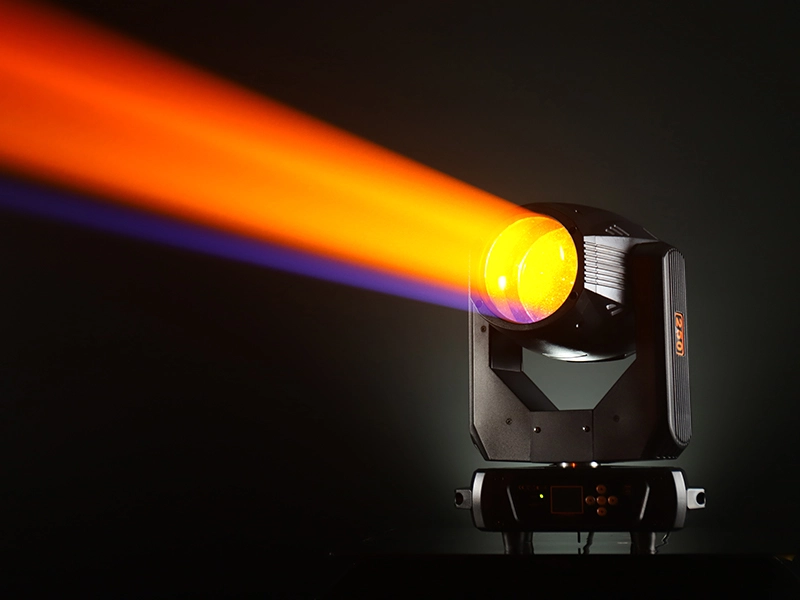

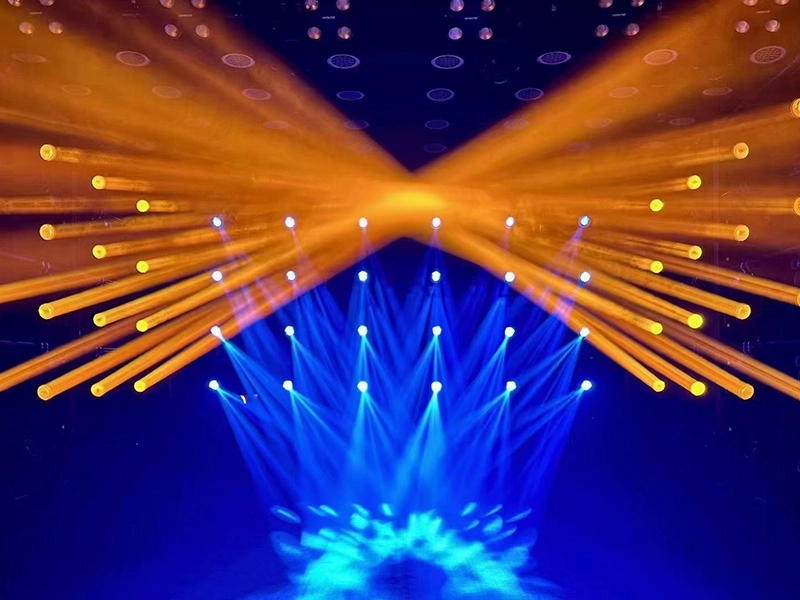

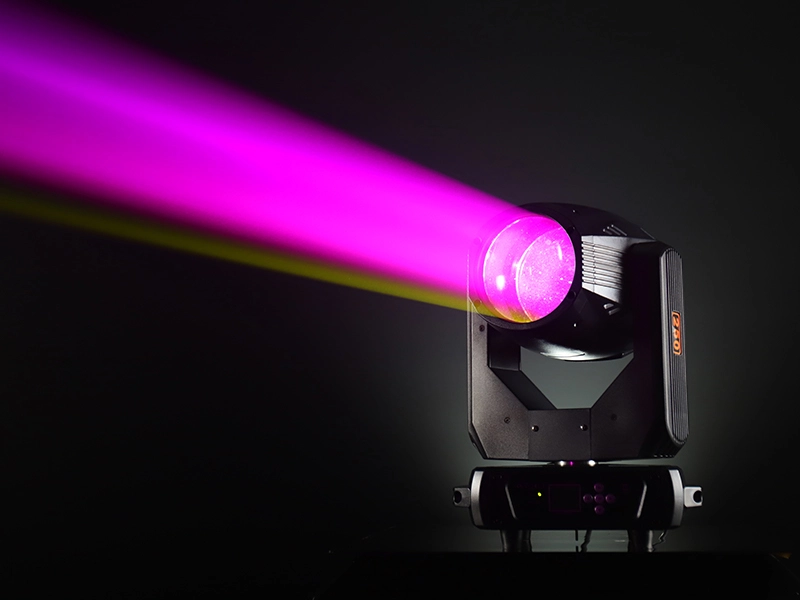

VANRAY Beam 250W Moving Head BEAM-250 Effect Pictures

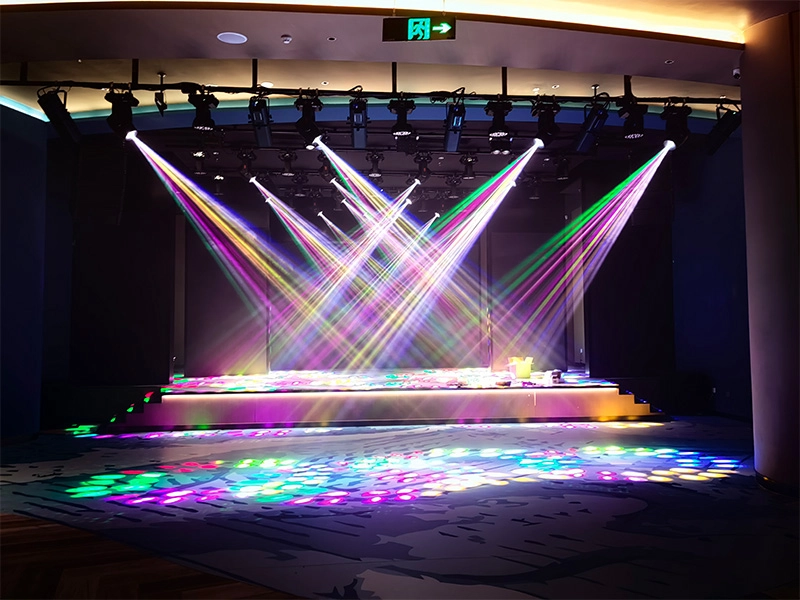

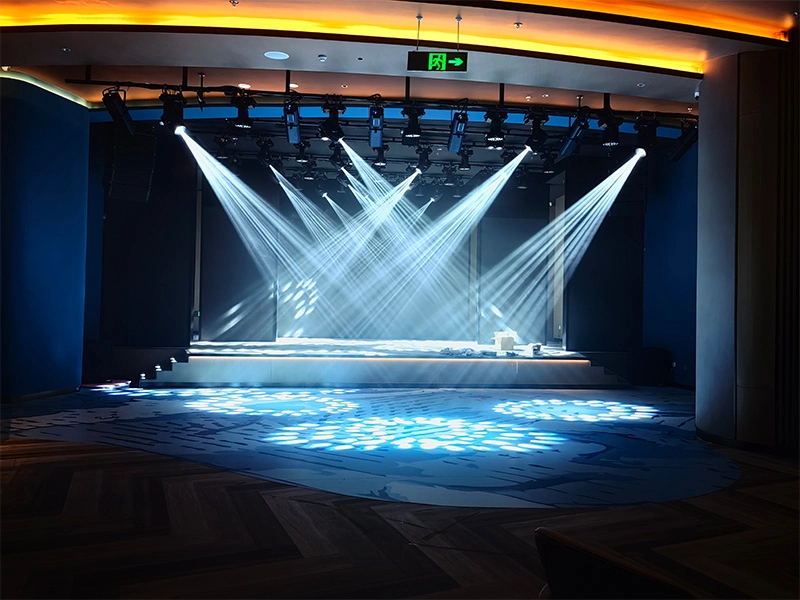

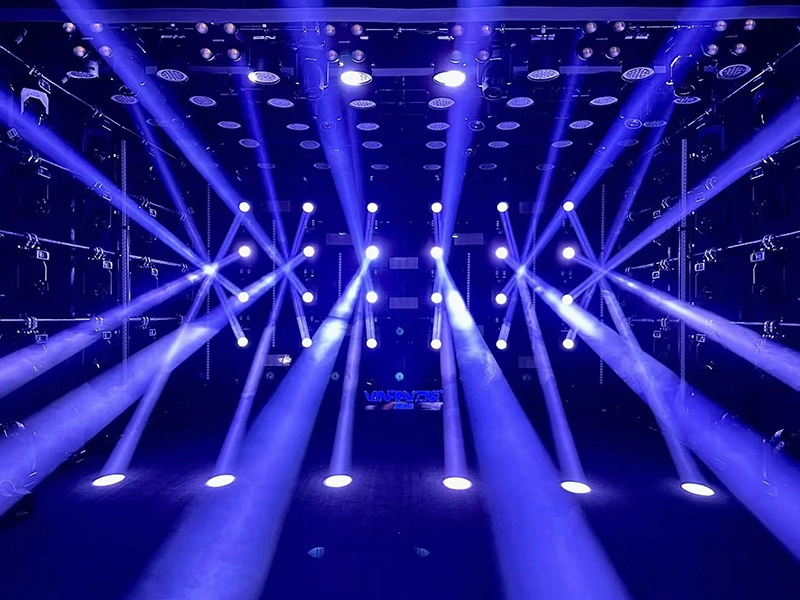

VANRAY Beam 250W Moving Head BEAM-250 Applications
◐ Concert: Used to create dazzling lighting effects, synchronized with the music rhythm, to create a shocking live atmosphere.
◐ Theatre performance: As scene lighting, to match the actors' movements and stage sets.
◐ Nightclub/Bar: Used to create dynamic lighting effects to enhance the scene.
◐ Carnival events: used on stage or in performance areas to attract the attention of the audience.
Beam 250W Moving Head BEAM-250 Installation & Maintenance
Installation
- 1. Fixed installation: Use suitable hooks and safety ropes to ensure that the equipment is securely mounted on the bracket or bar. The lighting installation Angle should avoid interference with other equipment or obstacles. Ensure that the oscillating light is mounted on a support structure with sufficient load-bearing capacity.
2. When connecting the power cable, ensure that all connections are waterproof and sealed to avoid exposing the wire connector and preventing water intrusion. Use waterproof cables and connectors to ensure that the joints are well sealed.
Maintenance
- 1. Internal cleaning: If the device runs for a long time, clean the internal dust regularly, but only by professional technicians.
2. Check cables and connectors: Regularly check whether cables and connectors are in good condition to avoid aging, damage or corrosion and ensure safe and reliable power connections.
VANRAY Waterproof LED Par Light LP-200Z 200W Zoom Par Light
Introducing the VANRAY Waterproof LED Par Light LP-200Z, a 200W Zoom Par Light engineered for professional performance. Designed by Vanray, this advanced LED PAR light ensures waterproof durability, making it ideal for diverse environments. Elevate your lighting setup with optimum brightness and versatile zoom capabilities. A perfect choice for professional LED PAR light applications.

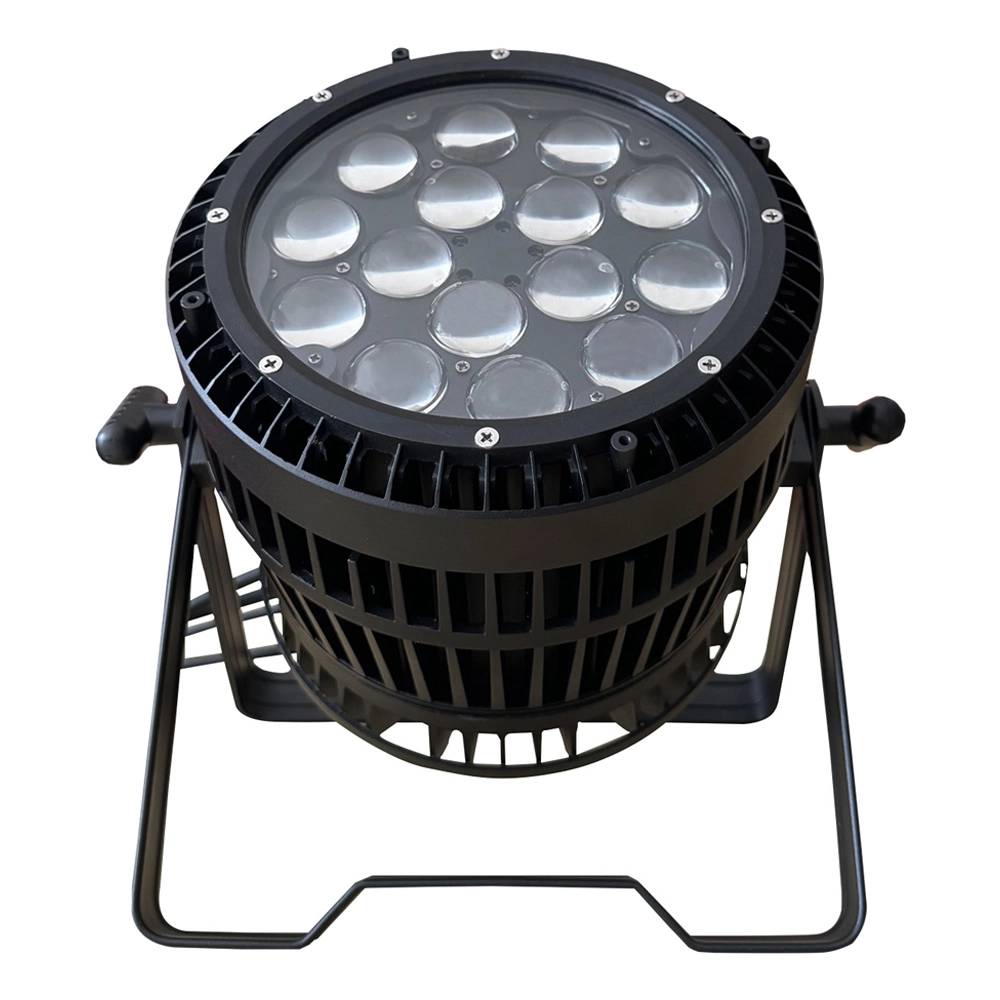

VANRAY LED Par Zoom Wash LP-1515Z 15pcs 15W RGBW Waterproof LED Par Light
Introducing the VANRAY LED Par Zoom Wash LP-1515Z, featuring 15pcs of 15W RGBW waterproof LEDs. This versatile LED wash light par is perfect for vibrant lighting effects, both indoors and outdoors. The precision of our led par zoom wash ensures an exceptional performance, enhancing any event with vivid color dynamics.

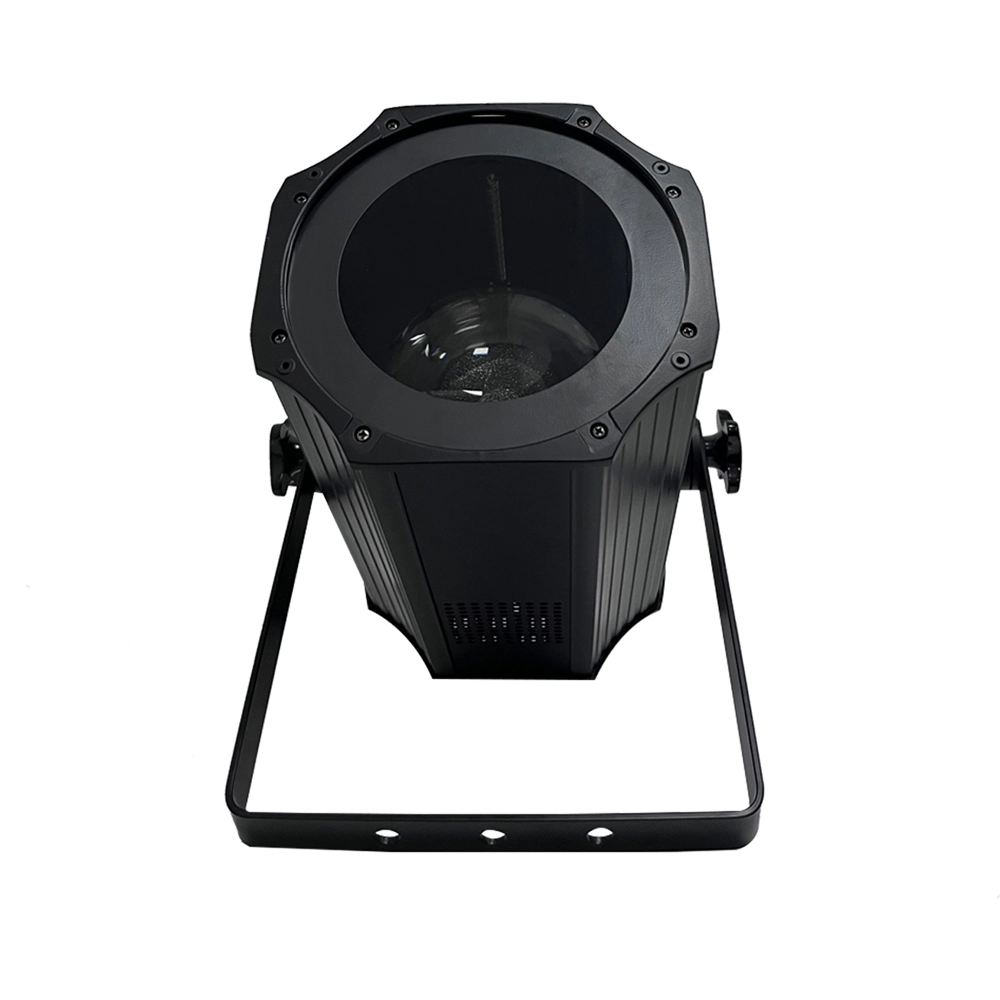

VANRAY Theater LED Par Can Lights LP-350SJL 350W White LED Par Can Lights
Introducing the VANRAY Theater LED Par Can Lights LP-350SJL, featuring an impressive 350W white LED. Ideal for stage lighting, these LED Par Can Lights deliver superior brightness and versatility. Enhance your theater productions with our cutting-edge lighting solutions. Trust Vanray for exceptional performance in LED stage lights.

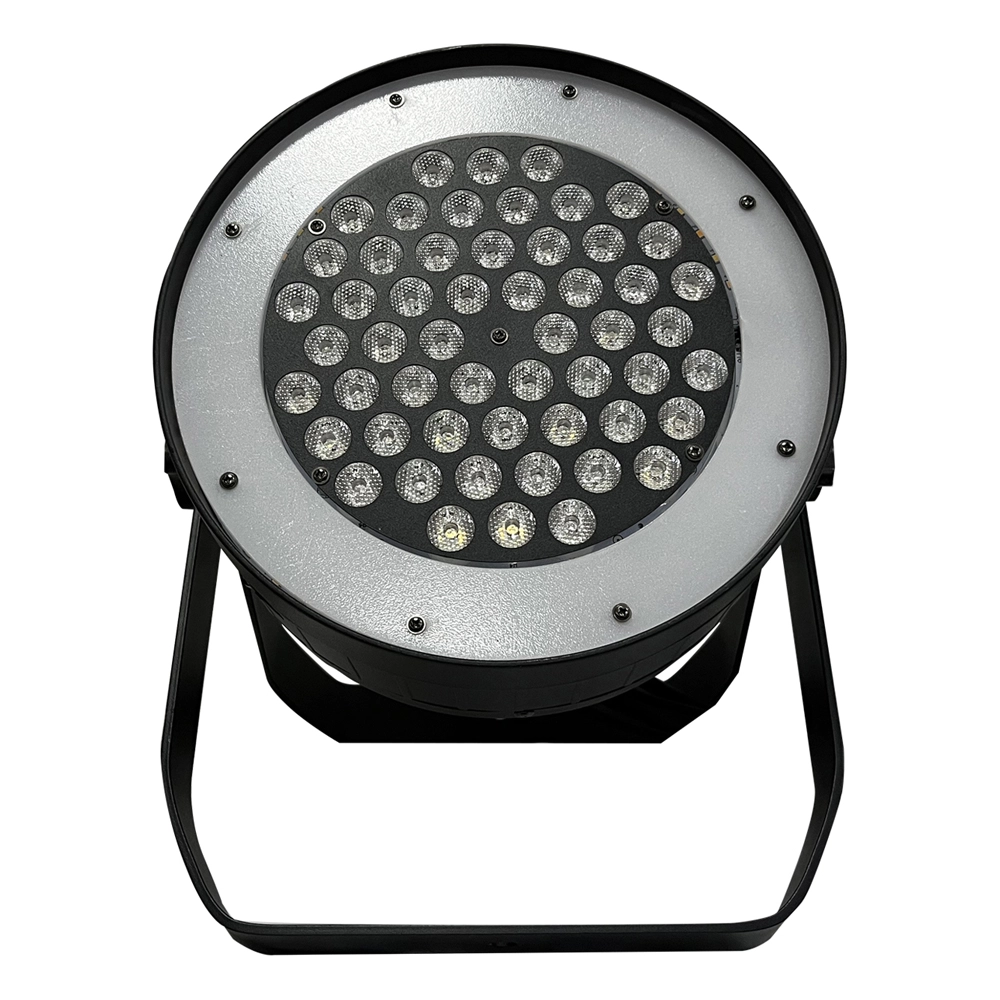

VANRAY LED Par Light Stage LC-200ZC RGBW LED Par Light Suppliers
