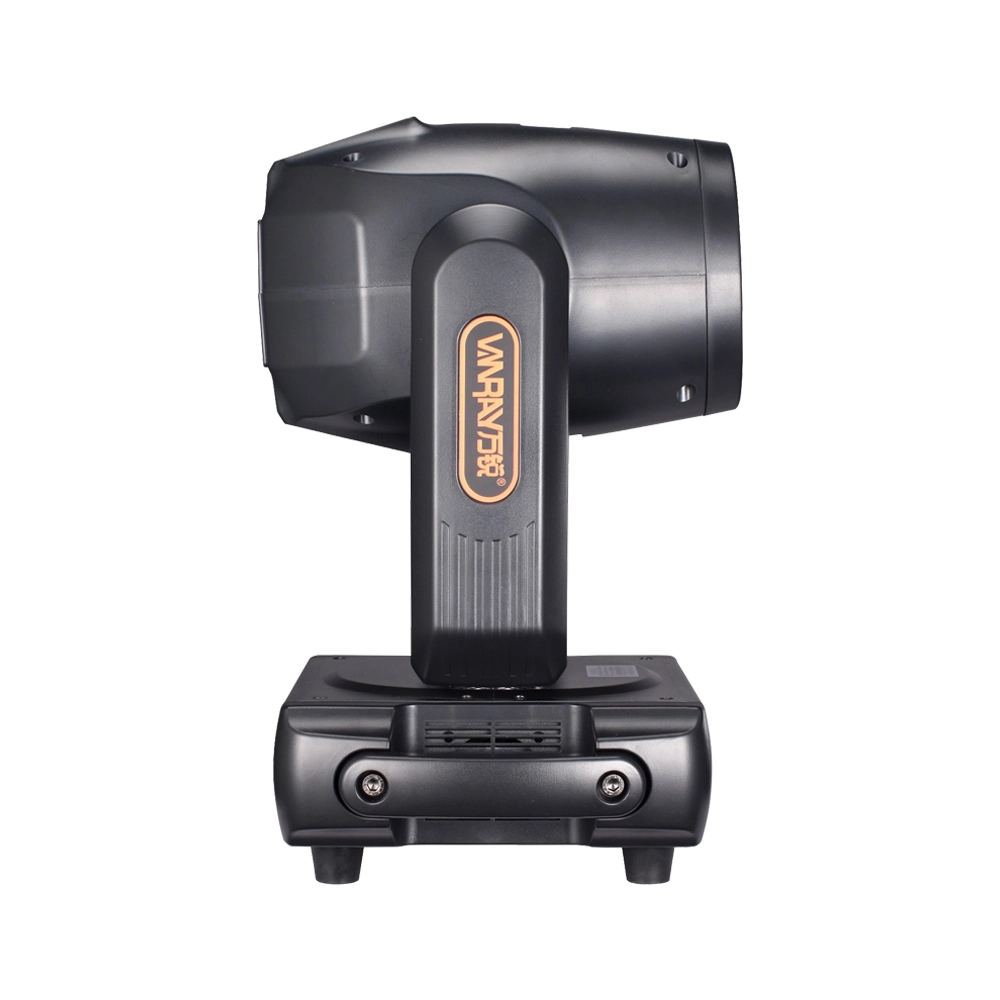

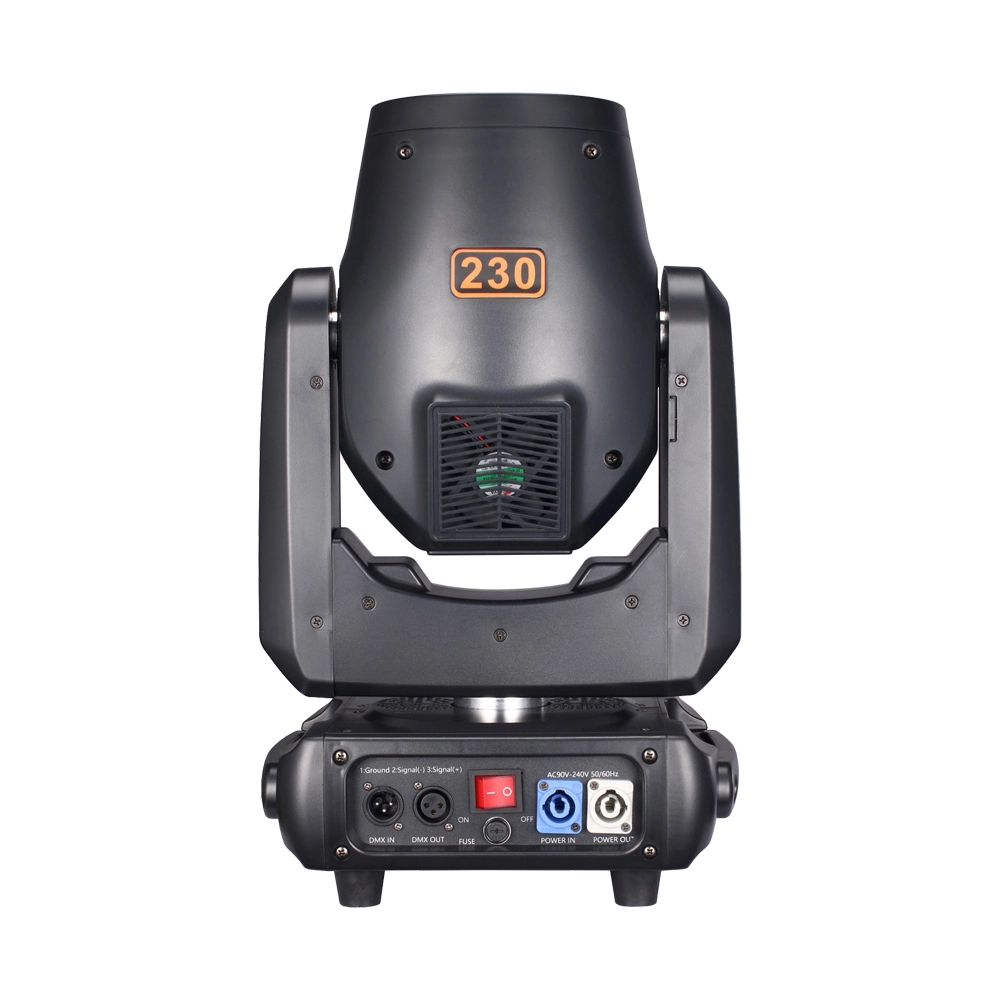

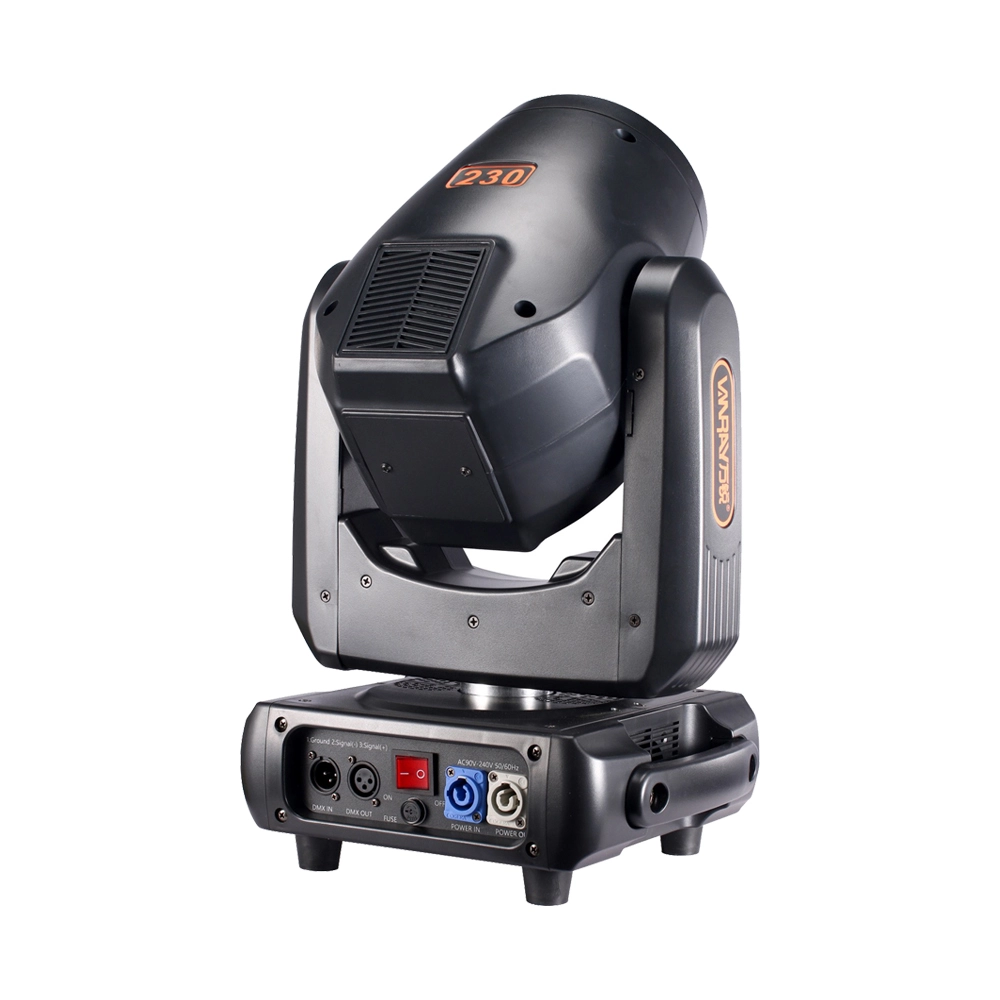

VANRAY 7R 230W Beam Moving Head Light BEAM-230N for Party
Introducing the VANRAY 7R 230W Beam Moving Head Light BEAM-230N, a pinnacle in lighting technology ideal for parties. This high-performance 230W beam moving head light delivers dazzling effects, perfect for vibrant atmospheres. Trust Vanray for unparalleled quality and innovation in lighting solutions.
VANRAY Beam Moving Head BEAM-230N Parameters
| Name | Beam moving head | Model | BEAM-230N Technical parameter |
| Rated voltage | AC100V ~ 240V, 50 ~ 60Hz | Power rate | 380W |
| Light source | 7R, 230W bulb | Optics | Two sets of optical lenses, electrically focused, with a light Angle of 3 degrees |
| Color | 13 colors + white light, rainbow, half-color effect | Gobo | 13 fixed gobo pieces + white light |
| Prism | 8 prism, turning forward and backward | Horizontal scanning | 540° (16-bit precision scanning) electronic error correction |
| Vertical scan | 270° (16-bit precision scan) electronic error correction | Atomization | Effect movement, atomization function, colorful effect |
| Stroboscopic | From fast to slow, support mechanical stroboscopic and adjustable stroboscopic effect, support stroboscopic macro function | Dimming | 0-100% linear dimming |
| Cooling system | Forced convection cooling, intelligent fan cooling | Control mode | DMX512, RDM auto mode, master-slave mode, manual multi-scene mode |
| Number of channels | 16/20CH Optional | Display | 1.8-inch LCD display, Chinese and English switching, automatic 180-degree rotation |
| Function | Pattern disk and color disk have automatic magnetic detection and error correction function, with machine fault prompt, electronic accurate prompt fault cause, all functions run fast and smooth | IP rating | IP20, built-in overheat and trigger high pressure protection |
| Lamp body size | L290*W240*H480mm | Lamp weight | 11KG |
| Display | 1.8-inch LCD display, Chinese and English switching, automatic 180 degree rotation. |
VANRAY Beam Moving Head BEAM-230N Features and Benefits
◐ Two sets of optical lenses, electrically focused, with a light Angle of 3 degrees
◐ 13 colors + white light, rainbow, half-color effect
◐ Built-in overheat and trigger high pressure protection
◐ Independent intellectual property rights of software control board, smooth dimming
◐ The shell uses UL94V-1 fire-retardant material
◐ Support RDM

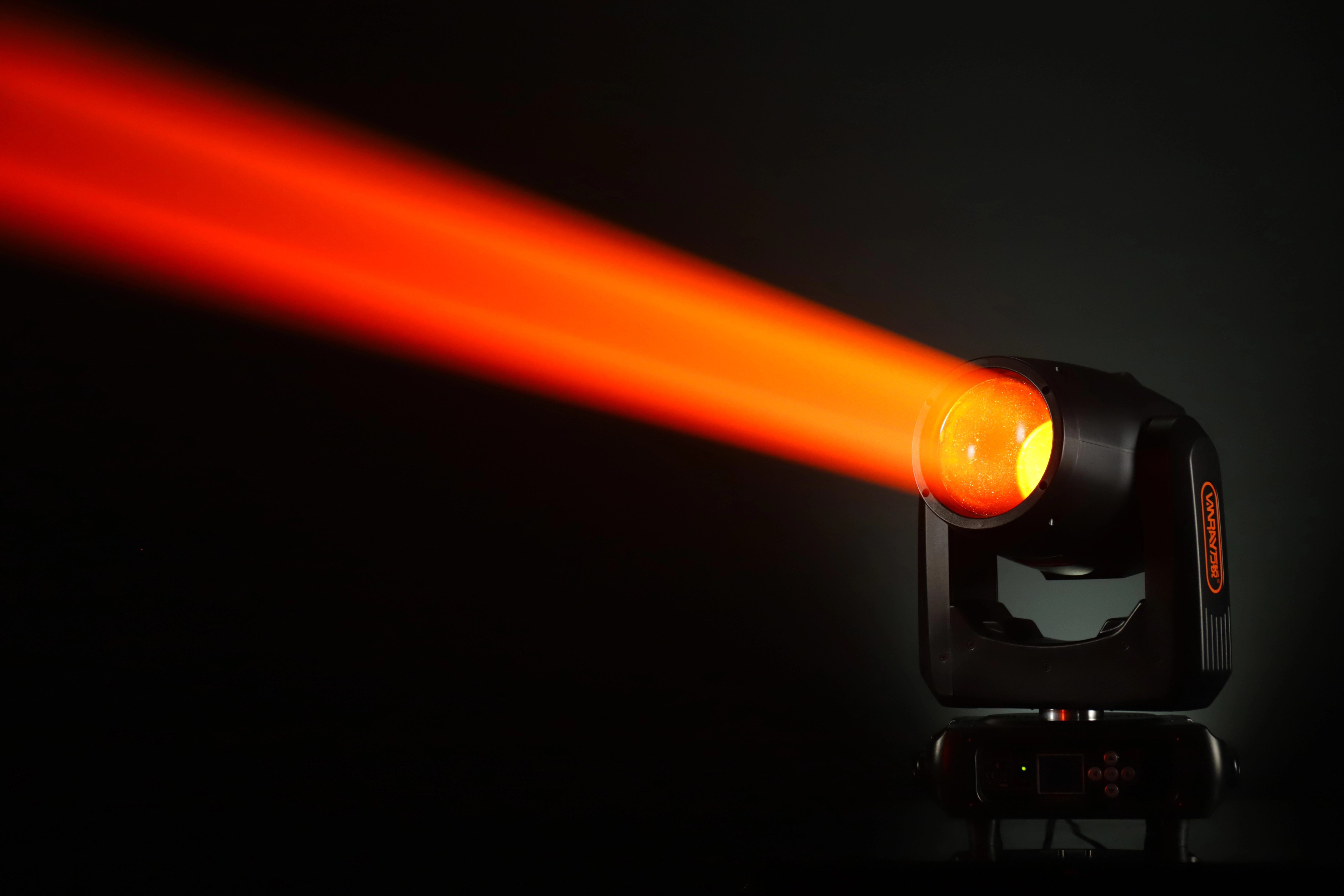

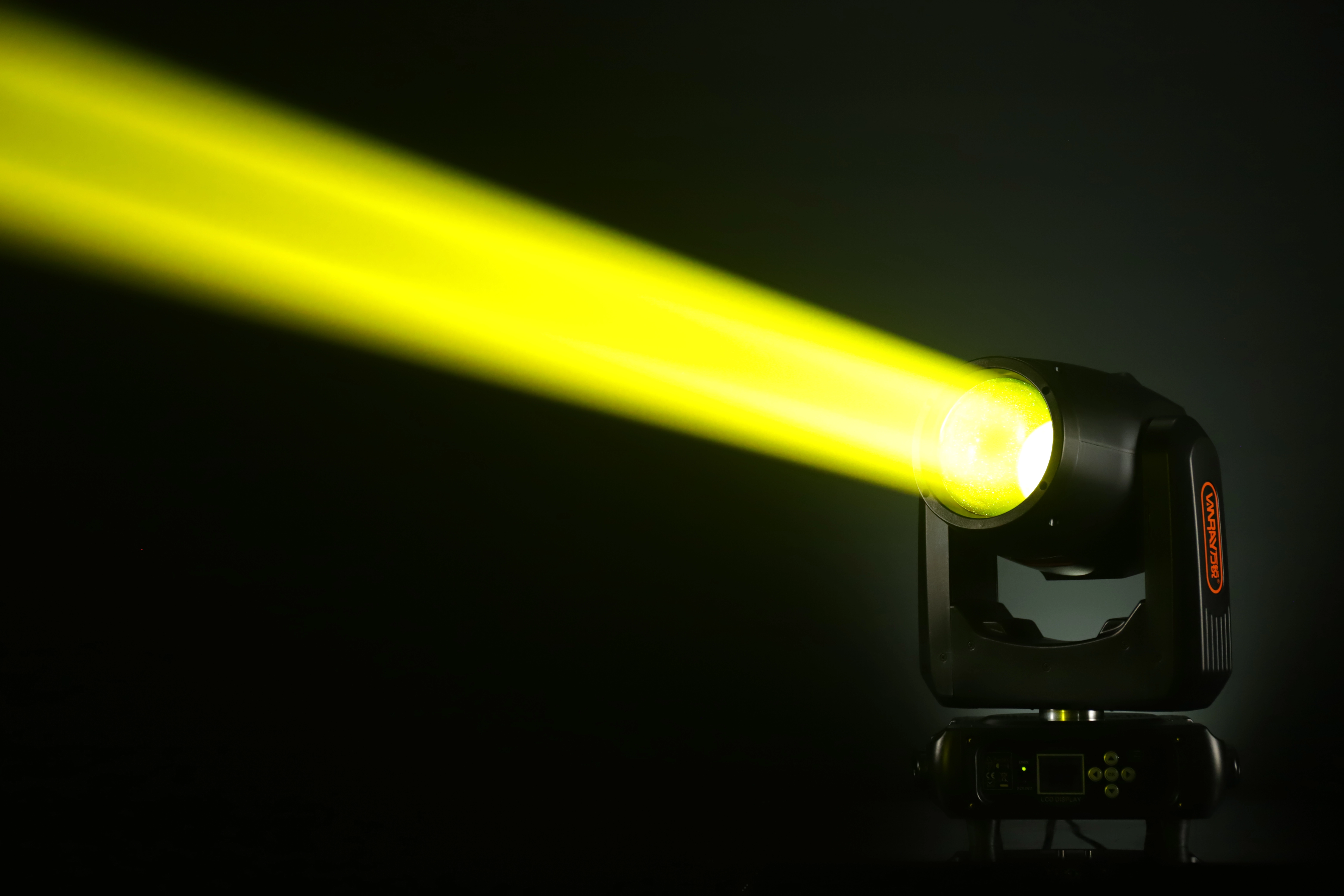

VANRAY Beam Moving Head BEAM-230N Effect Pictures

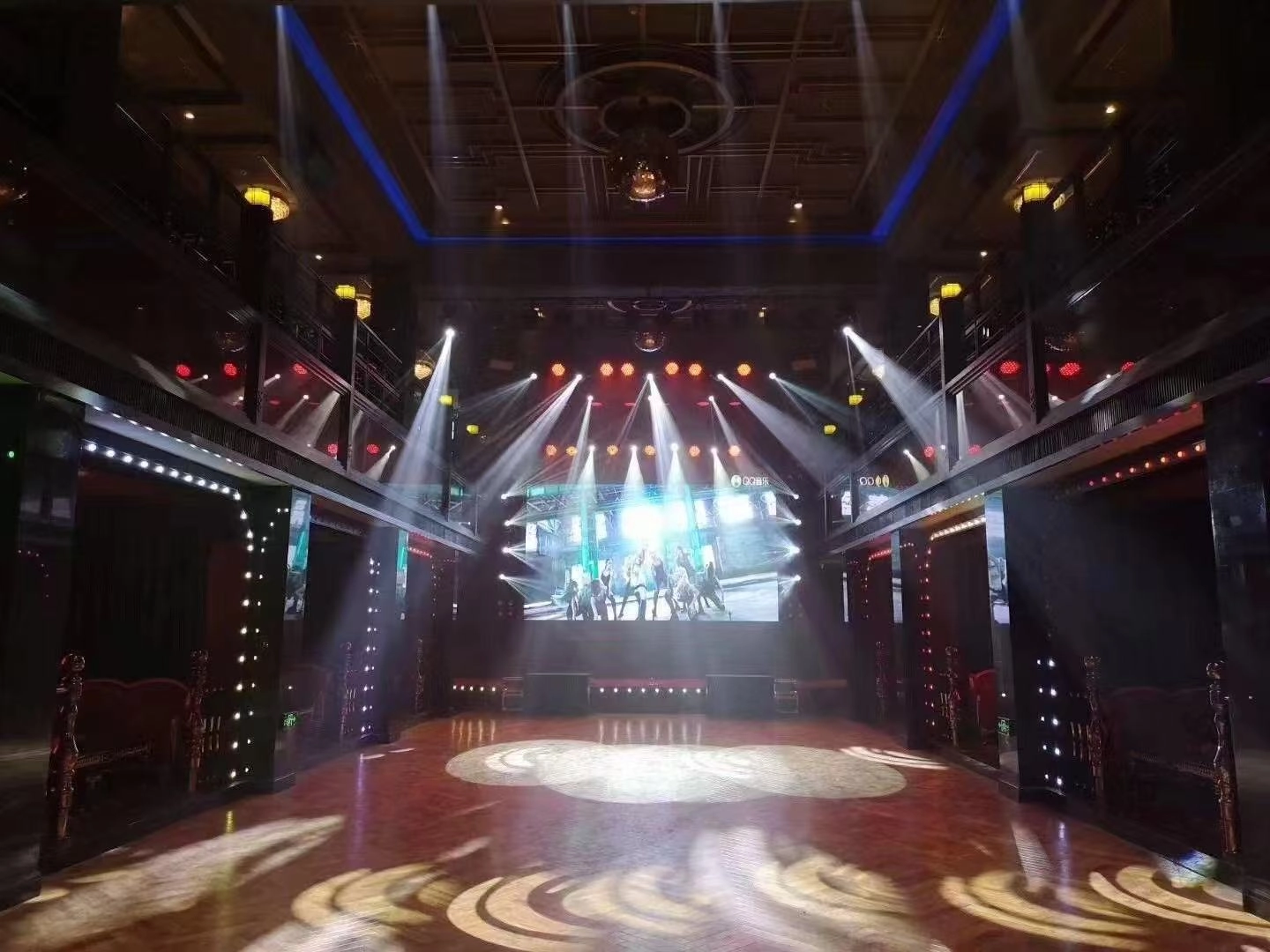

VANRAY Beam Moving Head BEAM-230N Applications
◐ Concert: Used to create dazzling lighting effects, synchronized with the music rhythm, to create a shocking live atmosphere.
◐ Theatre performance: As scene lighting, to match the actors' movements and stage sets.
◐ Nightclub/Bar: Used to create dynamic lighting effects to enhance the scene.
◐ Carnival events: used on stage or in performance areas to attract the attention of the audience.
VANRAY Beam Moving Head BEAM-230N Installation & Maintenance
Installation
- 1. Fixed installation: Use suitable hooks and safety ropes to ensure that the equipment is securely mounted on the bracket or bar. The lighting installation Angle should avoid interference with other equipment or obstacles. Ensure that the oscillating light is mounted on a support structure with sufficient load-bearing capacity.
2. When connecting the power cable, ensure that all connections are waterproof and sealed to avoid exposing the wire connector and preventing water intrusion. Use waterproof cables and connectors to ensure that the joints are well sealed.
Maintenance
- 1. Internal cleaning: If the device runs for a long time, clean the internal dust regularly, but only by professional technicians.
2. Check cables and connectors: Regularly check whether cables and connectors are in good condition to avoid aging, damage or corrosion and ensure safe and reliable power connections.
