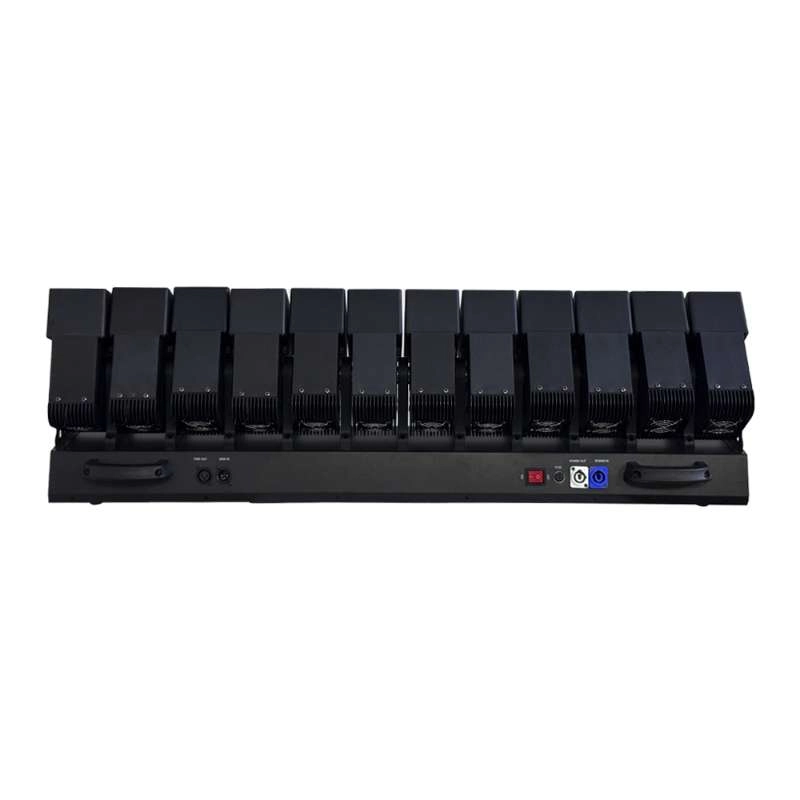

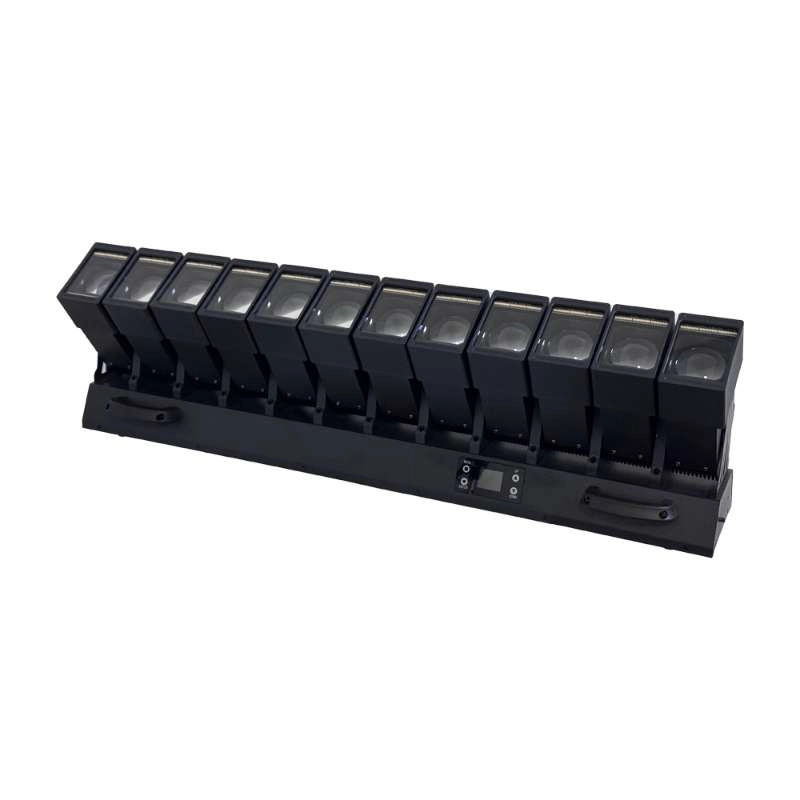

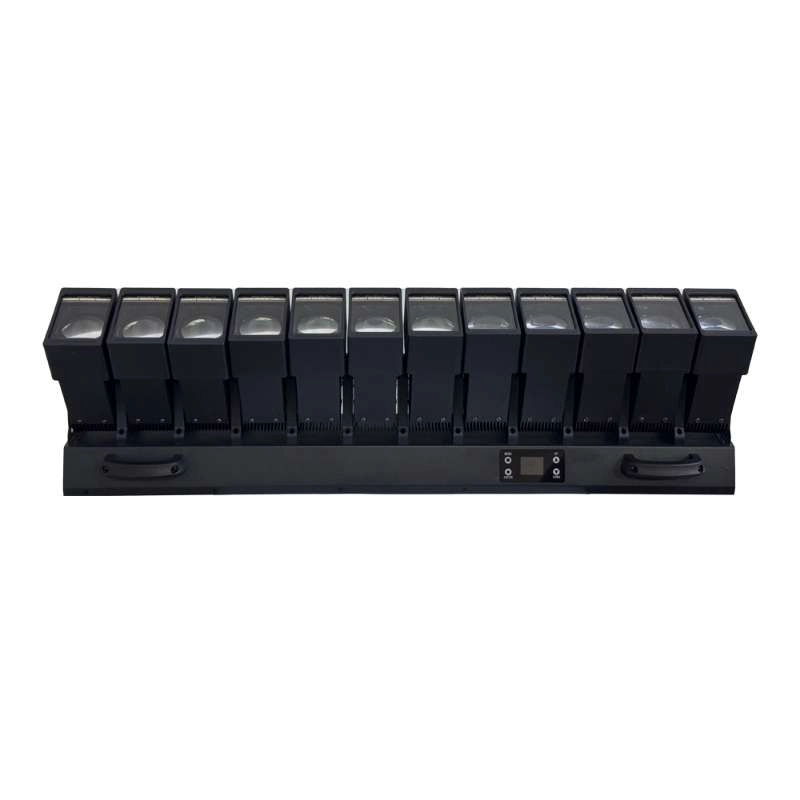

VANRAY 12pcs 60W RGBW 4 in1 Moving Bar Light Zoom with Strobe LT-1260Y Moving Bar Zoom Effect Light
VANRAY Swinging Beam Moving Head LT-1260Y Parameters
| Name | Beam moving bar light | Type number | LT-1260Y |
| Rated voltage | AC100V ~ 240V, 50 ~ 60Hz | Power rate | 900W |
| Light source | 12*60W RGBW LED / Cool White: 12*36*0.2W, Warm White: 12*36*0.2W | IP rating | IP20 |
| Features | Single Y-axis swing + color wash + beam; linear CTO color temperature adjustment; cold and warm auxiliary light effect | Connection method | DMX512 input/output/power input/output |
| Strobe frequency | 1-30Hz | Dimming | 0~100% linear dimming |
| Number of channels | 19CH, 25CH, 64CH, 160CH, 234CH | Control mode | DMX512, Auto, Sound Control, Master/Slave, with RDM function. |
| Lamp weight | 26KG | Size | 1037.5*217*303.5MM |
VANRAY Swinging Beam Moving Head LT-1260Y features and benefits
◐ Light Source: 12*60W RGBW LED / Cool White: 12*36*0.2W, Warm White: 12*36*0.2W
◐ The Y axis can do rotation based on 180°、150°、90° degrees
◐ Each lamp beads can do Y-axis swing , washing and beam effect
◐ Channel: 19CH, 25CH, 64CH, 160CH, 234CH
◐ The zoom range is 13°-22° degrees

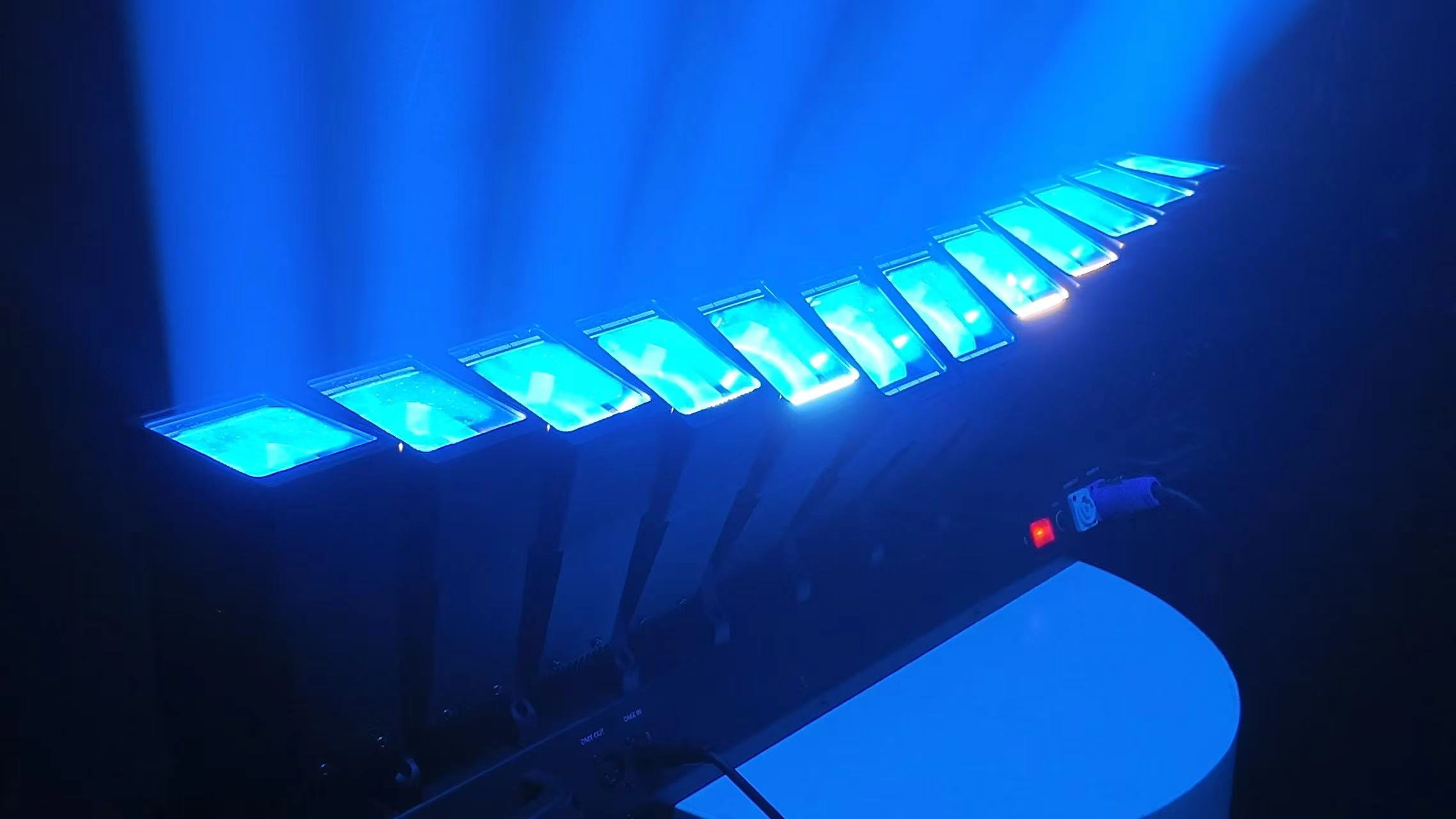

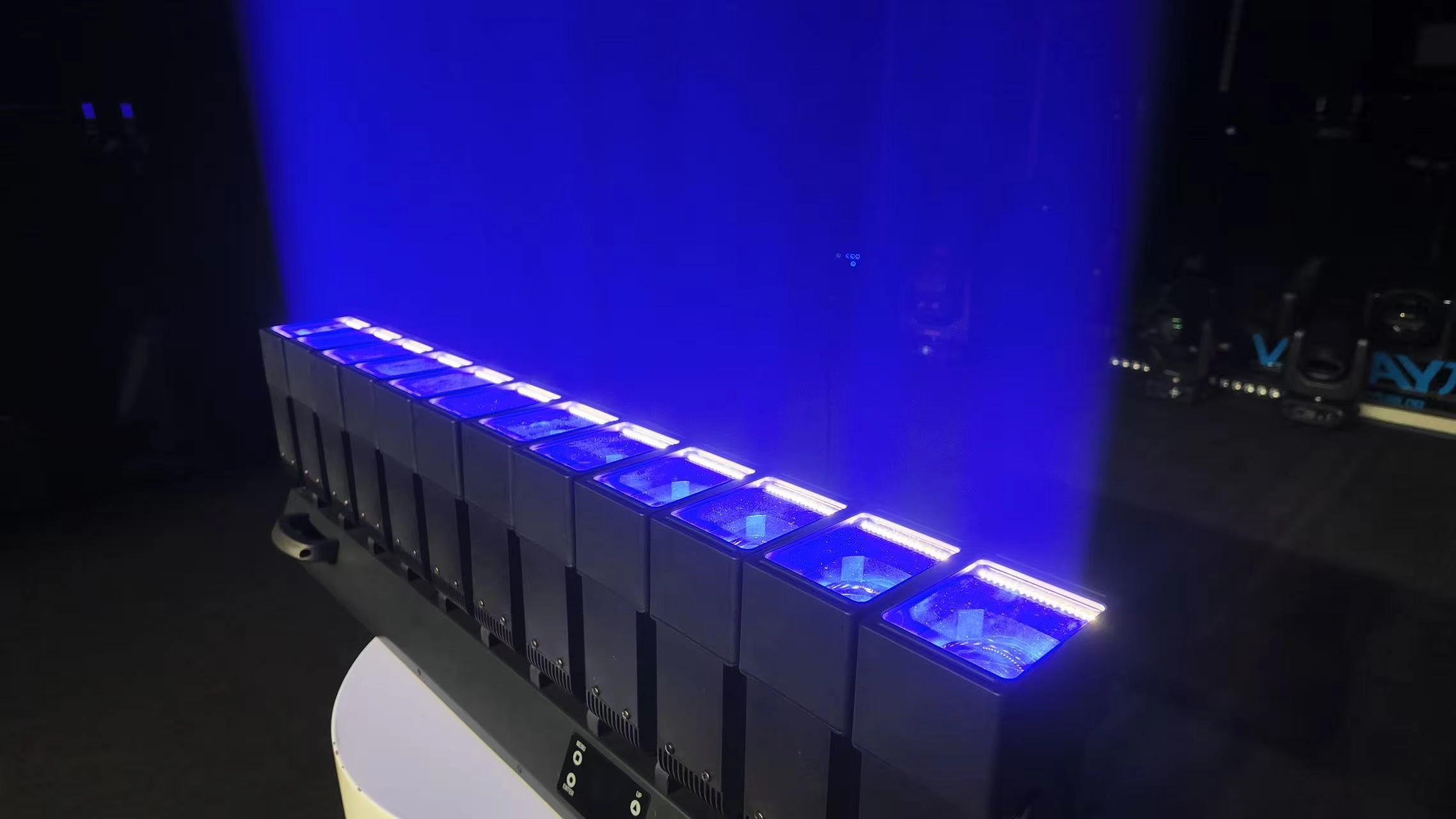

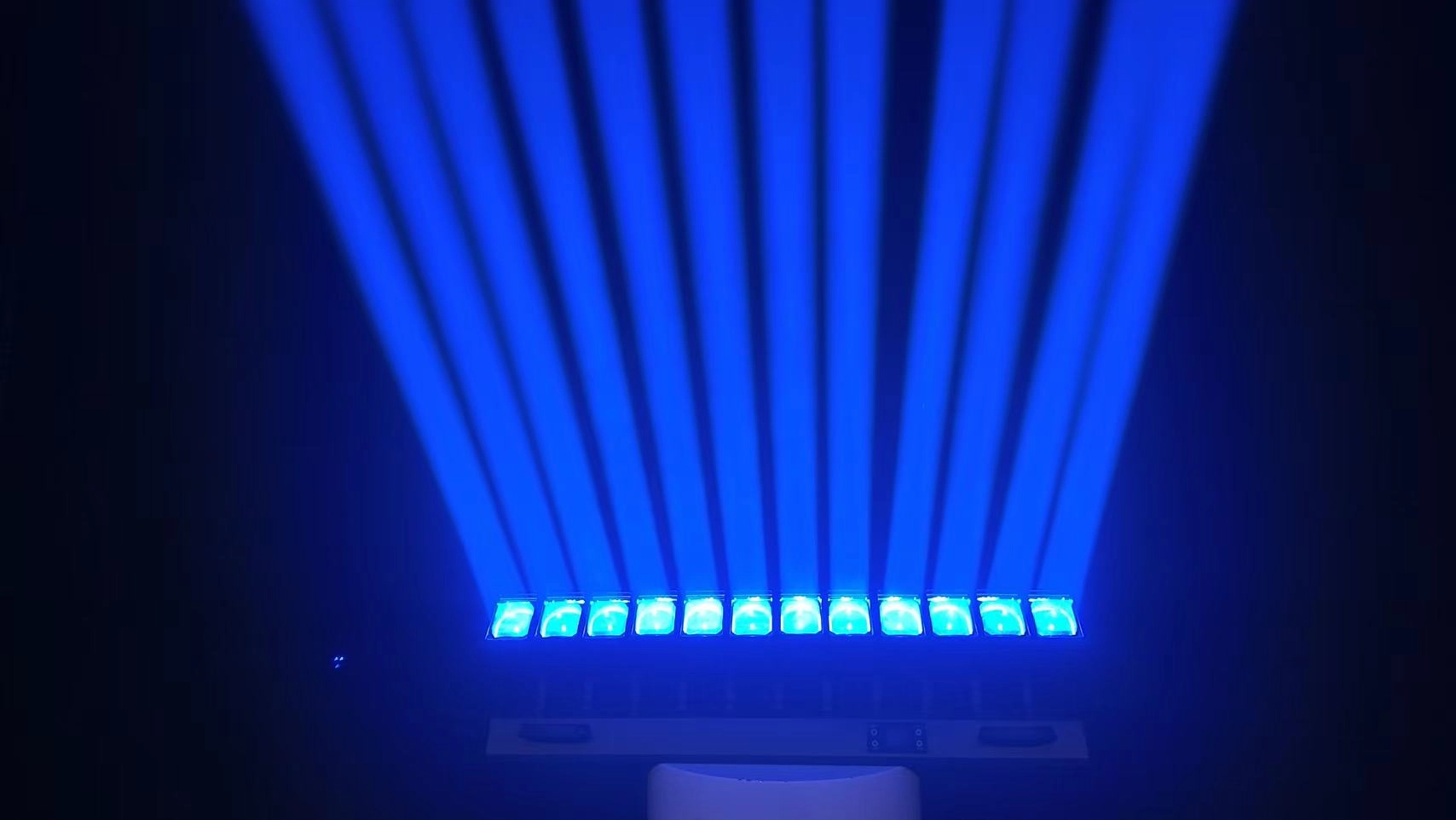

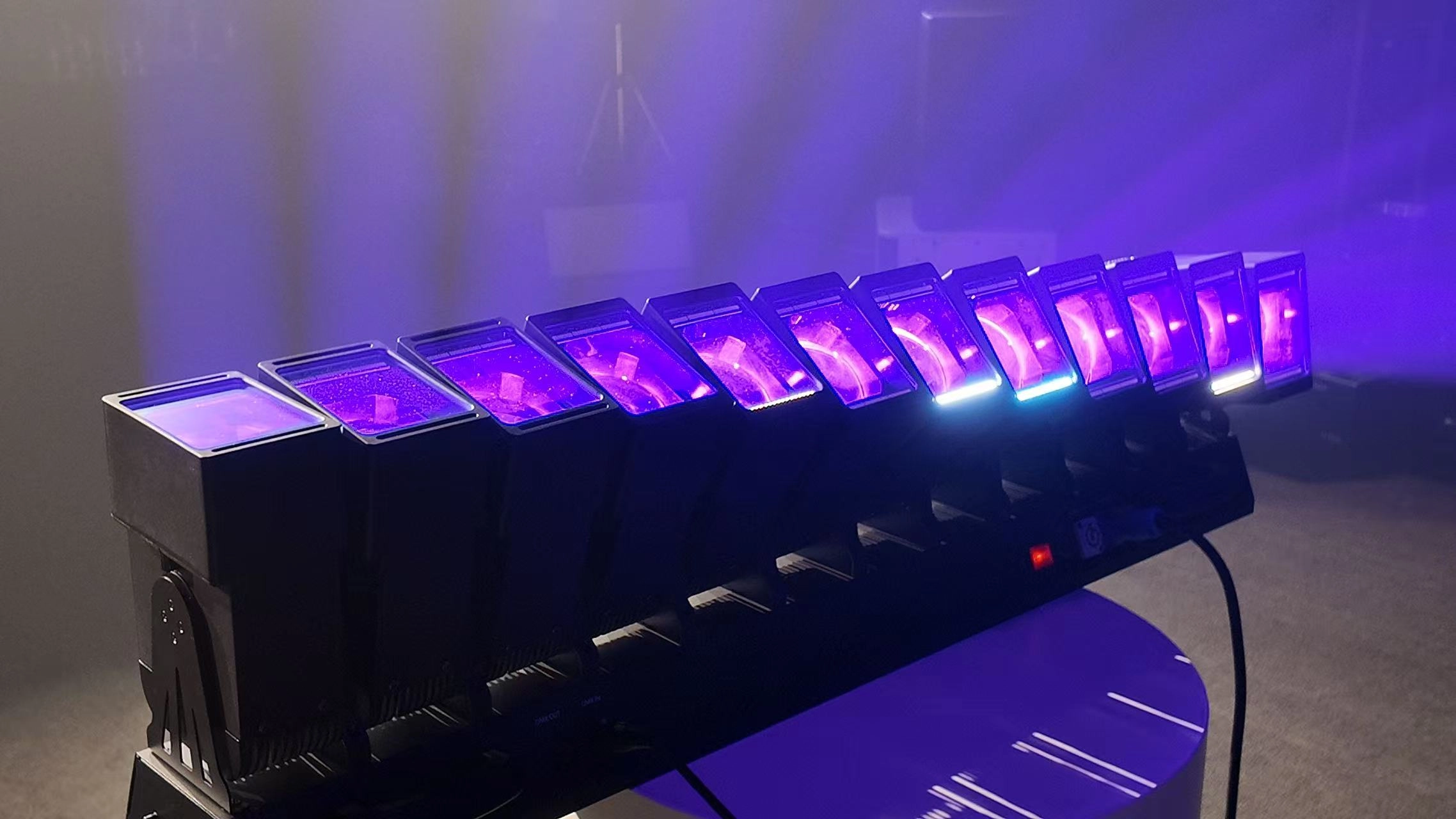

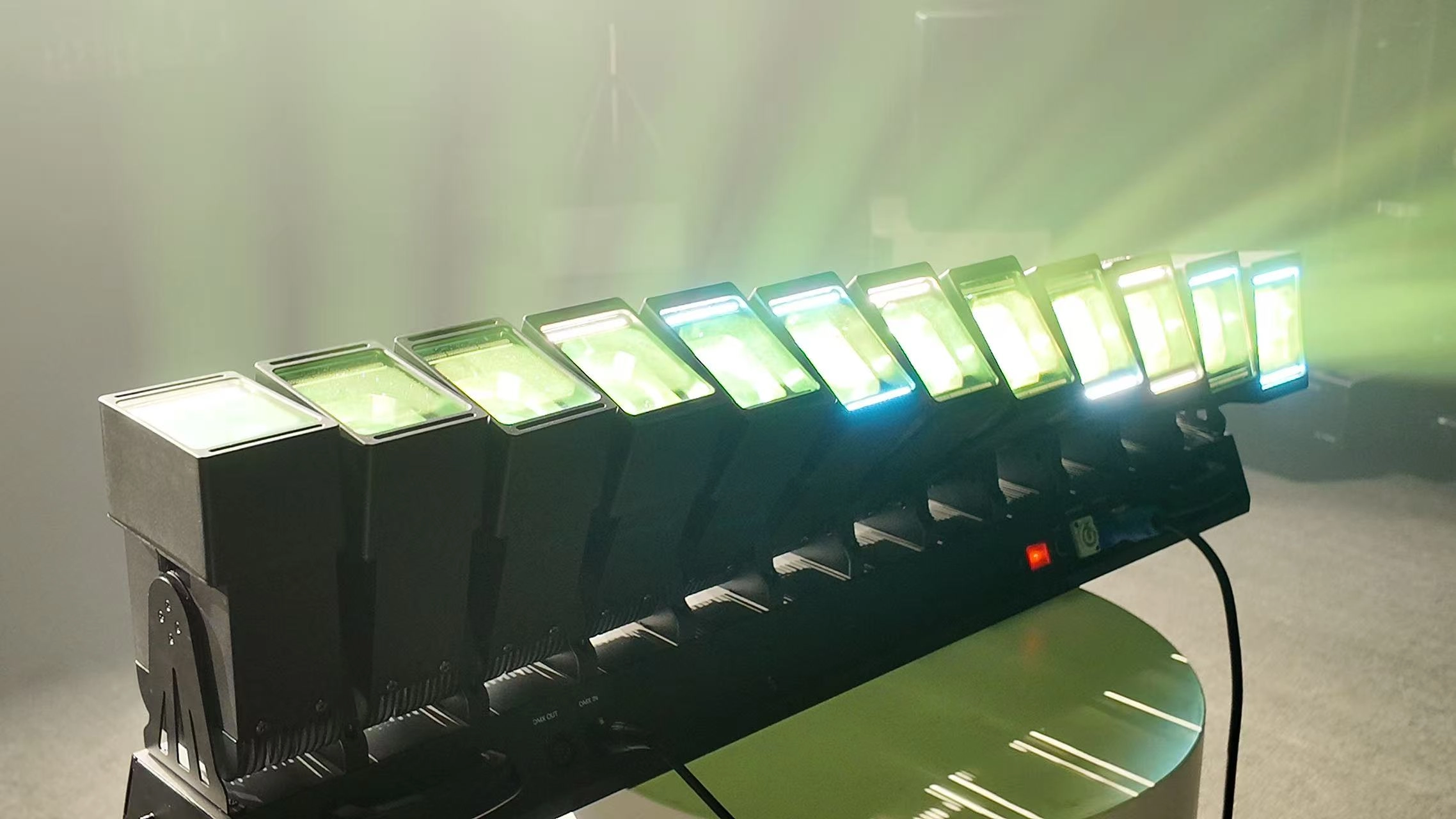

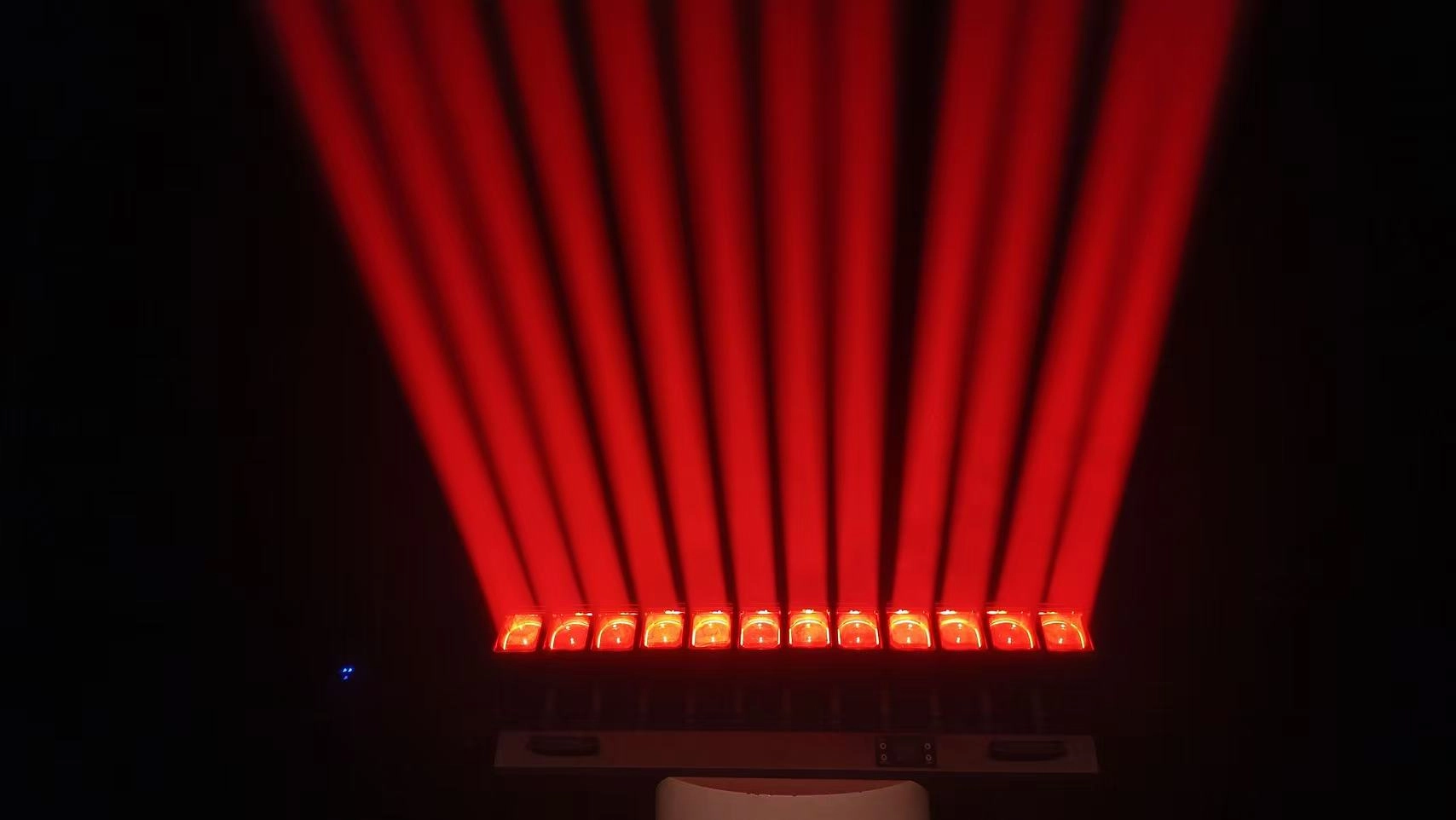

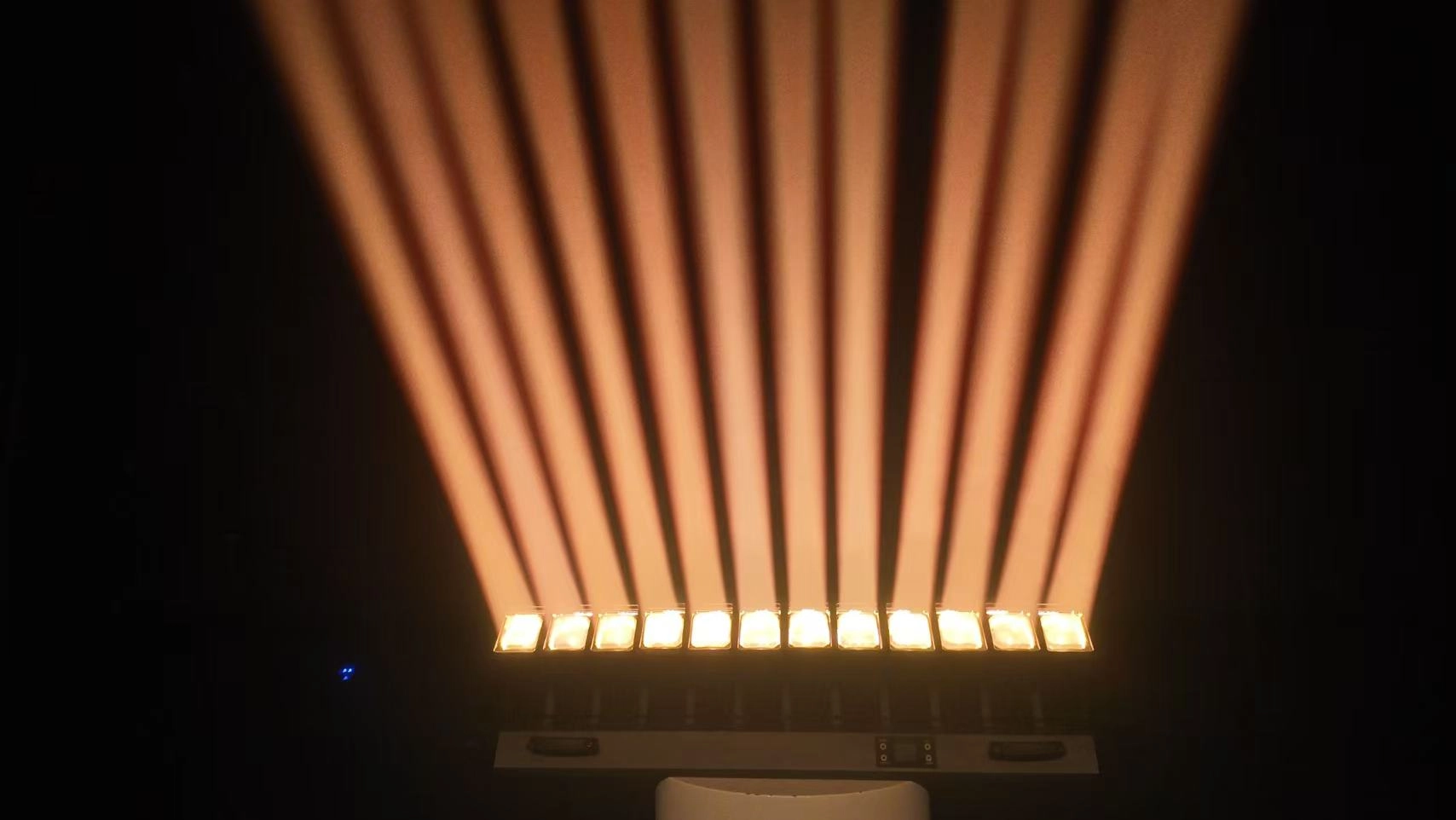

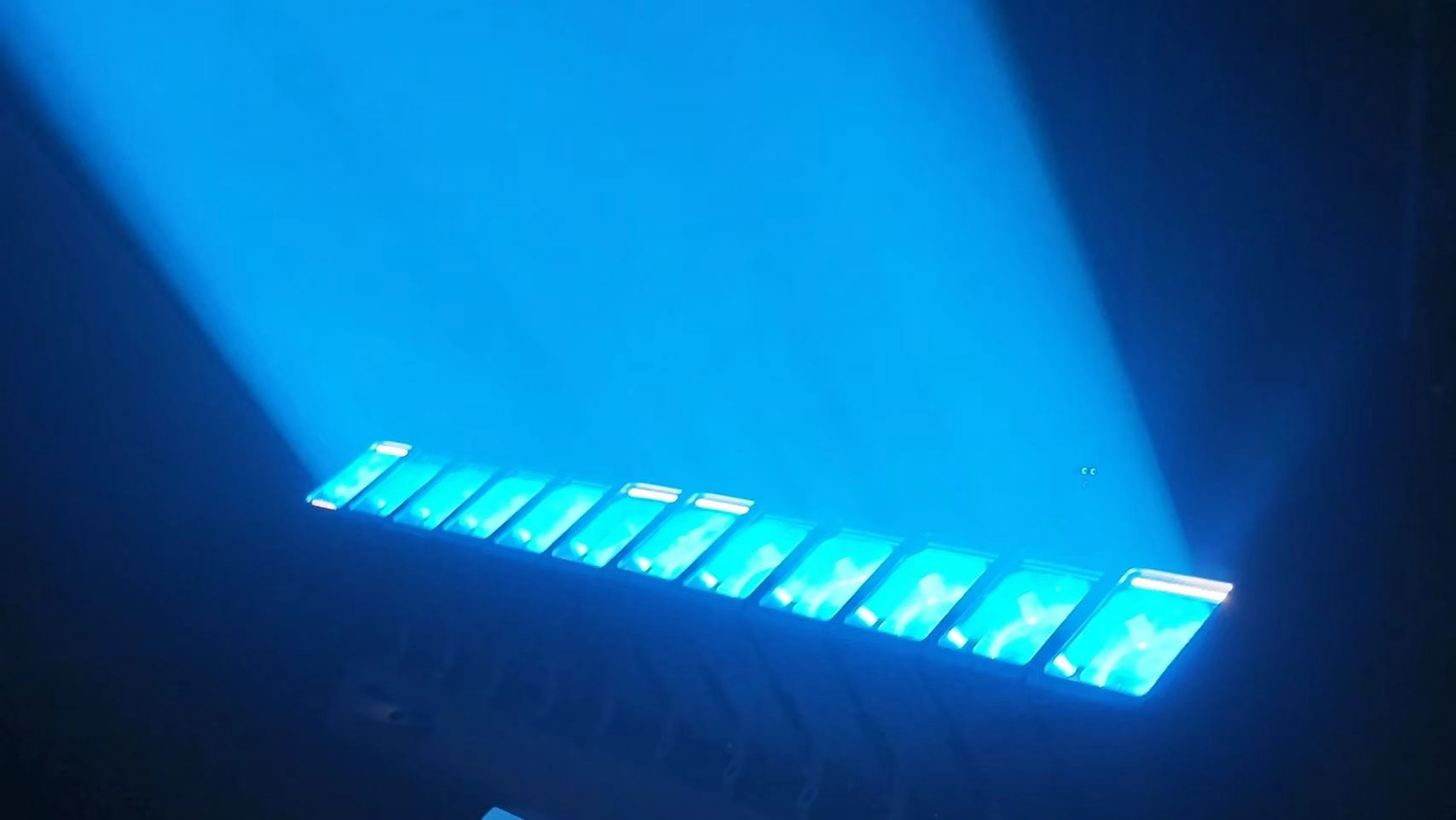

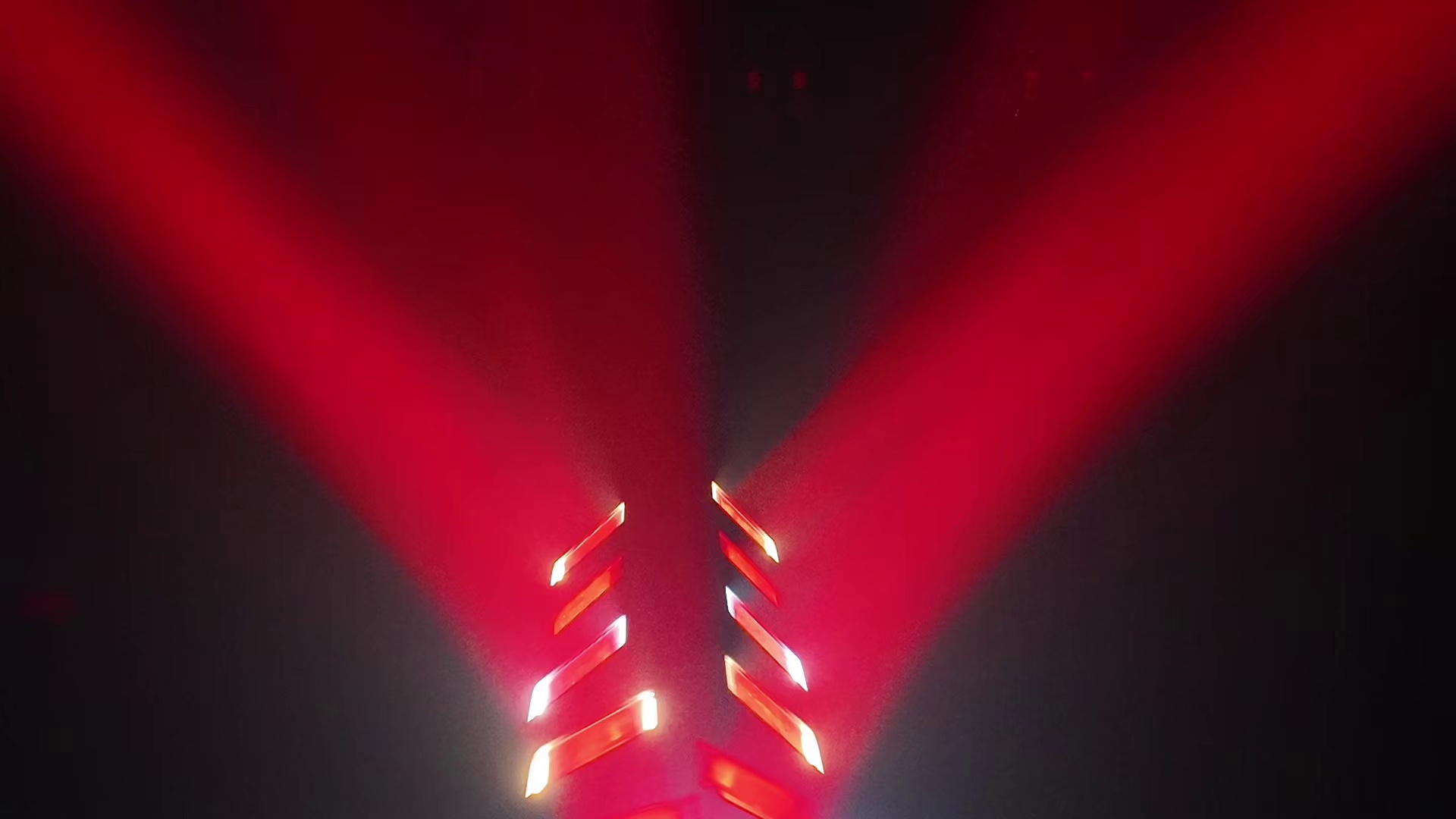

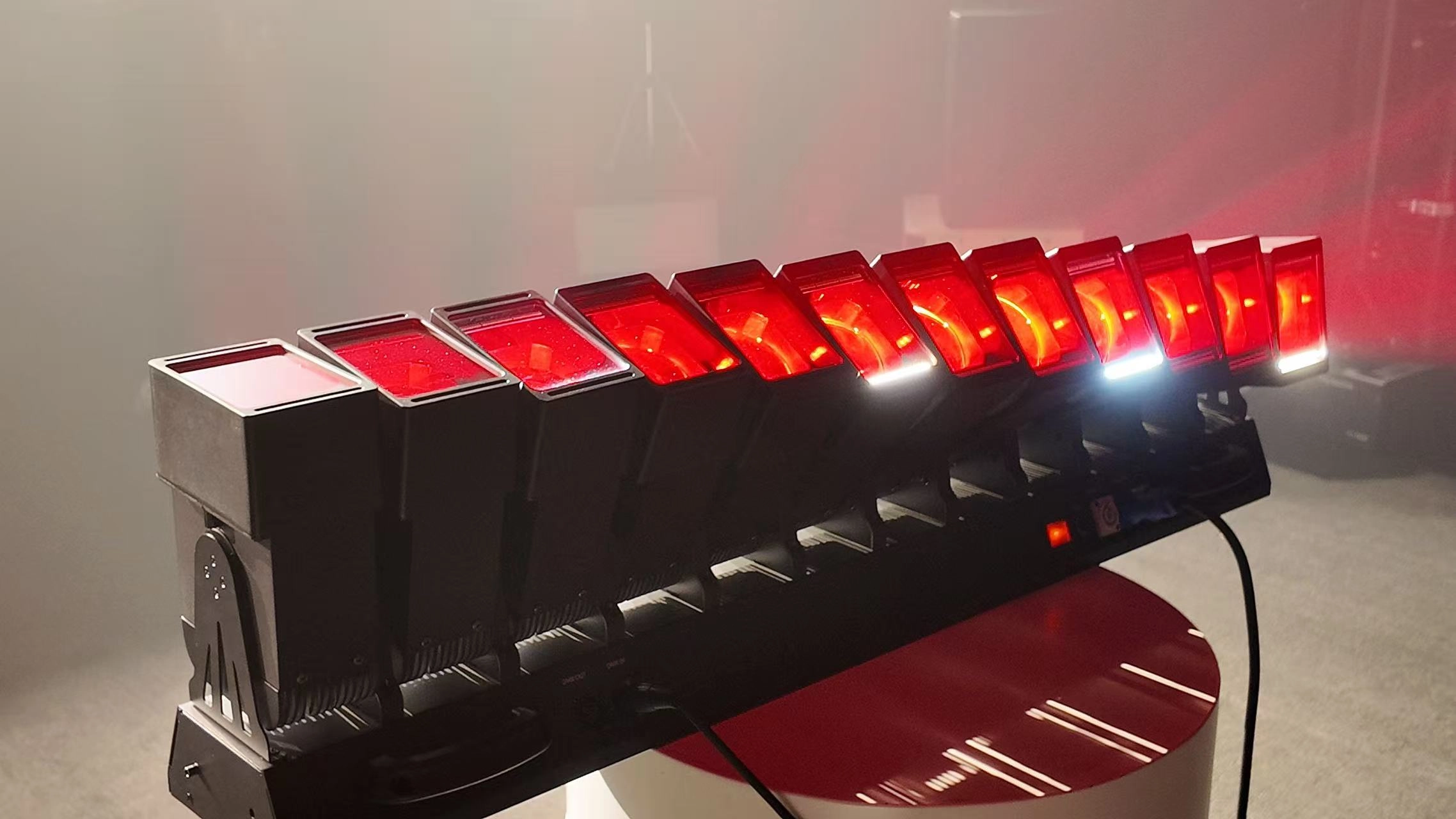

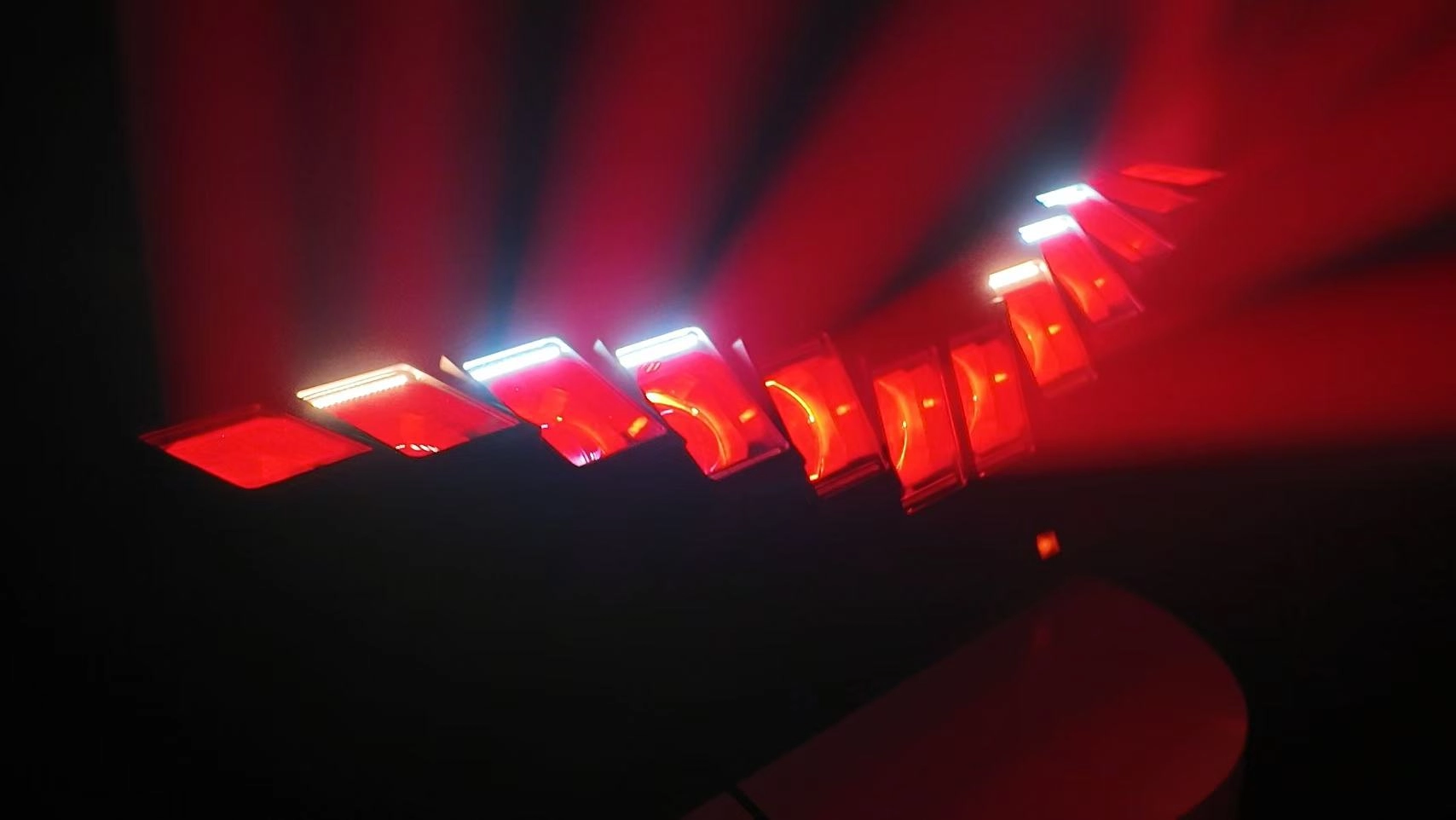

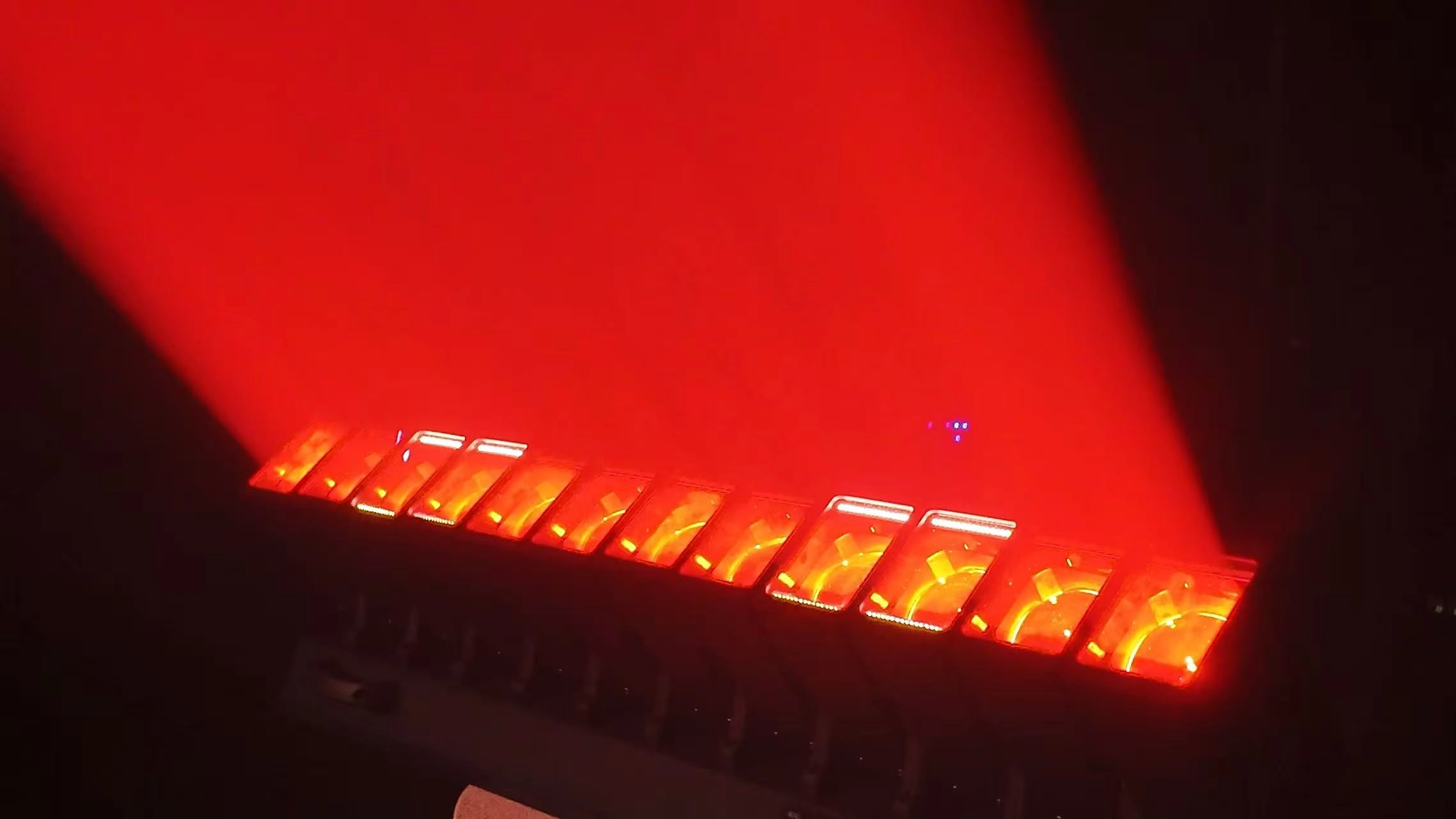

VANRAY Swinging Beam Moving Head LT-1260Y Effect pictures
VANRAY Swinging Beam Moving Head LT-1260Y Applications
◐ Stage performance: Beam moving head lights can create a dynamic beam effect on the stage to enhance the performance atmosphere. Help highlight key parts in a show by controlling the color, intensity, and direction of the lights.
◐ Concerts: It can be used for high-brightness lighting, creating a strong visual effect, matching the rhythm of the music, and enhancing the atmosphere of the scene.
◐ Live TV and variety shows: In the production of TV programs, beam moving lights can provide accurate beam control and rich light effects, helping the program team to create professional lighting effects and increase visual impact.
◐ For large-scale events and celebrations, such as sports events, fashion shows, exhibitions, brand conferences, etc., beam moving lights can effectively attract audience attention, create gorgeous lighting effects, and enhance the influence of activities.
◐ Nightclubs and clubs: In night shows, bars and other entertainment venues, the beam-shaking lights create an atmosphere through changing lighting effects combined with music rhythm, making the atmosphere of the venue more dynamic and intense.
◐ Festivals and amusement parks: Beam-shaking lights are often used as an important visual element in light shows and theme park performances, making activities more vivid and attractive through light changes and directional projection.
VANRAY Swinging Beam Moving Head LT-1260Y Installation & Maintenance
Installation
- 1. Use a professional hanger or bracket to secure the beam shaking light in a safe position. Make sure the brackets and hangers can withstand the weight and movement of the luminaire.
2. Check the stability of the hanging system to ensure that the lamp will not fall due to vibration or external force.
3. Power connection: Connect the power supply according to the equipment instructions. Ensure that the voltage and frequency are consistent with the equipment requirements; usually the beam shaking lamp requires a higher power supply.
Maintenance
- 1. Clean regularly : Clean the luminaire surface and lens regularly to prevent dust accumulation affecting the beam quality. Wipe the shell with a soft cloth and cleaner. For lenses and light source lenses, professional cleaning tools can be used to clean, Avoid using corrosive chemicals when cleaning to avoid damaging the surface of the lamp.
2. Check cooling system: beam moving head lights are usually equipped with a built-in fan or cooling system. Periodically check the fan status to ensure the normal running of the heat dissipation system.
3. Clean the dust on the fan to ensure that the vent is not blocked to prevent the device from overheating.
Faqs
We are committed to providing comprehensive and detailed information to help you better understand our products and services, as well as how to best meet your needs for stage lighting product collaboration.
About Product
What is the delivery time of orders ?
Its based on the workshop schedule; if products are in stock, we will ship the goods within 1-2 days; if products are out of stock, we need to make production; normally 100-200 pieces can be finished in 7-10 days.
About Customized Services
How long does customized service take?
The time for customized services depends on your specific needs and order volume. Generally speaking, normally 2-3 days, we will provide you with customized solutions as soon as possible.
Are there any additional charges for customized services?
Customized services may be subject to appropriate customization fees based on your specific requirements.
About Logistics
Does your product support global logistics and distribution?
Yes, our products support global logistics and distribution services, and you can receive our products anytime and anywhere.
About Company
Can I Visit your company?
Of course, our company is located in No. 7, Sijiaowei Industrial Zone, Tanbu Town, Huadu District, Guangzhou, China. Warmly welcome to visit our factory.
