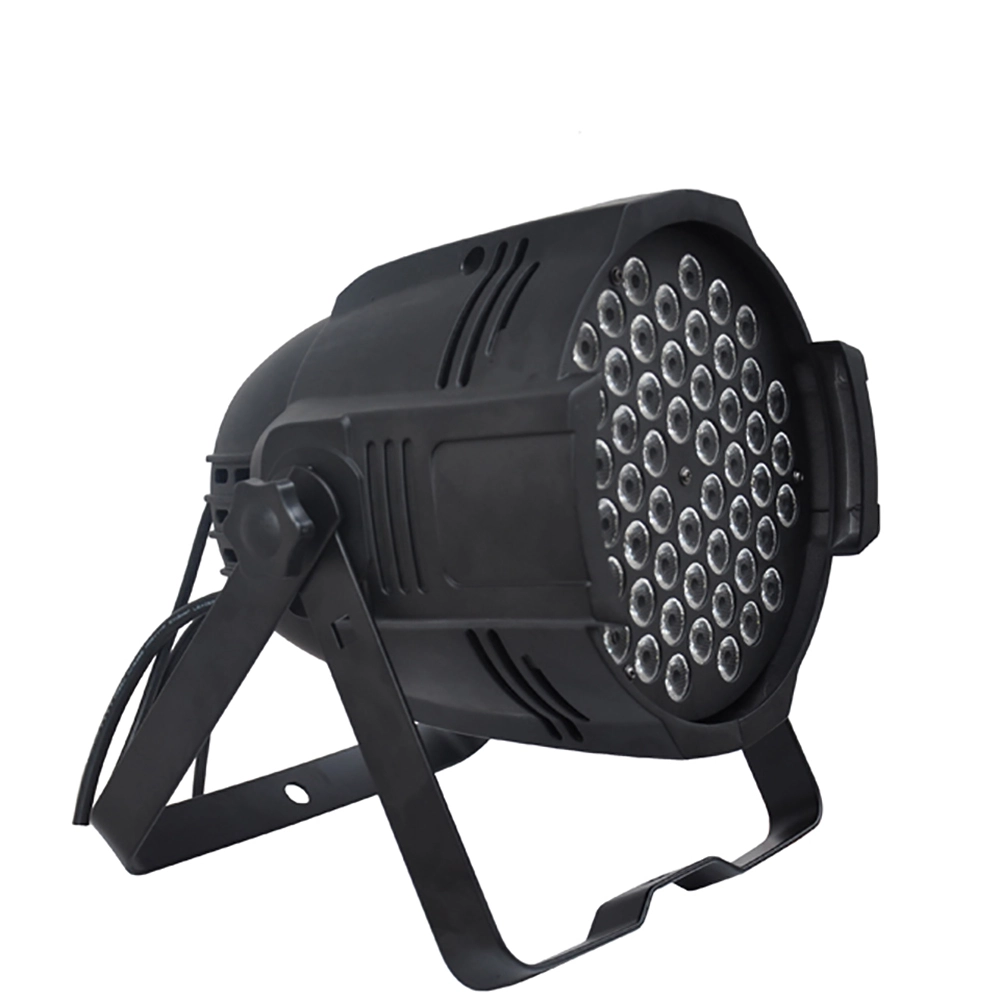

VANRAY LED Par Light LP-543B LED 54pcs 3W IP20 LED Par Light Stage
VANRAY LED Wash Par Light LP-543B Parameters
| Name | LED wash par light | Type number | LP-543B |
| Power supply voltage | AC100V-240V, 50/60Hz | Power rate | 160W |
| Light source | LED54 *3W.R:12.G:12.B:12.W:18(optional RGB 18 each) | Color | Continuous red, green, blue and white color conversion, RGBW unlimited mixed color rainbow effect, adjustable speed |
| Optical lens | 25-degree lens (optional 8/15/45/60 degrees) | Channel | 8CH |
| Control mode | DMX-512 control operation, master/slave mode, single machine mode, 8 built-in effects can be selected by DMX console and developed program | Dimming | 0-100% |
| Display | Four eight digital tube | Stroboscopic |
Electronic stroboscopic 1-25fps/ SEC, random stroboscopic, sequential beating, variable speed stroboscopic (from slow to fast), mixed stroboscopic (stroboscopic + background color, stroboscopic + gradient) |
| Heat dissipation | Convection cooling through high-quality heat sink, intelligent silent fan assisted heat dissipation | Protection class | IP20 |
| Lamp body size | L295*W217*H320mm | Lamp weight | 3.5KG |
VANRAY LED Wash Par Light LP-543B Features and Benefits
◐ LED
54*3W.R:12.G:12.B:12.W:18
(optional RGB 18 each)
◐ 25-degree lens (optional 8/15/45/60 degrees)
◐ Built-in effects can be selected and used through the DMX console and established programs
◐ Convection cooling through high-quality heat sink, intelligent silent fan assisted heat dissipation
VANRAY LED Wash Par Light LP-543B Effect Pictures
VANRAY LED Wash Par Light LP-543B Applications
◐ Stage show
Concert : Used to create atmosphere and match the rhythm of music.
Dramatic performance : Enhanced emotional expression through lighting changes.
◐ Weddings and banquets
Wedding : Lighting decoration for stage and banquet hall.
Banquet : Enhance the atmosphere by changing the lighting.
◐ Architectural lighting
Building exterior wall : Used for night lighting to highlight architectural features.
Landscape lighting : Landscape decoration for parks, squares and other places.
Wedding : Lighting decoration for stage and banquet hall.
Banquet : Enhance the atmosphere by changing the lighting.
◐ Entertainment venues
Bar : Create atmosphere through lighting changes.
Nightclub : With music and dance, enhance the entertainment effect.
VANRAY LED Wash Par Light LP-543B Installation & Maintenance
Installation
1: The fixture can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
2: Ensure that the installation Angle of the lamp can effectively avoid the accumulation of water droplets or dirt on the surface of the lamp, and should be fixed firmly to avoid loosening due to vibration or wind
Maintenance
-
1:Clean regularly
Light body surface : Wipe with a soft cloth to avoid dust and dirt accumulation.
Lenses and reflectors : Use special cleaners and soft cloths to prevent scratches.
2. Check the power supply and cable
Power cord : Regularly check whether there is wear or aging, timely replacement.
Connector : Ensure the connection is firm, avoid loosening or poor contact.
3. Thermal management
Radiator : Clean the dust regularly to ensure good heat dissipation.
Ventilation : Avoid use in high temperature or poorly ventilated environments.
-
