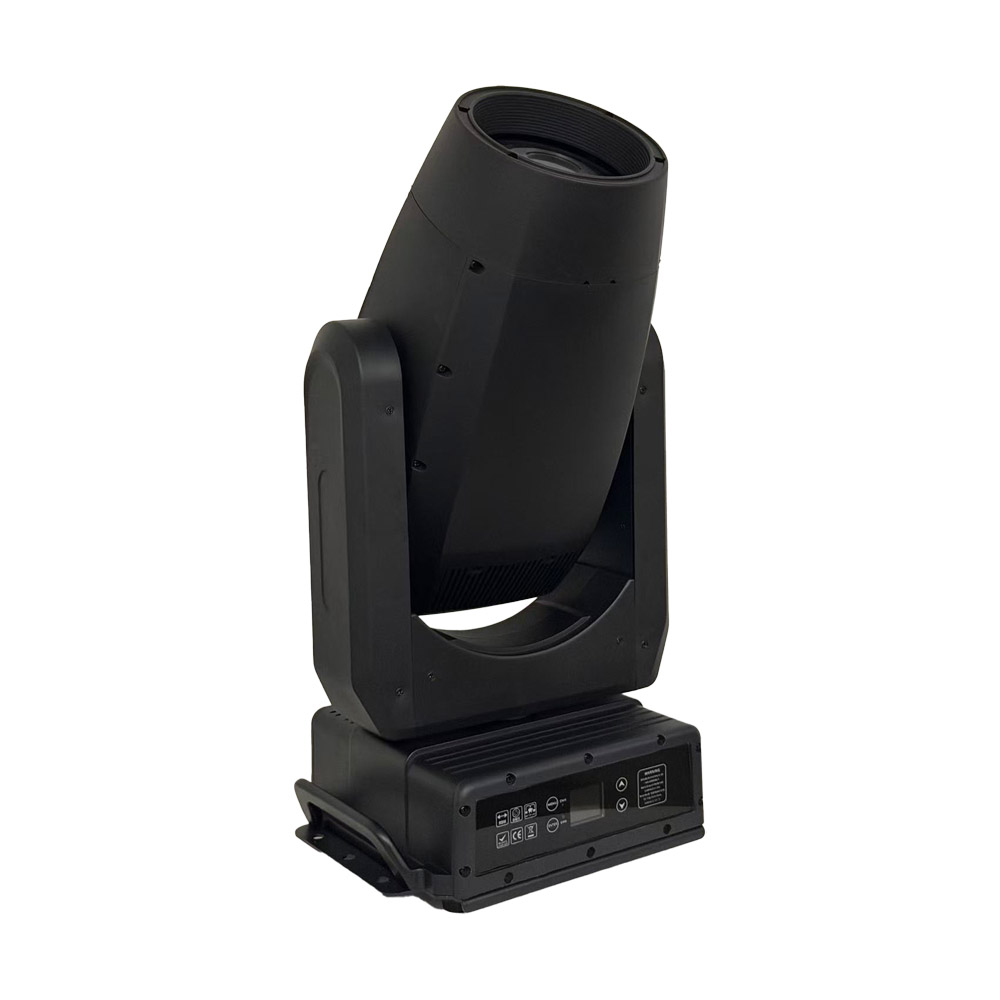

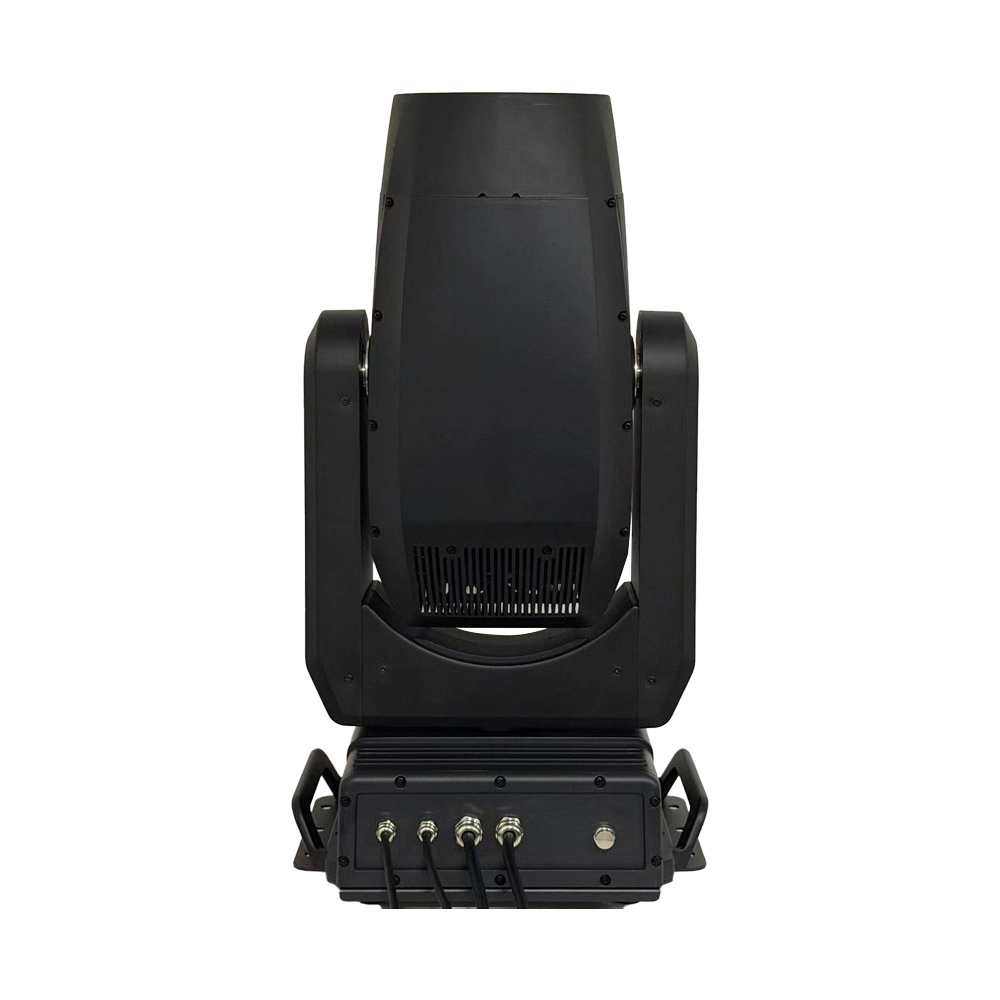

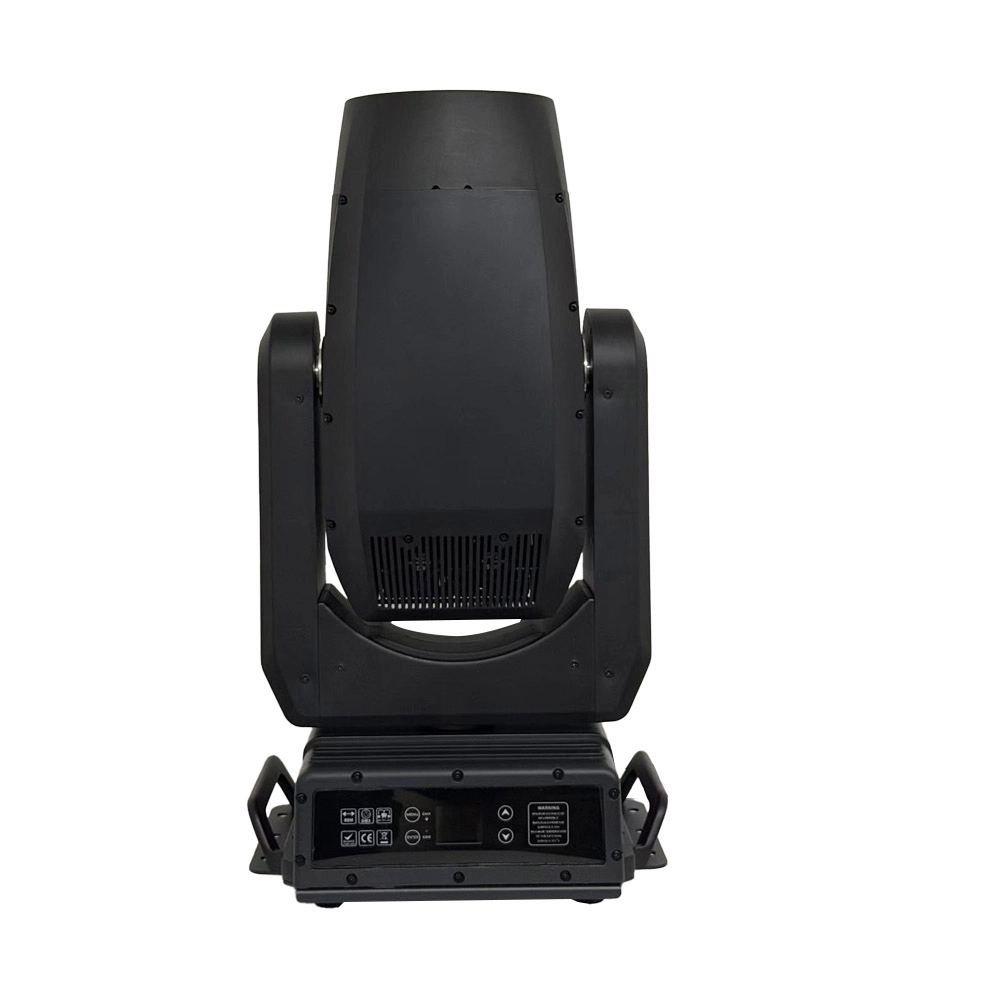

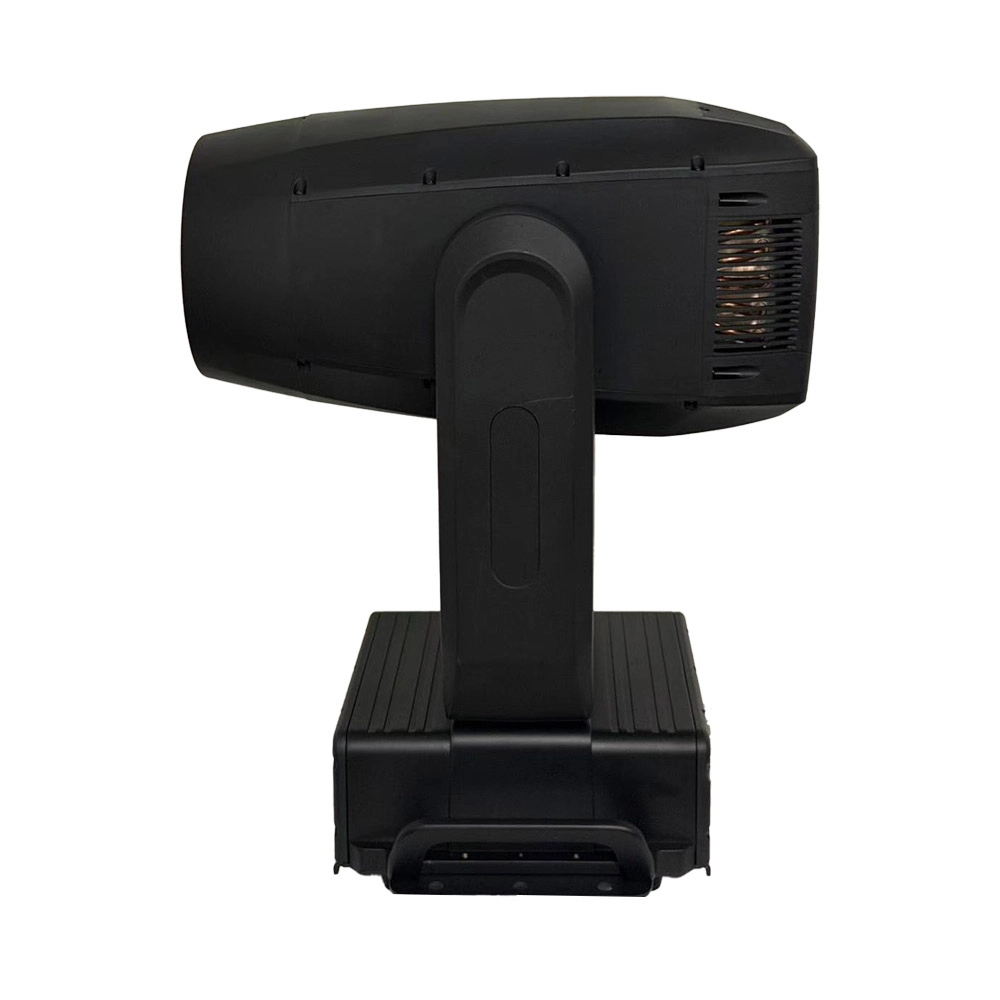

VANRAY Outdoor Waterproof LED Moving Head VF-500IP LED BSW Moving Head Light
VANRAY Waterproof Led beam spot wash Moving Head VF-500IP Parameters
| Name | Waterproof LED beam spot wash moving head | Type number | VF-500IP |
| Input voltage | AC110v-240v / 50-60HZ | Light source specification | 500W LED module |
| Rated power | 550 w | Channel mode | 24ch |
| Horizontal scanning | 540-degree (16-bit precision scanning) electronic error correction | Vertical scanning | 270-degree (16-bit precision scanning) electronic error correction |
| Dimming system | 0-100% linear adjustment | Operating Environment | -20°C to 40°C |
| Triple-in-One Optical Lens Design | (BEAM mode): 2°; (SPOT pattern mode): 4°–45°; (WASH color wash mode): 2°–52°—three modes freely switchable to achieve integrated beam, color wash, and pattern functions. | High speed stroboscopic | 0–30 flashes per second, adjustable strobe speed and effects, strobe macro function available |
| Color | 9 colors + white light, half-color function | Color Mixing System | Linear CMY + CTO color mixing system |
| Fixed Gobo |
9 fixed gobos + white light + effect wheel |
Rotation gobo | 8 glass gobos, each independently reversible |
| Prism system | Dual prism design—1 four-prism + array mirror, each prism independently reversible | Safety Features |
Electronic temperature control with overheat protection; automatically shuts off power when overheating occurs Signal Protection: Built-in isolated input signal protection ensures stable signal transmission |
| Control | International standard DMX512 with RDM functionality, supports software online upgrade and address code dialing | Cooling Method | Axial fan for enhanced cooling |
| Cooling mode | Use axial fan to strengthen cooling | Macro Functions |
Console reset, auto-run mode, master-slave mode Display Method: LCD display with dual operation via buttons and touch screen |
| Appearance material | High-temperature-resistant nylon plastic + magnesium alloy, sealed for air tightness | Working environment | -20 degrees -40 degrees |
| IP rating | IP66 | Product net weight | 22.5KG |
| Product size |
345×265×655 mm (L × W × H) |
VANRAY Waterproof Led beam spot wash Moving Head VF-500IP Features and Benefits
◐ Use sufficient power PFC power supply
◐ 1 independent fog effect, soft and natural light beam
◐ With CMY, CTO system
◐ Triple-in-One Optical Lens Design: (BEAM mode): 2°; (SPOT pattern mode): 4°–45°; (WASH color wash mode): 2°–52°—three modes freely switchable to achieve integrated beam, color wash, and pattern functions.
◐ Intelligent Fan Speed Control: Integrated smart fan automatic speed regulation; when the fixture reaches high temperature, it automatically reduces power output and runs the fan at low speed, effectively lowering noise according to actual performance requirements and creating a better stage atmosphere
◐ Fixture Fault Display: Intelligent microcomputer self-diagnosis displays diagnostic information, enabling quick identification of faults and repairs based on screen data
Smart Operation: Built-in RDM and auto-focus functions; address codes can be modified via signal cable, faults detected, and firmware updated remotely
Automatic Error Correction: Both horizontal and vertical axes use photoelectric reset systems, automatically detecting and correcting errors upon accidental contact

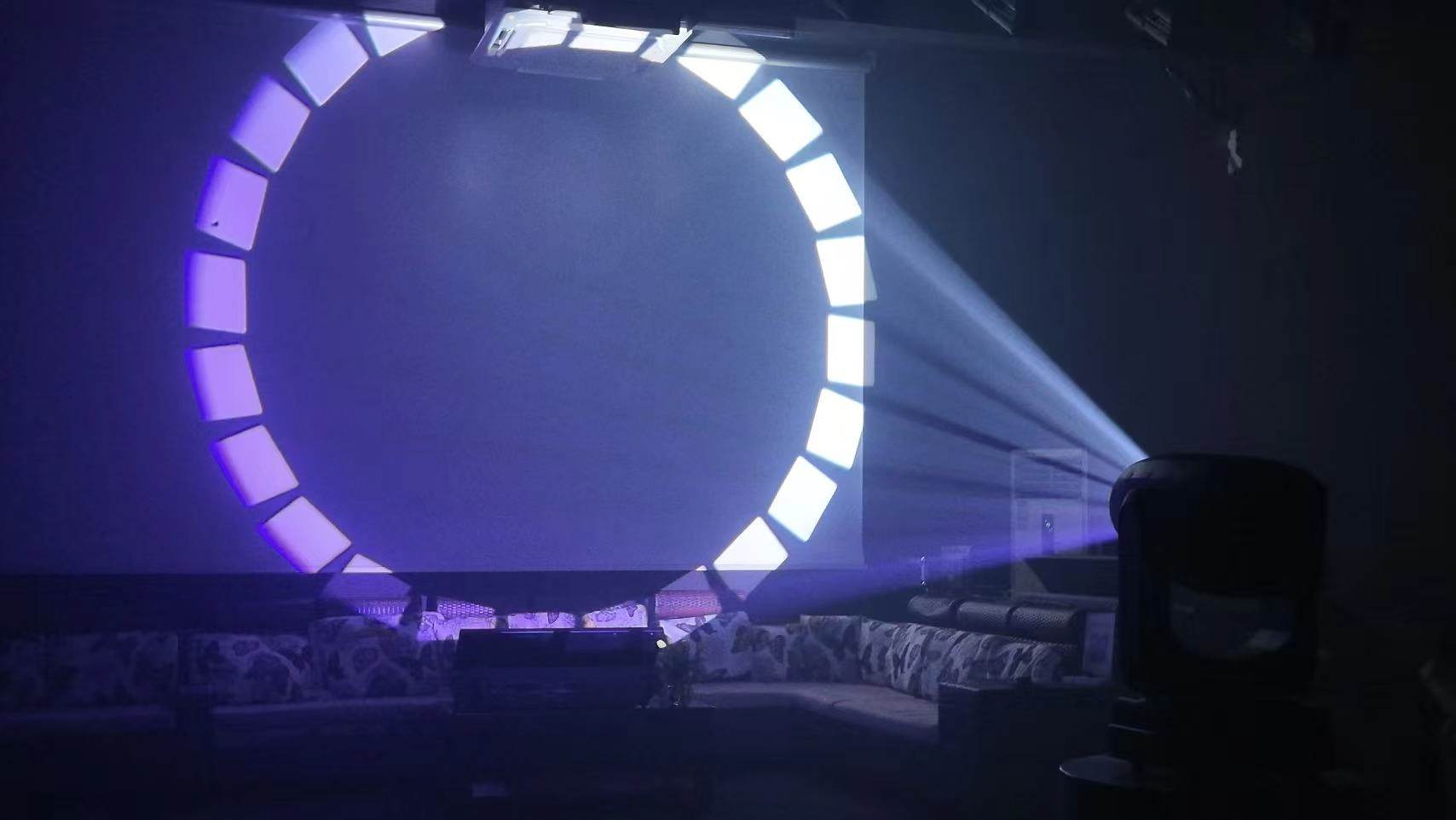

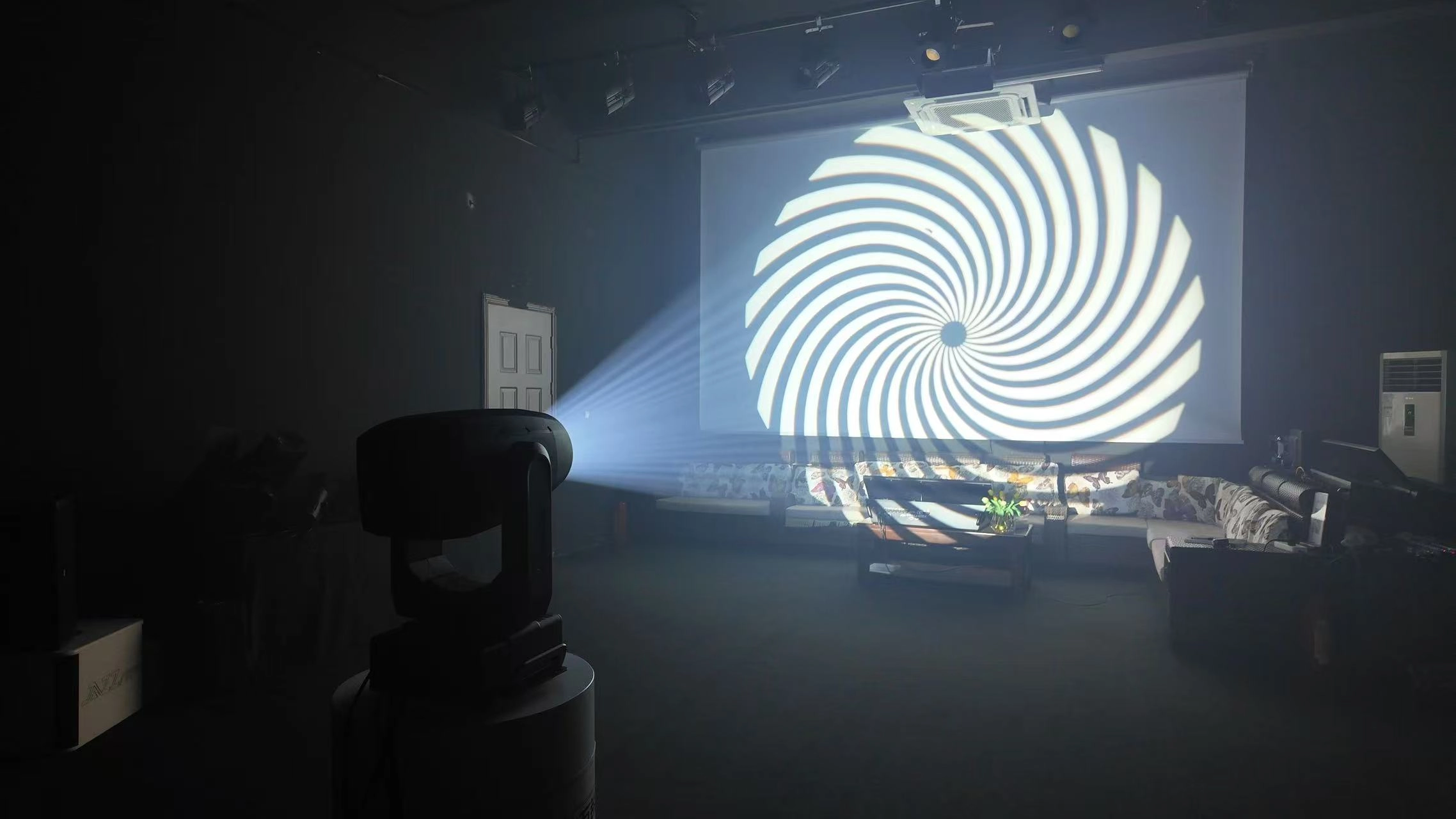

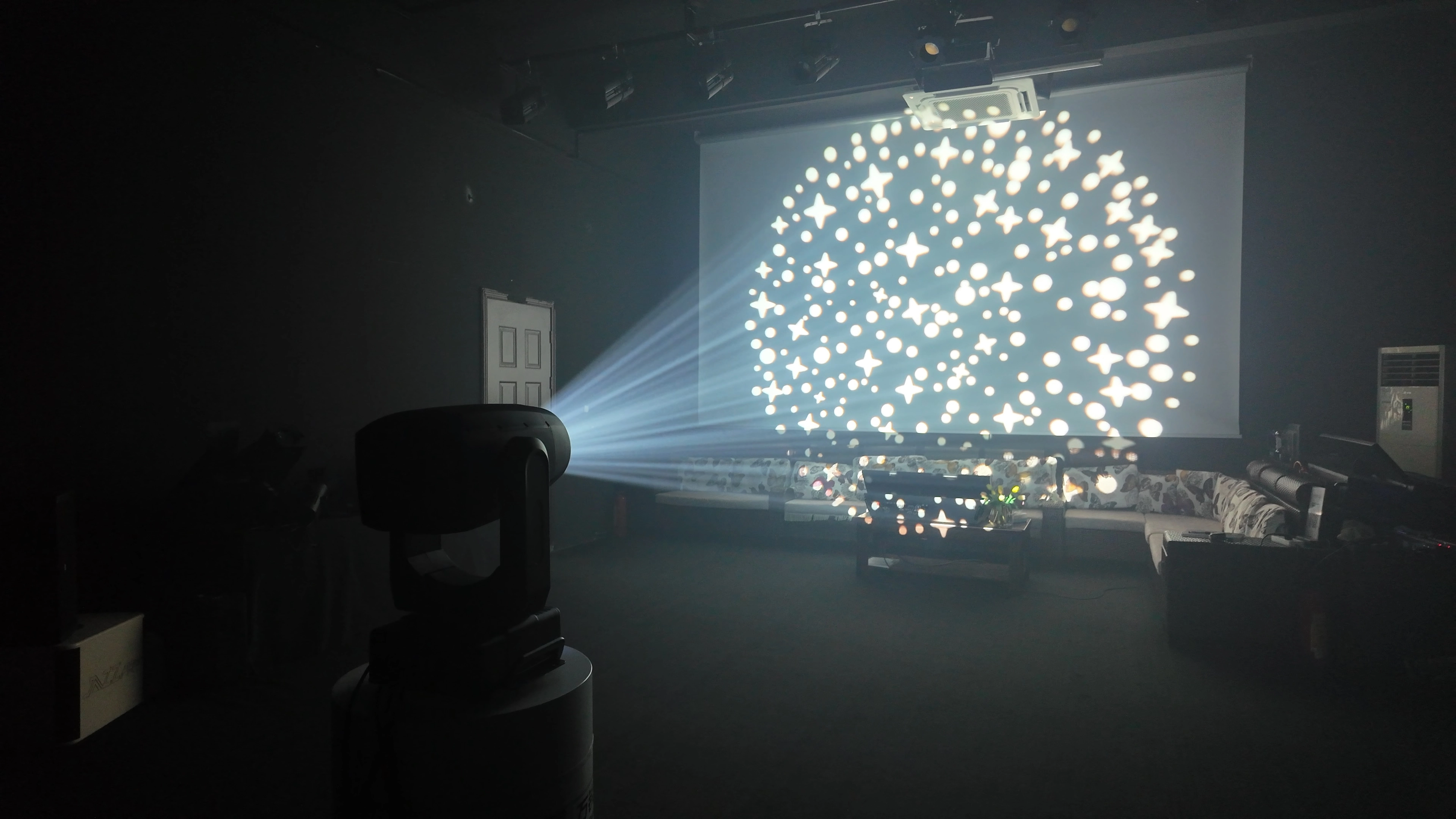

VANRAY Waterproof Led beam spot wash Moving Head VF-500IP Effect Pictures
VANRAY Waterproof Led beam spot wash Moving Head VF-500IP Applications
◐ Concerts can add color and movement to an event, providing a stunning visual experience.
◐ Stage performance and theater: with different functions beam spot wash, suitable for different stage needs, to provide the ultimate visual impact.
◐ Live TV and large-scale events: live and various large-scale events, LED moving head lights are used for dynamic lighting and stage design, which can create an atmosphere and highlight the focus. Especially in live broadcasts, news programs, entertainment programs, etc., LED moving head lights bring rich visual effects to the scene.
VANRAY Waterproof Led beam spot wash Moving Head VF-500IP Installation & Maintenance
Installation
- The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
Maintenance
- Regularly check the lighting circuit and heat outlet; use special cleaning tools to clean the air outlet to maintain the best performance.
