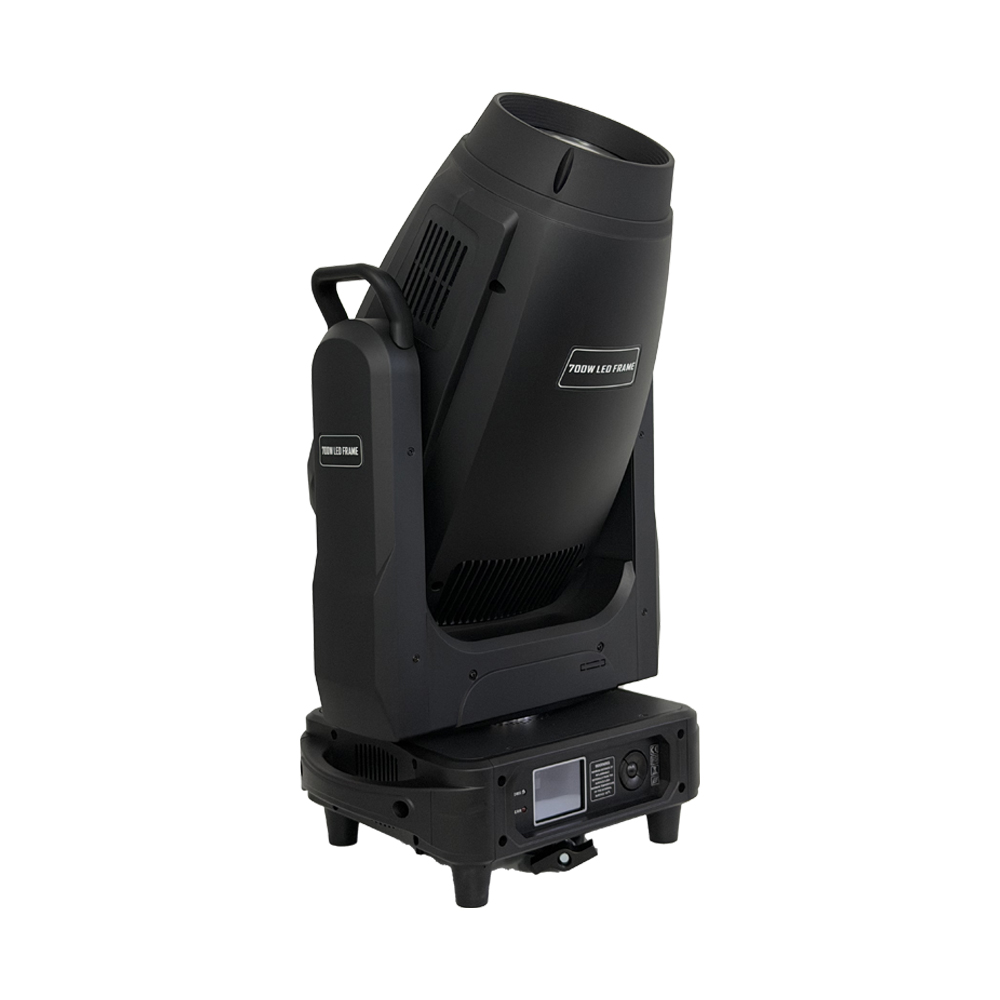

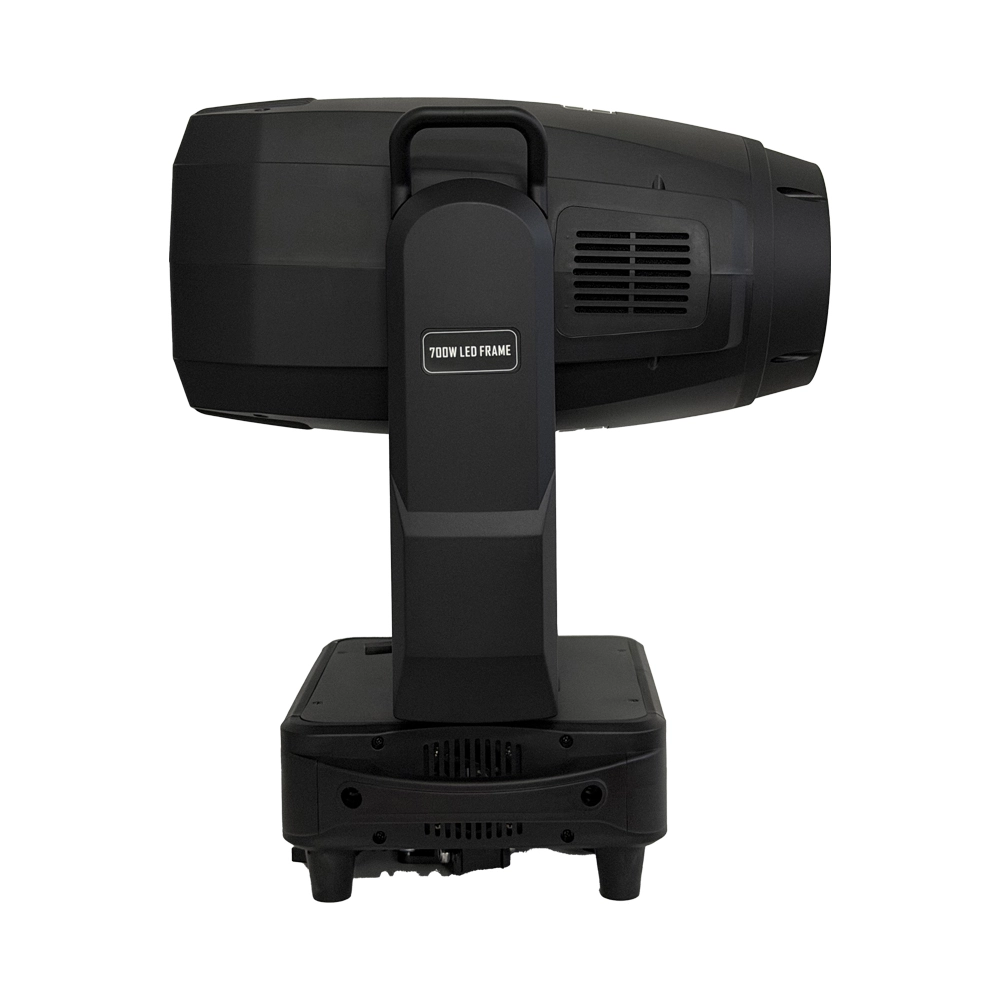

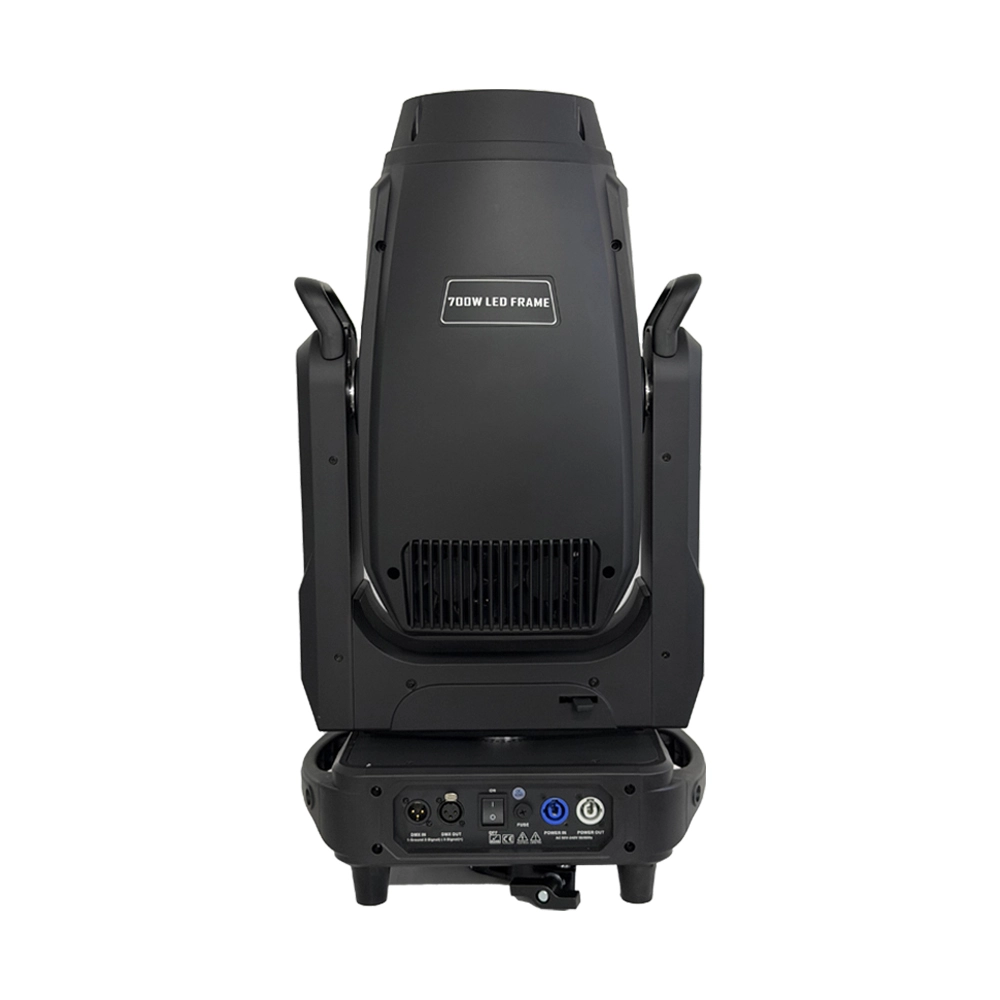

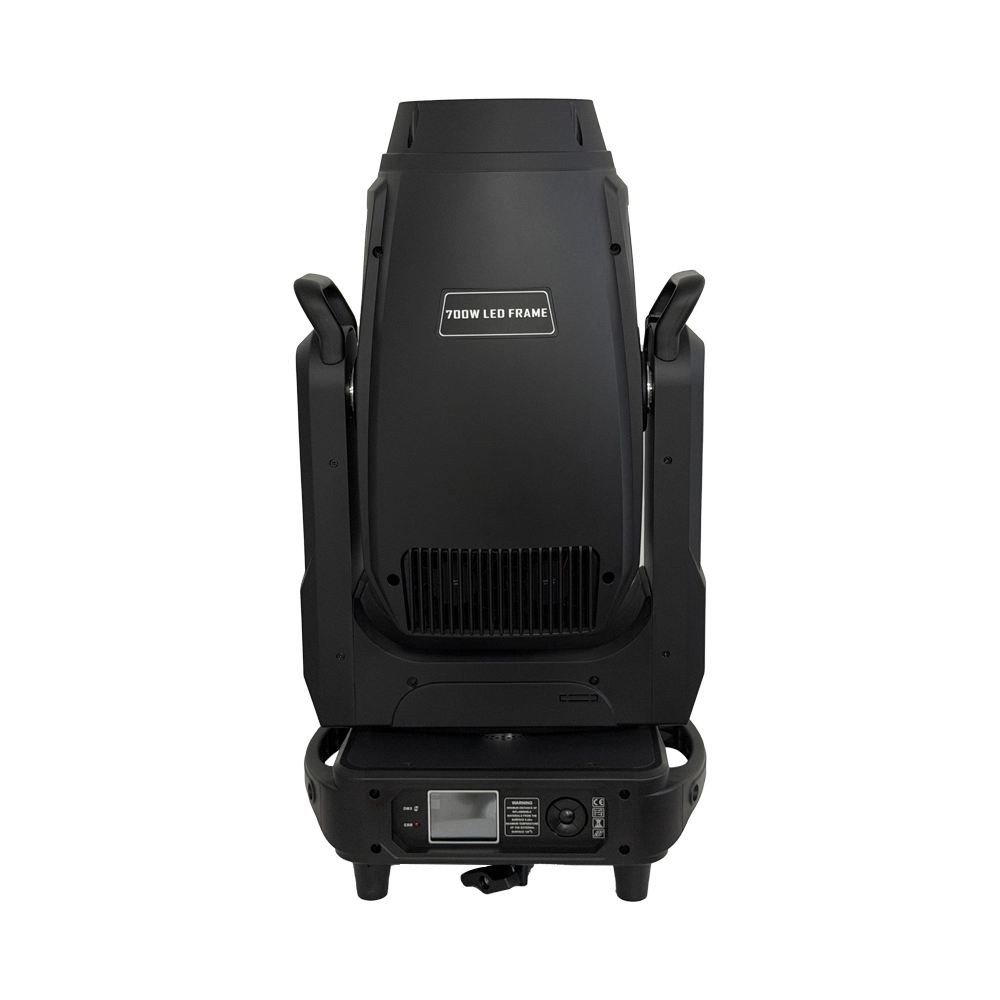

VANRAY LED 700W LED Frame Moving Head VR-700Q LED 4 in 1 Moving Head
VANRAY LED Frame Moving Head VR-700Q Parameters
| Name | LED frame moving head light | Model | VR-700Q |
| Input voltage | AC100-240V,50/60Hz | Power rate | 700W |
| Light source | High-brightness, high-power 700W white LED module. | Angle | 5° - 50° linear high-speed zoom |
| CTO Color temperature |
CTO color temperature correction (7200 - 3200K) Light source color temperature: 7400K |
Color rendering index | Adjustable color rendering mode, standard mode Ra > 70, high color rendering mode > 90 |
| Channels | 39 international standard DMX512 channels | CMY color mixing | Independent CMY color mixing system |
| Control mode | DMX512 | Effect plate | Super cool simulated dynamic surging flames, flowing water and other dynamic effects |
| Color | 1 color plate with 6 color chips, capable of achieving two-way rainbow and half-color effects | Light source color temperature |
7400K |
| Rotating gobo wheel | 1 rotating pattern plate with 7 selectable pattern pieces (removable), capable of variable jitter and two-way rotation | Prism | 3-prism, can independently rotate in both directions |
| Cutting wheel | 4 independent cutting blades, each blade can be independently blocked, can rotate 90° | Fixed gobo wheel |
1 fixed pattern plate with 4 patterns, capable of variable jitter |
| Heat dissipation system | Efficient heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, automatically adjusts heat dissipation system | Atomization system | 1 independent atomization plate, 0 - 100% linear atomization, light spot natural and soft |
| Strobe | 0 - 25Hz rapid electronic strobe | Aperture | 5% to 100% smooth adjustment |
| Dimming system | 0-100% linear adjustment | Horizontal scan | 540° (16-bit precision scan) |
| Vertical scan | 270° (16-bit precision scan) | IP rating | IP20 |
| Working environment | 0-45℃ | Product size | 38.5 * 27 * 69 cm (L * W * H) |
| Net weight | 27.5kgs |
VANRAY LED Frame Moving Head VR-700Q Features and Benefits
◐ High brightness LED light source: 700W LED light source, providing strong light, dyeing, pattern, cutting effect, to ensure that every performance can attract the audience's attention.
◐ Angle: 5° - 50° linear high-speed zoom, variable focus lens, linear zoom in and out function.
◐ 1 rotating pattern plate with 7 selectable pattern pieces (removable), capable of variable jitter and two-way rotation
◐ 4 independent cutting blades, each blade can be independently blocked, can rotate 90°
◐ Use a sufficient power PFC power supply.
◐ The use of a lead-free environmental protection fan, low power consumption, long life, and large air volume.
◐ The internal electronic wire of the lamp uses high-temperature, cold-resistant, wear-resistant, and anti-corrosion wire.

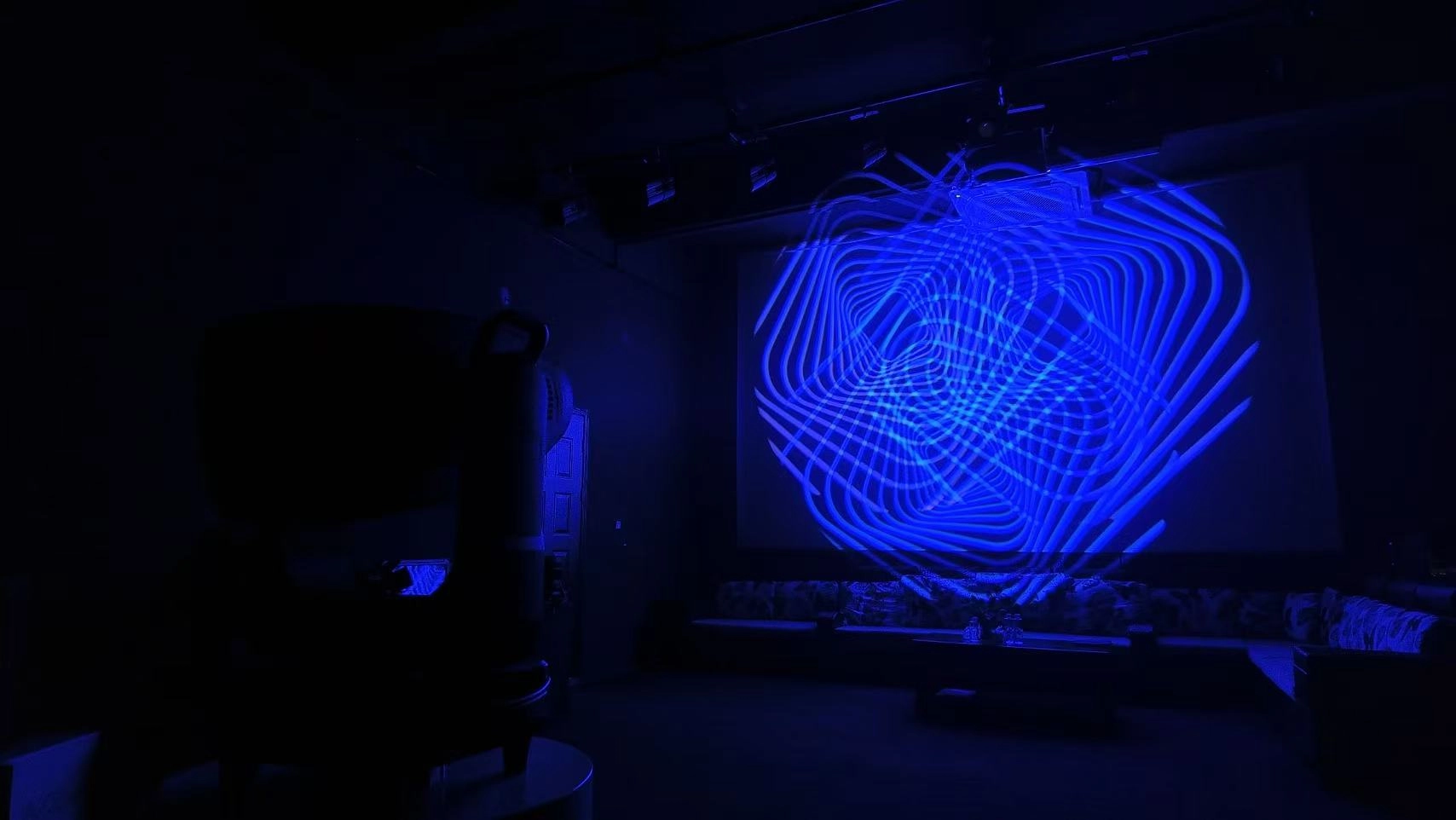

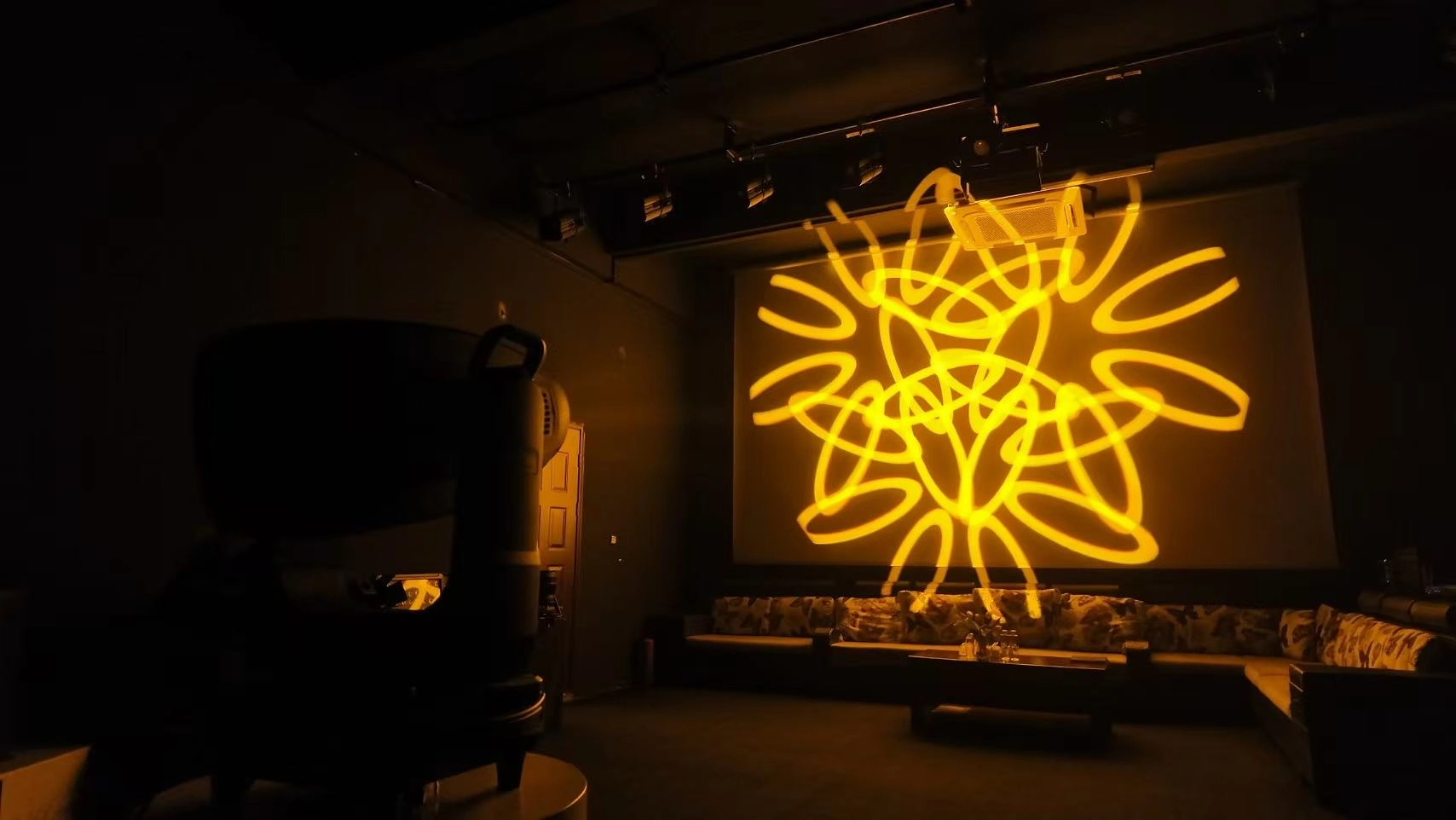

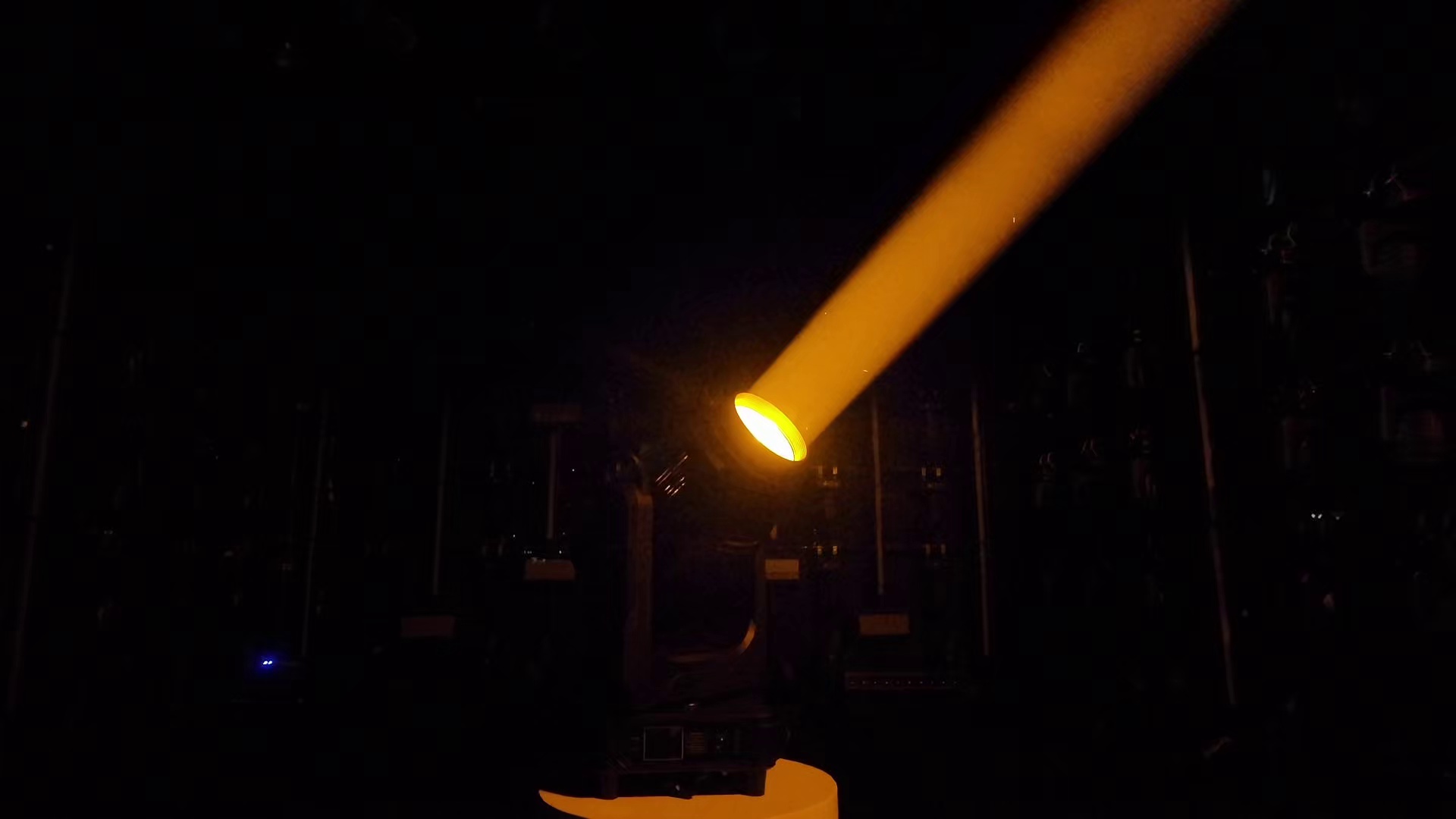

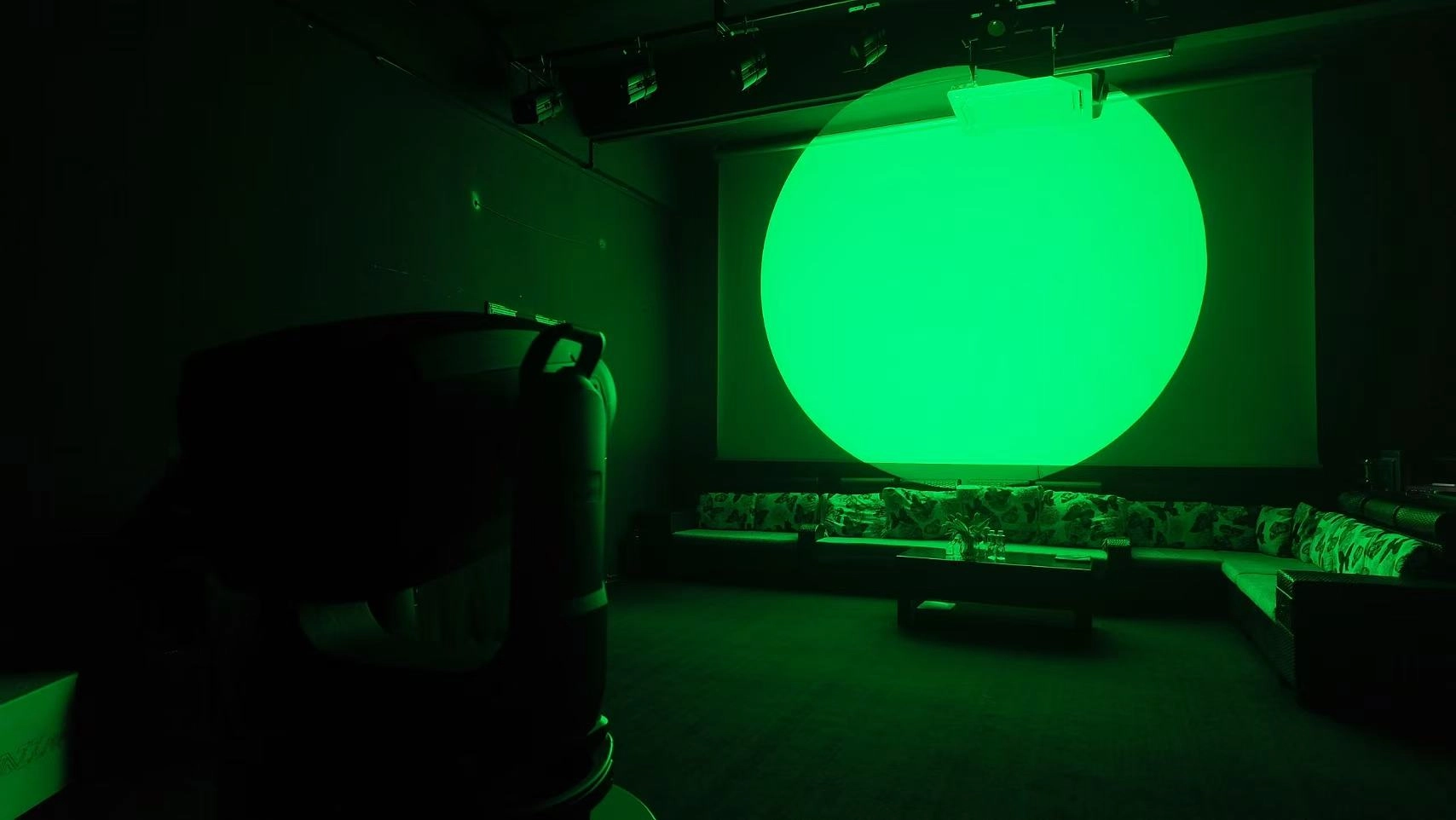

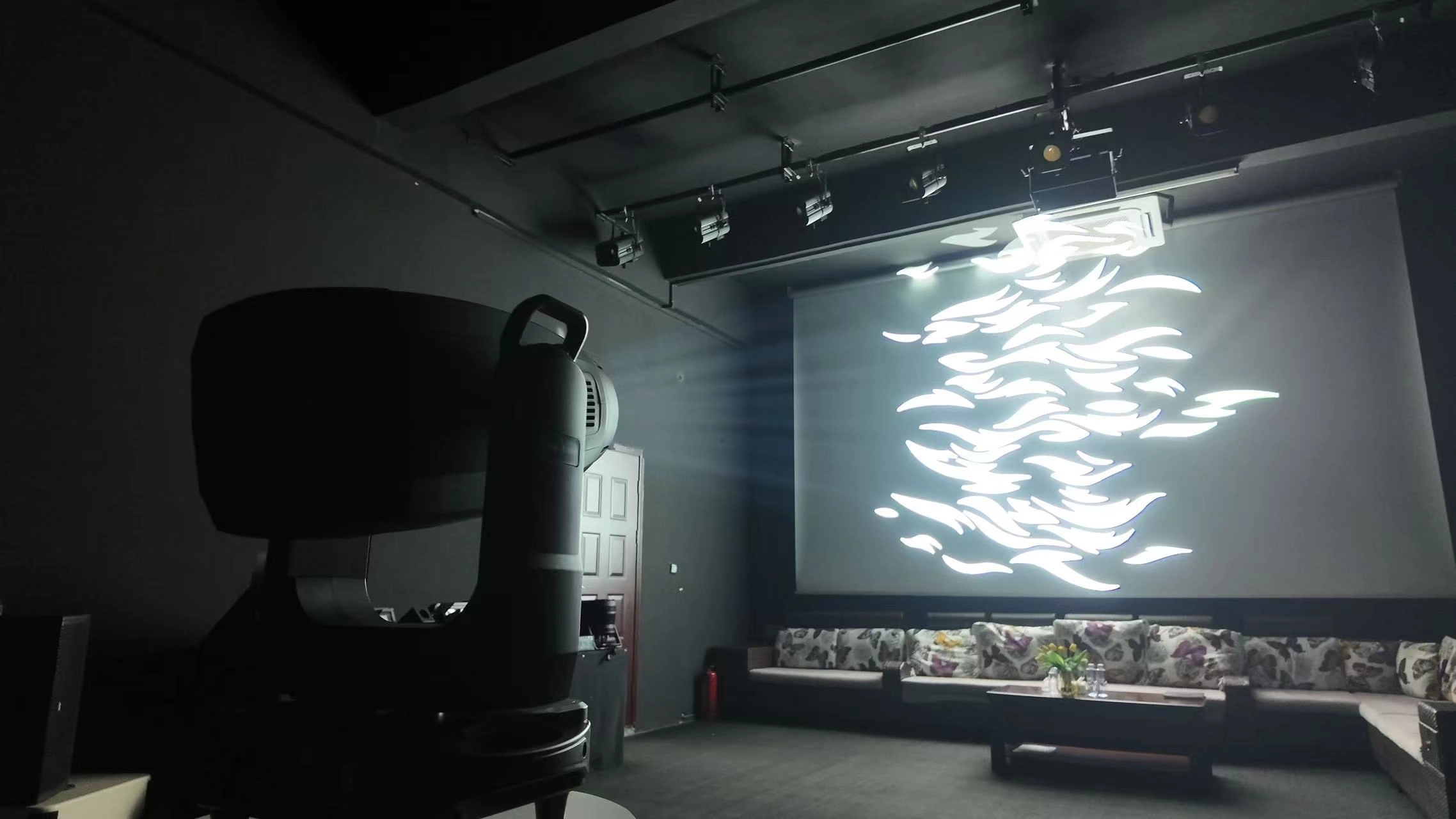

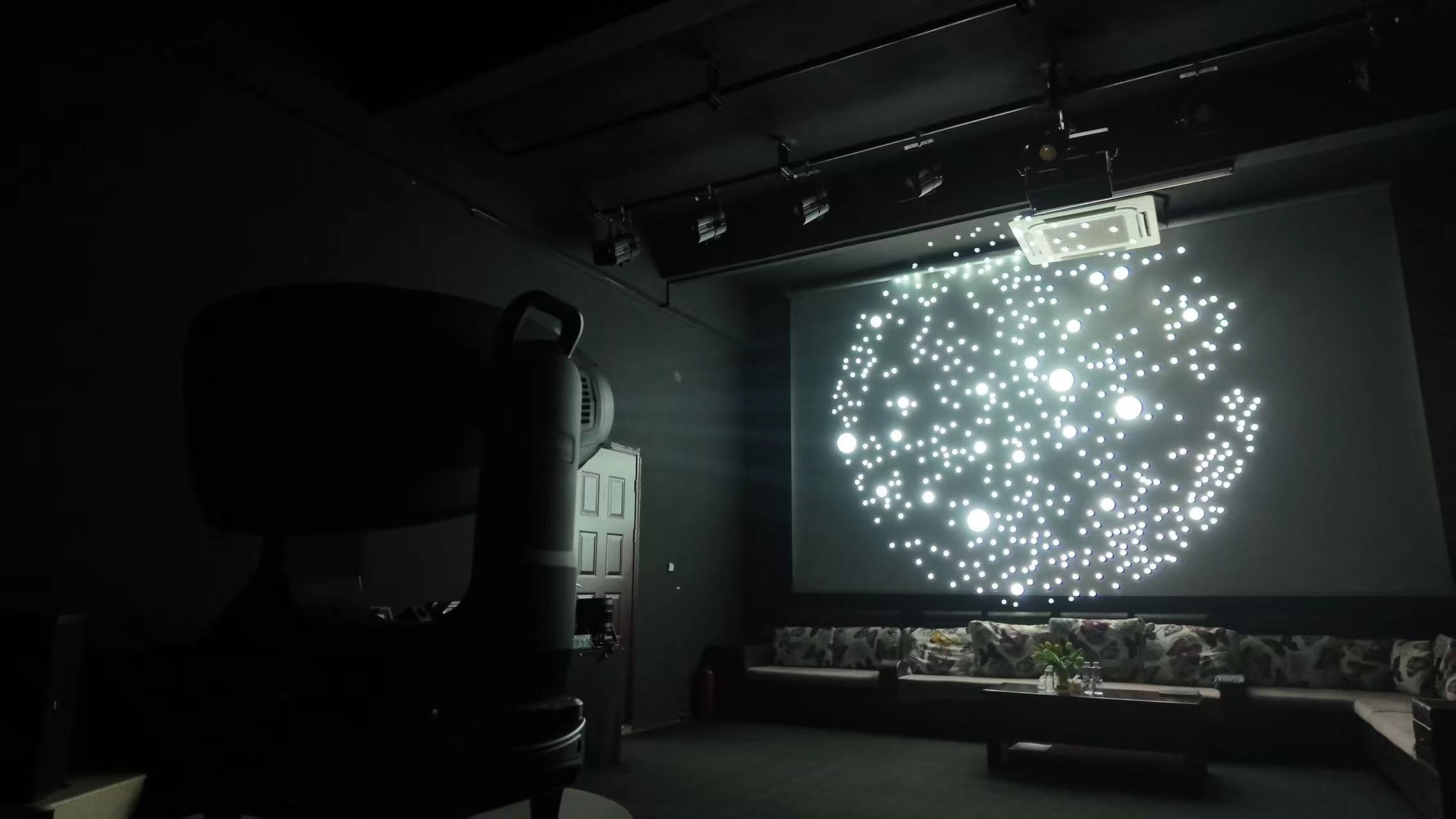

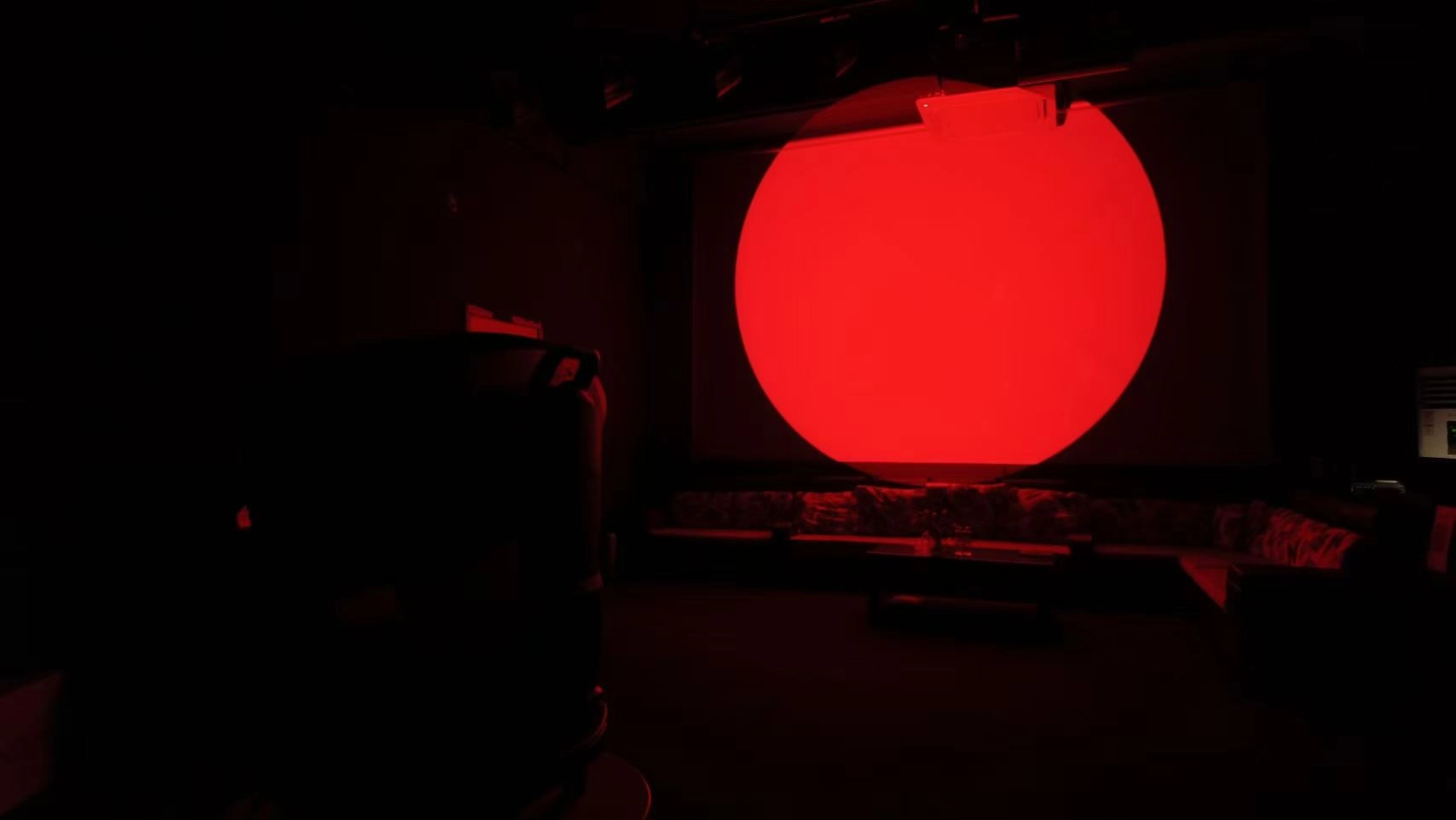

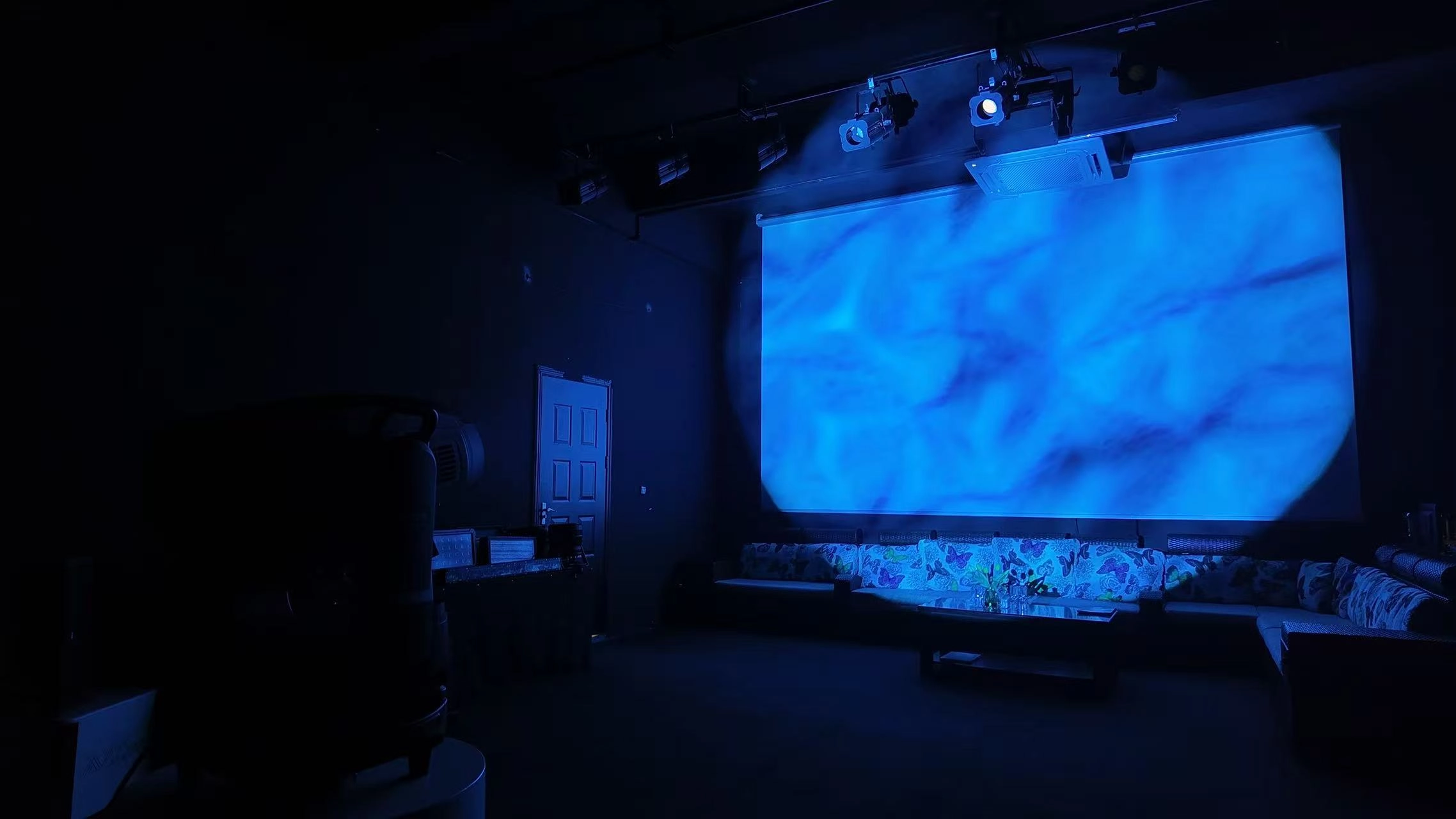

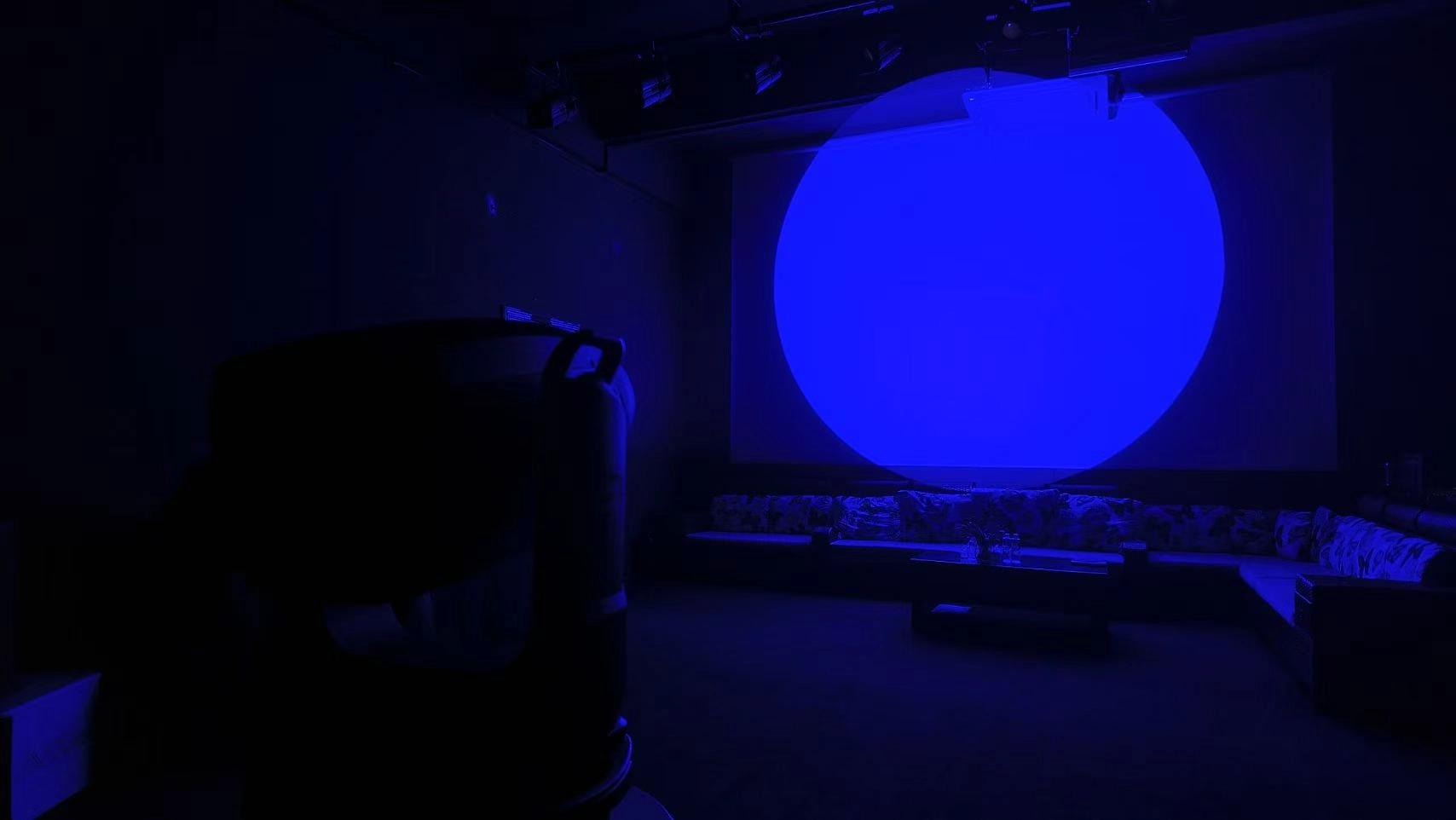

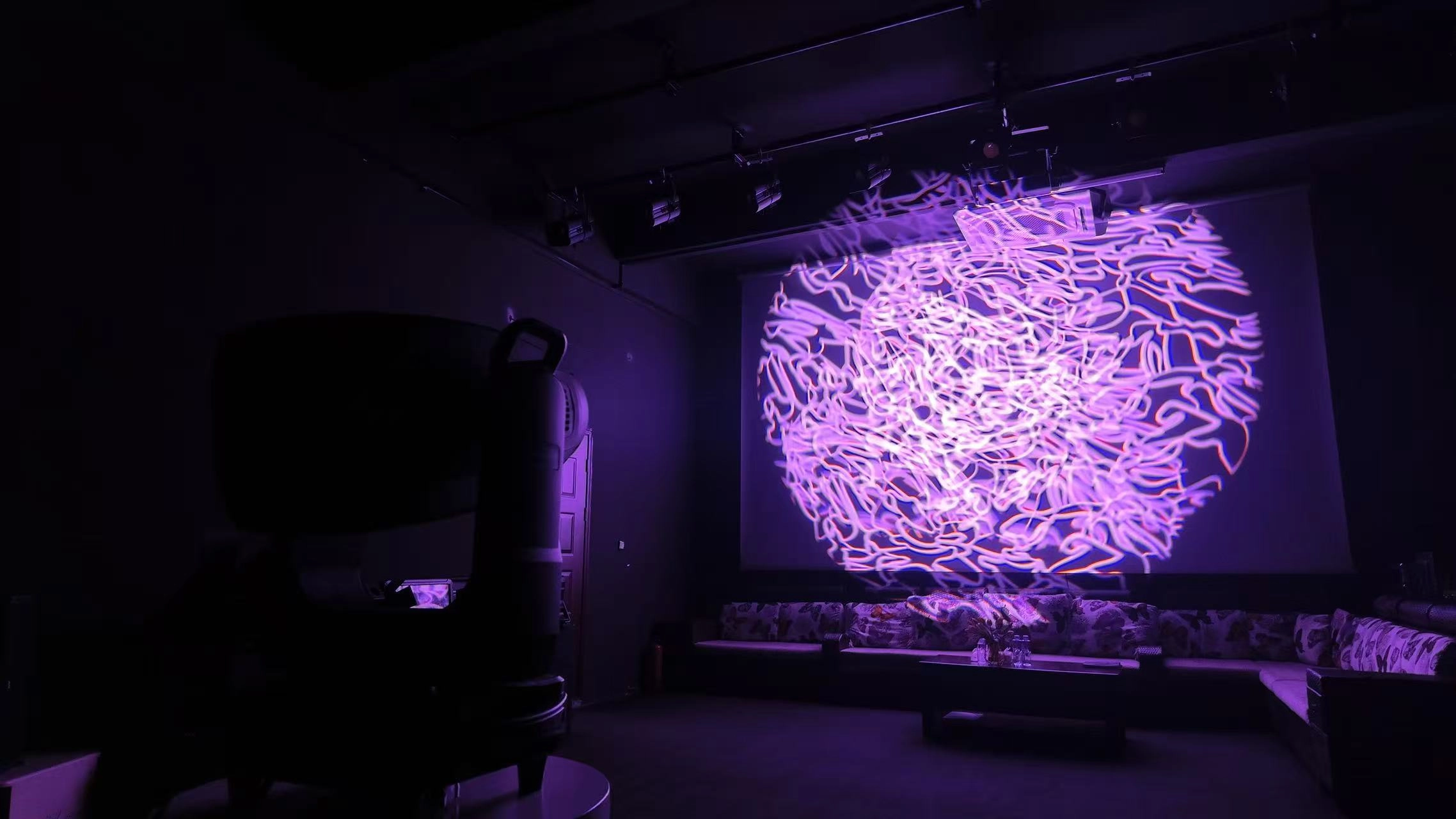

VANRAY LED Frame Moving Head VR-700Q Effect Pictures
VANRAY LED Frame Moving Head VR-700Q Applications
◐ Concerts: strong lighting effects and precise beam adjustment, pattern, wash effect, add shock effect to the live performance.
◐ Stage performance and theater: all-round beam rotation, pattern dyeing, cutting modeling, suitable for different stage needs, to provide the ultimate visual impact.
◐ College and party events: Multiple lighting effects and color patterns help create a unique atmosphere.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY LED Frame Moving Head VR-700Q Installation & Maintenance
Installation
- The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
Maintenance
- Regularly check the lighting circuit and heat outlet; use special cleaning tools to clean the air outlet to maintain the best performance.
