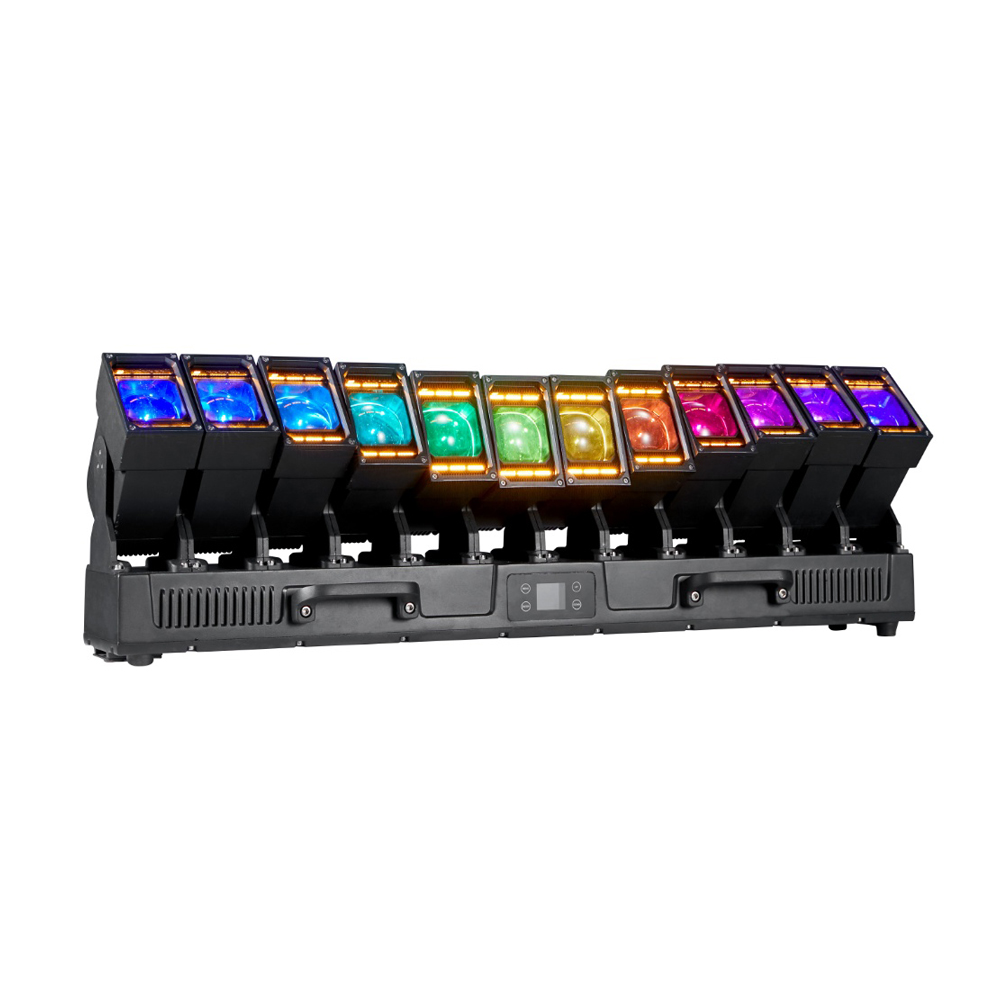

VANRAY 12pcs 60W RGBW Moving Bar Wash Light LT-1260YF LED Beam Wash Moving Head
VANRAY Swinging Beam Moving Bar Light VR-1060YF Parameters
| Name | Beam moving bar light | Type number | VR-1060YF |
| Rated voltage | AC100V ~ 240V, 50 ~ 60Hz | Power rate | 800W |
| Light source |
Main light: 12 60W RGBW 4-in-1 LEDs / Flicker 1: 120 1W 6500K white lights / Flicker 2: 120 1W 3000K white lights |
Beam Angle | 4.5°-36° |
| Number of channels | CH26 | Connection method | DMX512 input/output/power input/output |
| Strobe frequency | 1-30Hz | Dimming | 0-100% linear dimming |
| Size | 1000*232*321mm | Control mode | DMX512, self-propelled, master-slave, voice control, with RDM function. |
| Lamp weight | 30.5KG | Protection class | IP65 |
VANRAY Swinging Beam Moving Bar Light VR-1060YF features and benefits
◐ Main light: 12 60W RGBW 4-in-1 LEDs / Flicker 1: 120 1W 6500K white lights / Flicker 2: 120 1W 3000K white lights
◐ Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
◐ IP level: IP65,good waterproof rating
◐ Strobe : 0-25Hz, with multiple strobe effects available for selection, and adjustable speed.
Magnification: Electric magnification
VANRAY Swinging Beam Moving Bar Light VR-1060YF Effect pictures
VANRAY Swinging Beam Moving Bar Light VR-1060YF Applications
◐ Stage performance: Beam moving head lights can create a dynamic beam effect on the stage to enhance the performance atmosphere. Help highlight key parts in a show by controlling the color, intensity, and direction of the lights.
◐ Concerts: It can be used for high-brightness lighting, creating a strong visual effect, matching the rhythm of the music, and enhancing the atmosphere of the scene.
◐ Live TV and variety shows: In the production of TV programs, beam moving lights can provide accurate beam control and rich light effects, helping the program team to create professional lighting effects and increase visual impact.
◐ For large-scale events and celebrations, such as sports events, fashion shows, exhibitions, brand conferences, etc., beam moving lights can effectively attract audience attention, create gorgeous lighting effects, and enhance the influence of activities.
◐ Nightclubs and clubs: In night shows, bars and other entertainment venues, the beam-shaking lights create an atmosphere through changing lighting effects combined with music rhythm, making the atmosphere of the venue more dynamic and intense.
◐ Festivals and amusement parks: Beam-shaking lights are often used as an important visual element in light shows and theme park performances, making activities more vivid and attractive through light changes and directional projection.
VANRAY Swinging Beam Moving Bar Light VR-1060YF Installation & Maintenance
Installation
- 1. Use a professional hanger or bracket to secure the beam shaking light in a safe position. Make sure the brackets and hangers can withstand the weight and movement of the luminaire.
2. Check the stability of the hanging system to ensure that the lamp will not fall due to vibration or external force.
3. Power connection: Connect the power supply according to the equipment instructions. Ensure that the voltage and frequency are consistent with the equipment requirements; usually the beam shaking lamp requires a higher power supply.
Maintenance
- 1. Clean regularly : Clean the luminaire surface and lens regularly to prevent dust accumulation affecting the beam quality. Wipe the shell with a soft cloth and cleaner. For lenses and light source lenses, professional cleaning tools can be used to clean, Avoid using corrosive chemicals when cleaning to avoid damaging the surface of the lamp.
2. Check cooling system: beam moving head lights are usually equipped with a built-in fan or cooling system. Periodically check the fan status to ensure the normal running of the heat dissipation system.
3. Clean the dust on the fan to ensure that the vent is not blocked to prevent the device from overheating.
