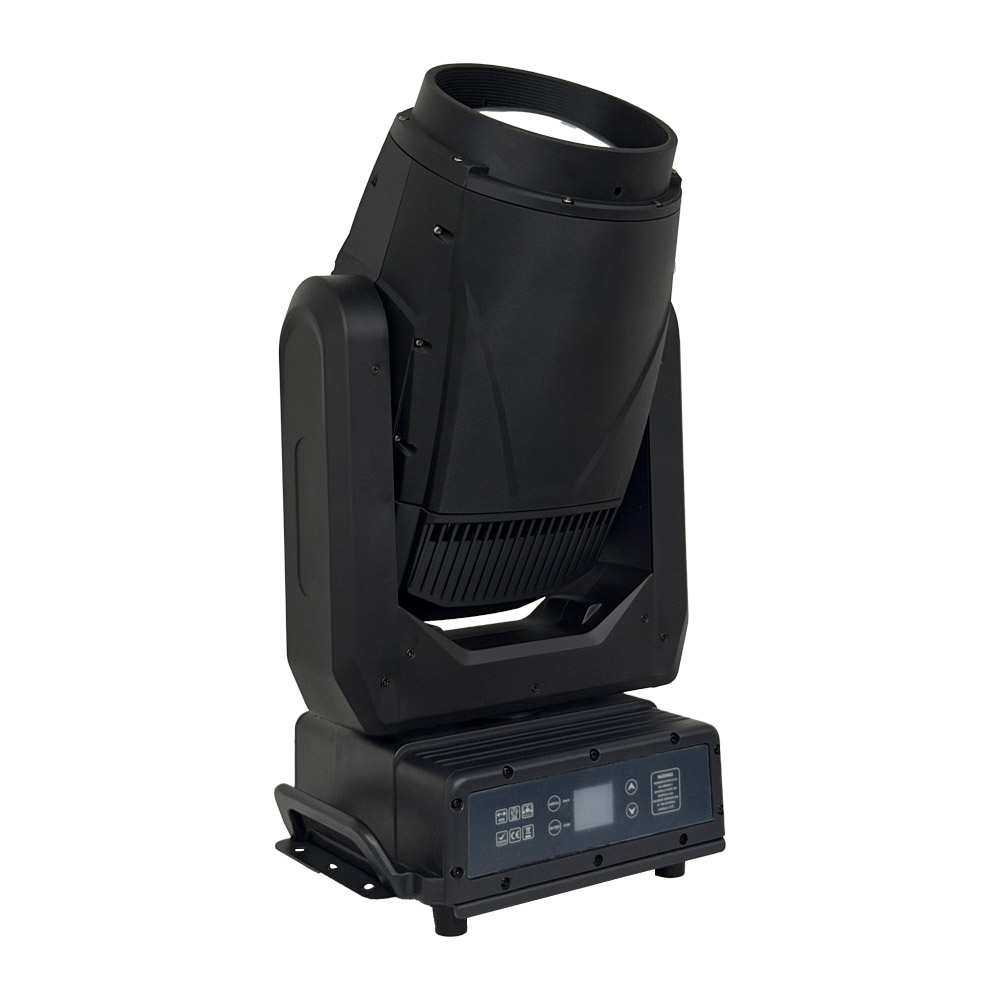

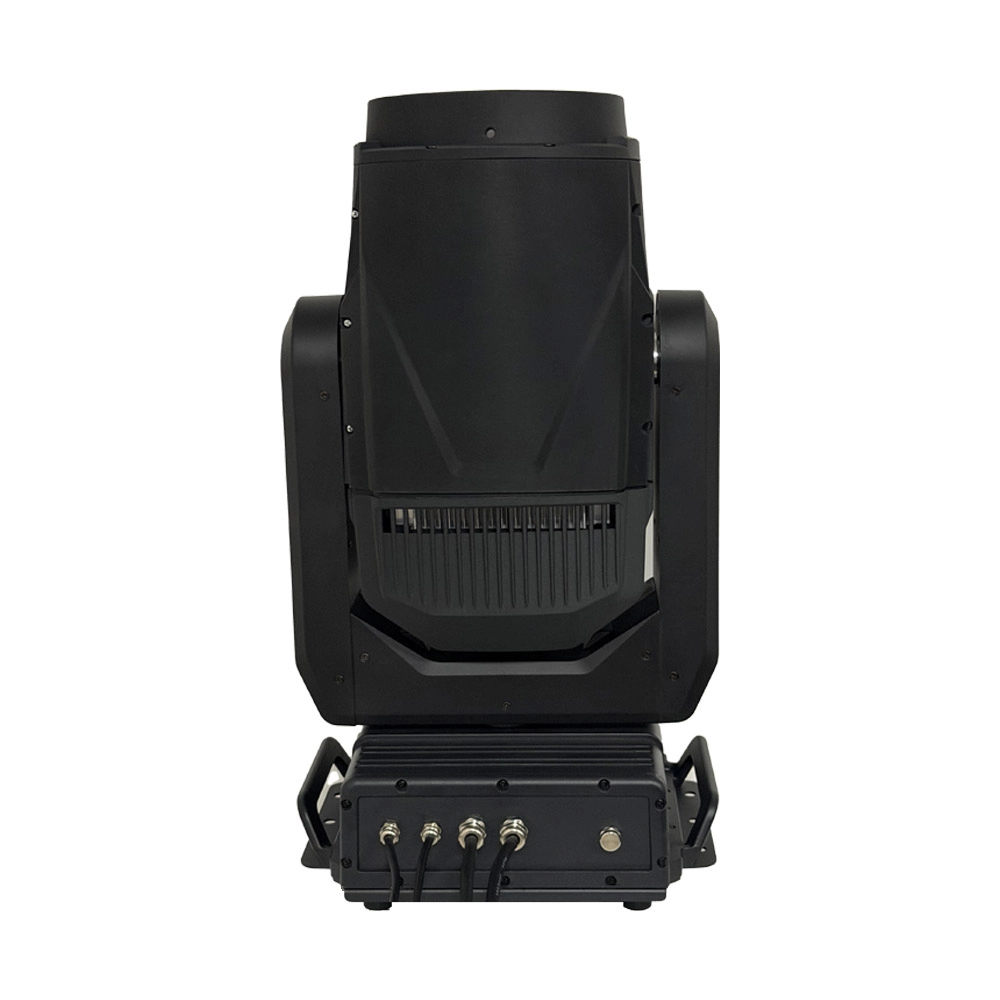

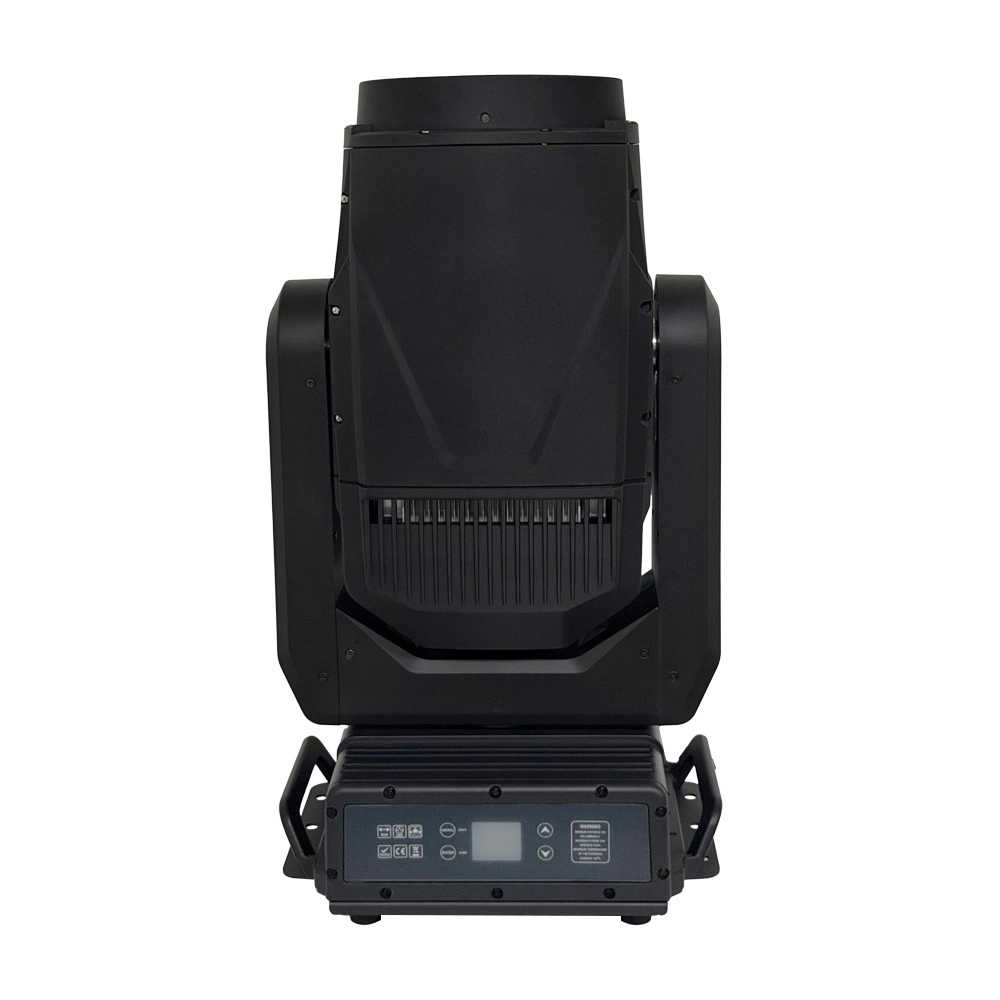

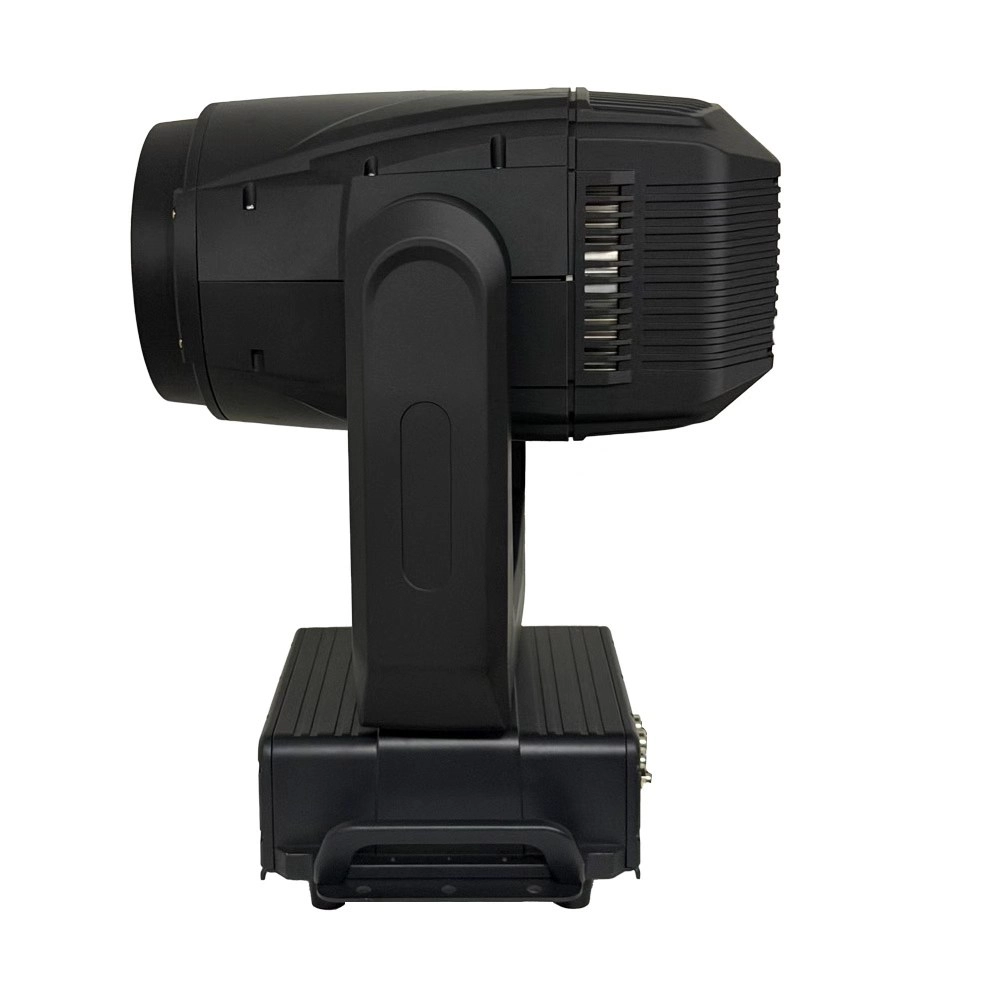

IP65 Waterproof Beam Moving‑Head Light VF-421 Outdoor Stage Lighting for Concert
VANRAY Waterproof BEAM Moving Head VF-421 Parameters
| Name | Waterproof beam moving head light | Type number | VF-421 |
| Input voltage | AC100V~240V/50~60Hz | Total power rate | 550W |
| Light source | Osram 421 long-life bulb | Beam Angle | Dual optical lens system with electronic focus range of 1.9–3 degrees |
| Color | 14 colors + white light, half-color effects | Gobo | 13 metal patterns with pattern shaking function |
| Prism | 8-prism + honeycomb 24-tower mirror, forward and reverse rotation | Horizontal scanning | 540°rotation, resolution 8/16Bit, with fine tuning |
| Vertical scan | 270°rotation, resolution 8/16 bit, with fine tuning. | Strobe | From fast to slow, supports mechanical strobe and adjustable-speed strobe effects, with strobe macro function |
| Display | LCD display | Dimming | 0%-100% linear dimming, smooth and flicker-free |
| Control mode | DMX512, RDM, auto-run mode | Heat Dissipation Method | Forced convection cooling |
| Channels | 16CH | Weight | 23KG |
| Product size | 345 × 265 × 630 mm | IP rating | IP66 |
VANRAY Waterproof BEAM Moving Head VF-421 Features and Benefits
◐ Waterproof rating: IP66 , high waterproof rating
◐ Software Upgrade: Upgrade files can be uploaded via DMX interface
◐ The use of original genuine OSram light source
◐ Using lightning protection, lightning protection technology
◐ Lamps can operate in extremely cold and extreme weather
◐ Support RDM function
VANRAY Waterproof BEAM Moving Head VF-421 Effect Pictures
VANRAY Waterproof BEAM Moving Head VF-421 Applications
◐ Landscape park: waterproof light beam is widely used as outdoor lighting, such as urban landscape lighting, park lighting, road lighting and so on. Due to its waterproof characteristics, it can withstand bad weather such as rain and humidity and ensure the continuous stability of the lighting effect.
◐ Concerts: strong lighting effects and precise beam adjustment. Lamps can be used in open spaces to avoid failure or loss of light effect due to weather.
◐ Building decorations: waterproof beams are often used for lighting decoration on building facades, especially in environments with moisture or frequent exposure to adverse weather conditions. The waterproof design ensures that the beam lamps can operate stably for a long time, even in stormy conditions.
◐ Exhibitions and event displays: lighting installations for large-scale exhibitions and events to cut shapes, highlight key points and enhance brand exposure.
VANRAY Waterproof BEAM Moving Head VF-421 Installation & Maintenance
Installation
- 1. The stage moving head light can be hoisted or mounted on the side by the hanger or bracket, or it can be installed horizontally with a detailed installation manual to ensure quick installation.
2. Ensure that the installation The angle of the lamp can effectively avoid the accumulation of water droplets or dirt on the surface of the lamp and should be fixed firmly to avoid loosening due to vibration or wind.
3. When connecting the power cable, ensure that all connections are waterproof and sealed to avoid exposing the wire connector and preventing water intrusion. Use waterproof cables and connectors to ensure that the joints are well sealed.
Maintenance
- 1. Regular cleaning: The external mirror and transparent cover of the waterproof beam lamp are easy to accumulate dust or dirt, and regular cleaning can ensure that the beam brightness is not affected. Use a soft cloth and non-corrosive cleaner to avoid scratching surfaces.
2. Check the sealing strip and waterproof rubber ring: Regularly check the waterproof components, such as the sealing strip and rubber ring of the lamp, to ensure that there is no aging, damage, or loosening, and replace the damaged parts in time to ensure the waterproof performance.
3. Check cables and connectors: Regularly check whether cables and connectors are in good condition to avoid aging, damage or corrosion and ensure safe and reliable power connection.
