RGBW vs. CMY Color Mixing: Which System Is Right for Your Stage Performance?
- Understanding the fundamentals: how each system works
- RGBW: additive color mixing
- CMY: subtractive color mixing
- Head-to-head: RGBW vs. CMY across key performance criteria
- Performance scorecard: which system wins where?
- Which system fits your production type?
- The hybrid approach: why many productions use both
- Quick decision guide: RGBW or CMY?
- What to check when buying professional stage lighting equipment
- LED chip quality and binning
- CMY filter response curve
- CRI and TLCI ratings
- Dimming performance
- Frequently asked questions
Walk into any conversation between a lighting designer and a procurement manager, and you'll almost always hit the same question: should we spec RGBW or CMY? It sounds like a technical detail, but the choice you make here shapes everything—the color palette available to your LD, the fixture's viability for broadcast, the complexity of your console programming, and ultimately your budget.
This guide cuts through the confusion. Whether you're sourcing professional stage lighting equipment for a touring music production, a fixed theater installation, or a live broadcast studio, you'll find a clear answer for your specific use case — backed by real-world performance data and specifications from VanRay Lighting's 2026 fixture range.
| RGBW Additive color mixing — 4 LED channels |
CMY Subtractive color mixing — 3 filter channels |
16-bit DMX precision available in both systems |
CRI-90+ Achievable in both when correctly specified |
||||
Understanding the fundamentals: how each system works
Before comparing performance, it helps to understand the underlying physics. The two systems mix color in fundamentally different ways — and that difference is at the root of every trade-off discussed below.

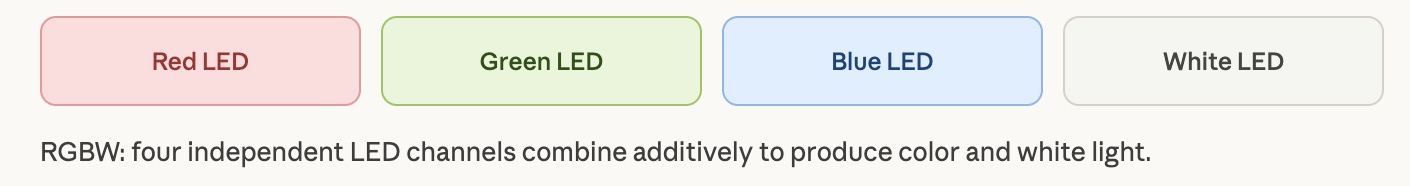

RGBW: additive color mixing
RGBW fixtures use four LED channels—Red, Green, Blue, and White—to produce color through additive mixing. When all channels are driven at full output, the result approaches white light. Mixing red and green produces yellow; green and blue produce cyan; red and blue produce magenta. The dedicated white channel is what separates RGBW from its predecessor RGB: it provides a clean, high-CRI white that pure RGB mixing cannot achieve without compromising brightness or color accuracy.

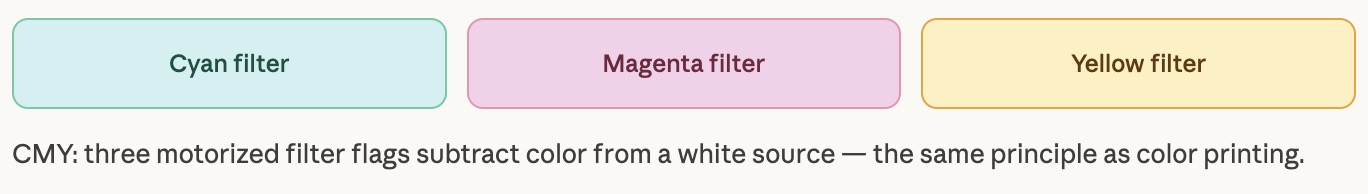

CMY: subtractive color mixing
CMY fixtures work on an entirely different principle. A high-output white light source—traditionally a discharge lamp, increasingly an LED engine in modern fixtures—passes through three independently motorized filter flags: Cyan, Magenta, and Yellow. Each filter subtracts its complementary color from the beam. Fully inserting the cyan flag removes red from the output; fully inserting all three flags together produces near-black. This is the same principle used in color printing, and it's why CMY excels at producing the dense, saturated theatrical colors that are difficult to achieve additively.
Head-to-head: RGBW vs. CMY across key performance criteria
| LED-native System type RGBW · Additive mixing—LEDs combine to make color · Excellent clean white light output · High CRI achievable (90+ with quality LEDs) · Fast color transitions — electronic switching · Lower power draw—energy efficient · No moving filter parts — high reliability · Pastels and skin tones: good with quality LED · Deep saturates: limited vs. CMY · Ideal for: concerts, TV studios, corporate |
Theater standard System type CMY · Subtractive mixing—filters remove color · White = full open—maximum brightness · Full-spectrum output—smoother rendering · Deep, rich theatrical saturates · Mechanical filter movement—slight lag · Motorized parts require periodic servicing · Pastels and skin tones: superior accuracy · Deep saturation: class-leading performance · Ideal for: theater, opera, film, dance |
||||||

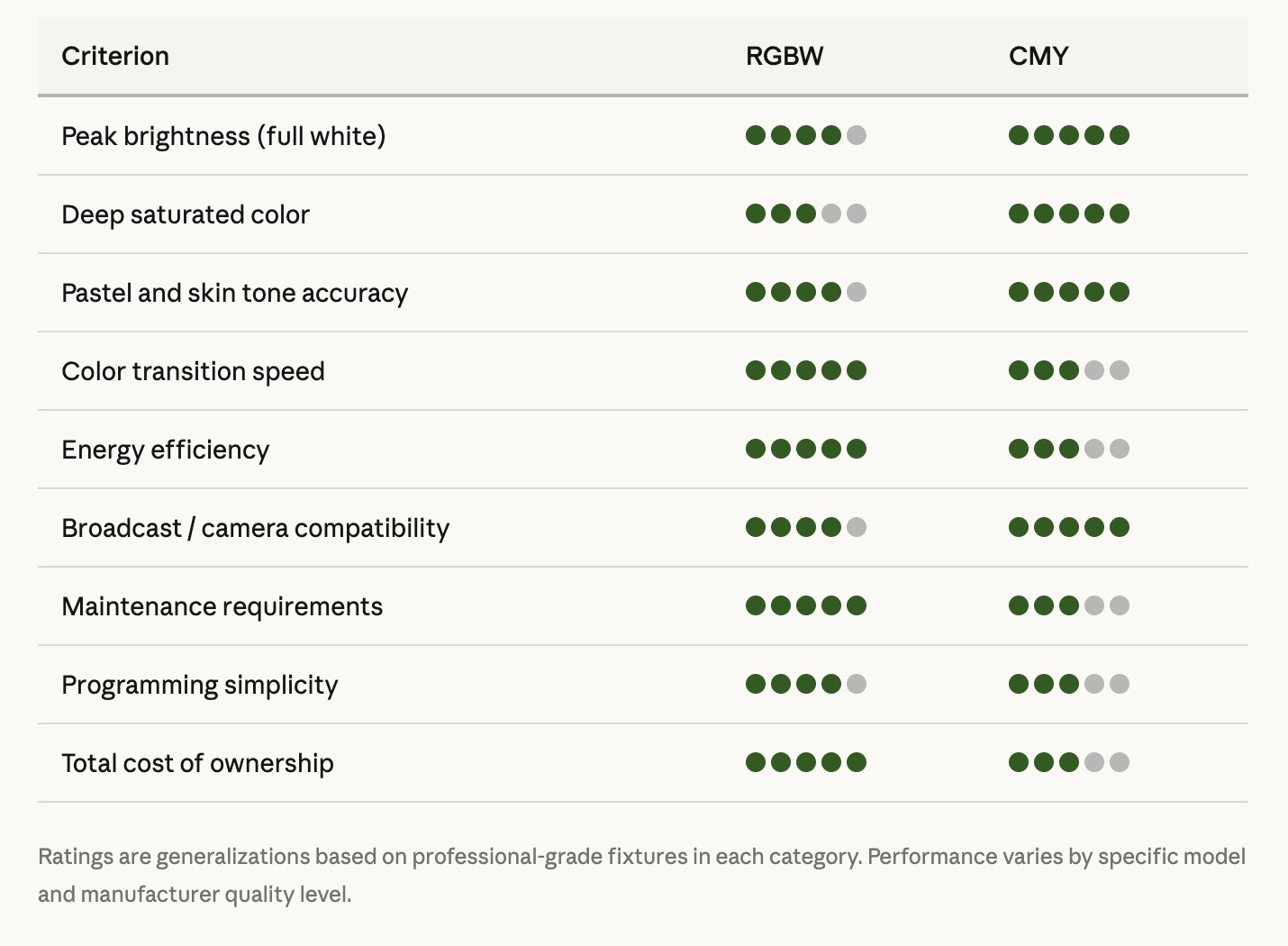

Performance scorecard: which system wins where?
Which system fits your production type?
|
Concert / live music
Fast color changes, high energy output, and low maintenance make RGBW the default for touring music. The saturation limitation rarely matters in a high-contrast rock or EDM context. |
Theater and opera
CMY recommended |
Broadcast and film
CMY recommended |
||||||||
|
Corporate events
|
Festival and outdoor
|
Dance and ballet
|
||||||||
|
TV studio permanent rig
|
Architectural / venue wash
|
Rental inventory
|
||||||||
The hybrid approach: why many productions use both
In practice, the RGBW vs. CMY debate is less binary than it first appears. Many sophisticated productions running professional stage lighting equipment today use a deliberate hybrid strategy — and for good reason.
A typical hybrid rig for a large theater or broadcast studio might look like this: CMY moving heads for key lighting positions, backlight, and any shots where camera accuracy is critical; RGBW LED wash fixtures for side light, cyc light, and color wash effects where energy efficiency and fast transitions matter more than the finest spectral accuracy. This approach gives the lighting designer the best tool for every position while optimizing budget and power consumption across the rig as a whole.
|
VanRay procurement tip: If you're specifying a hybrid rig, our team can build a complete fixture schedule mapping RGBW and CMY positions to your venue plan — with energy load calculations and full technical documentation included. |
Quick decision guide: RGBW or CMY?
| Primary use is live music, festivals, or corporate events? | Go RGBW |
| Production involves spoken drama, musical theater, or dance? | Go CMY |
| Fixtures will be captured on camera or broadcast live? | Go CMY |
| Energy efficiency and low maintenance are top priorities? | Go RGBW |
| Skin tone accuracy and pastel nuance are critical? | Go CMY |
| Fast, high-energy color chases are a primary design element? | Go RGBW |
| Mixed-use venue serving theater, concerts, and corporate events? | Hybrid rig |
What to check when buying professional stage lighting equipment
Regardless of which color system you choose, the quality of the fixture's engineering determines whether the spec-sheet performance translates to the stage. Here are the key criteria to verify before purchasing:
LED chip quality and binning
For RGBW fixtures, the consistency of the LED chip binning determines how well fixtures match each other across a rig. Tightly binned, matched LEDs are essential for seamless side-by-side washes. Ask manufacturers for their binning tolerance specification — it should be within ±1 MacAdam ellipse for professional-grade fixtures.
CMY filter response curve
For CMY fixtures, the linearity of the filter's color response across its travel range determines how smooth your color fades will be on camera. Cheaper CMY mechanisms can produce visible "steps" in the color transition. Request a filter response curve from the manufacturer before specifying for broadcast applications.
CRI and TLCI ratings
Color Rendering Index (CRI) and Television Lighting Consistency Index (TLCI) are the standard metrics for evaluating how accurately a light source renders color on skin and on camera. For broadcast, specify TLCI above 85. For theatrical applications, CRI above 90 is the accepted minimum.
Dimming performance
Both RGBW and CMY systems should support 16-bit DMX dimming. For RGBW, also verify that dimming to low levels doesn't produce color shift — a common quality-control failure point in lower-grade LED fixtures.
|
Why VanRay fixtures pass the specification test: Every VanRay RGBW fixture uses tightly binned, matched LED chips with published binning tolerances. Our CMY moving heads ship with factory-measured filter response curves. Both product lines carry CRI 90+ ratings and support flicker-free 16-bit DMX dimming—the full standard required for broadcast and premium theatrical applications. Full technical documentation available on request at VANRAY. |
Frequently asked questions
|
Not sure which system is right for your project? VanRay Lighting's technical team works with lighting designers, production managers, and procurement teams to specify the right professional stage lighting equipment for each application — whether that's a full RGBW rig, a CMY moving head package, or a hybrid system. We provide fixture schedules, technical data sheets, and energy load calculations at no charge for qualifying projects. |
